Automatic Transmission Shift Lock Control Component Views

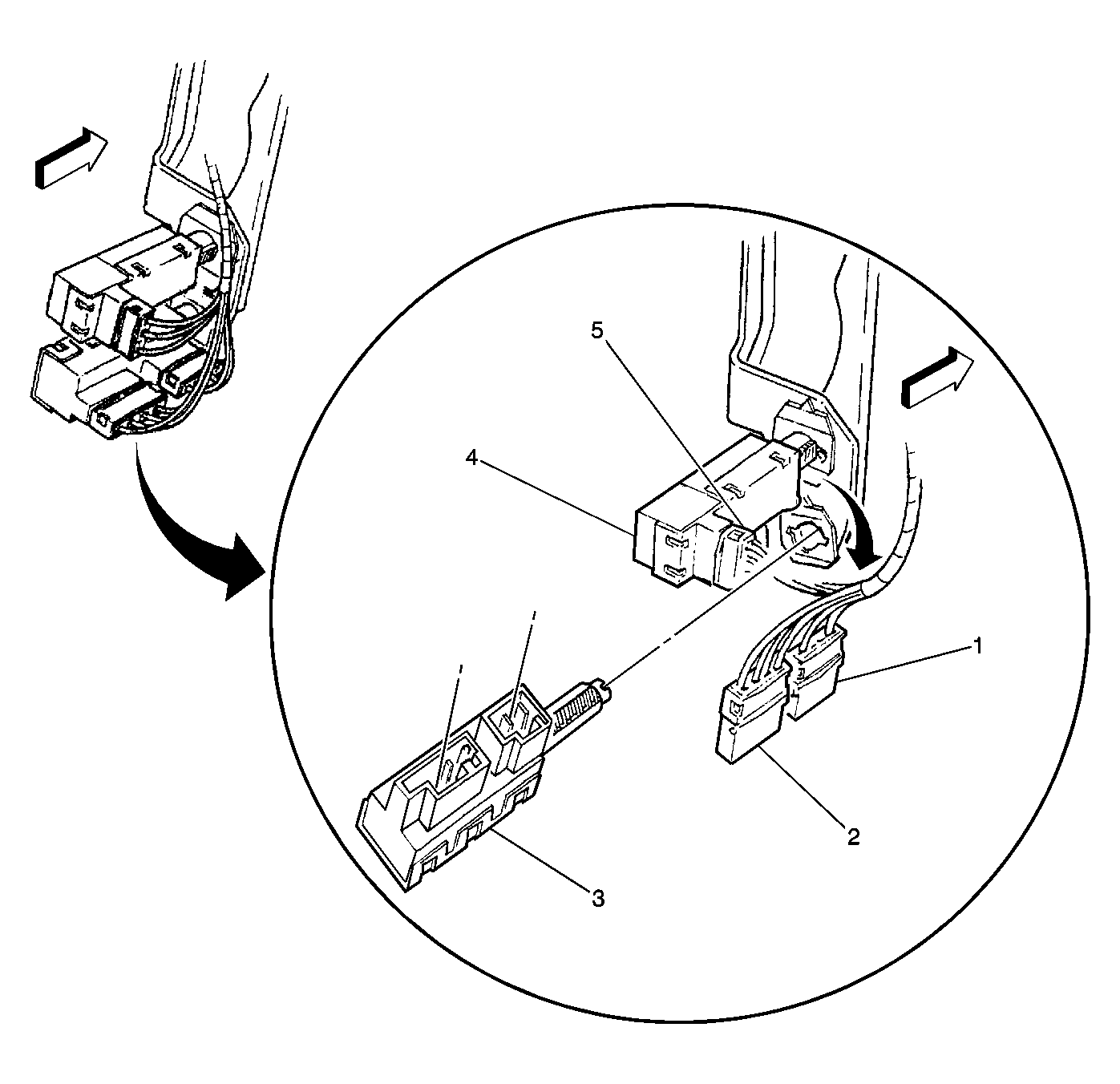

Fig 1: Stop Lamp/AT Shift Lock Control Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp/AT Shift Lock Control Switch, C1
2	Stop Lamp/AT Shift Lock Control Switch, C2
3	Stop Lamp/AT Shift Lock Control Switch
4	Stop Lamp Switch
5	Stop Lamp Switch Connector
