Keyless Entry Component Views

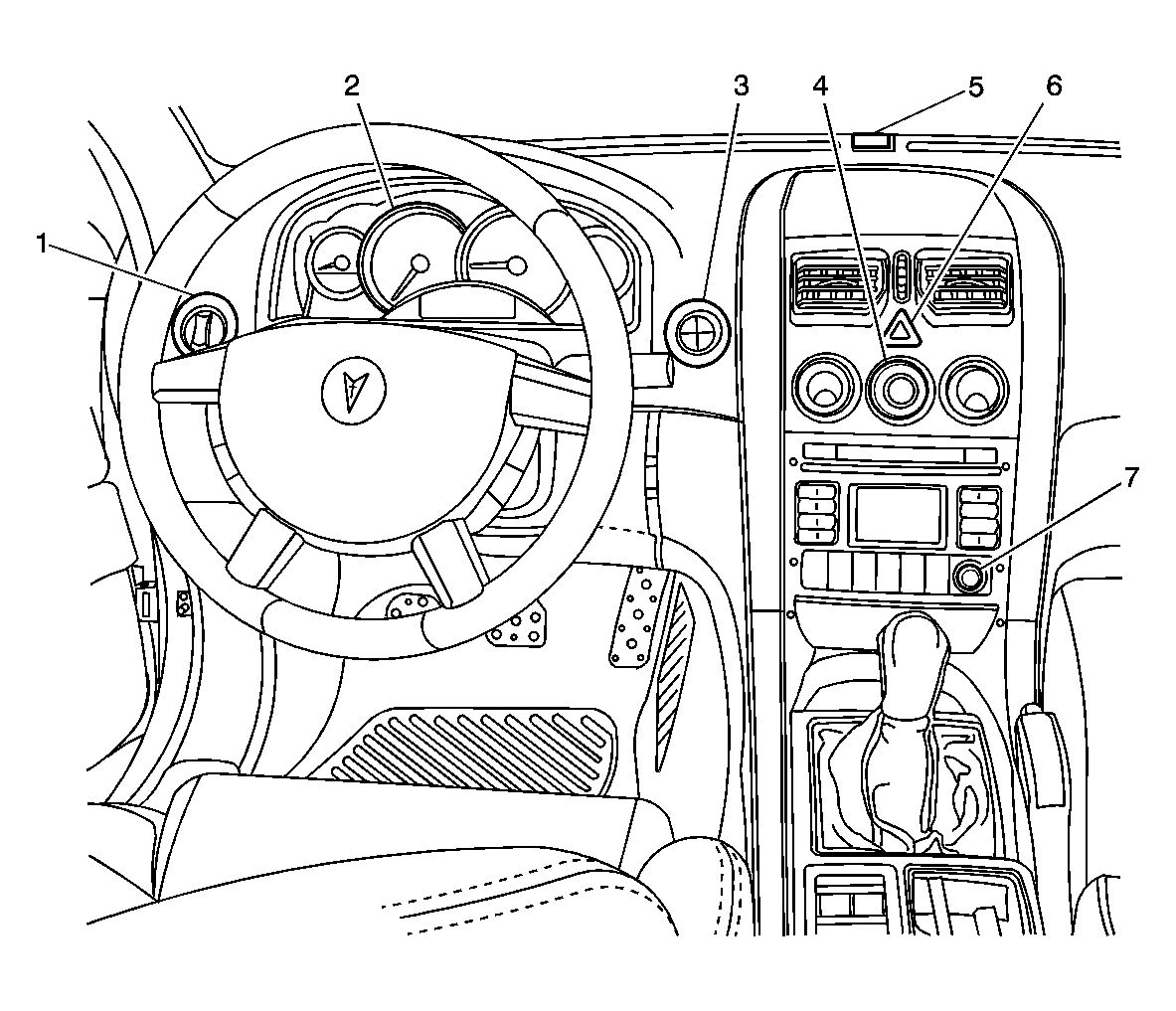

Fig 1: Instrument Panel Switch Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp and Fog Lamp Switch
2	Instrument Panel Cluster
3	Trip Computer Switch
4	HVAC Control Assembly
5	Keyless Entry Receiver/Automatic Light Control Sensor
6	Hazard Lamp Switch
