Installation Procedure

  1. Connect the wiring connector (2) to the DRL control module (1).
  2. Install the DRL control module (1) to the instrument panel.
  3. Install the instrument panel defroster grilles. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.

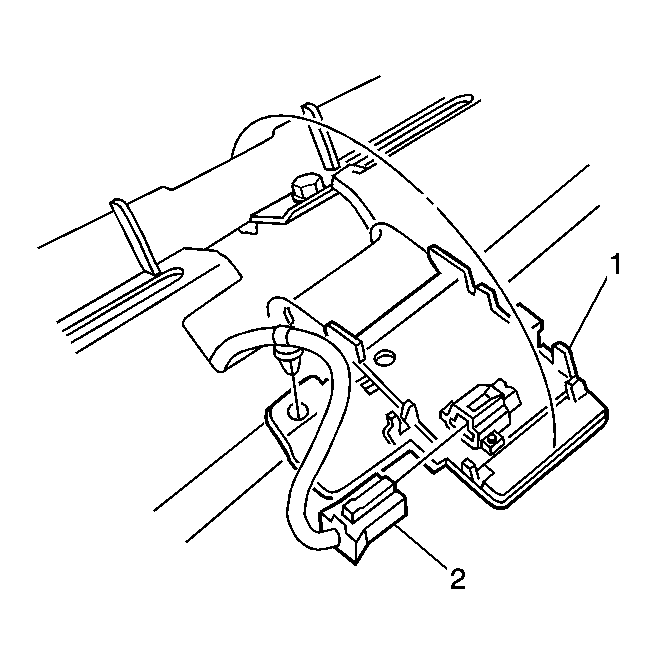

    4. Fig 1: View Of DRL Control Module & Wiring Connector
    GM1361124Courtesy of GENERAL MOTORS CORP.
