Keyless Entry Schematics

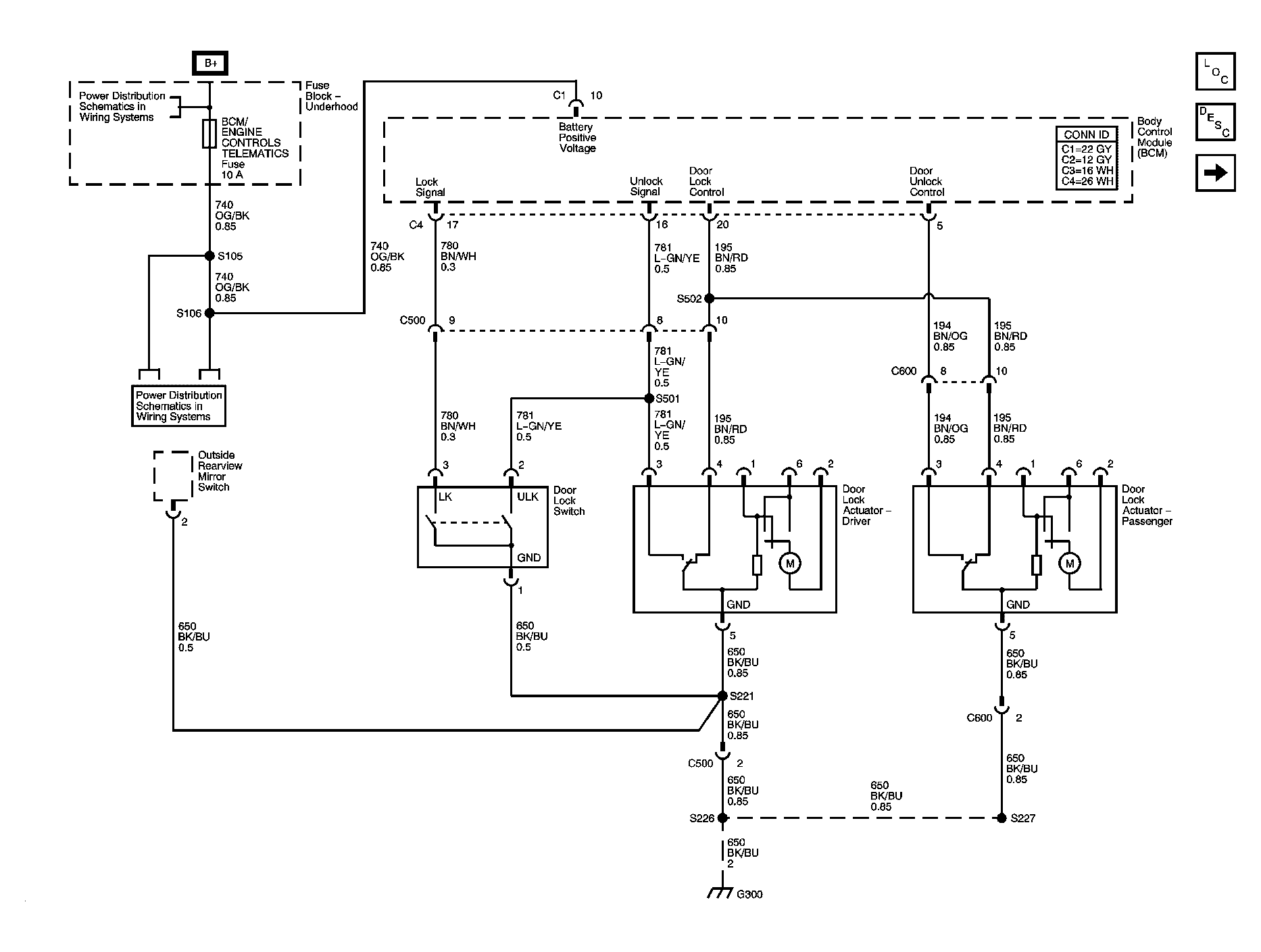

Fig 1: Door Lock Switch, Body Control Module (BCM), Door Lock Actuators Schematic
GM1357144Courtesy of GENERAL MOTORS CORP.

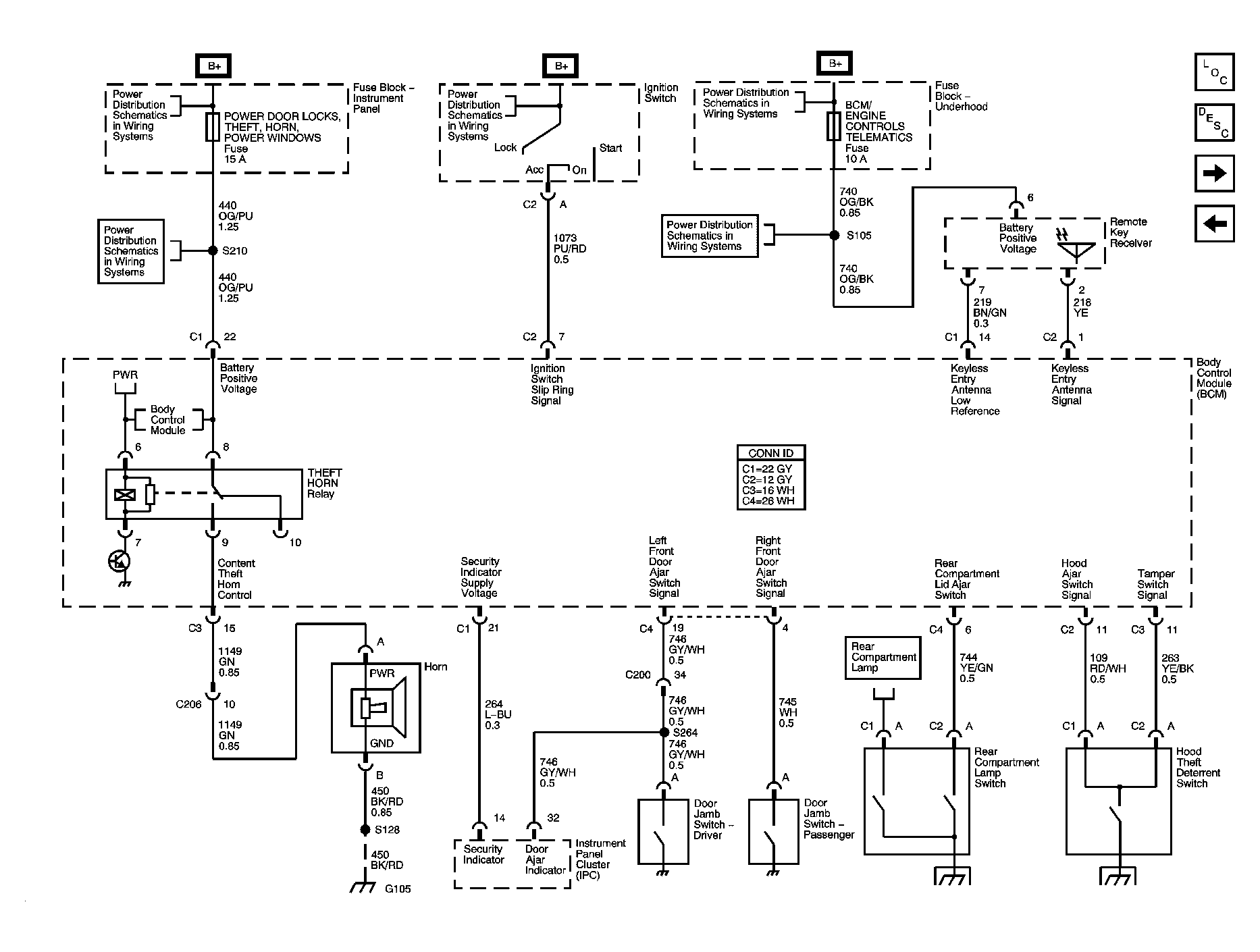

Fig 2: Theft/Horn Relay, Rear Compartment Lamp Switch, Hood Theft Deterrent Switch, BCM Schematic
GM1361093Courtesy of GENERAL MOTORS CORP.

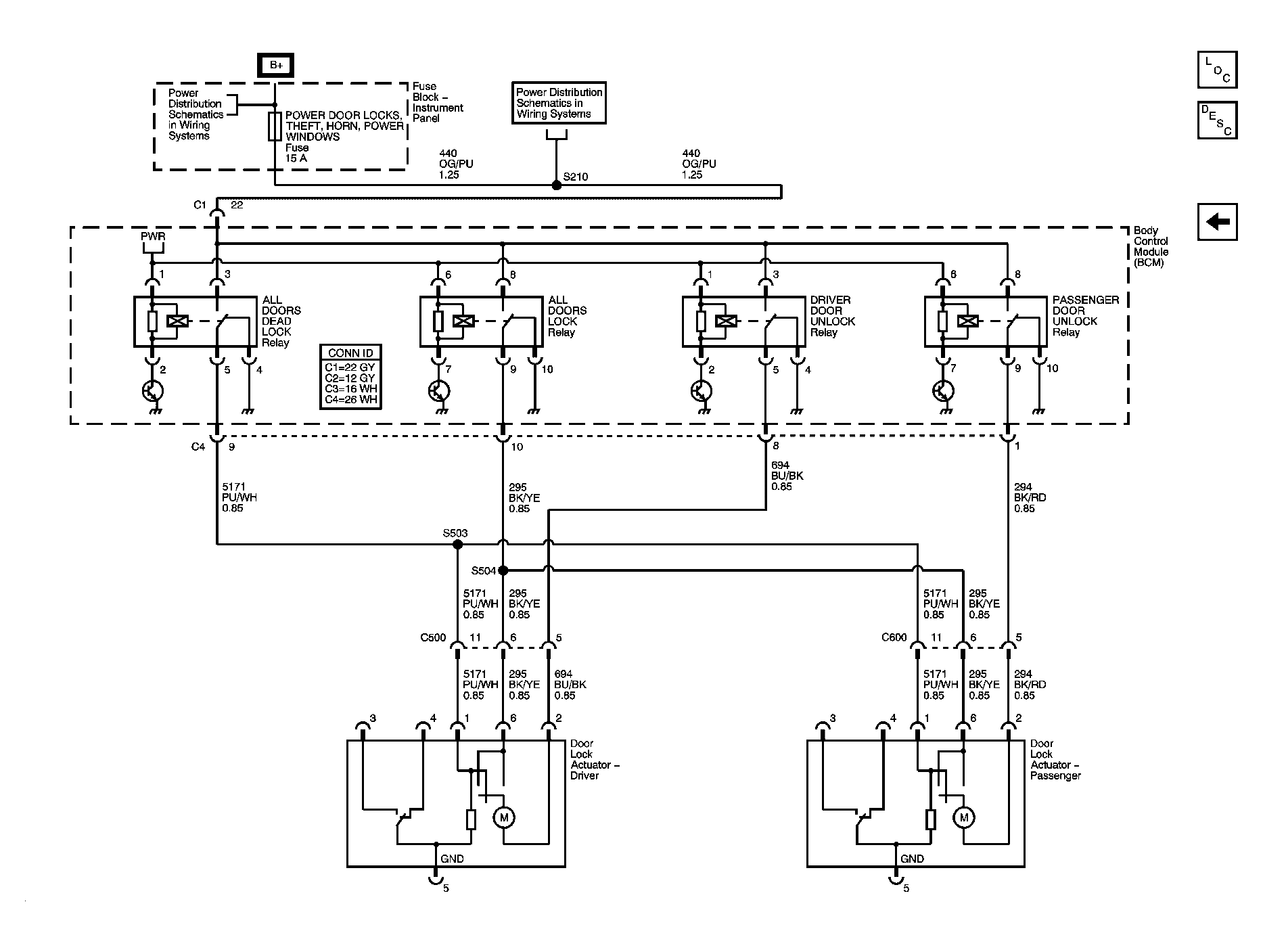

Fig 3: Door Lock Relays, Body Control Module (BCM), Door Lock Actuators Schematic
GM1357145Courtesy of GENERAL MOTORS CORP.
