Home >> Pontiac >> 2004 >> GTO Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Power Window Switch Replacement >> Installation Procedure

Installation Procedure

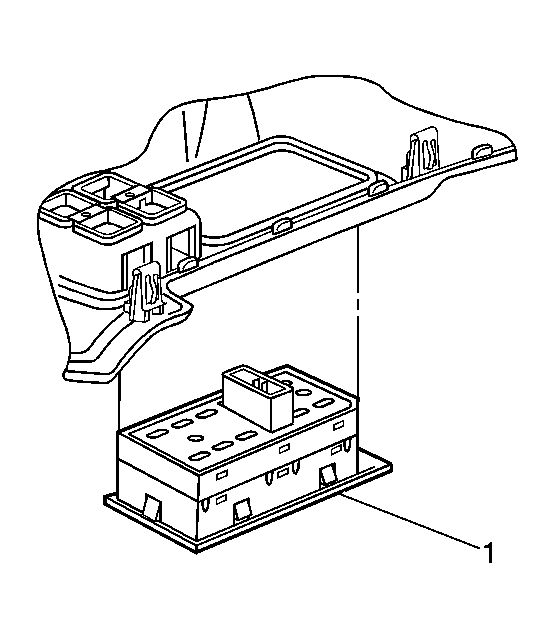

    Fig 1: View Of Power Window Switch
    GM1356021Courtesy of GENERAL MOTORS CORP.
  1. Install the power window switch (1) to the console trim plate, making sure the 6 retaining tabs are engaged.
  2. Install the console trim plate. Refer to Trim Plate Replacement - Console in Instrument Panel, Gages, and Console.
