Removal Procedure

  1. Remove the Brake Pressure Modulator Valve (BPMV). Refer to Brake Pressure Modulator Valve (BPMV) Replacement .
    2. Fig 1: View Of EBCM, BPMV Motor Wiring Connector & Retainer
    GM1356923Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the BPMV motor wiring connector (2) from the electronic brake control module (1) (EBCM).
  3. Remove the wiring from the retainer (3) on the EBCM.

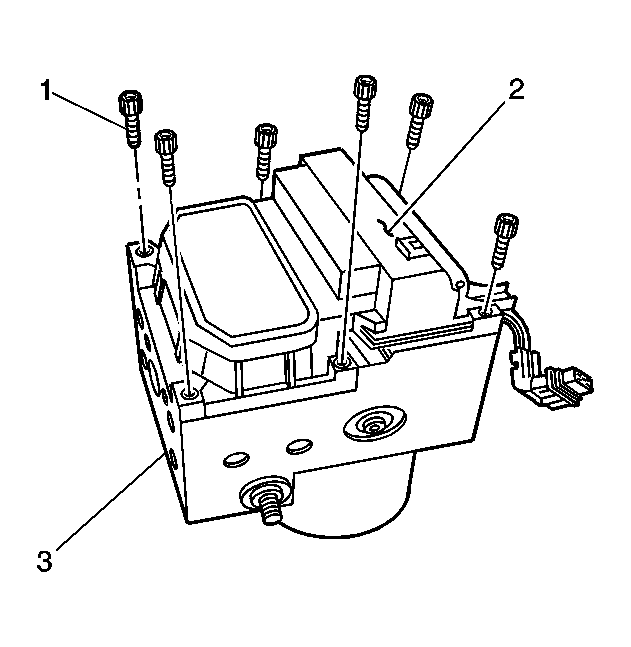

    4. Fig 2: View Of EBCM, BPMV & Bolts
    GM1310268Courtesy of GENERAL MOTORS CORP.
  4. Remove 6 bolts (1) from the EBCM (2) and remove the EBCM from the BPMV (3).
