Installation Procedure

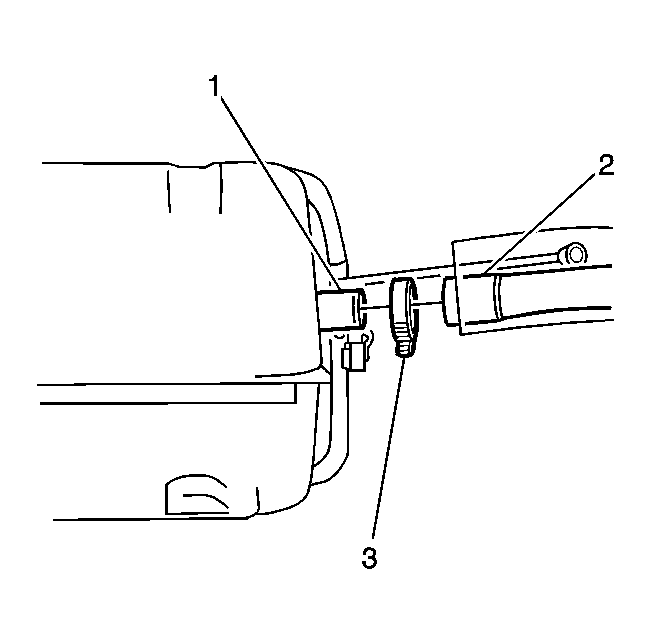

    Fig 1: View Of Fuel Tank Filler Neck Throat & Hose
    GM1372273Courtesy of GENERAL MOTORS CORP.
  1. Install the filler neck hose (2) on the fuel tank filler neck throat (1)
  2. Install the fuel tank filler neck throat to fuel filler neck flexible hose hose-clamp (3).
  3. Install the fuel tank assembly. Refer to Fuel Tank Replacement .
