Home >> Pontiac >> 2004 >> Sunfire Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Power Window Switch Replacement >> Installation Procedure

Installation Procedure

  1. Install the power window switch (2) into the power window switch bezel (1) until fully seated.

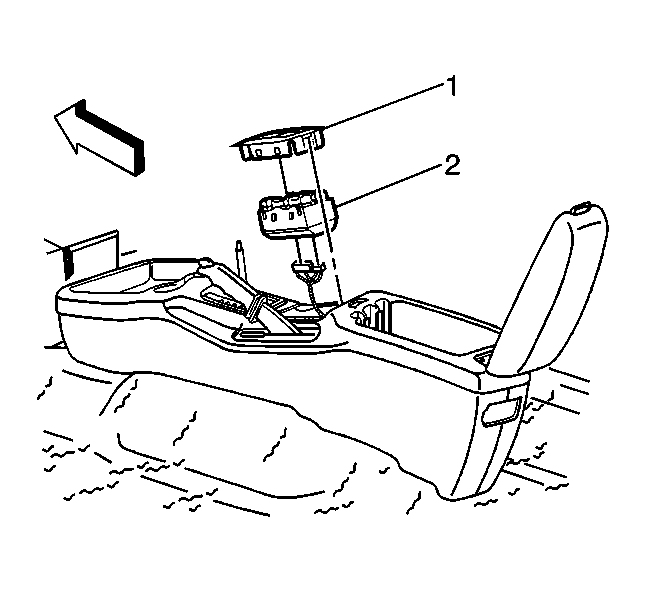

    Fig 1: Installing Power Window Switch
    GM581865Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the power window switch (2).
  3. Install the power window switch bezel (1) to the floor console.
