Installation Procedure

  1. Install the generator.

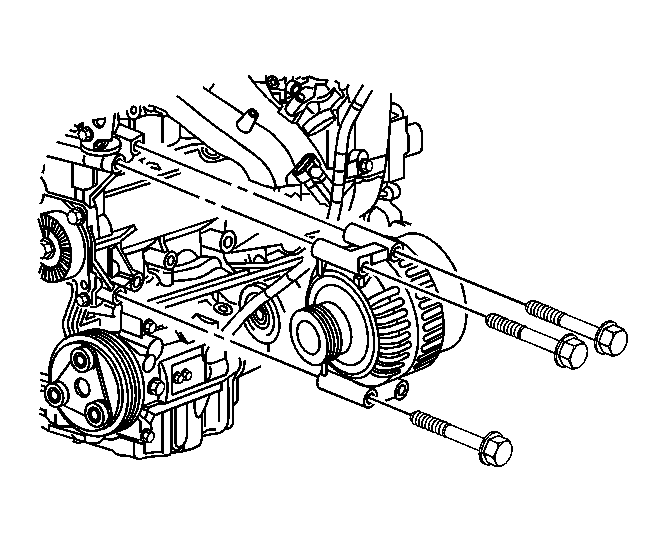

    Fig 1: Identifying Generator Bolts
    GM758471Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the generator bolts.

    Tighten:  Tighten the generator bolts to 20 N.m (15 lb ft).

  3. Connect the generator electrical connectors.

    Tighten:  Tighten the generator electrical connector to 17 N.m (13 lb ft).

  4. Install the drive belt. Refer to Drive Belt Replacement in Engine Mechanical-2.2L (L61).
  5. Lower the vehicle.
  6. Connect the battery negative cable.
