ABS Component Views
ABS Component Views

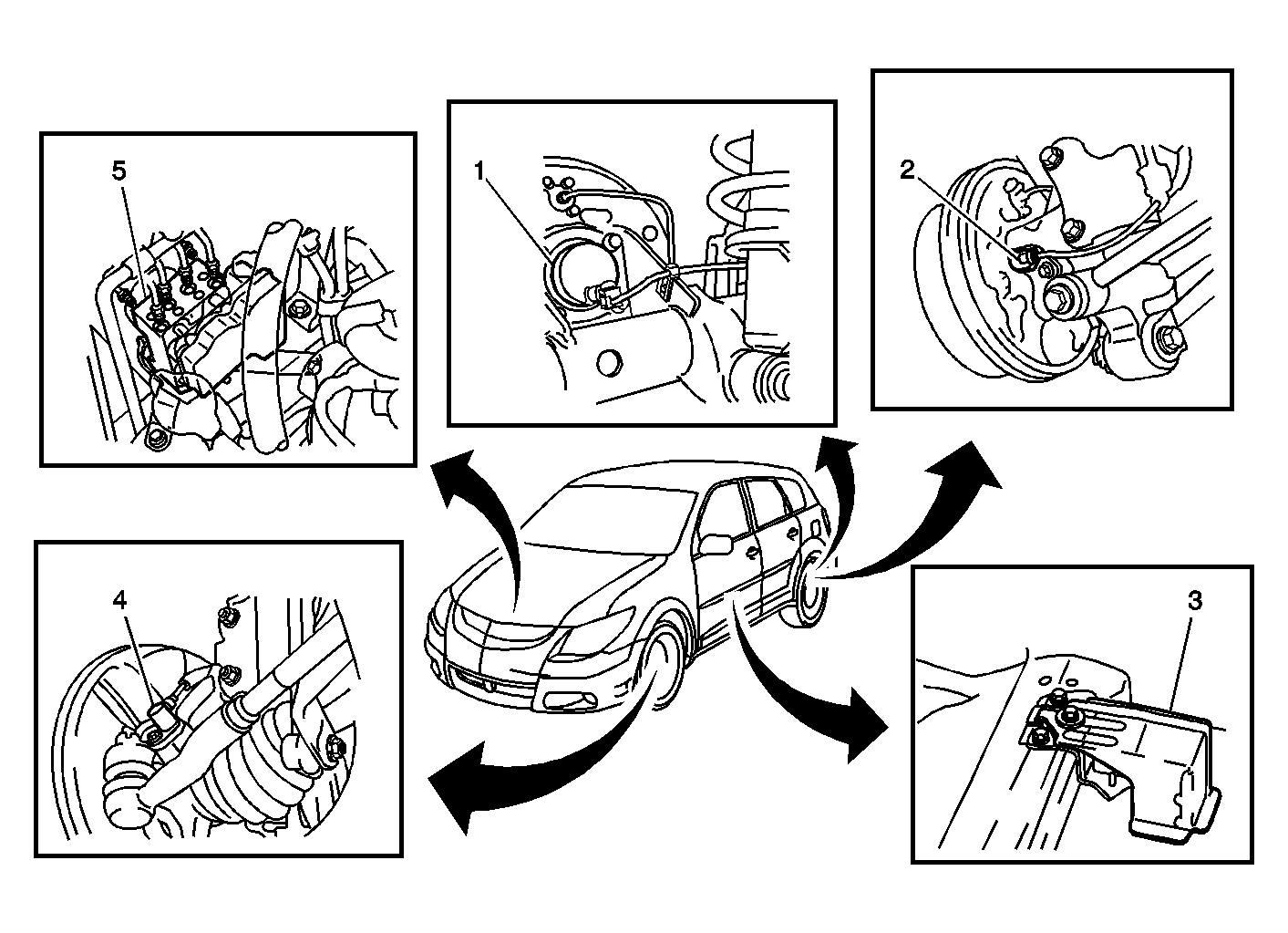

Fig 1: ABS Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Rear Wheel Speed Sensor FWD
2
Rear Wheel Speed Sensor AWD
3
Deceleration Sensor AWD
4
Front Wheel Speed Sensor
5
Electronic Brake Control Module (EBCM)/Brake Pressure Modulator Valve (BPMV) Assembly
