Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the brake pressure modulator assembly to the bracket. Secure with 3 nuts.

    Tighten:  Tighten the brake modulator assembly nuts to 5 N.m (42 lb in).

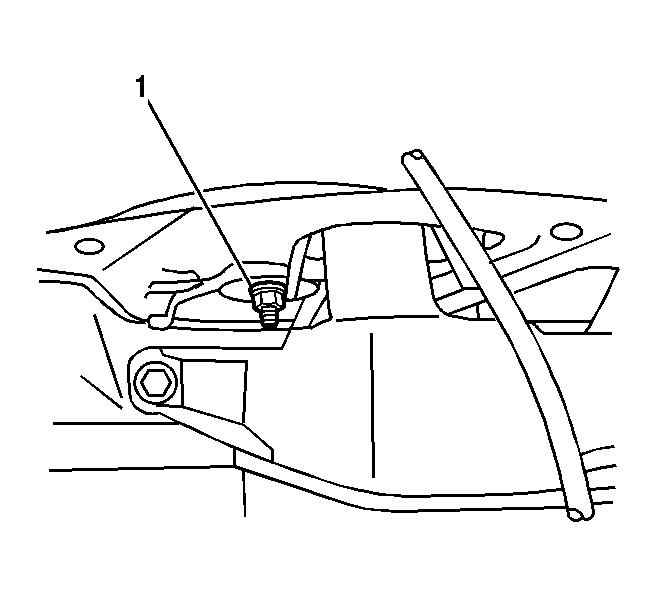

    2. Fig 1: Brake Modulator Nut
    GM819497Courtesy of GENERAL MOTORS CORP.
  2. Install the brake pressure modulator assembly and bracket. Secure with nut (1).

    Tighten:  Tighten the brake modulator bracket nut to 19 N.m (14 lb ft).

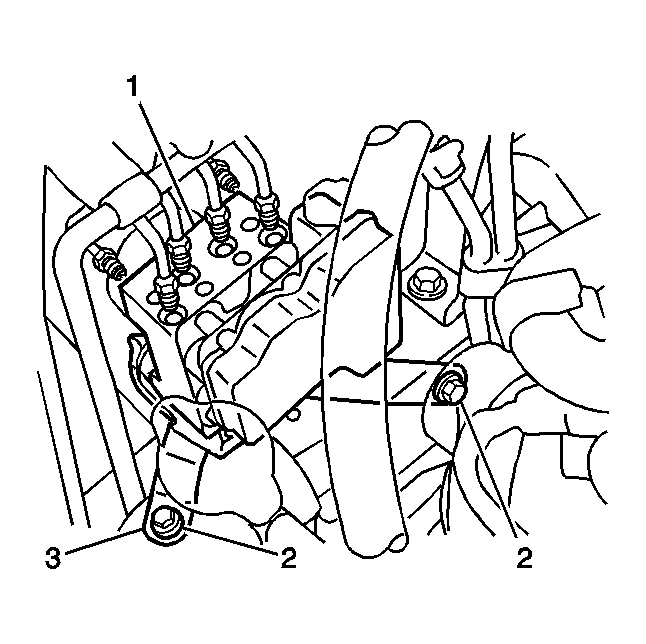

    3. Fig 2: Brake Modulator Assembly, Modulator Bracket And Bolts
    GM819496Courtesy of GENERAL MOTORS CORP.
  3. Install 2 bolts (2) to the brake pressure modulator bracket (3).

    Tighten:  Tighten the brake modulator bracket bolts to 19 N.m (14 lb in).

  4. Remove the plugs from brake pipes and connect the brake pipes to the brake modulator assembly (1).

    Tighten:  Tighten the brake pipe fittings nuts to 15 N.m (11 lb in).

  5. Connect the EBCM electrical connector.
  6. Bleed the brake system. Refer to Hydraulic Brake System Bleeding in Hydraulic Brakes.
  7. Perform Diagnostic System Check - ABS .
