Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 2: Right Side Of HVAC
Courtesy of GENERAL MOTORS CORP.
Fig 3: Right Side Of HVAC
Courtesy of GENERAL MOTORS CORP.
Fig 4: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

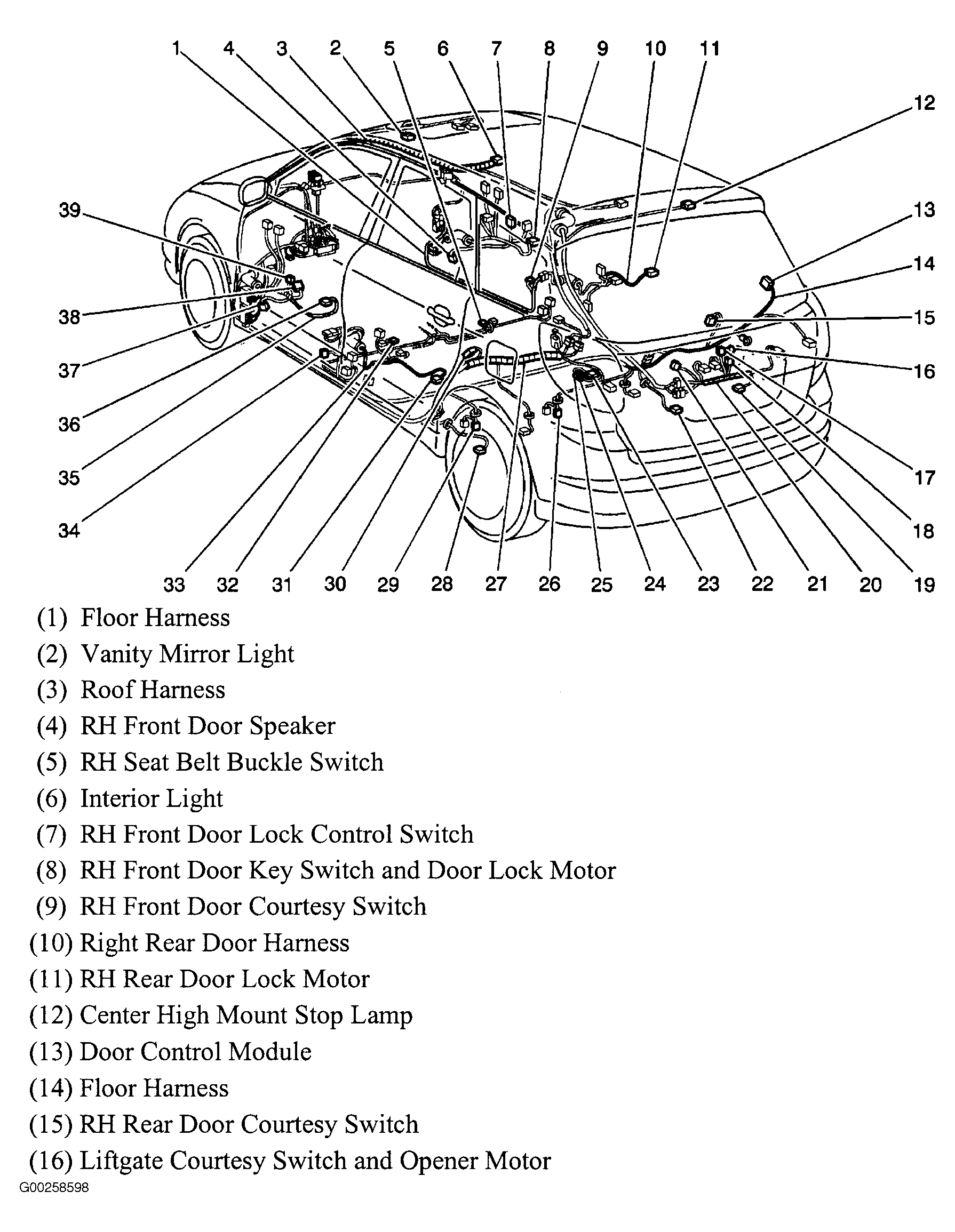

Fig 5: Keyless Entry Component Locations
Courtesy of GENERAL MOTORS CORP.

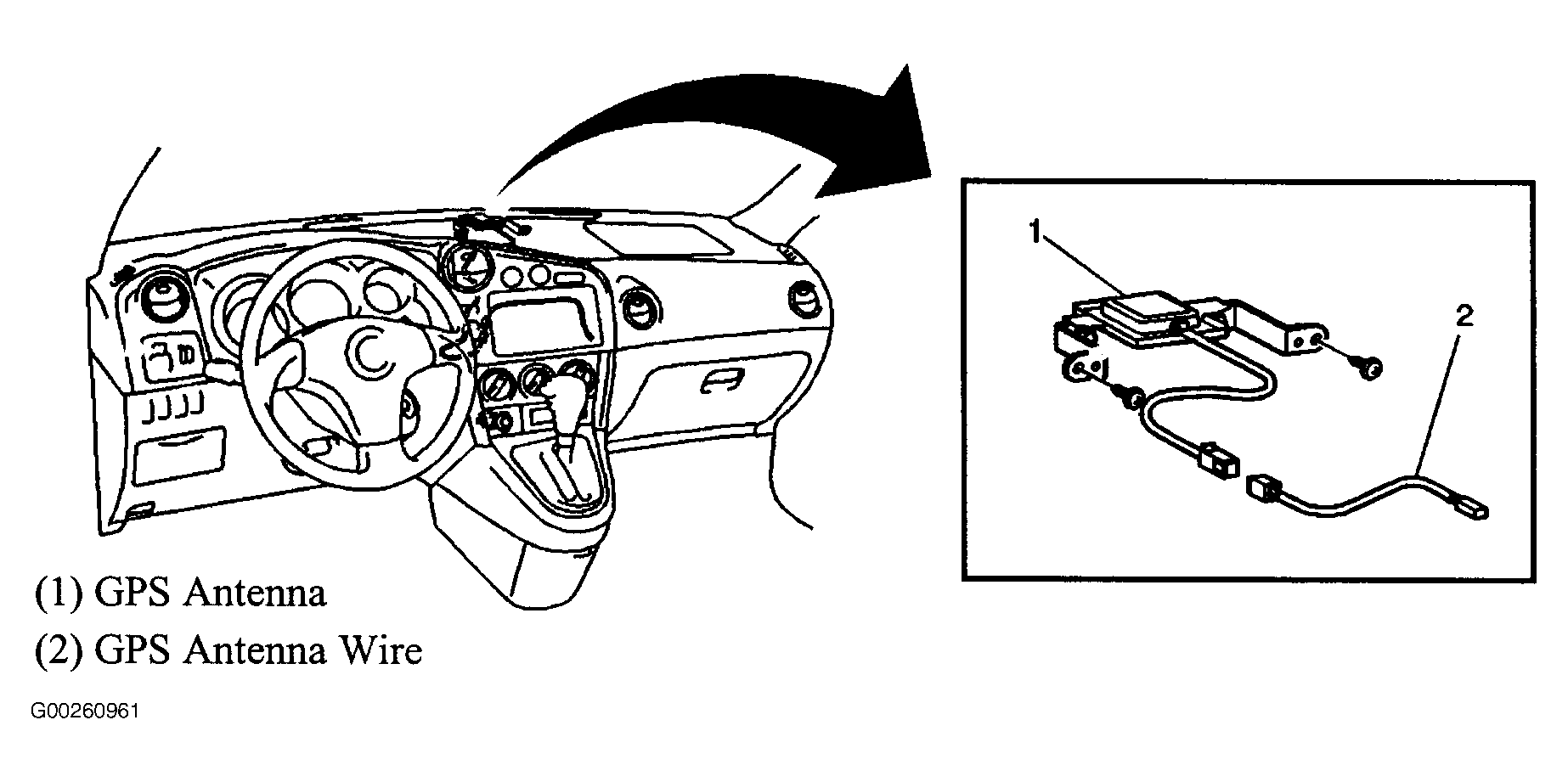

Fig 6: Top Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 7: Under Right Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 8: Theft Deterrent System Component Locations
Courtesy of GENERAL MOTORS CORP.

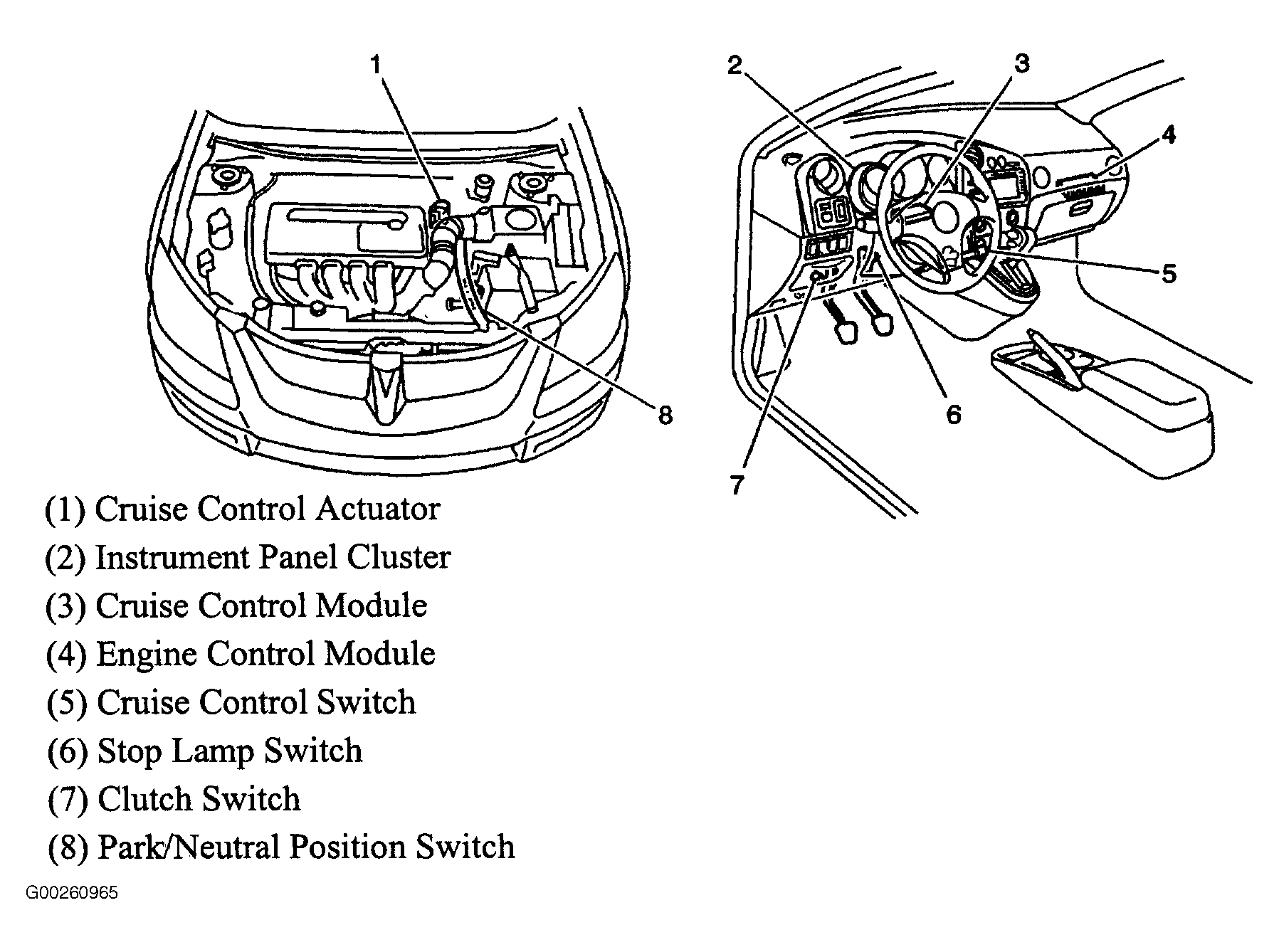

Fig 9: Engine Compartment & Dash
Courtesy of GENERAL MOTORS CORP.

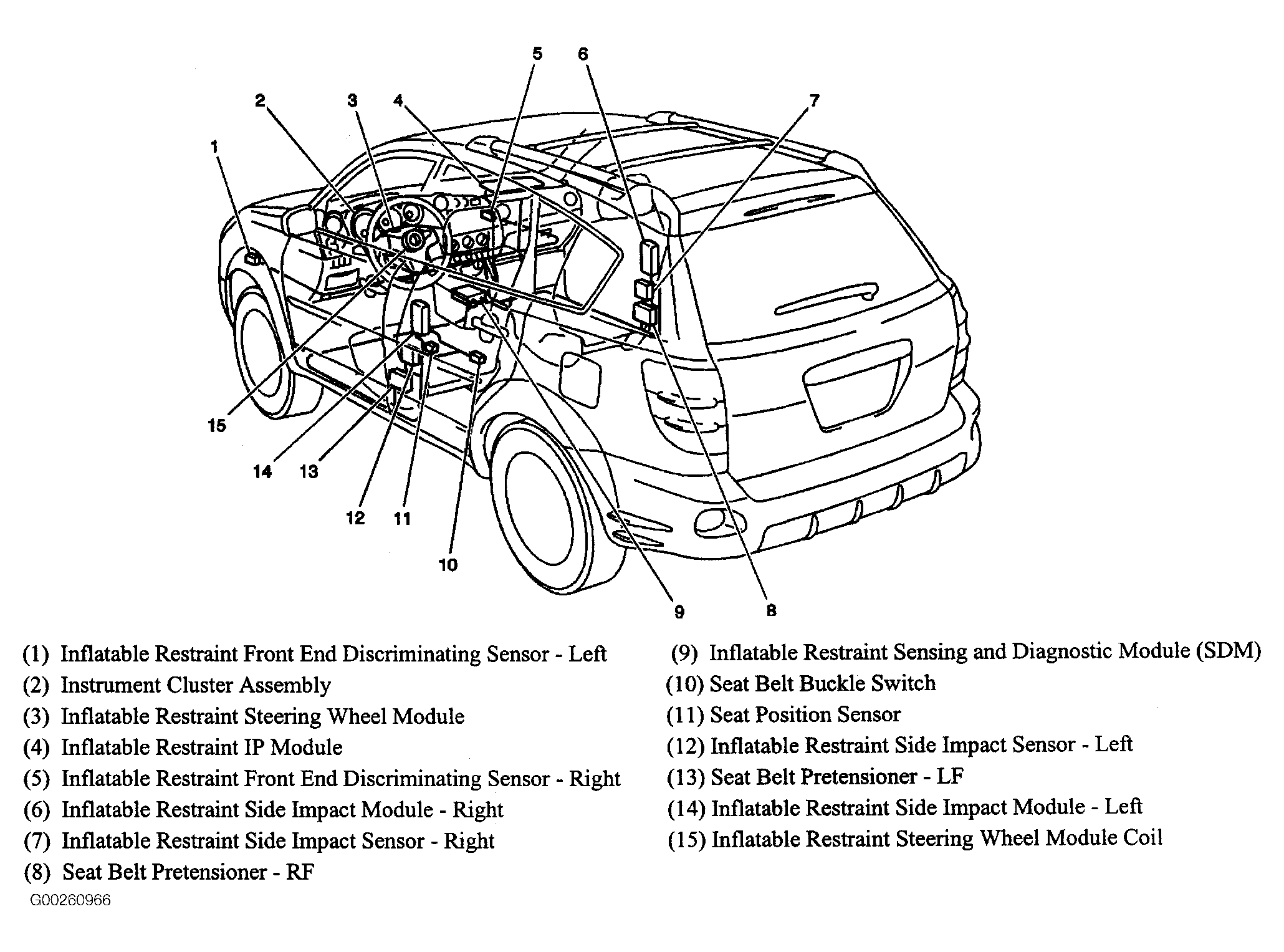

Fig 10: SIR Component Locations
Courtesy of GENERAL MOTORS CORP.

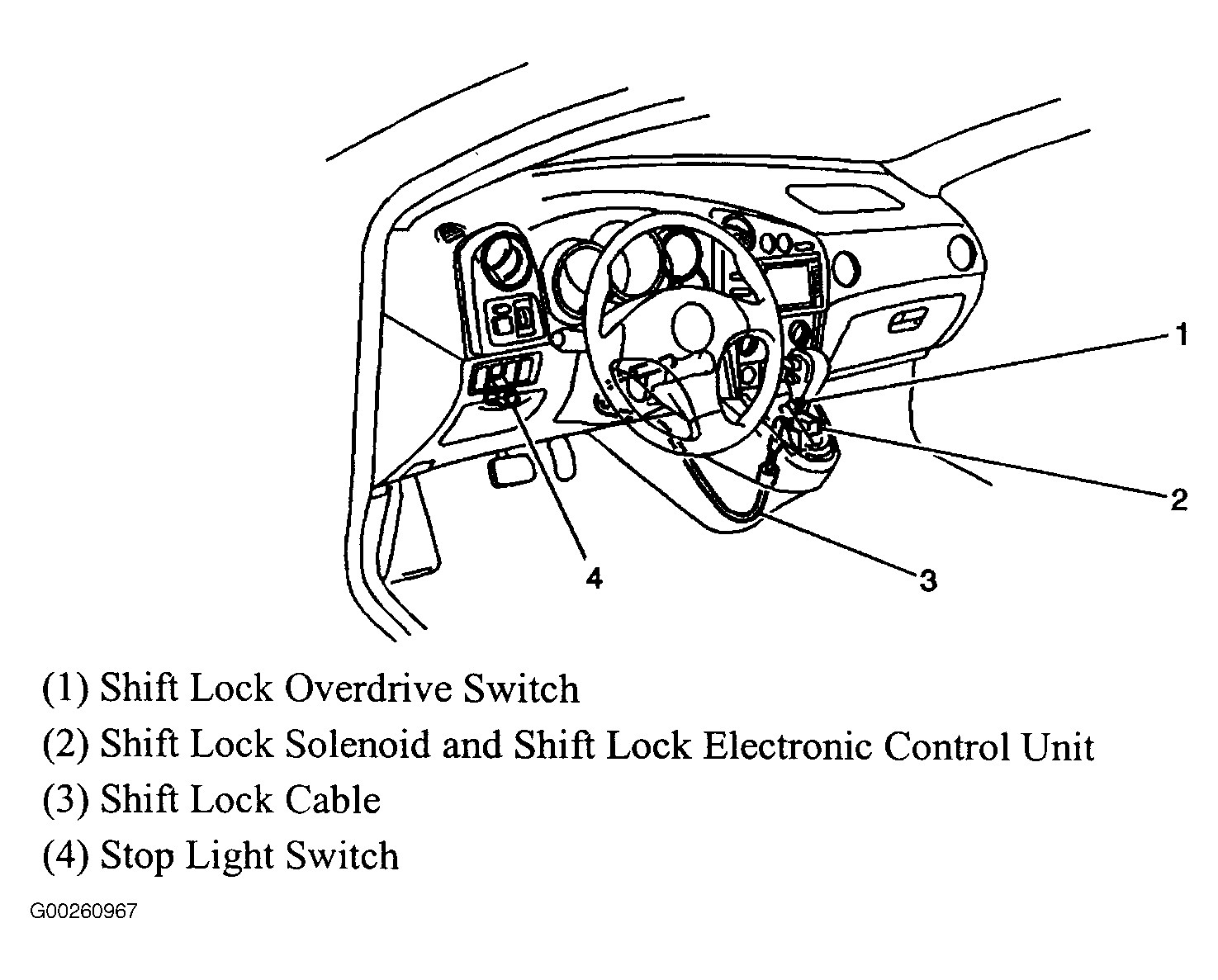

Fig 11: Left Side Of Dash & Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 12: Top Of Manual Transaxle
Courtesy of GENERAL MOTORS CORP.
Fig 13: Top Center Of Manual Transaxle
Courtesy of GENERAL MOTORS CORP.
Fig 14: Under Parking Brake Lever
Courtesy of GENERAL MOTORS CORP.

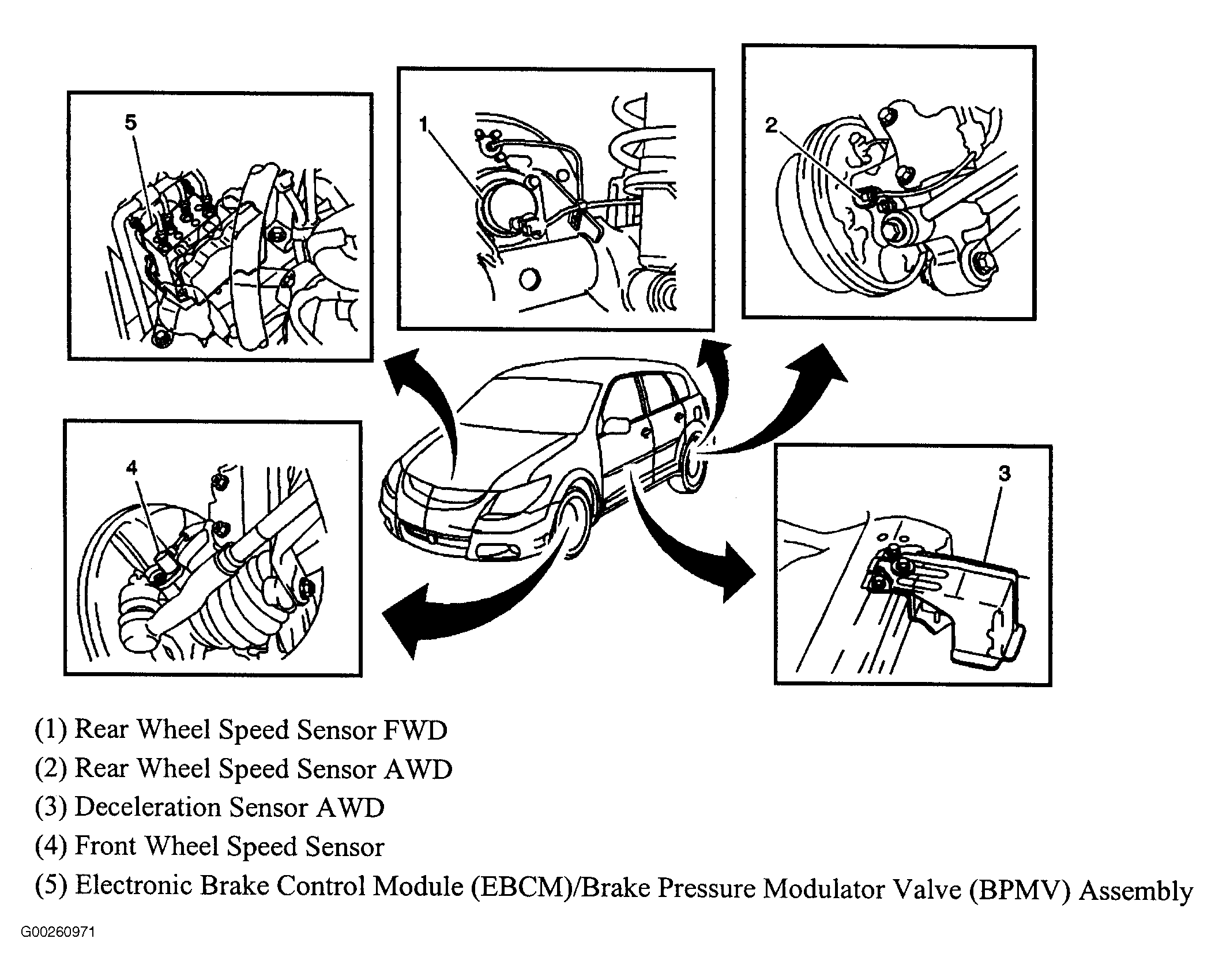

Fig 15: ABS Component Locations
Courtesy of GENERAL MOTORS CORP.

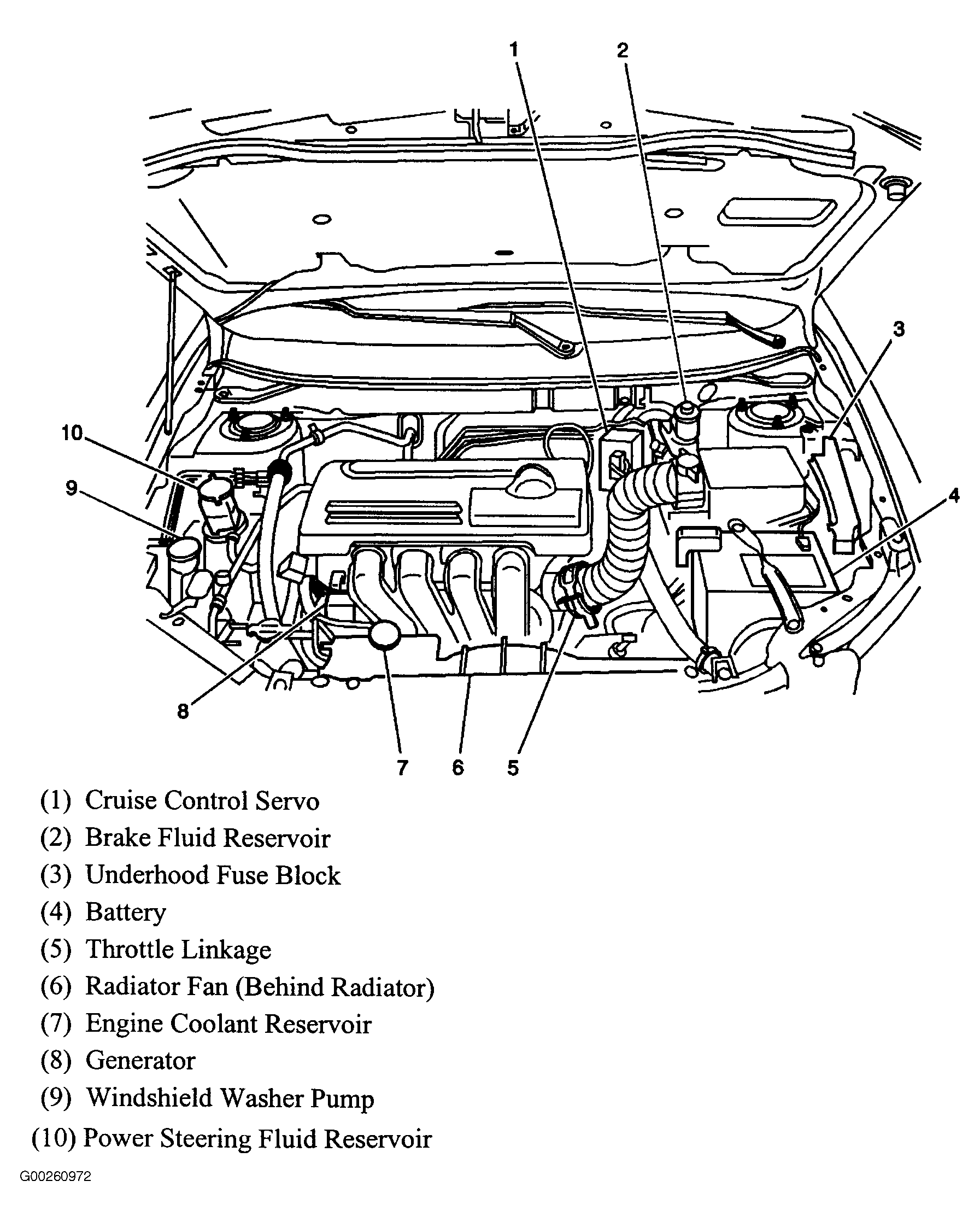

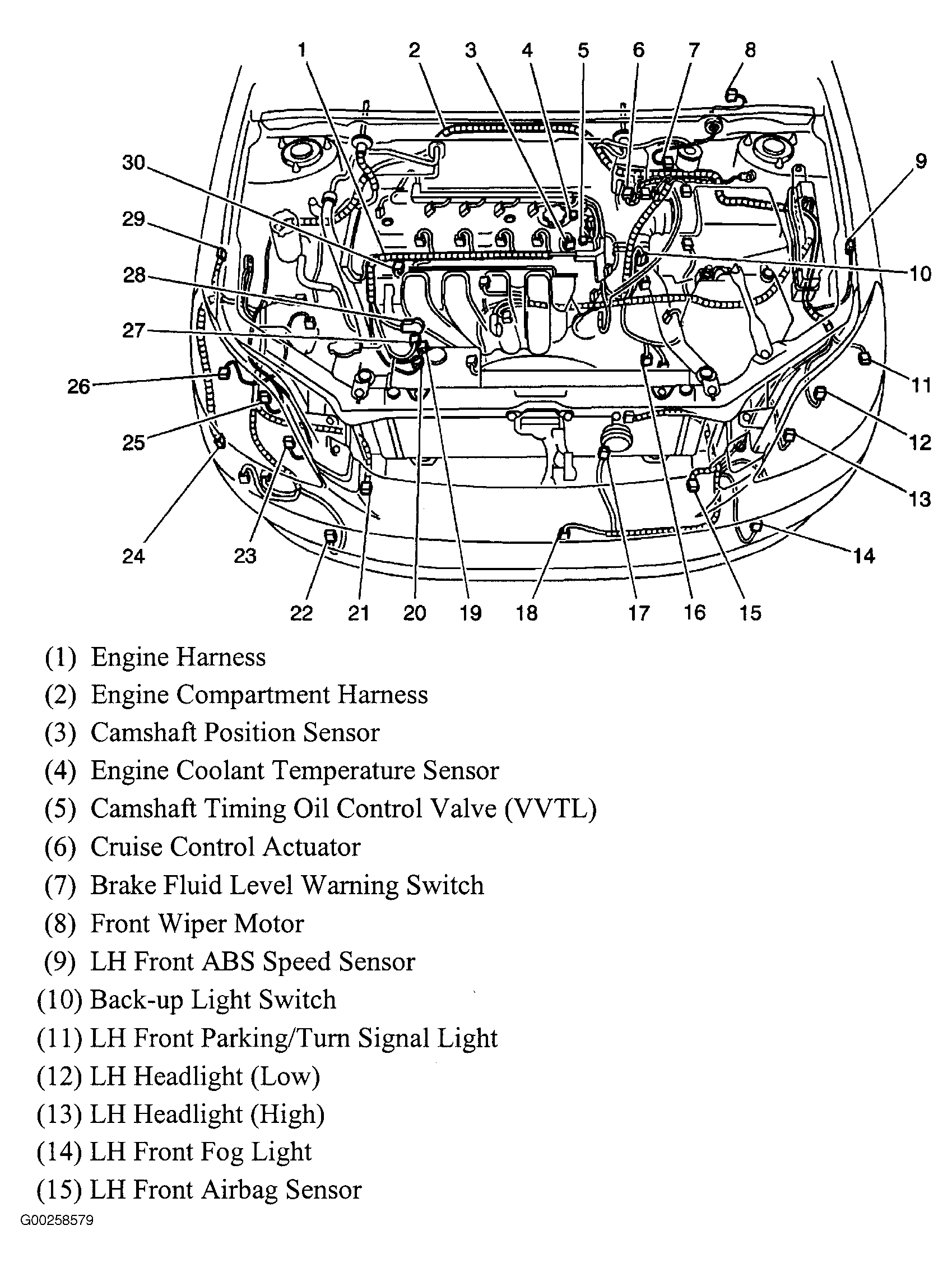

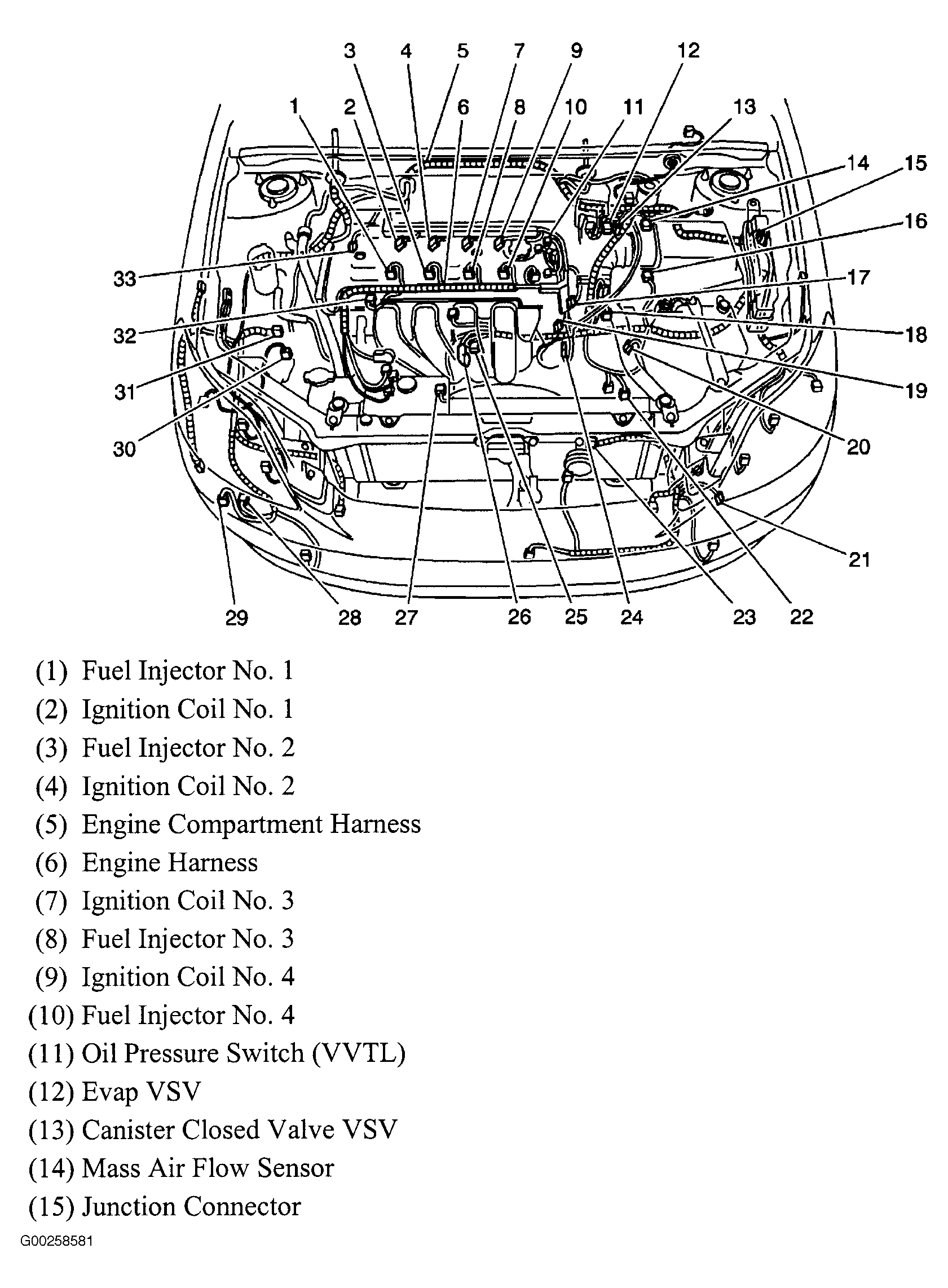

Fig 16: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 17: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 18: Bottom Of Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 19: Top Of Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 20: Right Instrument Panel Junction Block
Courtesy of GENERAL MOTORS CORP.

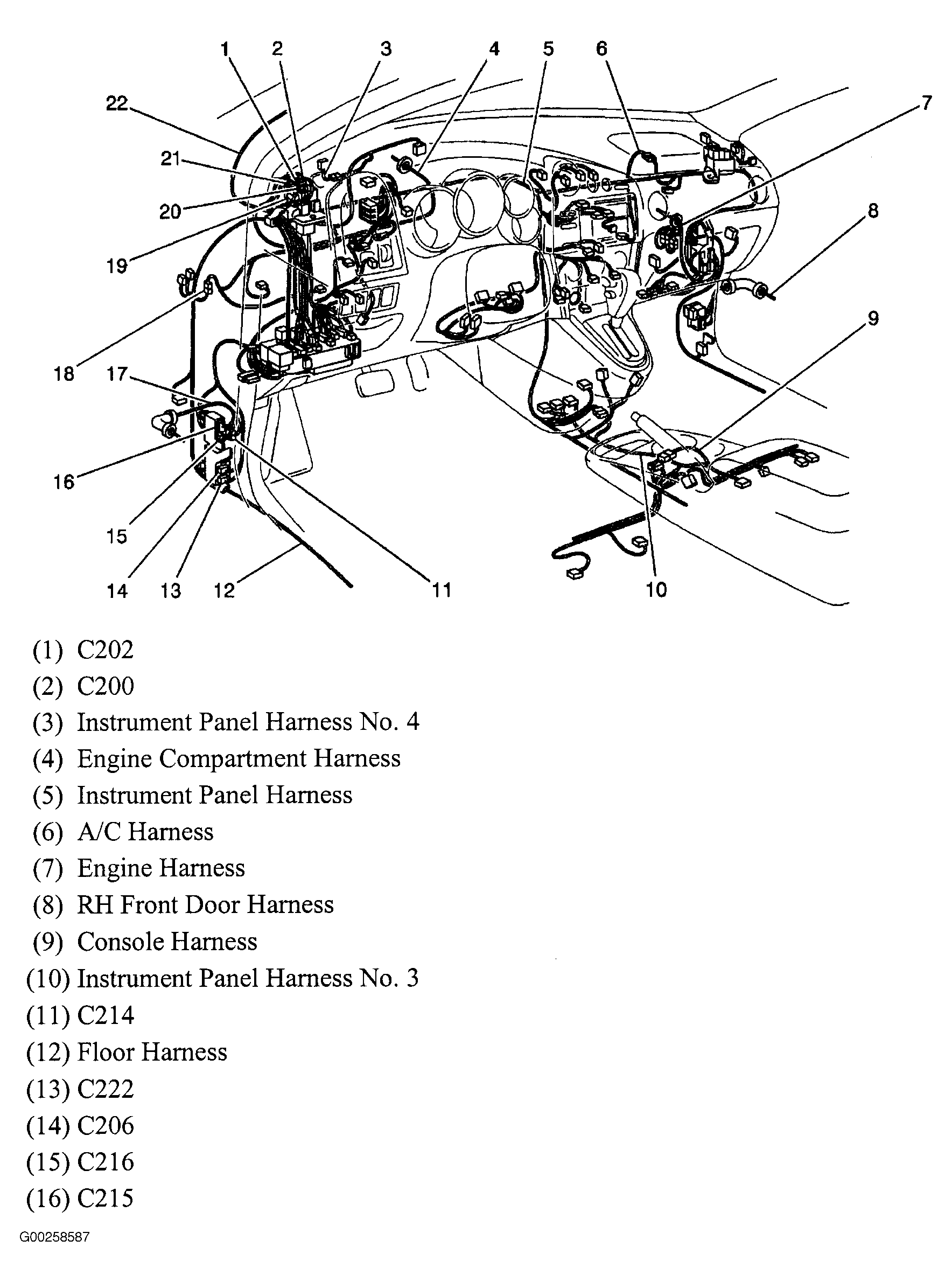

Fig 21: Dash & Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 22: Engine Compartment & Fuel Tank (1.8L LNK)
Courtesy of GENERAL MOTORS CORP.

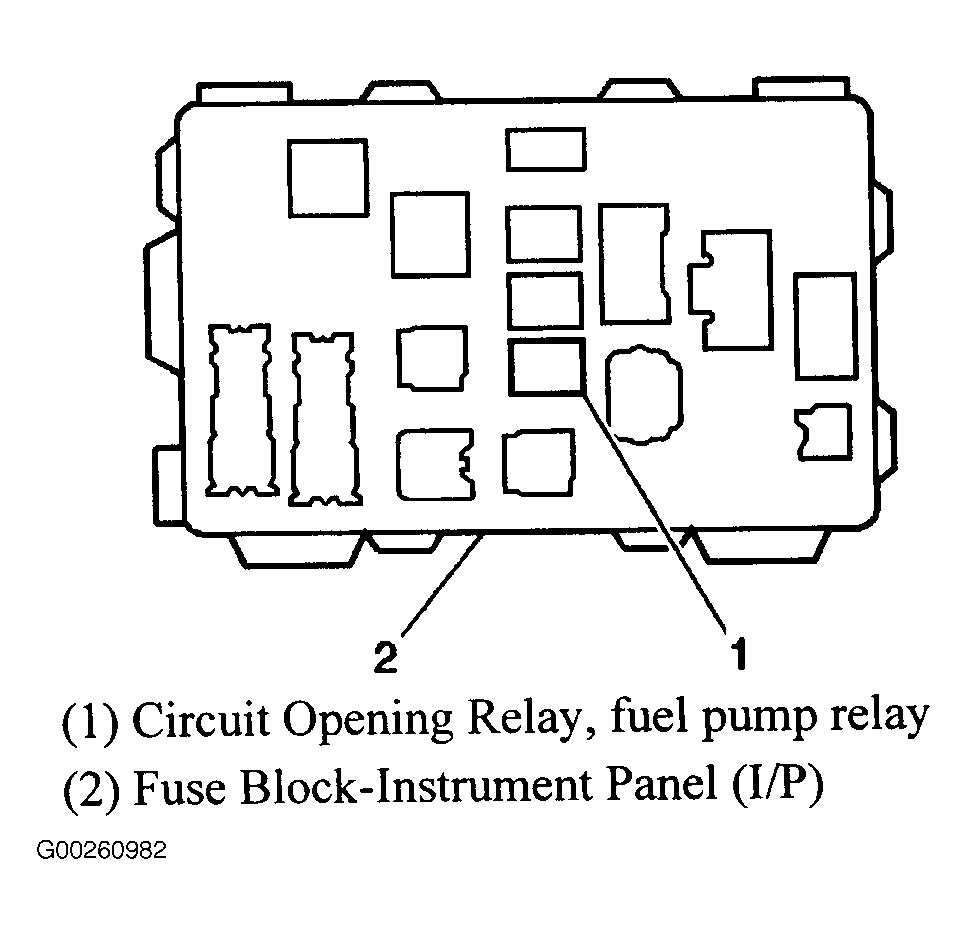

Fig 23: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

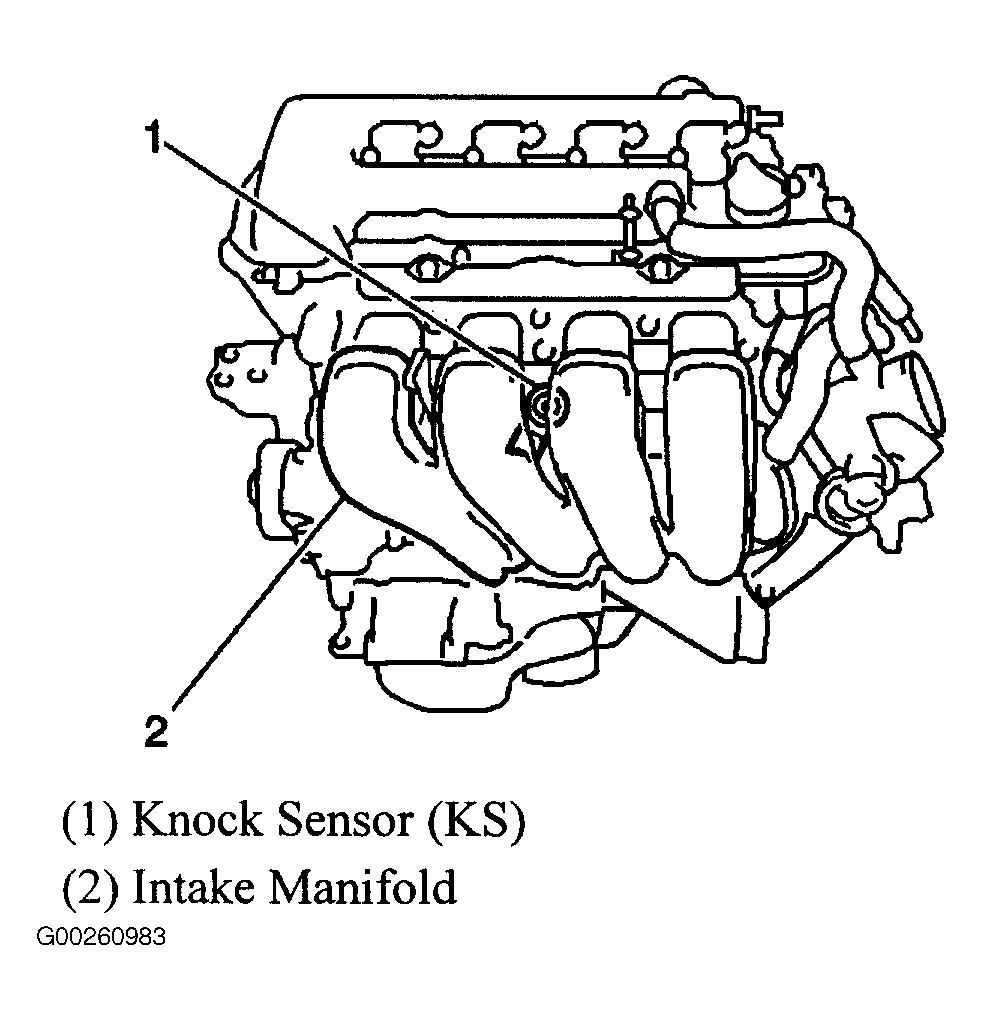

Fig 24: Left Side Of Engine (1.8L LNK)
Courtesy of GENERAL MOTORS CORP.

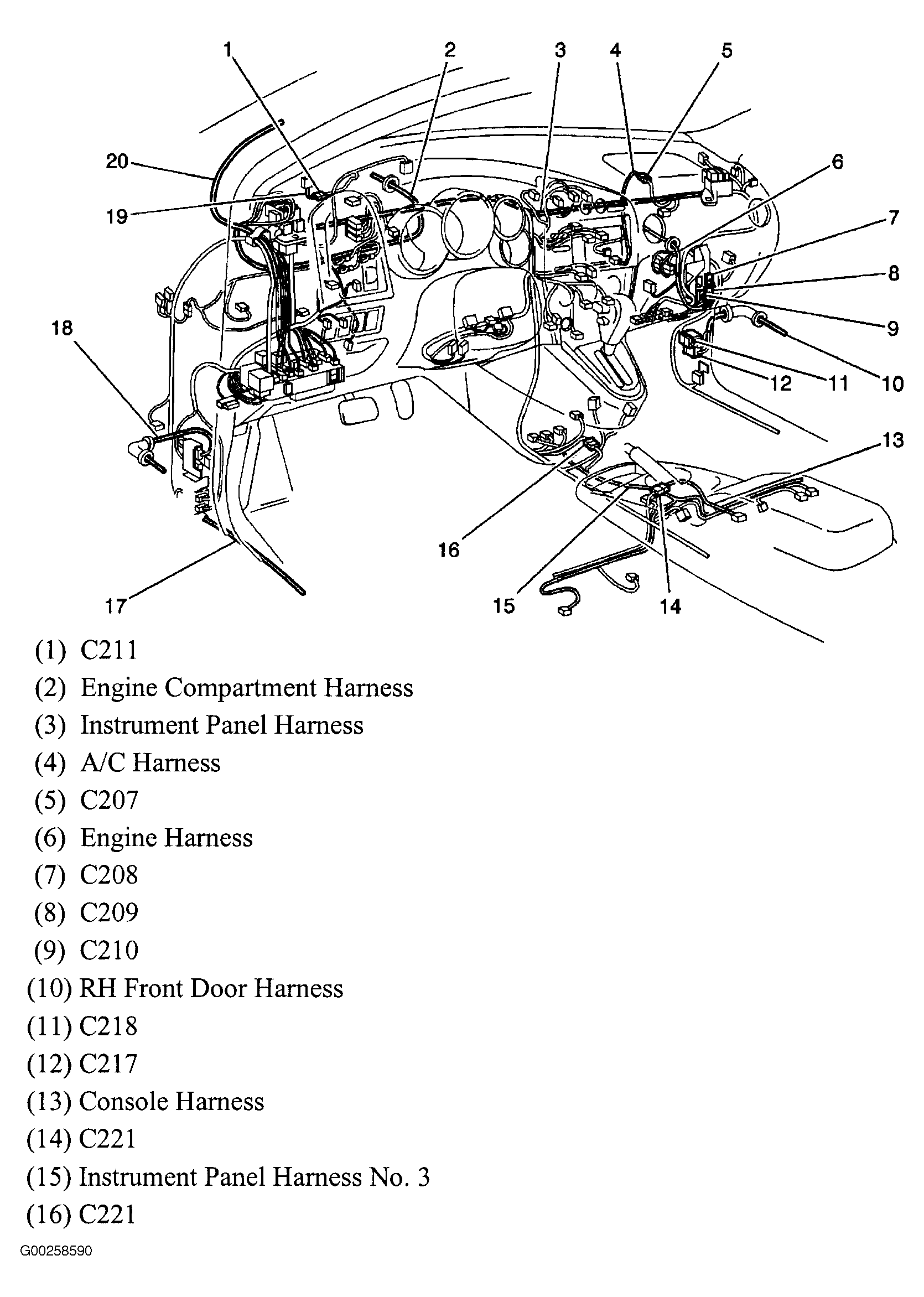

Fig 25: Dash
Courtesy of GENERAL MOTORS CORP.

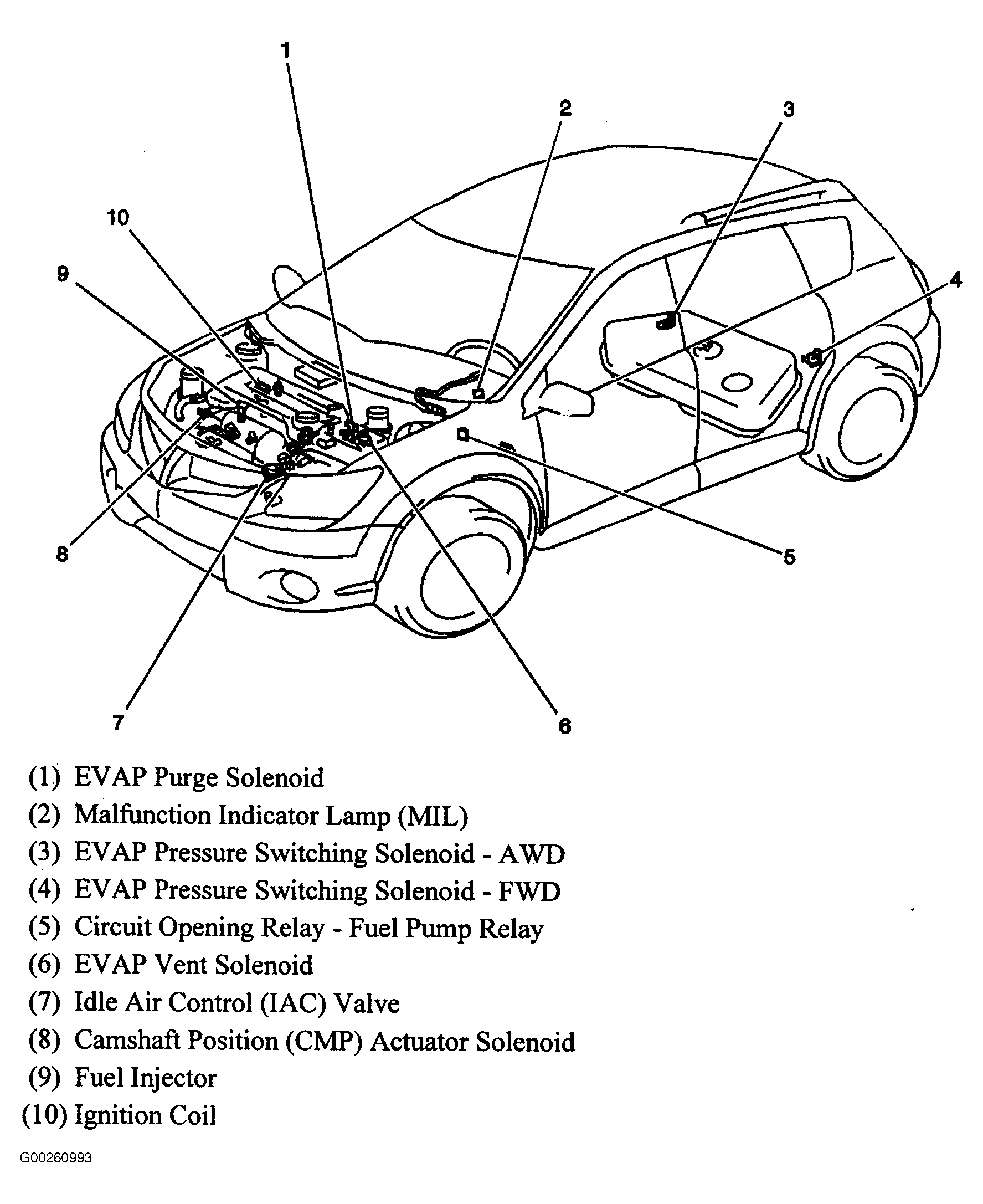

Fig 26: Engine Compartment & Rear Of Vehicle (1.8L LNK)
Courtesy of GENERAL MOTORS CORP.

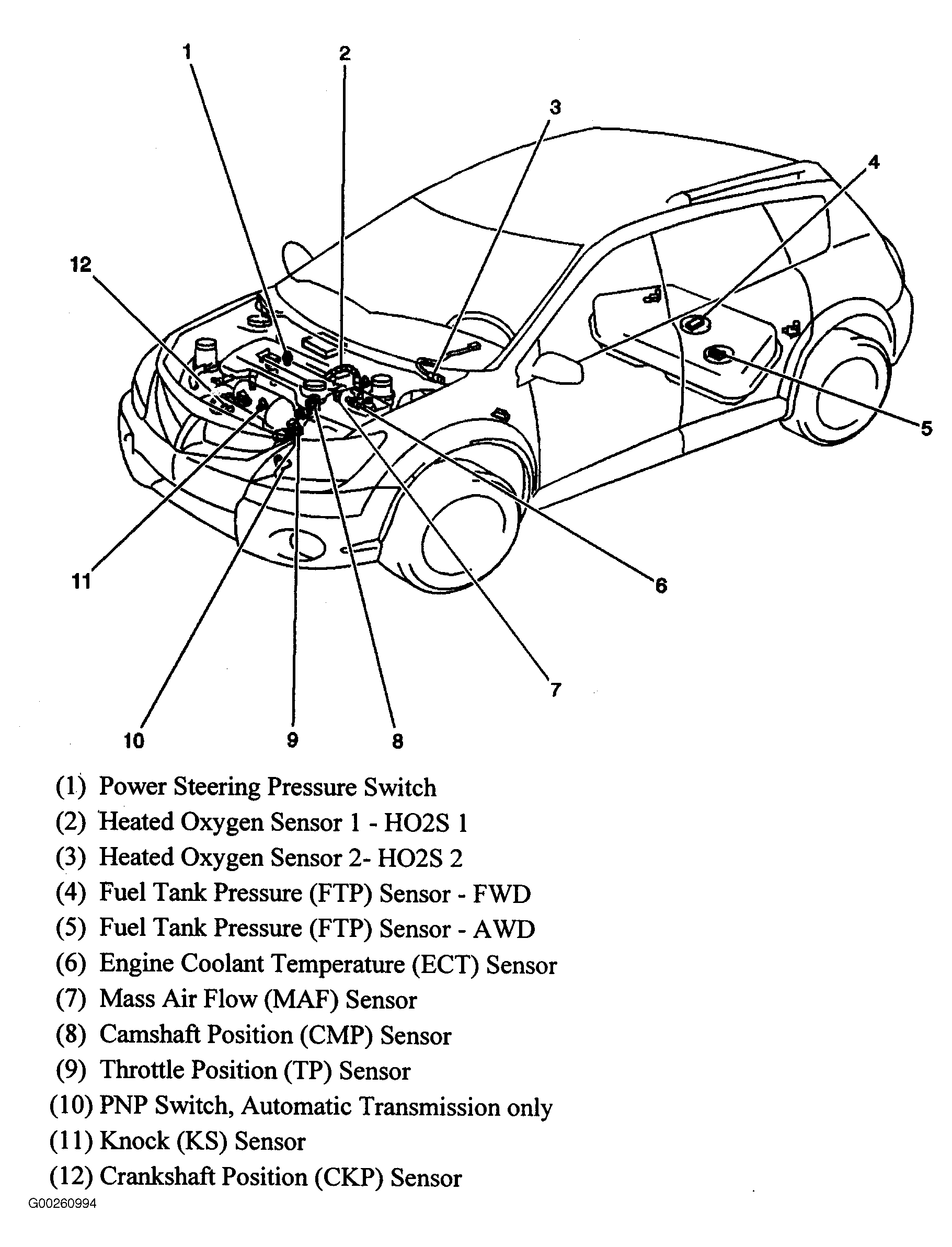

Fig 27: Engine Compartment & Rear Of Vehicle (1.8L LNK)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Front Of Engine (1.8L LNK)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Left Side Of Cylinder Head (1.8L LV6)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Engine Compartment & Rear Of Vehicle (1.8L LV6)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Engine Compartment & Fuel Tank (1.8L LV6)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Right Front Of Engine (1.8L LV6)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Top Of Engine (1.8L LV6)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Engine Compartment (1.8L LNK) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Engine Compartment (1.8L LNK) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Engine Compartment (1.8L LNK) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Engine Compartment (1.8L LNK) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 38: Engine Compartment (1.8L LNK)
Courtesy of GENERAL MOTORS CORP.
Fig 39: Engine Compartment (1.8L LNK)
Courtesy of GENERAL MOTORS CORP.

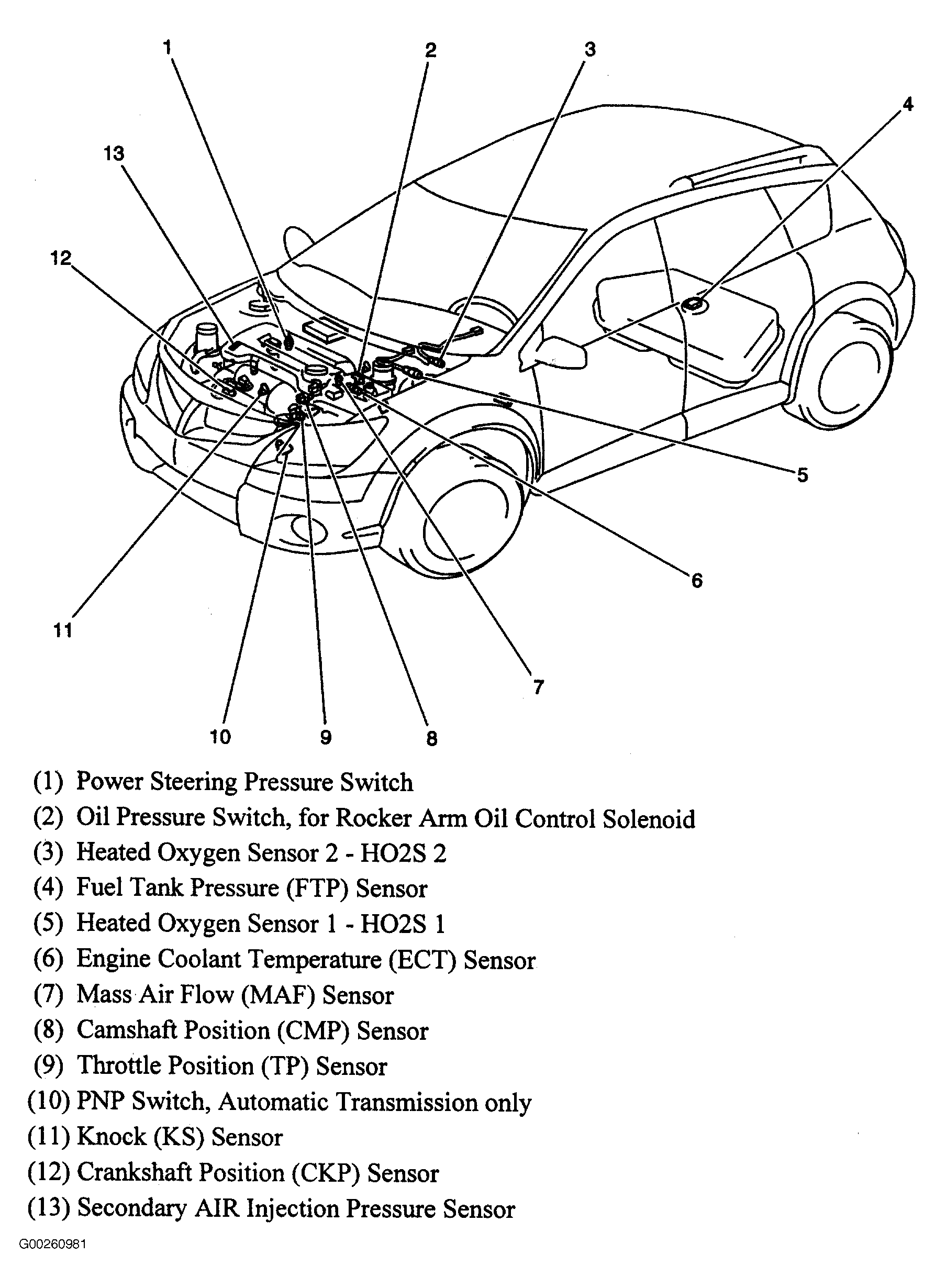

Fig 40: Engine Compartment (1.8L LV6) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

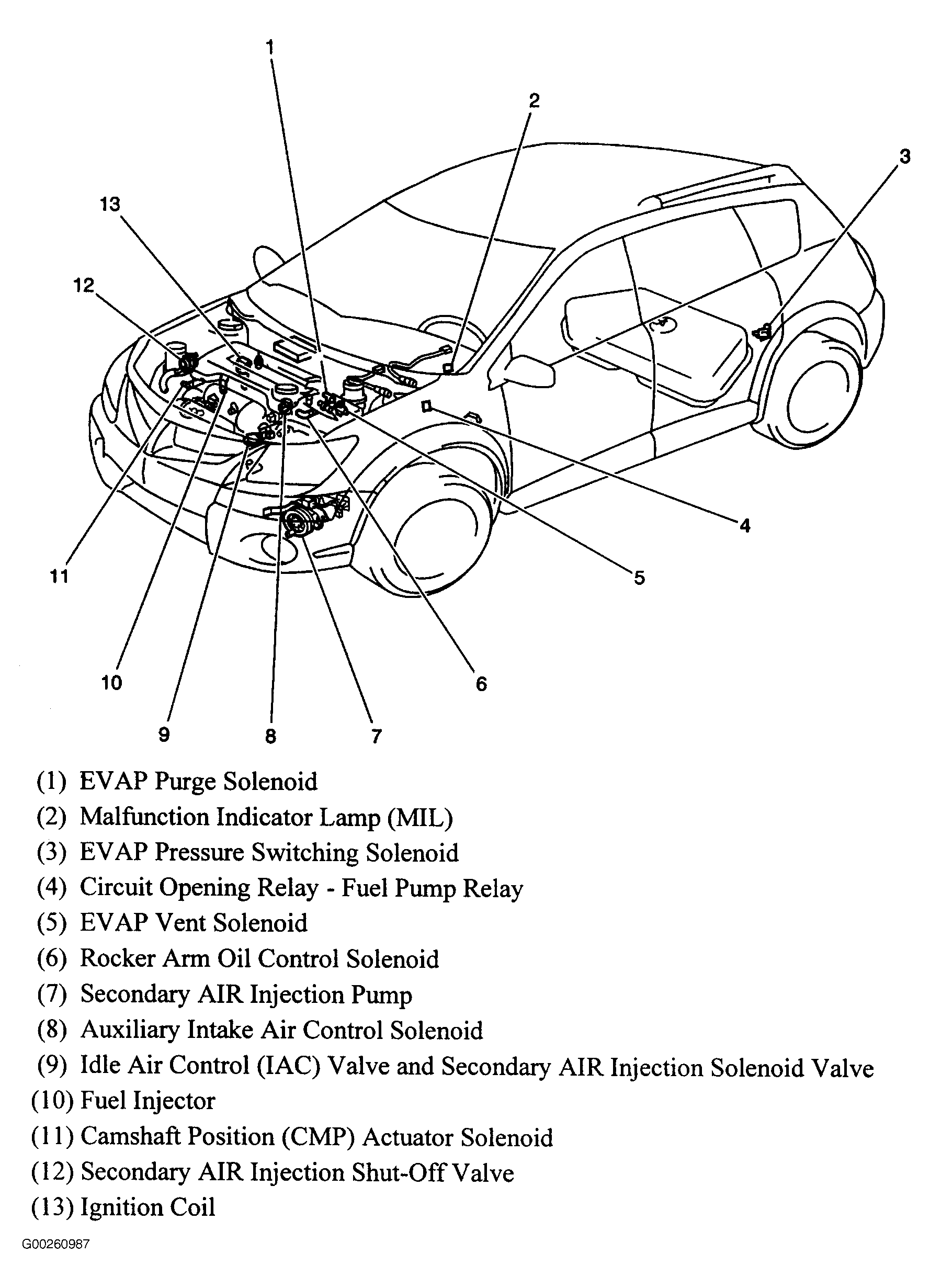

Fig 41: Engine Compartment (1.8L LV6) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Engine Compartment (1.8L LV6)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Dash (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Dash (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Dash & Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 46: Dash & Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 47: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 48: Body Connector & Ground Locations (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Body Connector & Ground Locations (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

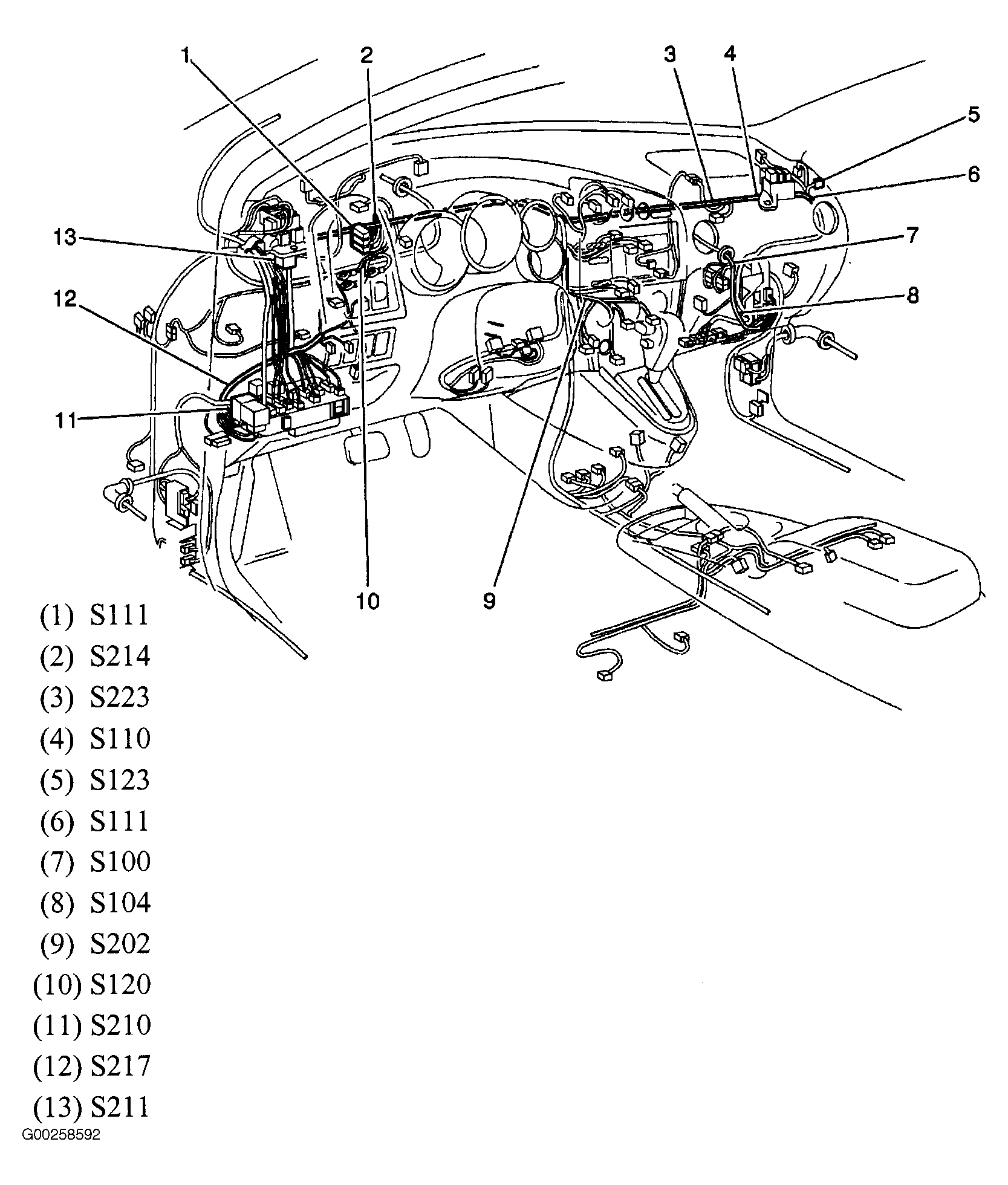

Fig 50: Body Harness Splice Locations
Courtesy of GENERAL MOTORS CORP.
Fig 51: Body Connector Locations (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Body Connector Locations (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 53: Body Connector Locations (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Body Connector Locations (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Dash Connector Locations (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Dash Connector Locations (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Dash Connector Locations (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 58: Dash Connector Locations (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 59: Side Of Automatic Transmission (MU4)
Courtesy of GENERAL MOTORS CORP.
Fig 60: Automatic Transmission (MU4)
Courtesy of GENERAL MOTORS CORP.

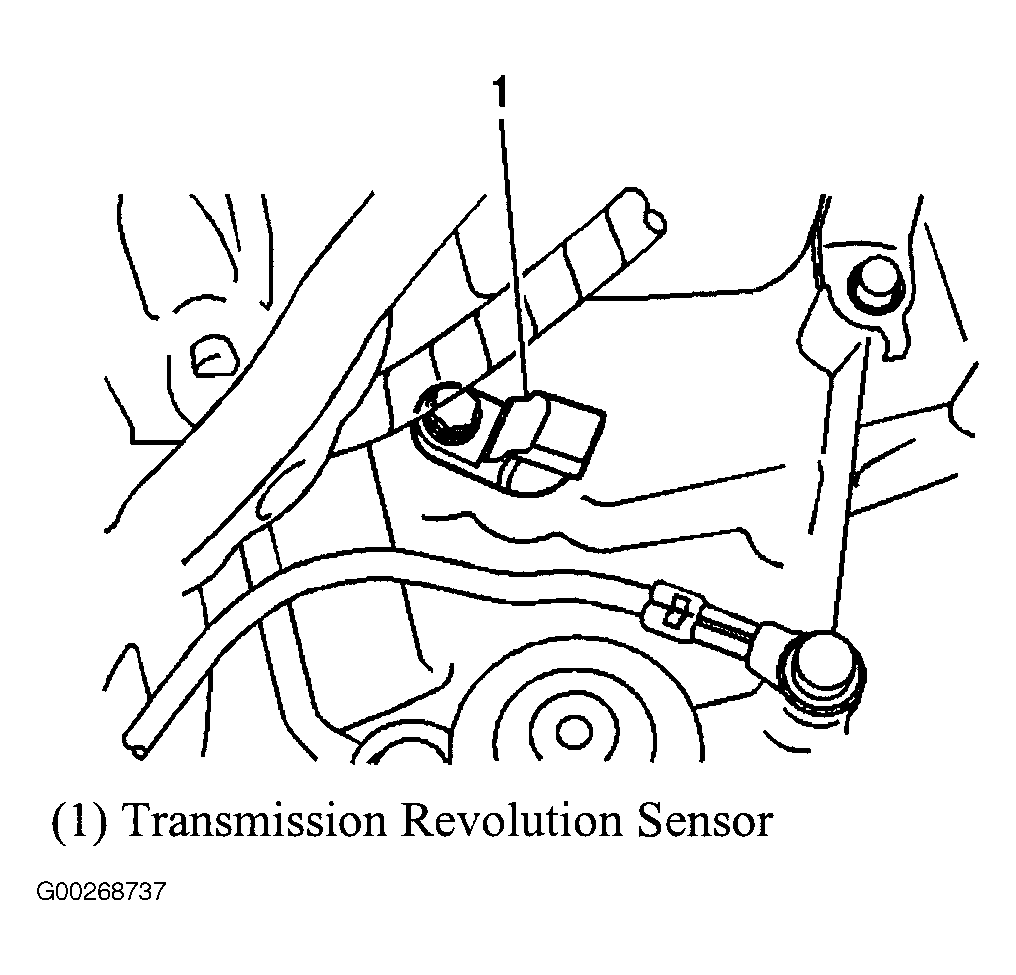

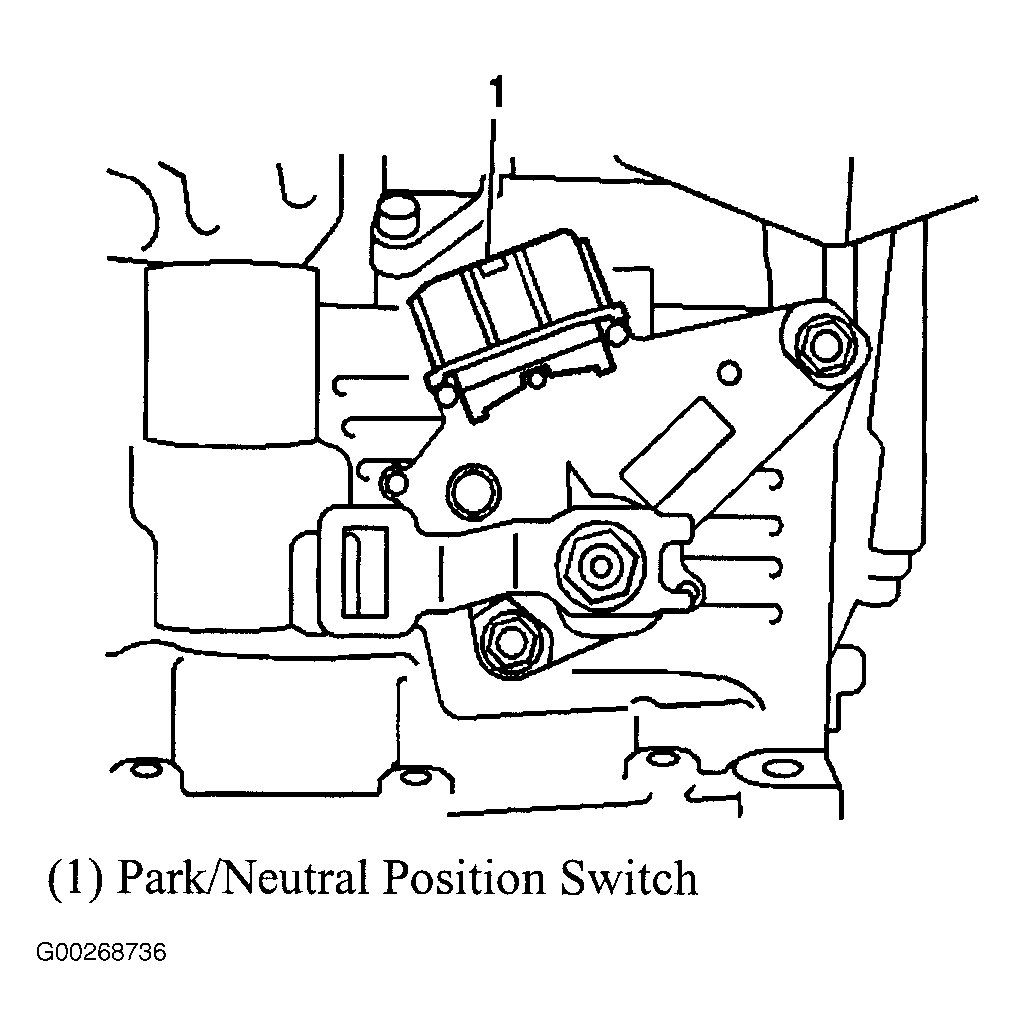

Fig 61: Top Of Automatic Transmission (MU5)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Automatic Transmission (MU5)
Courtesy of GENERAL MOTORS CORP.
