Cellular Communication Component Views
WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

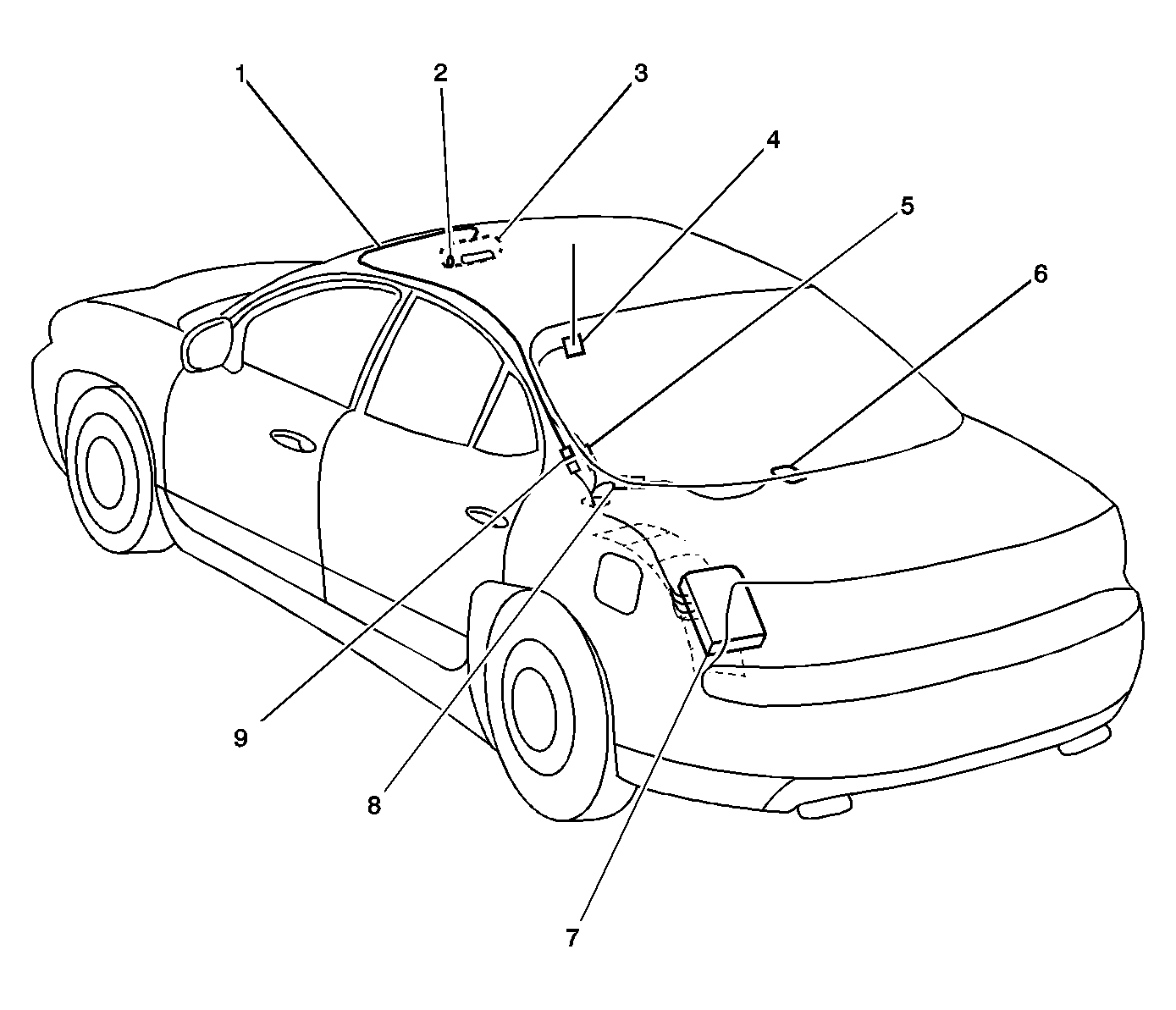

| Callout |
Component Name |
| 1 |
Roof Harness |
| 2 |
OnStar Button Assembly |
| 3 |
Inside Rearview Mirror |
| 4 |
Cellular Antenna |
| 5 |
C393 |
| 6 |
Navigation Antenna |
| 7 |
Vehicle Communication Interface Module (VCIM) |
| 8 |
C395 |
| 9 |
C392 |
Courtesy of GENERAL MOTORS CORP.

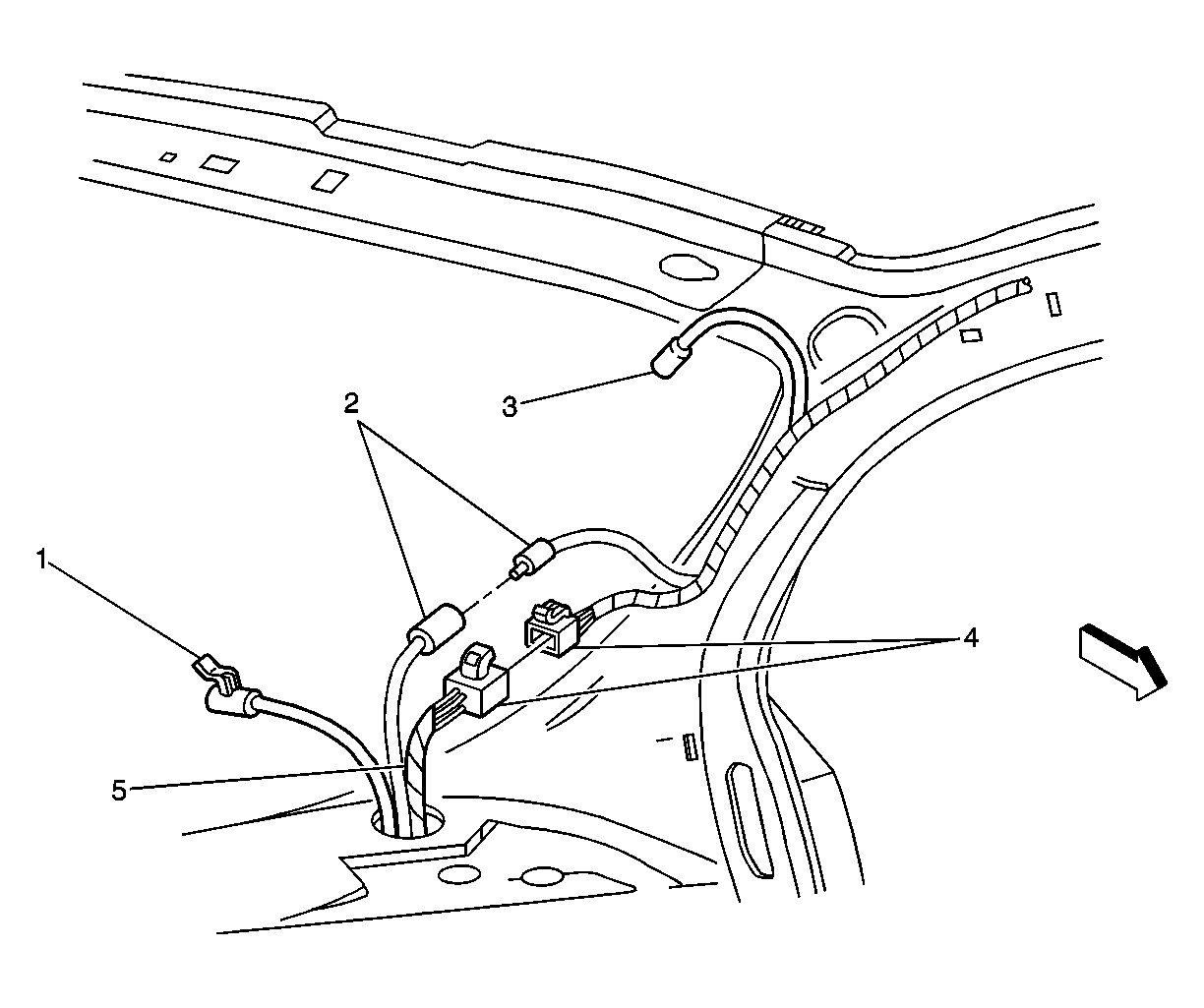

| Callout |
Component Name |
| 1 |
C395 |
| 2 |
C393 |
| 3 |
Cellular Antenna Coax Connector |
| 4 |
C392 |
| 5 |
Main Body Wiring Harness |
Courtesy of GENERAL MOTORS CORP.

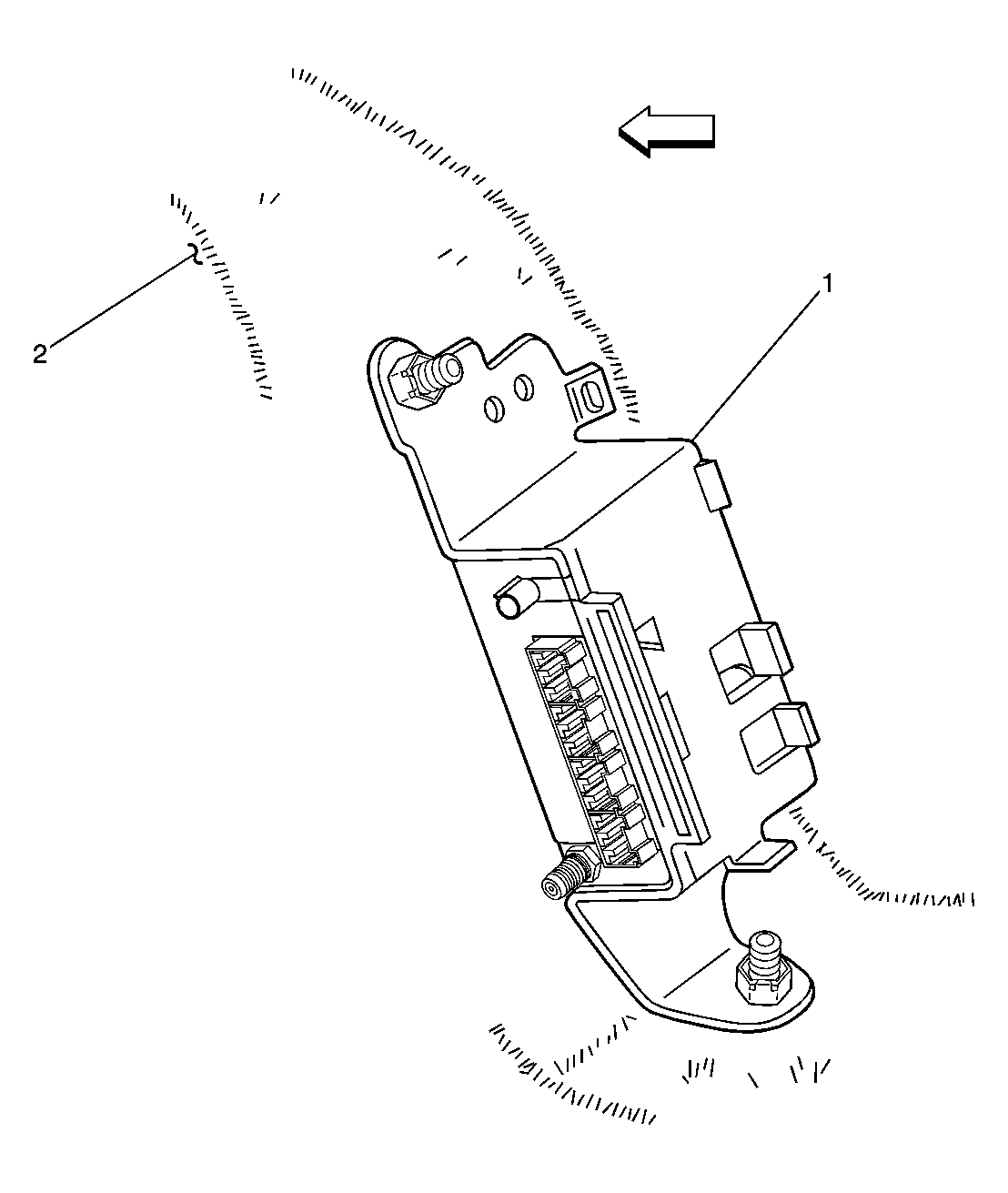

| Callout |
Component Name |
| 1 |
Vehicle Communication Interface Module (VCIM) |
| 2 |
Wheelhouse-LR |
