Entertainment Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

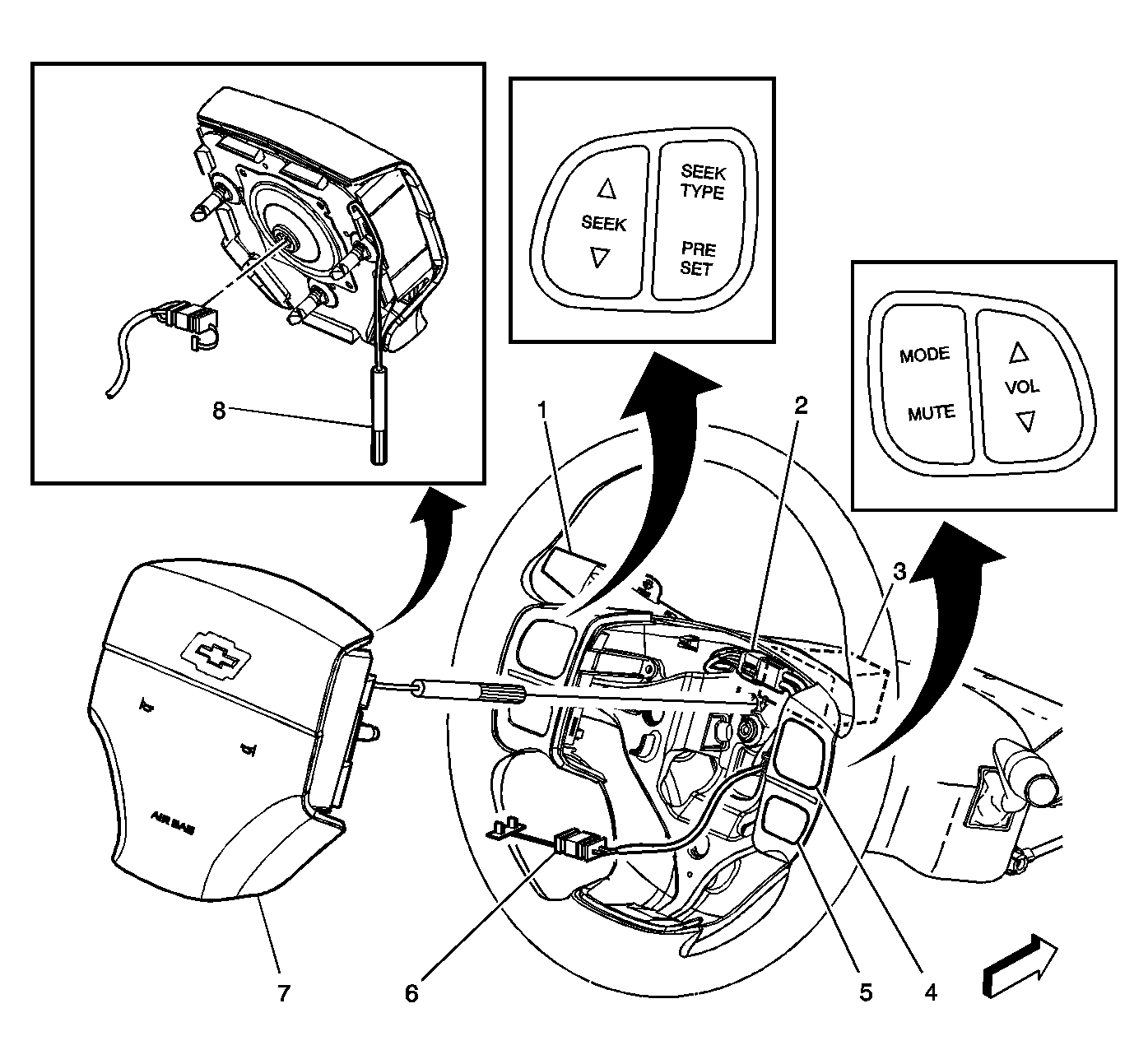

Fig 1: Steering Wheel Controls (Radio)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil Connector C5
3	Steering Wheel
4	Steering Wheel Controls-Right-Radio
5	Steering Wheel Controls-Right-Cruise Control
6	Inflatable Restraint Steering Wheel Module Coil Connector C2
7	Inflatable Restraint Steering Wheel Module
8	Horn Switch Spring Loaded Contact

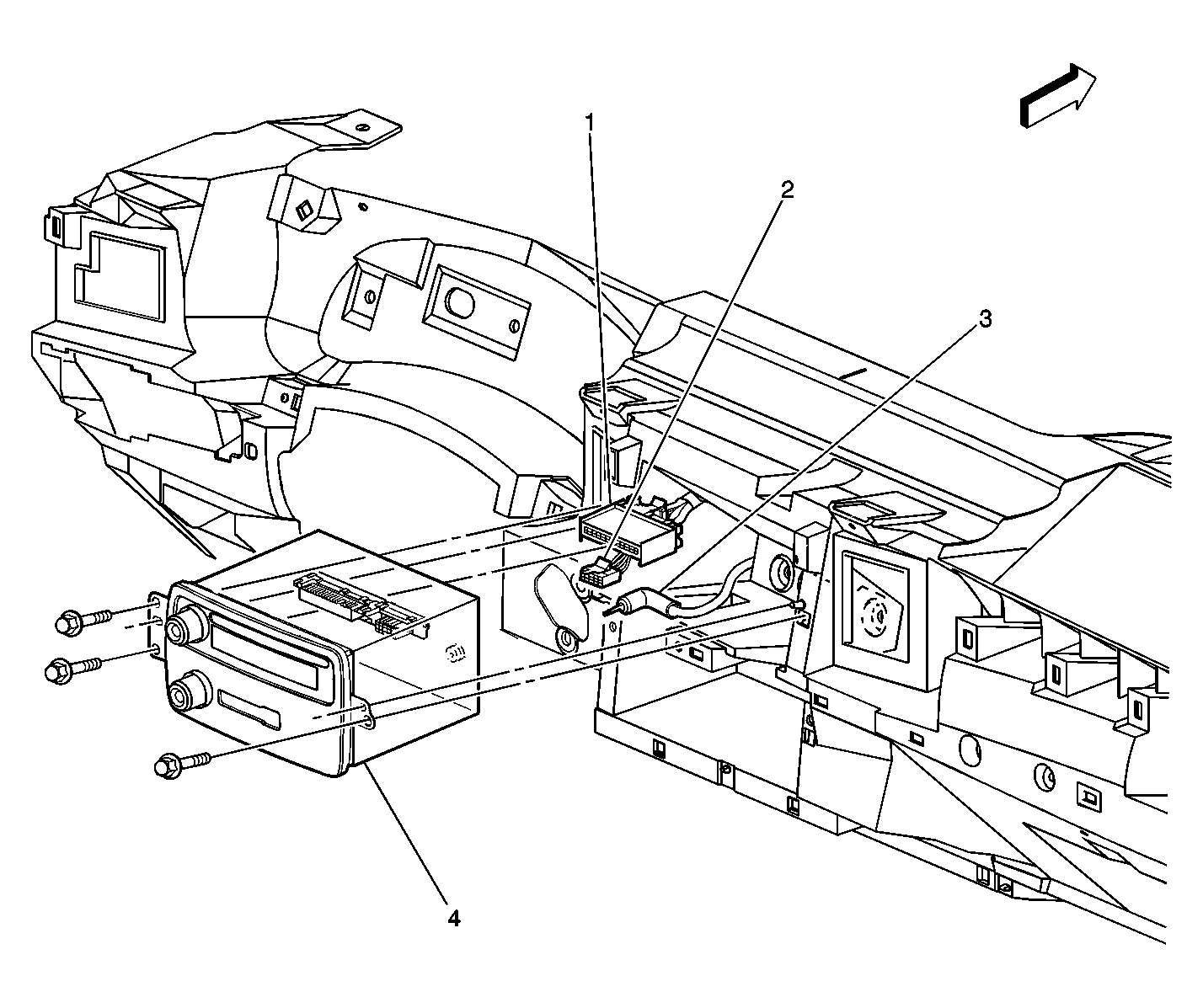

Fig 2: Radio, Center of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Connector C1
2	Radio Connector C2
3	Radio Coax Connector
4	Radio

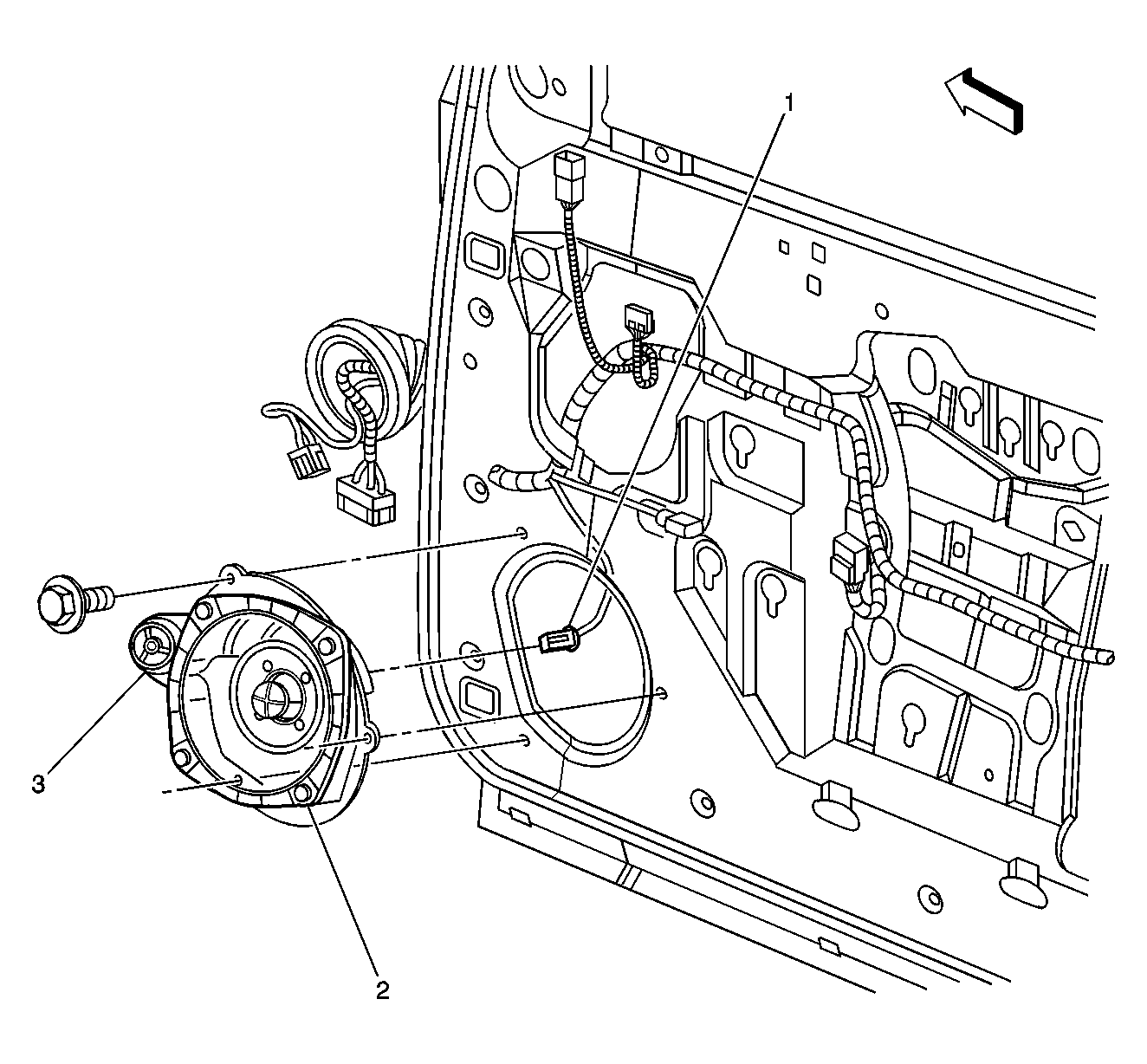

Fig 3: Front Door Speakers - Typical

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker-RF Door Connector
2	Speaker-RF Door
3	Speaker-RF Door Tweeter

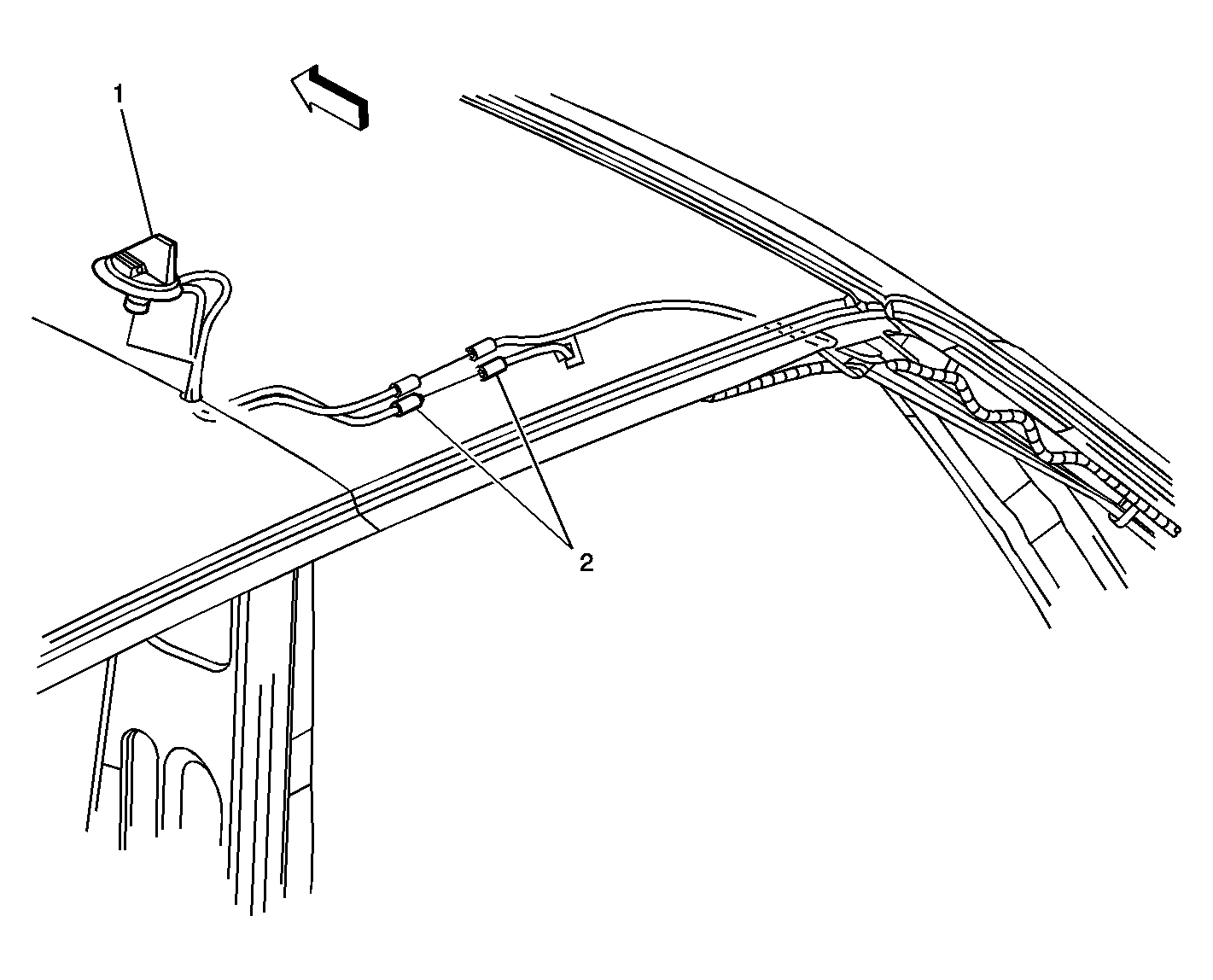

Fig 4: Digital Radio Antenna, Rear Center of Roof (U2K)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Antenna (U2K)
2	Digital Radio Antenna Inline Connector (U2K)

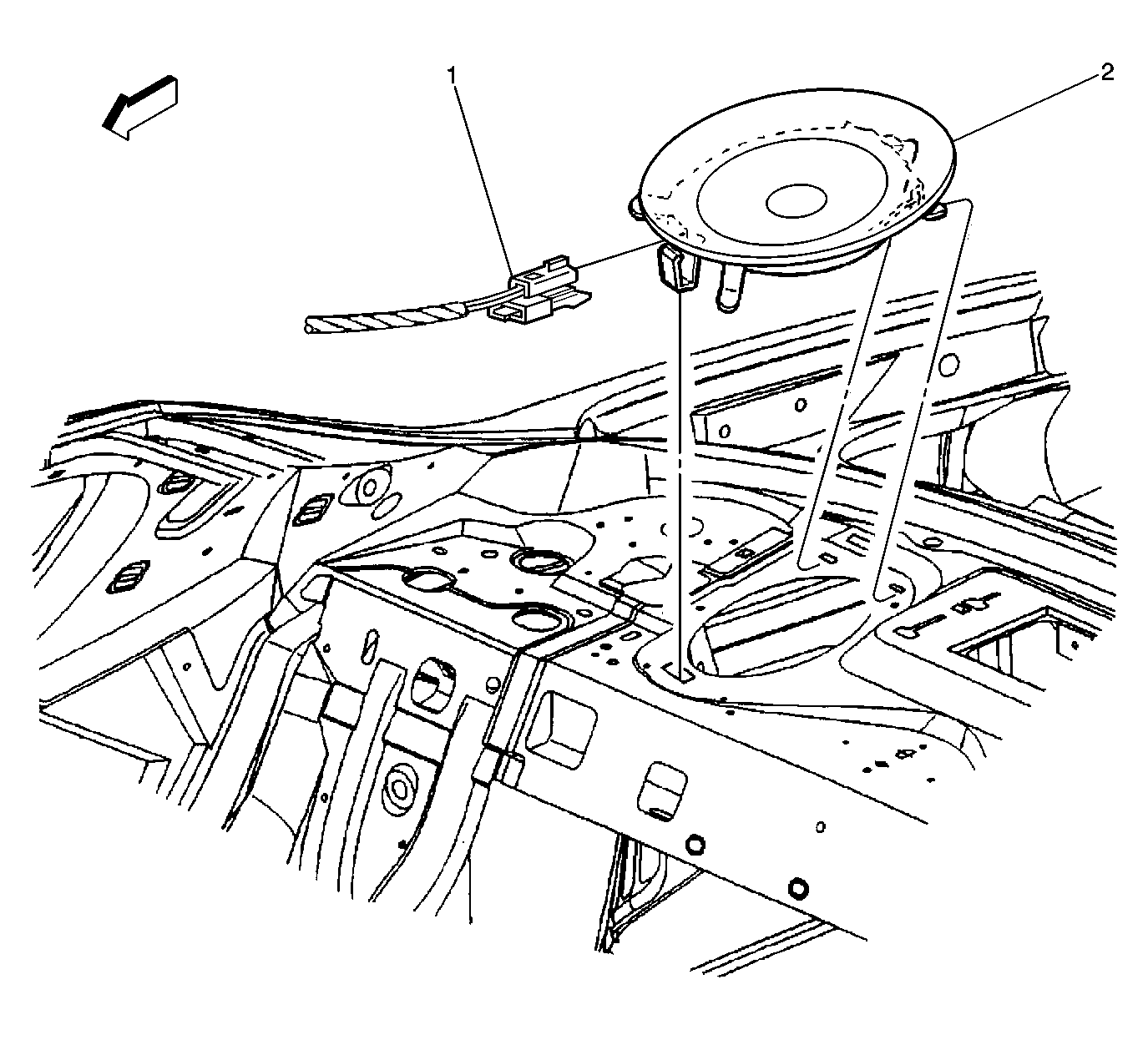

Fig 5: Speaker, Right Side of Package Shelf, Left Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker-RR Connector
2	Speaker-RR

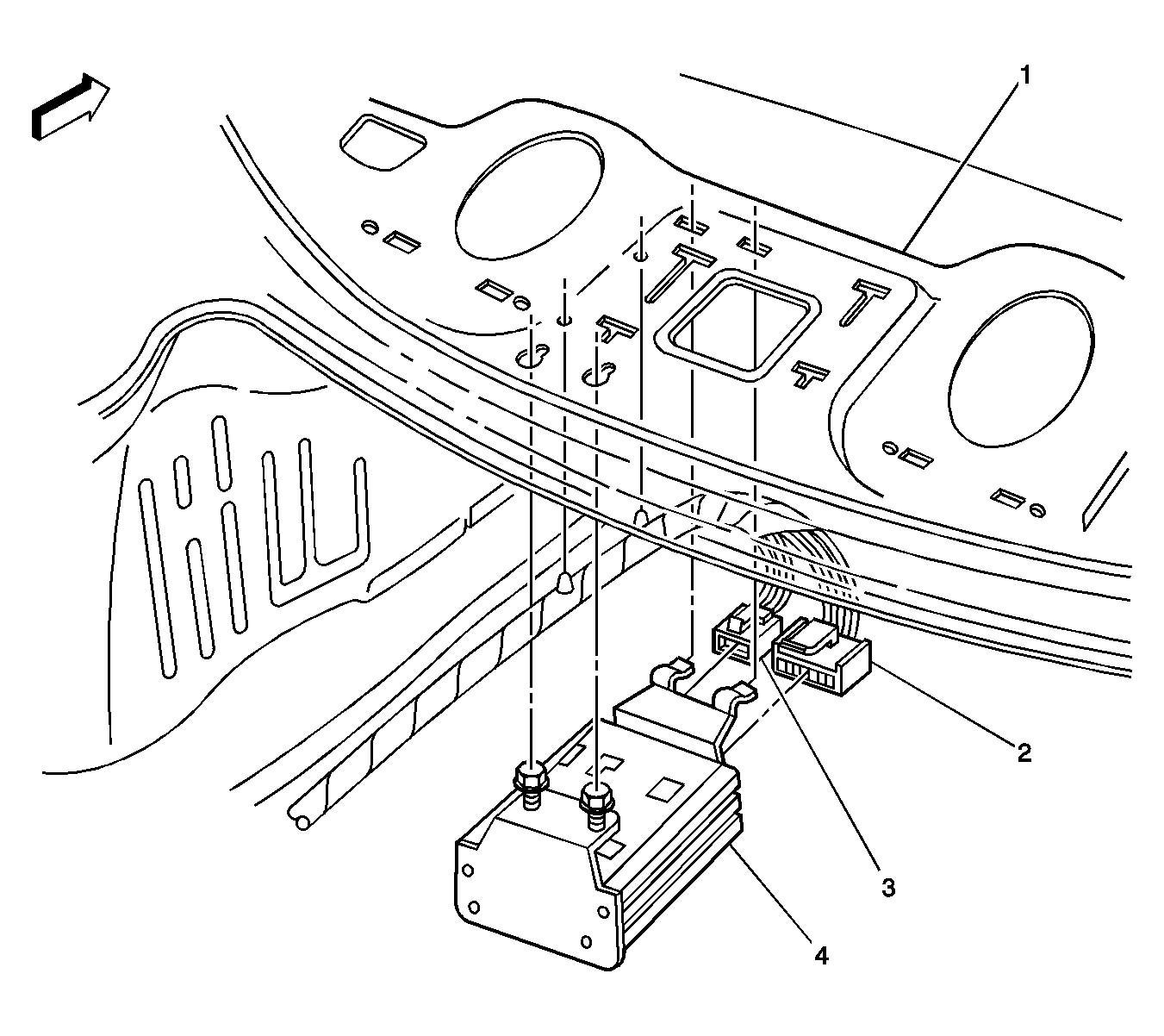

Fig 6: Audio Amplifier, Below Package Shelf

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Package Shelf
2	Audio Amplifier Connector, C1
3	Audio Amplifier Connector, C2
4	Audio Amplifier

Fig 7: Radio Antenna Module, Left Side of Rear Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Main Body Wiring Harness
2	Radio Antenna Module Connection to Rear Defogger Grid
3	Radio Antenna Module Connector
4	Radio Antenna Module Coax Connector
5	Radio Antenna Module
6	Radio Rear Window Antenna Connection

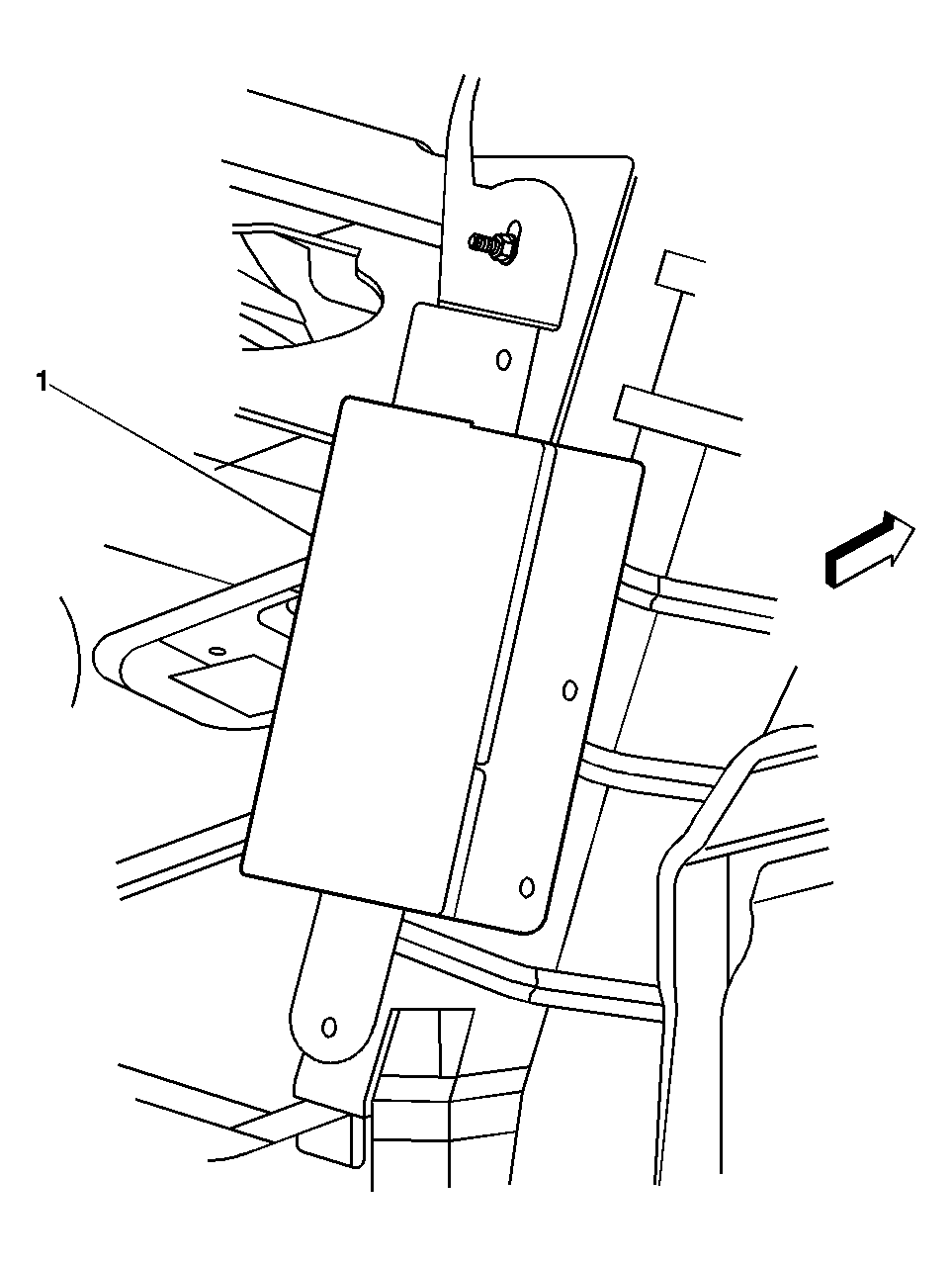

Fig 8: Digital Radio Receiver, Rear of Right Rear Wheelhouse

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver
