Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement .
  2. Disconnect the transaxle wiring harness.
    3. Fig 1: View Of Input Speed Sensor
    GM48196Courtesy of GENERAL MOTORS CORP.
  3. Remove the input speed sensor clip (441) from the case cover.
  4. Remove the input speed sensor (440) from the case cover.

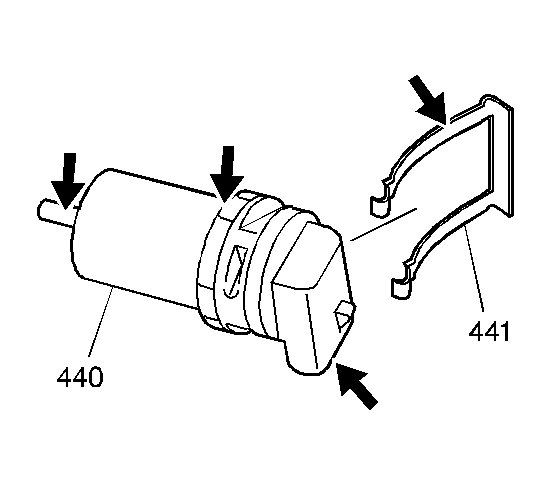

    5. Fig 2: Inspecting Input Speed Sensor
    GM49299Courtesy of GENERAL MOTORS CORP.
  5. Inspect the input speed sensor (440) for the following conditions:
    • Damaged or missing magnet
    • Damaged housing
    • Bent or missing electrical terminals
    • Damaged speed sensor clip (441)
