Installation Procedure

  1. Install the ignition control module on the bracket.

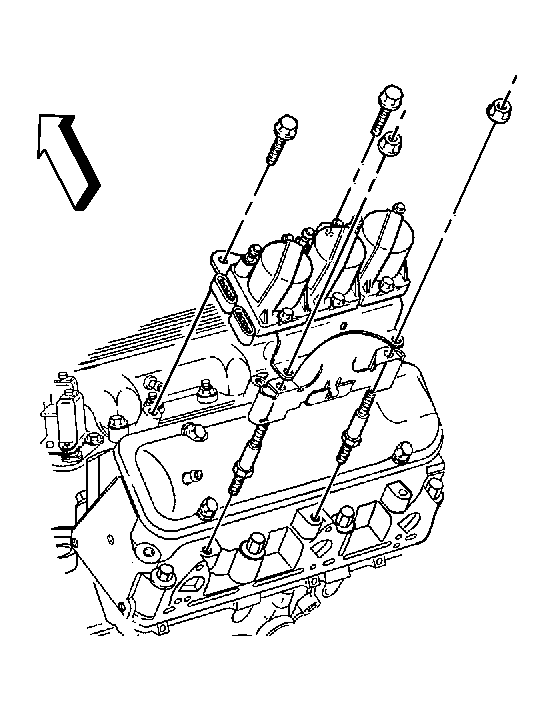

    2. Fig 1: Removing/Installing Coil Assemblies
    GM28342Courtesy of GENERAL MOTORS CORP.
  2. Install the coils to the ignition control module.
  3. Reinstall the fasteners securing the ignition control module assembly to the engine.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Reinstall the screws.

    Tighten:  Tighten the screws to 4.5 N.m (40 lb in).

  5. Connect the spark plug wires as noted during removal.
  6. Connect the electrical connectors to the ignition control module.
