Installation Procedure

IMPORTANT: If the PCM is being programmed using the Off-Board method, perform the programming before continuing with the steps listed below. Refer to the Off-Board procedure in Service Programming System (SPS) in Programming.

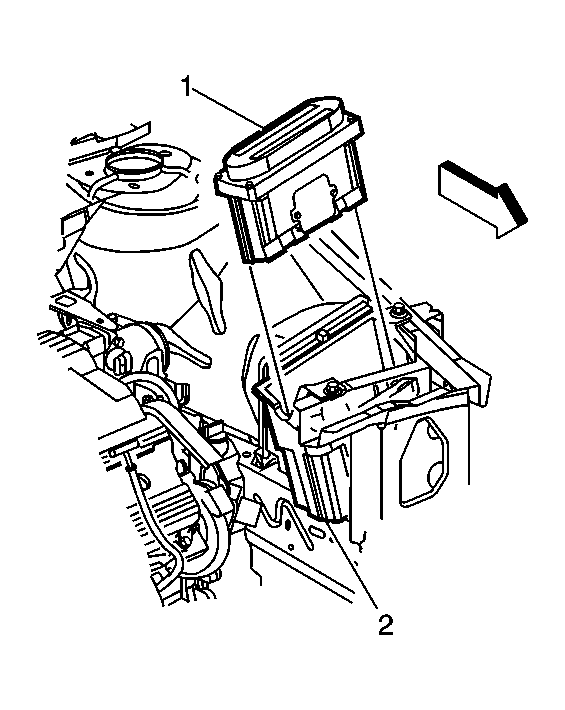

    Fig 1: PCM Connector & Attaching Bolts
    GM142193Courtesy of GENERAL MOTORS CORP.
  1. Install the PCM (1).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the PCM connectors.

    Tighten:  Tighten the PCM connectors screws to 8 N.m (71 lb in).

    3. Fig 2: View Of Air Duct/Resonator Assembly & Air Cleaner Cover
    GM104607Courtesy of GENERAL MOTORS CORP.
  3. Install the air cleaner cover (3) onto the air inlet housing.
  4. Snap the assembly clamps into place.
    5. Fig 3: View Of Intake Air Duct/resonator To PCM Housing Screw
    GM104644Courtesy of GENERAL MOTORS CORP.
  5. Align the intake air duct/resonator assembly (3) into place.
  6. Install the screw onto the intake air duct/resonator assembly.

    Tighten:  Tighten the intake air duct clamp to 3 N.m (27 lb in).

  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  8. Program the PCM. Refer to Service Programming System (SPS) in Programming.
