ABS Component Views

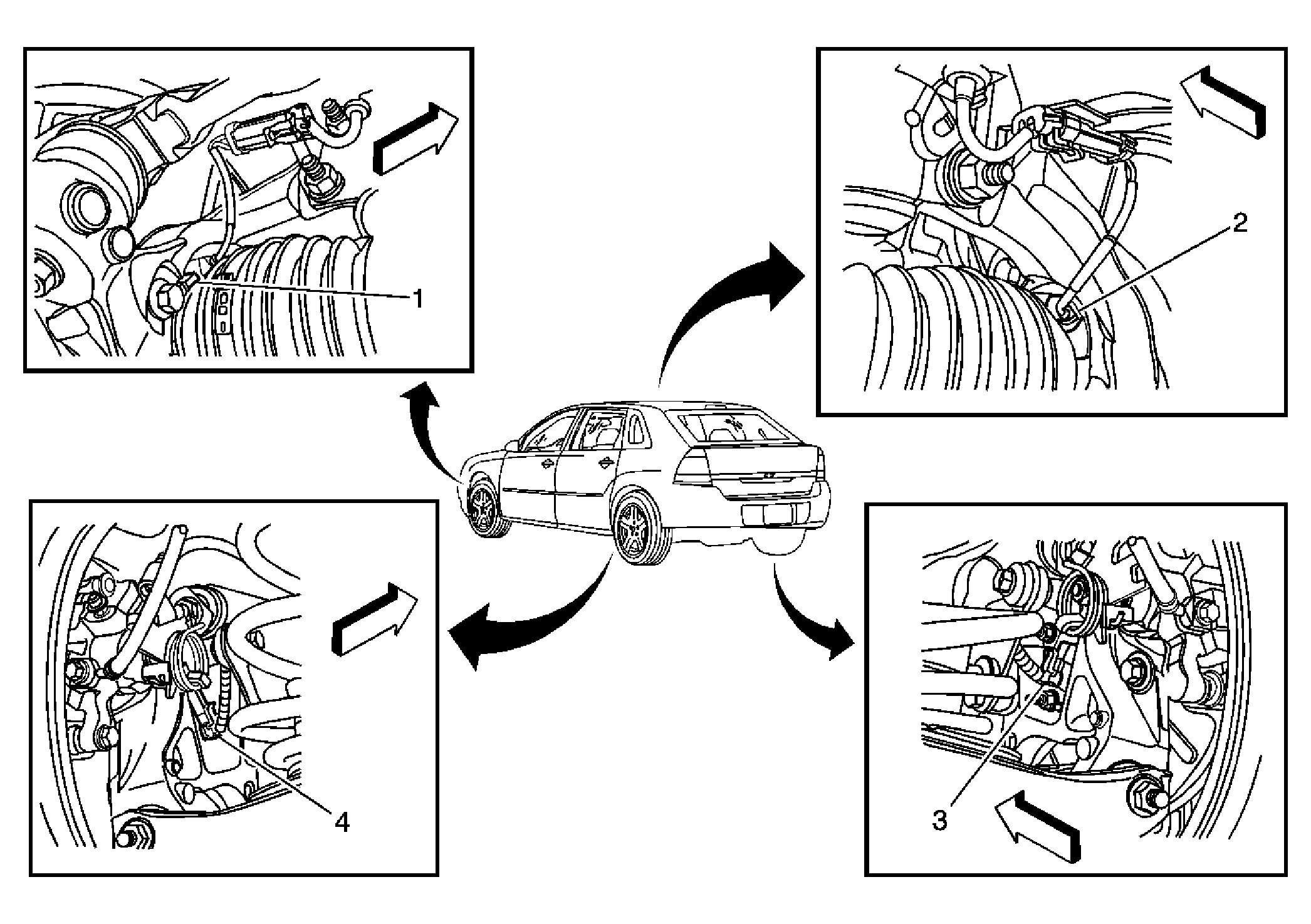

Fig 1: Wheel Speed Sensors
GM1266782Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor (WSS) - LF
2 Wheel Speed Sensor (WSS) - RF
3 Wheel Speed Sensor (WSS) - RR
4 Wheel Speed Sensor (WSS) - LR
Fig 2: Power and Grounding Component Views - Left Rear of Engine Compartment
GM1264030Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Coolant Level Switch
2 Battery
3 Electronic Brake Control Module (EBCM)
4 C101
5 G103
6 Fuse Block - Underhood
7 Powertrain Control Module (PCM)
8 Powertrain Control Module (PCM), C3
9 Powertrain Control Module (PCM), C2
10 Powertrain Control Module (PCM), C1
Fig 3: Left Front of Floor Console Component Views
GM1263995Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C214
2 Cigar Lighter
3 Traction Control Switch or Auxiliary Power Outlet - Front, w/o NW7, NW9
