Installation Procedure

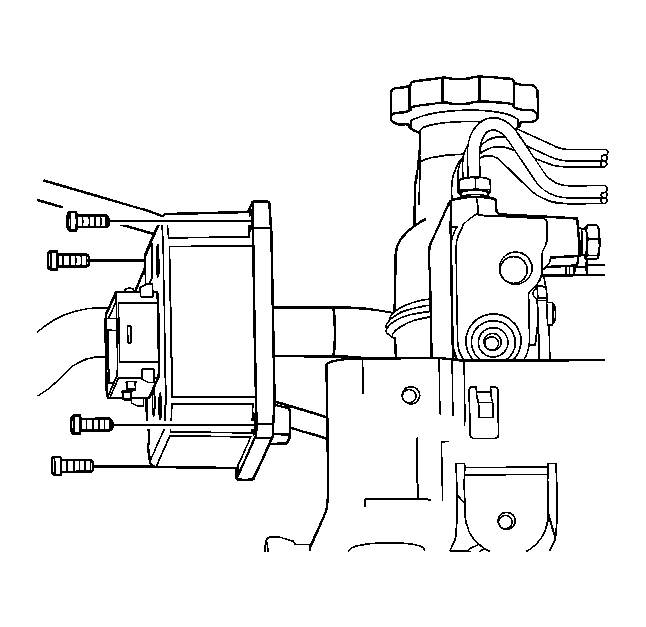

    Fig 1: Removing 4 EBCM-To-BPMV Retaining Bolts
    GM1234791Courtesy of GENERAL MOTORS CORP.
  1. Clean the sealing surface of the BPMV with denatured alcohol and a clean shop cloth.
  2. Use care when aligning the EBCM to the BPMV electrical terminals. Install the EBCM to the BPMV.

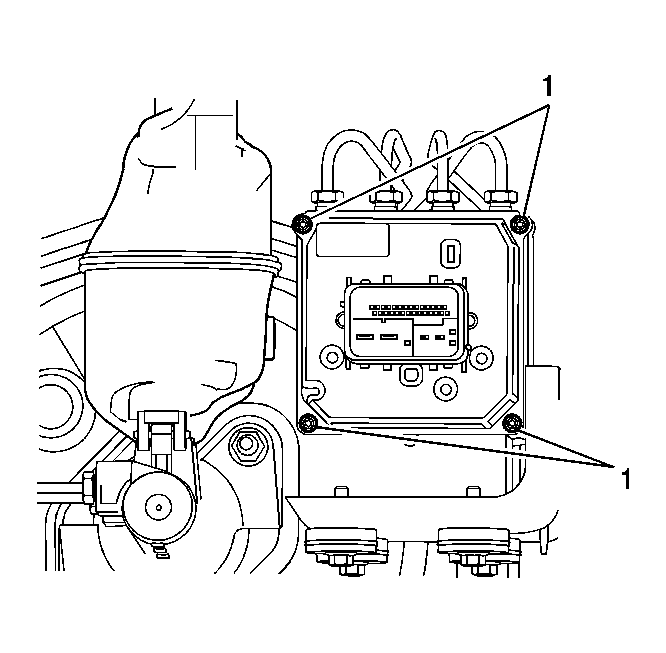

    3. Fig 2: Installing 4 EBCM-to-BPMV Retaining Bolts
    GM1235278Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 4 EBCM-to-BPMV retaining bolts (1). Tighten the bolts in a criss-cross pattern.

    Tighten:  Tighten the bolts to 5 N.m (44 lb in).

    4. IMPORTANT: Ensure that the electrical connector is correctly inserted into the EBCM prior to swinging the assist locking lever into position. Failure to make a proper connection may cause communication problems with the module.

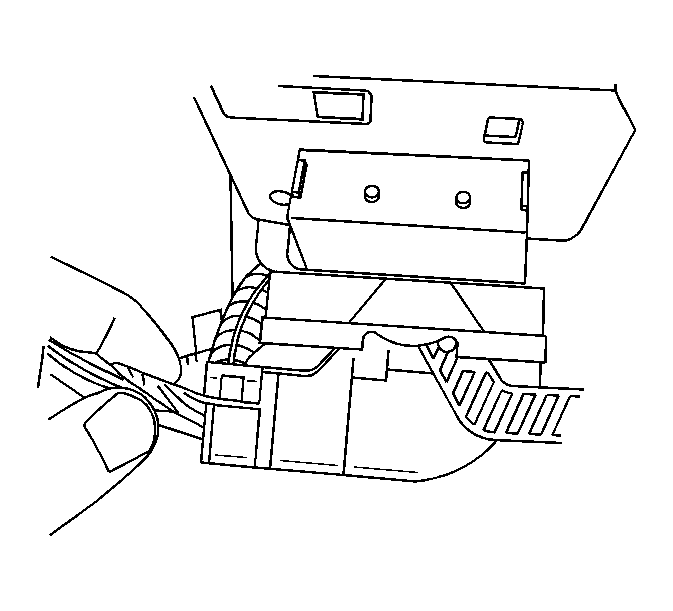

    Fig 3: View Of Electrical Connector At EBCM
    GM1233230Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the EBCM.
  5. If installing a new EBCM, it is necessary to program the EBCM. Refer to Service Programming System (SPS) in Programming and Setup.
    6. IMPORTANT: Do NOT start the engine, but only turn the ignition switch to the ON position.
  6. Perform the Electronic Brake Control Module Programming and Setup in Programming and Setup.
