Installation Procedure

  1. Connect the electrical connector to the traction control switch.

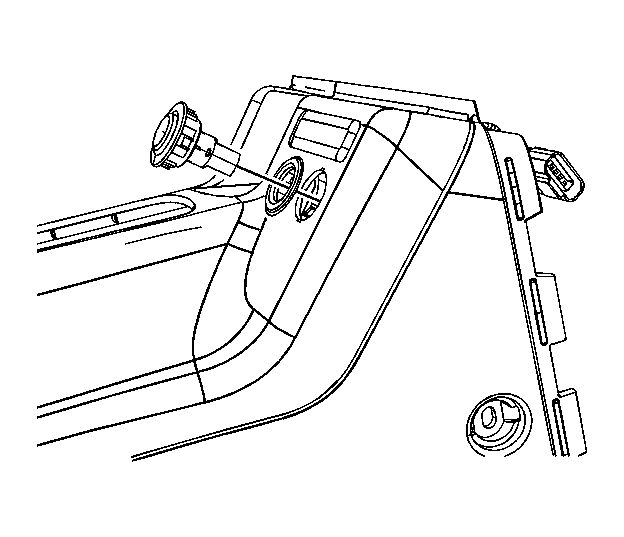

    2. Fig 1: View Of Traction Control Switch
    GM1522328Courtesy of GENERAL MOTORS CORP.
  2. Install the traction control switch to the center console. Ensure that the retaining ring tabs are fully engaged.
  3. Install the right console accessory trim plate. Refer to Console Trim Panel Replacement - Right in Instrument Panel, Gages and Console.
