Power Outlet Component Views

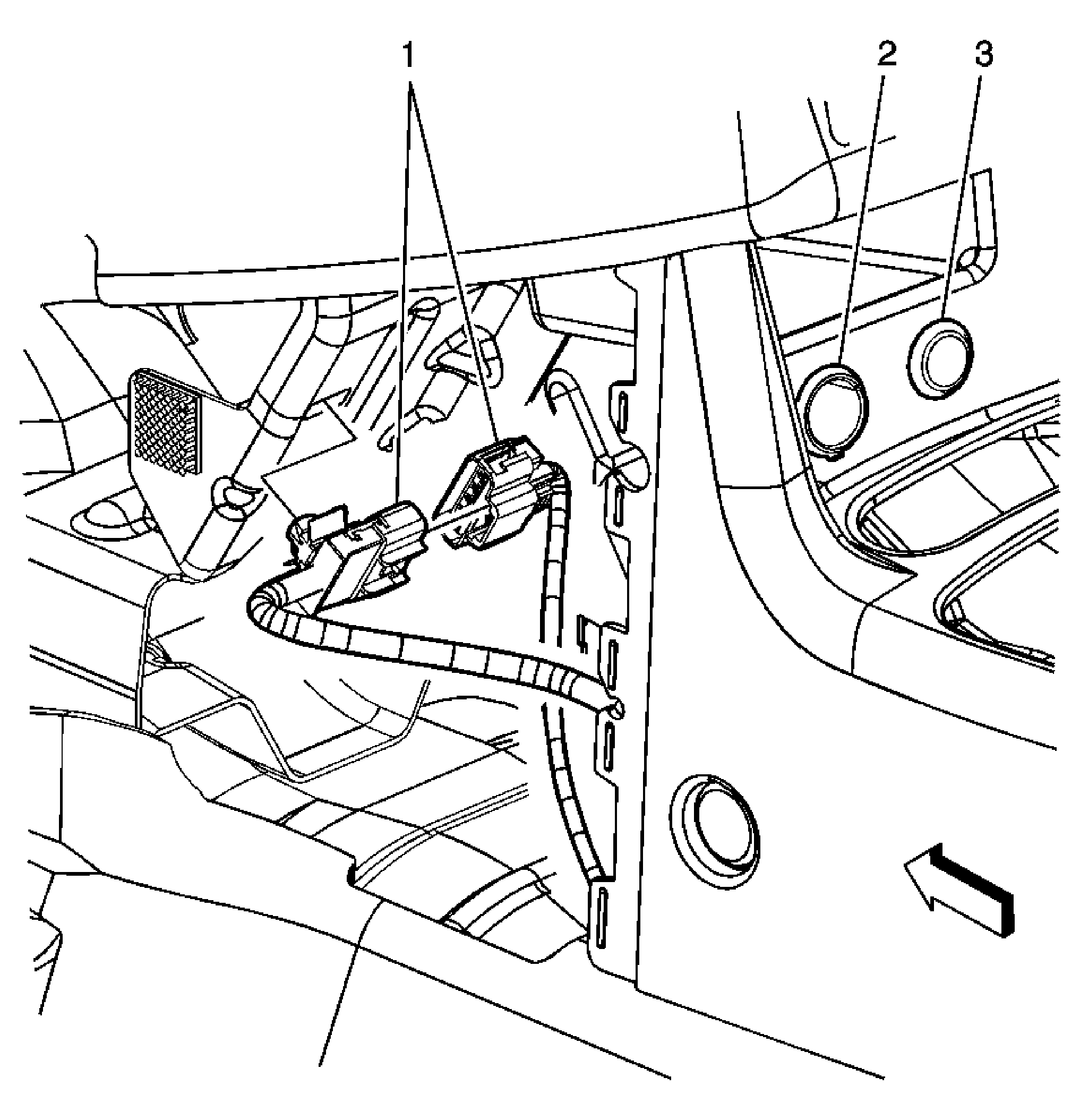

Fig 1: Left Front of Floor Console Component Views
GM1263995Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C214
2 Cigar Lighter
3 Traction Control Switch (NW7/NW9) or Auxiliary Power Outlet (w/o NW7/ NW9)

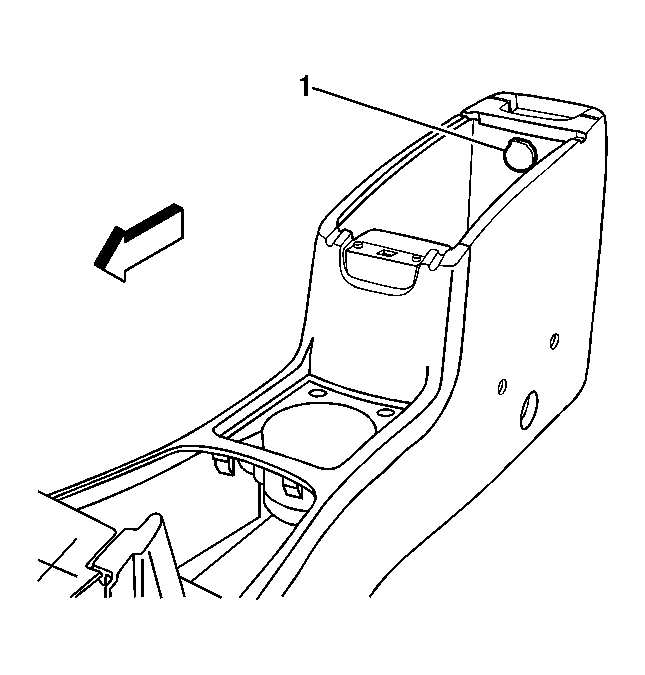

Fig 2: Rear of Center Console Compartment View
GM1394537Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxiliary Power Outlet (NW7/NW9)
