Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Blower Motor Resistor Assembly | Below right side of dash, left of blower motor. |

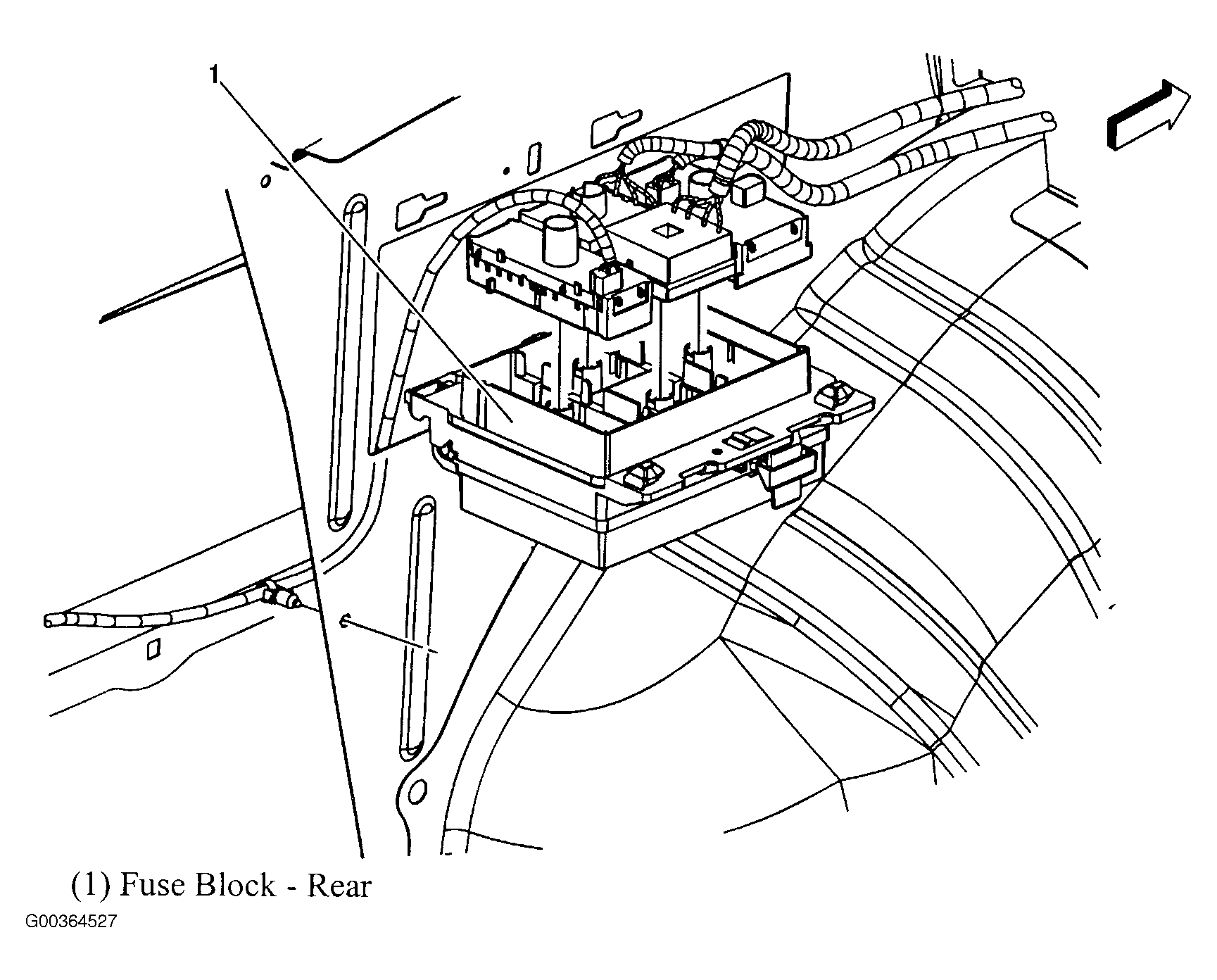

| Fuse Block - Rear | Left side of rear compartment, behind left rear wheel well. See Figure. |
| Fuse Block - Underhood | In left side of engine compartment. See Figure. |
| Fusible Link | Front of engine, near starter assembly. |

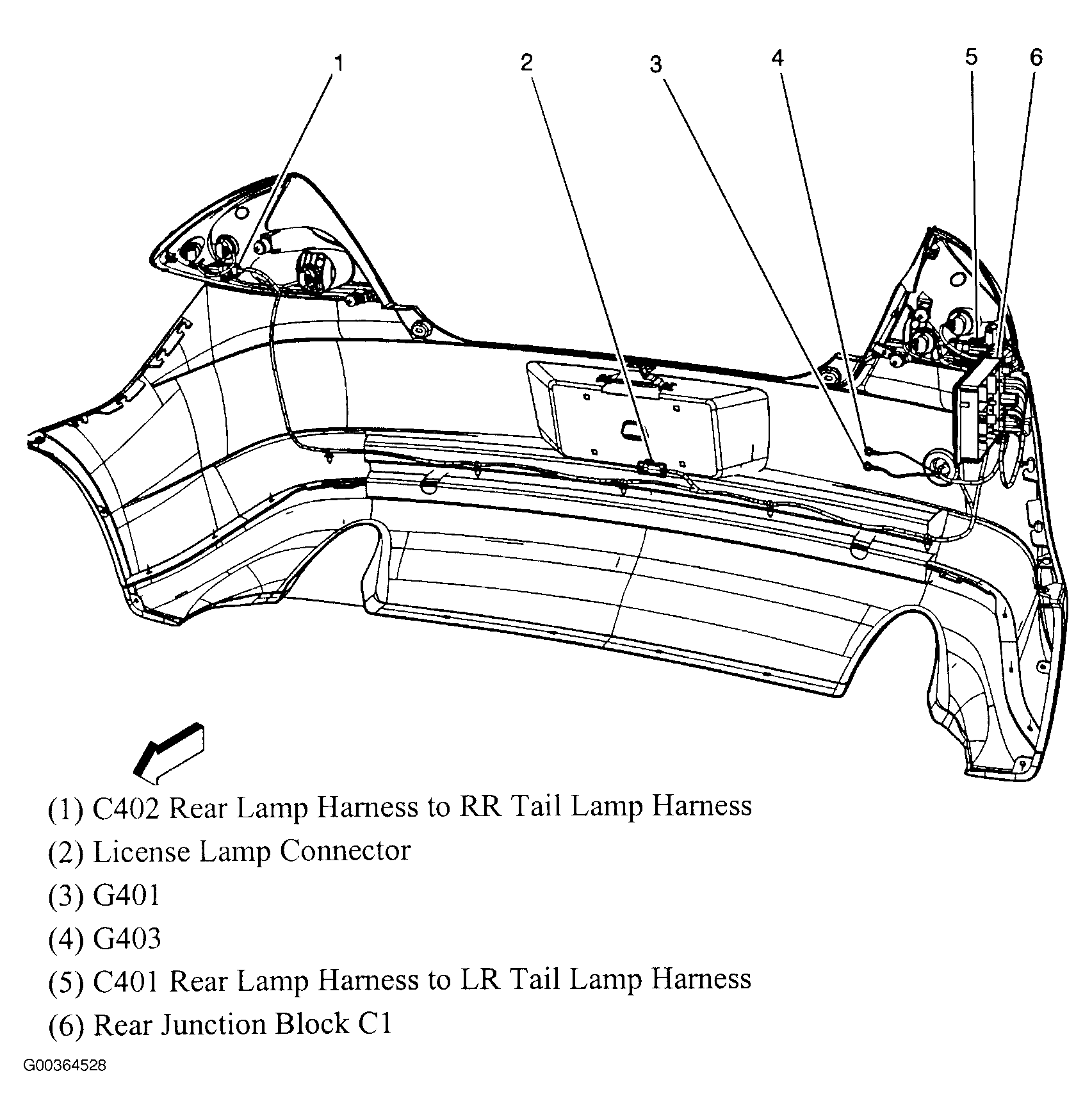

| Rear Junction Block | Behind left side of rear bumper. See Figure. |
