Object Detection Component Views
WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

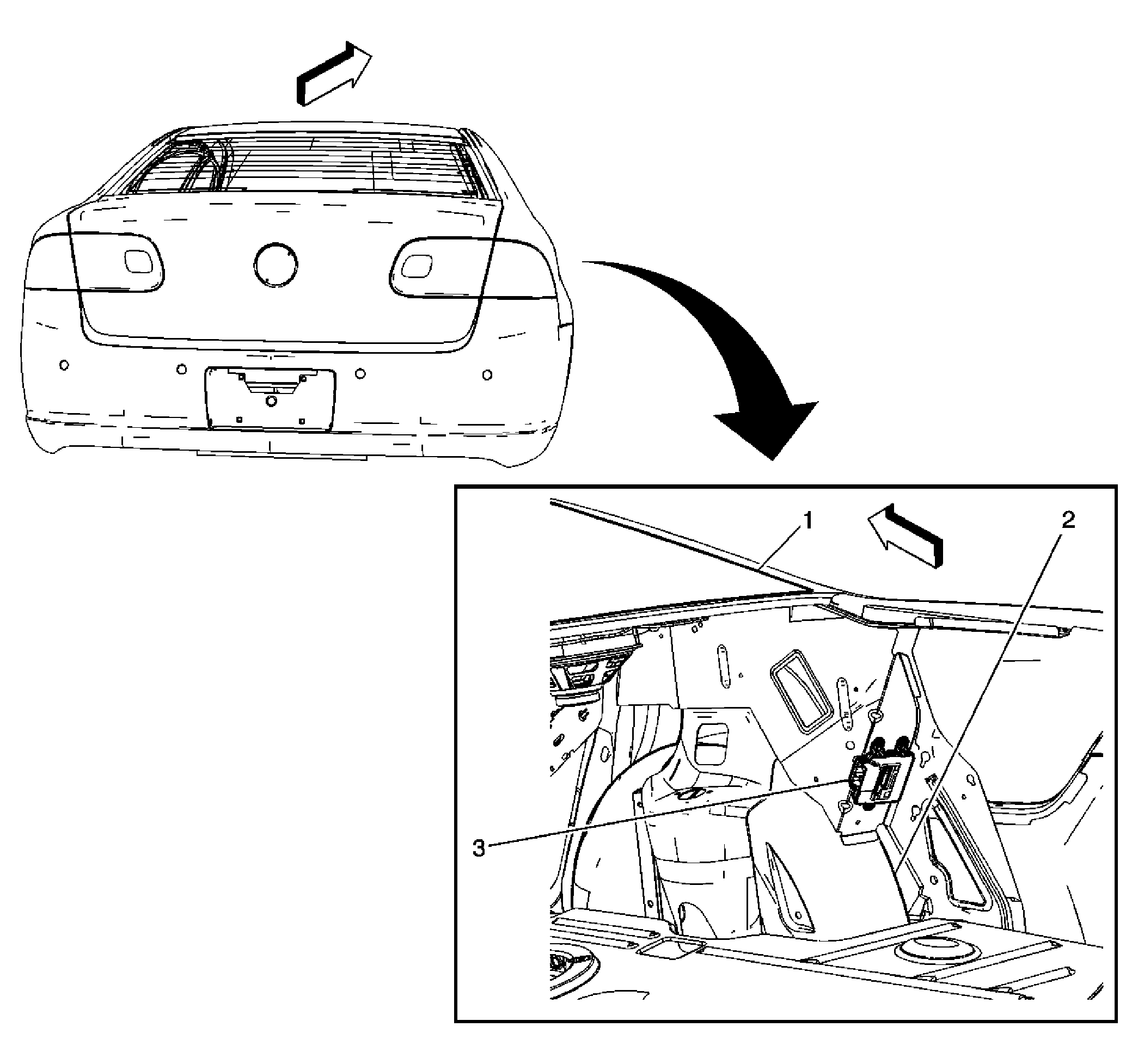

| Callout |
Component Name |
| 1 |
Rear Window |
| 2 |
Wheel Well - RR |
| 3 |
Object Alarm Module (UFR) |
Courtesy of GENERAL MOTORS CORP.

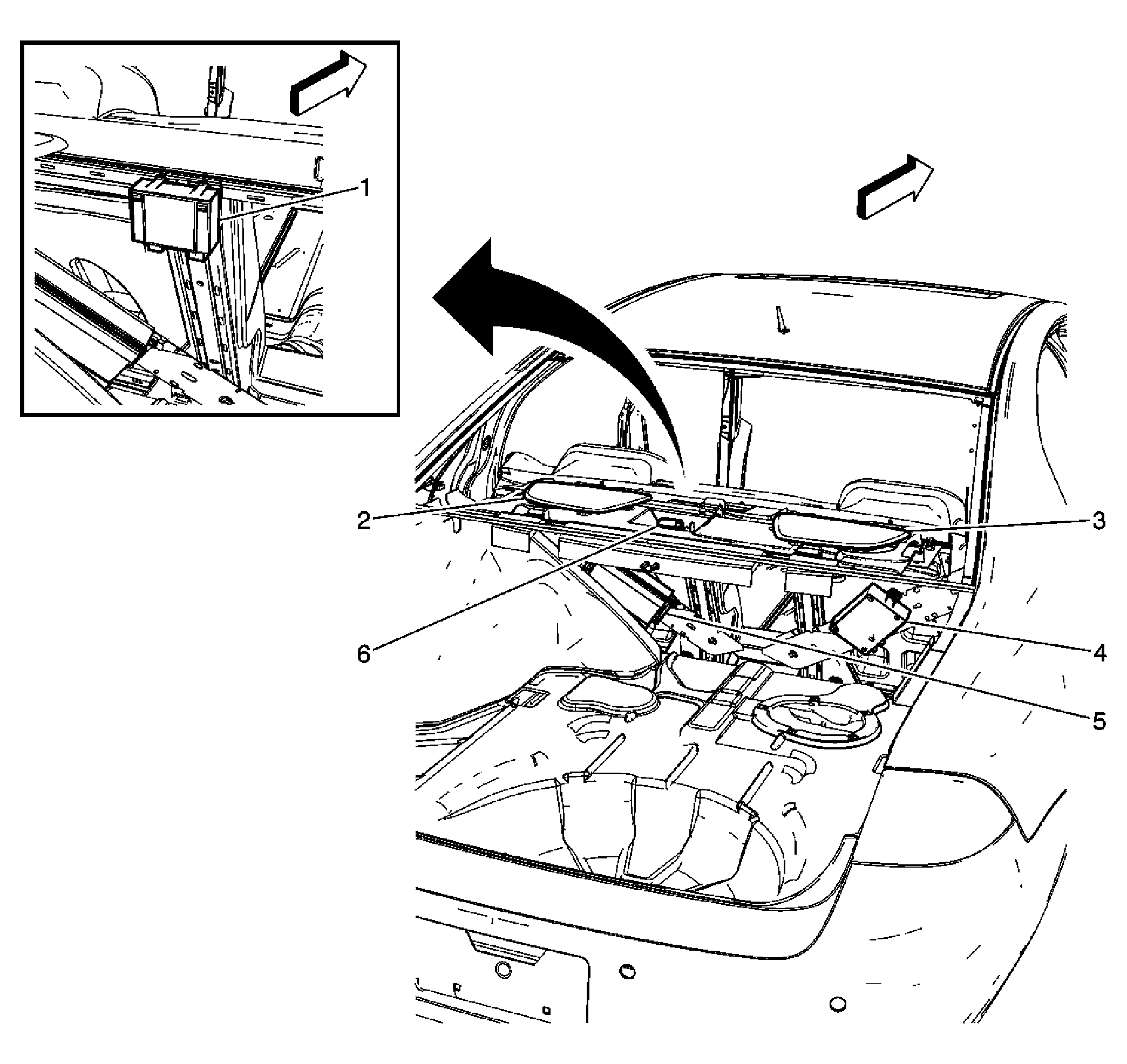

| Callout |
Component Name |
| 1 |
Remote Control Door Lock Receiver (RCDLR) |
| 2 |
Rear Park Assist Indicator (UD7) |
| 3 |
Speaker - RR |
| 4 |
Vehicle Communication Interface Module (VCIM) (UE1) |
| 5 |
Amplifier (UQA) |
| 6 |
Rear Compartment Courtesy Lamp |
| 7 |
Speaker - LR |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cellular Navigation (UE1) and Digital Radio Antenna (U2K) |
| 2 |
Center High Mounted Stop Lamp (CHMSL) |
| 3 |
Rear Window Defogger |
| 4 |
Backup Lamp - RR |
| 5 |
Tail Lamp - Right Auxiliary |
| 6 |
Stop/Turn Signal Lamp - RR |
| 7 |
Marker Lamp - RR |
| 8 |
Object Alarm Sensor - RR Corner (UFR) |
| 9 |
Object Alarm Sensor - RR Middle (UFR) |
| 10 |
License Lamps |
| 11 |
Object Alarm Sensor - LR Middle (UFR) |
| 12 |
Object Alarm Sensor - LR Corner (UFR) |
| 13 |
Marker Lamp - LR |
| 14 |
Stop/Turn Signal Lamp - LR |
| 15 |
Tail Lamp - Left Auxiliary |
| 16 |
Backup Lamp - LR |
| 17 |
Radio Rear Glass Antenna |
