Rear Toe Adjustment

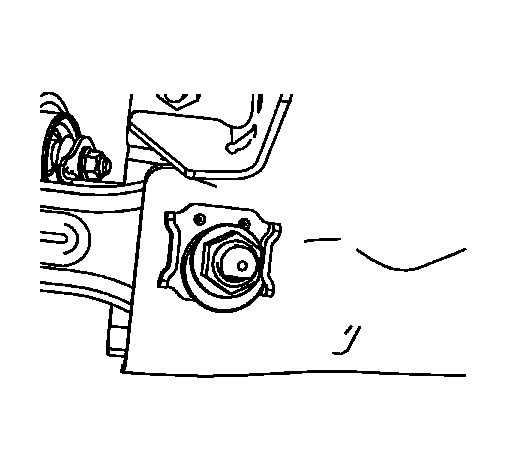

Fig 1: Loosening Inner Toe Link Cam Bolt And Nuts

Courtesy of GENERAL MOTORS CORP.

Loosen the inner toe link cam bolt and nuts.
Rotate the cam bolt to the required toe specification settings. Refer to Measuring Wheel Alignment .

NOTE: Refer to Fastener Notice in Cautions and Notices.

Maintain the toe setting while tightening the cam bolt nut.
Tighten: Tighten the rear suspension adjustment link lock nut to 110 N.m (81 lb ft).
Check the toe setting after tightening.
Adjust the toe setting if necessary.
