Installation Procedure

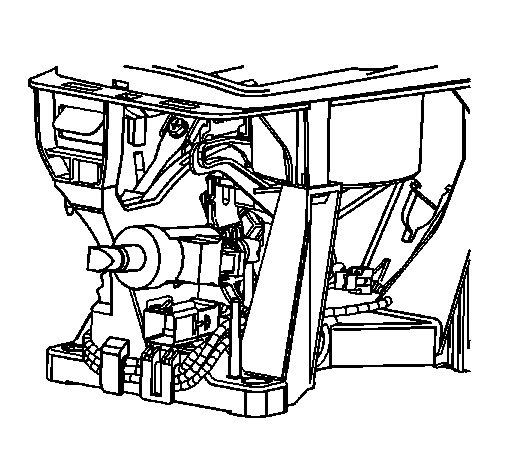

    Fig 1: Removing Shift Lock Control Solenoid
    GM1285269Courtesy of GENERAL MOTORS CORP.
  1. Route the shift lock control solenoid through the opening in the front of the control assembly.

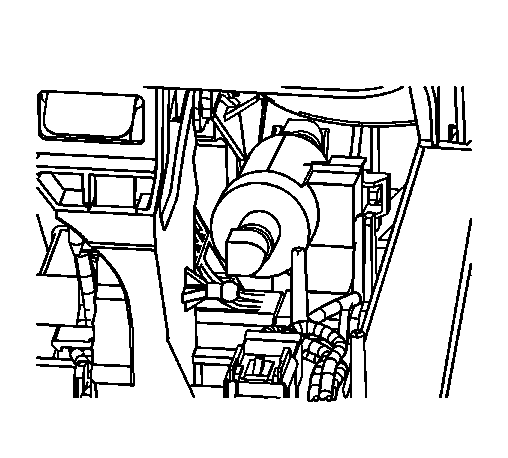

    2. Fig 2: Prying Solenoid Off Of Ball Sockets On Solenoid Plunger And Solenoid Body
    GM1285268Courtesy of GENERAL MOTORS CORP.
  2. Attach the ball sockets to the control assembly body and the shift-lock control lever.

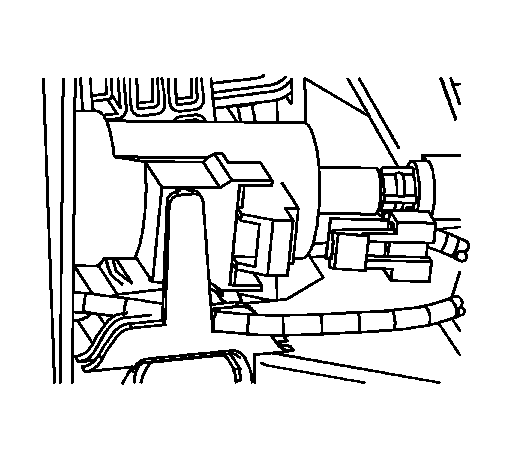

    3. Fig 3: Disconnecting Shift Lock Control Solenoid Connector From Solenoid
    GM1285267Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the Shift Lock Control Solenoid.
  4. Install the automatic transaxle control assembly. Refer to Floor Shift Control Replacement .
