Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 3: Right Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

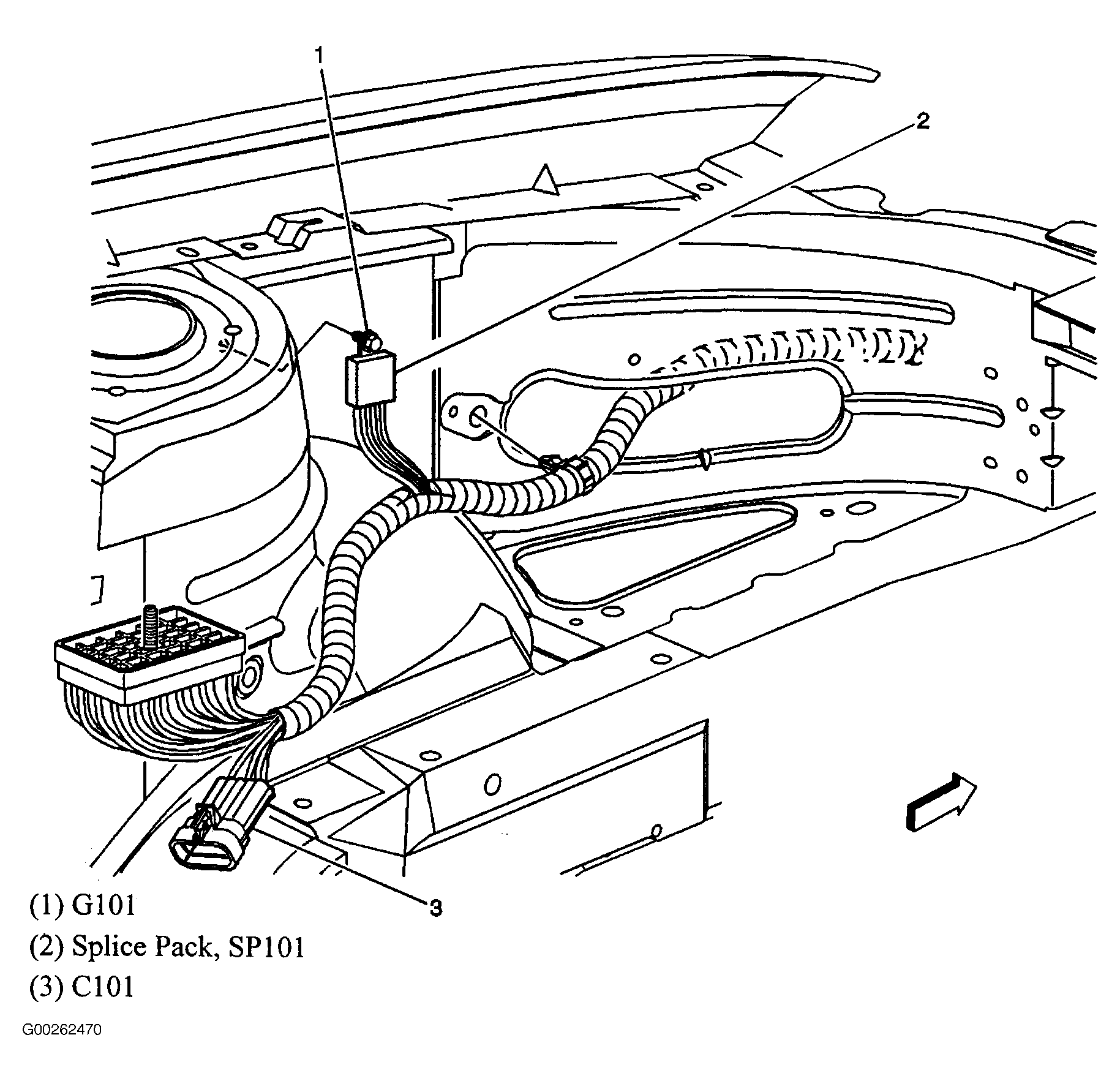

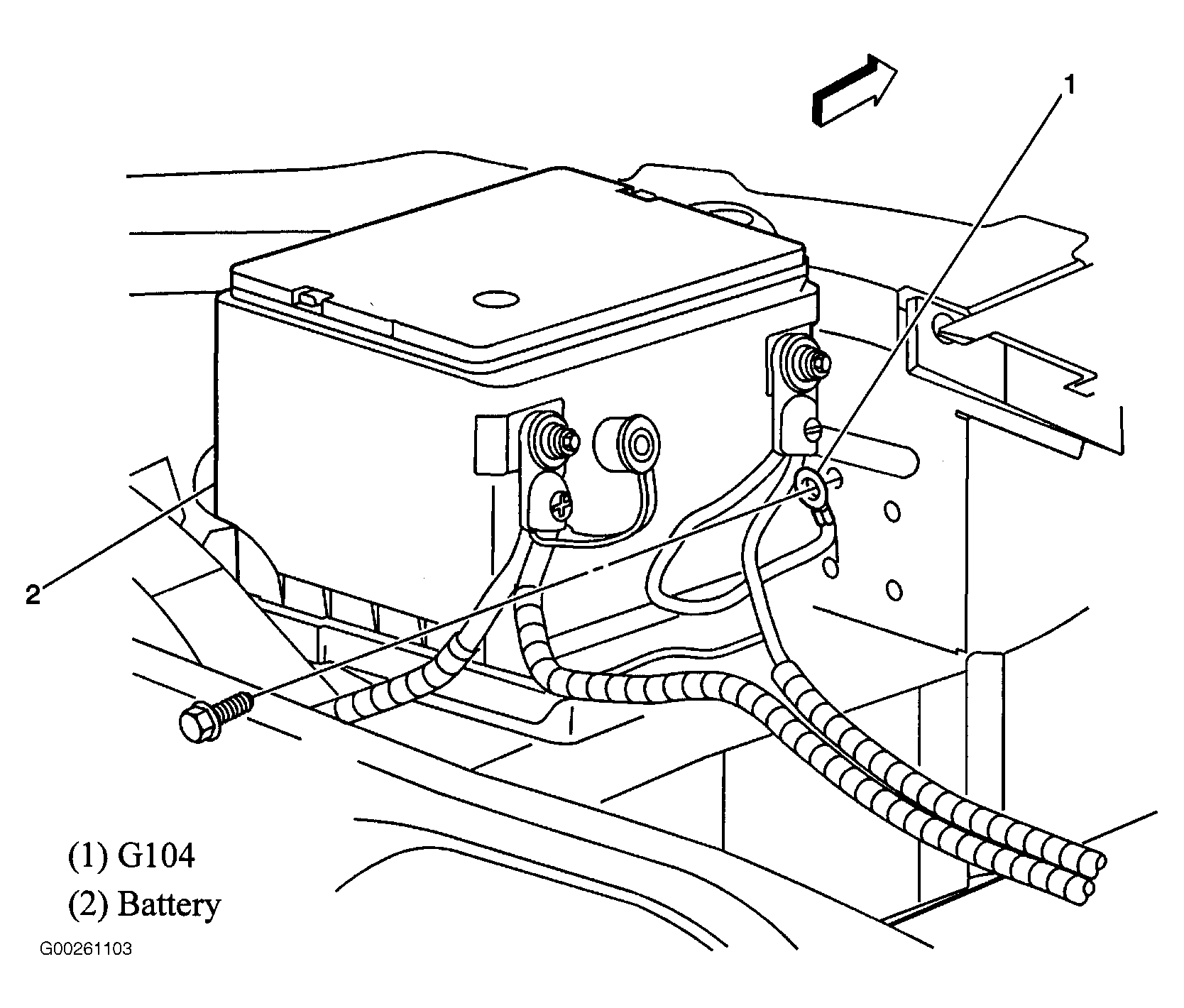

Fig 4: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 5: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

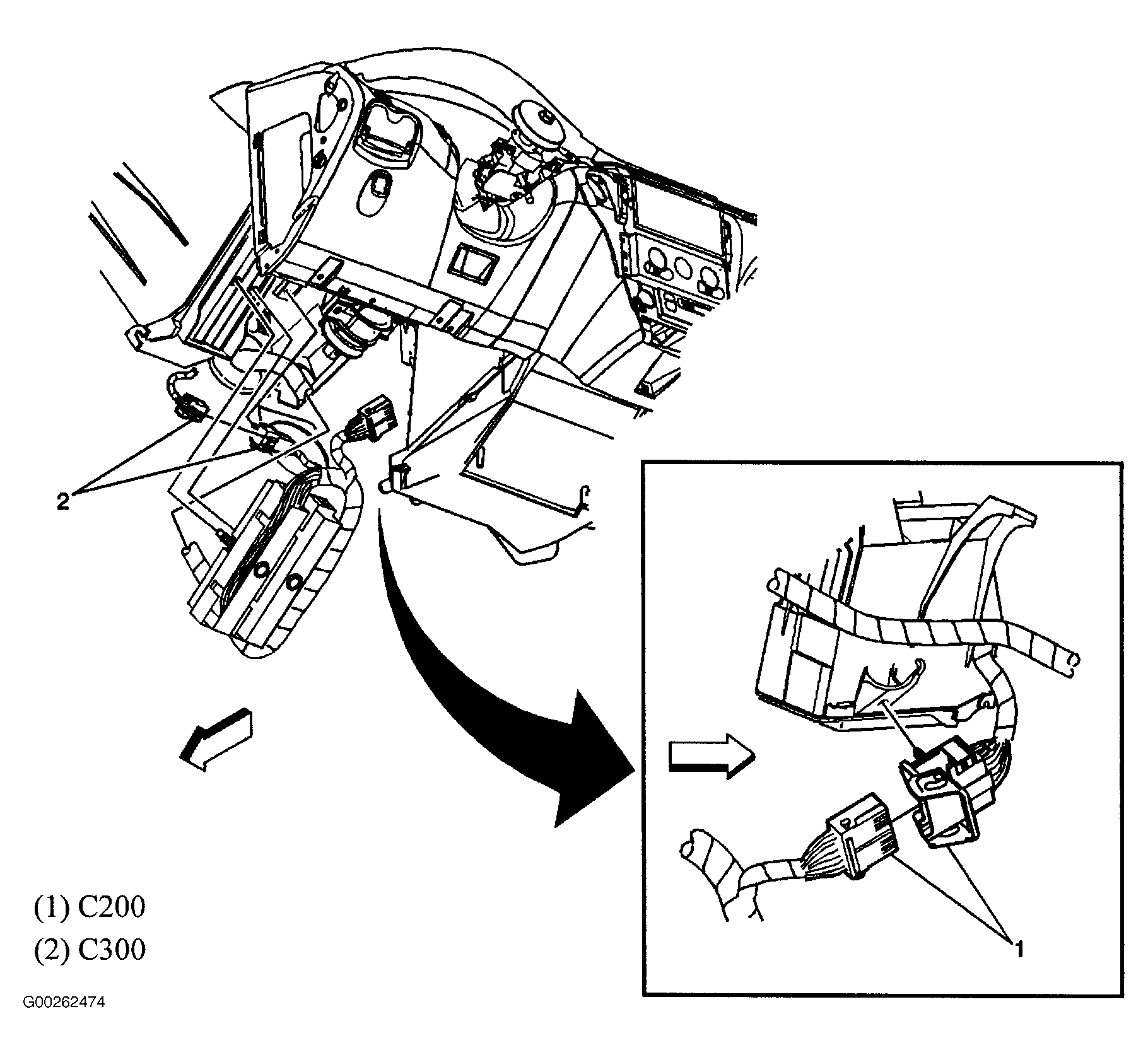

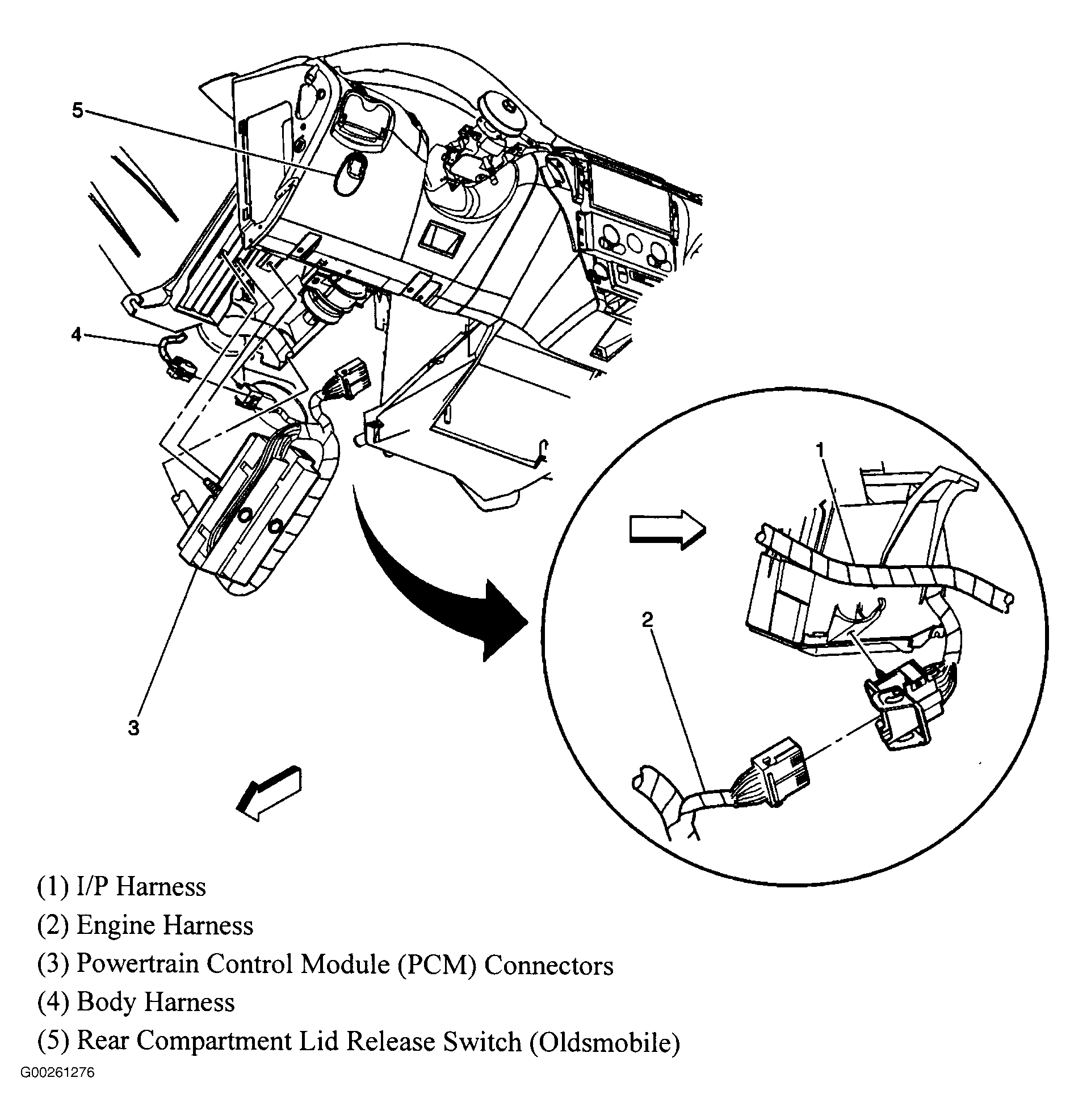

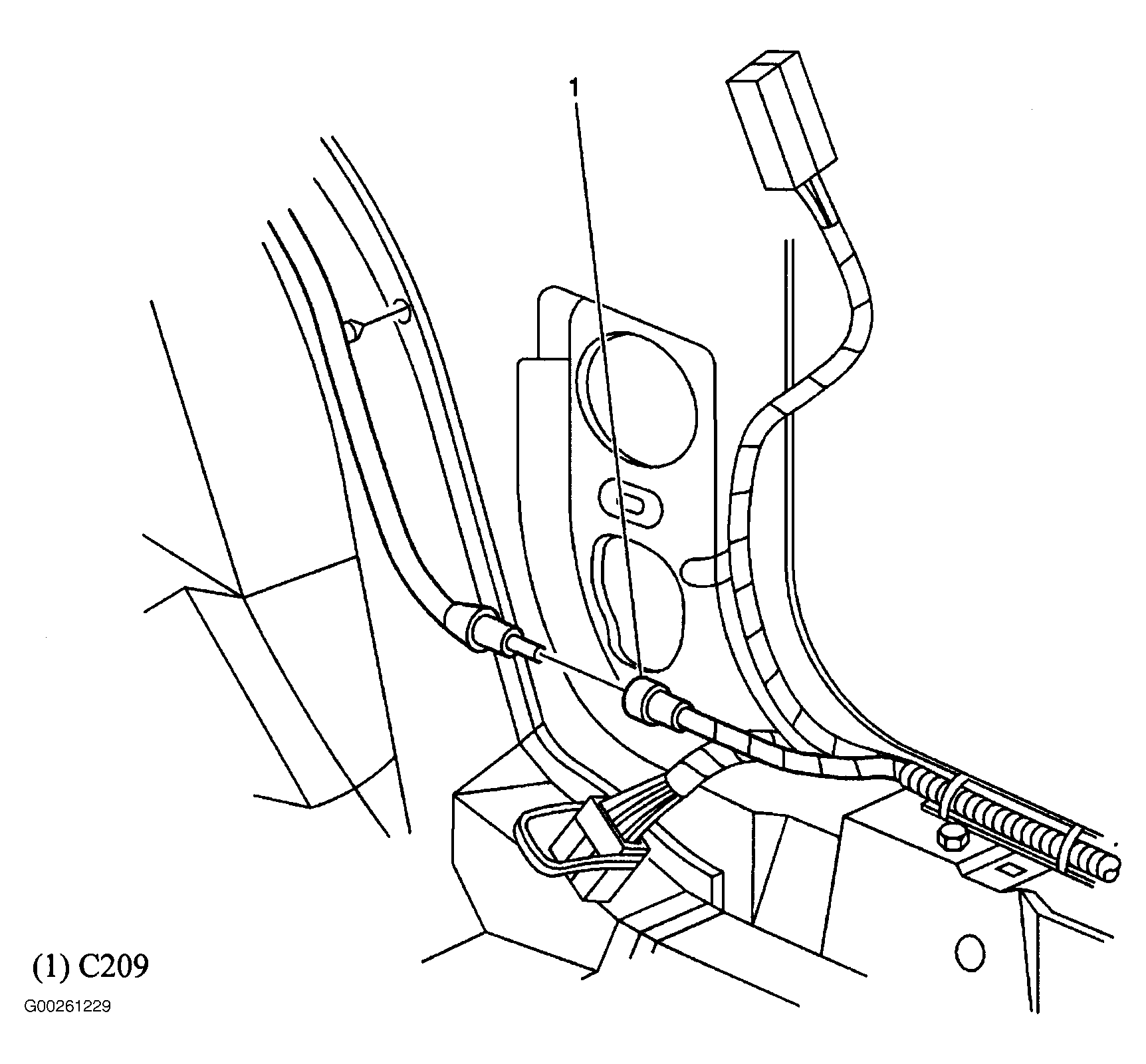

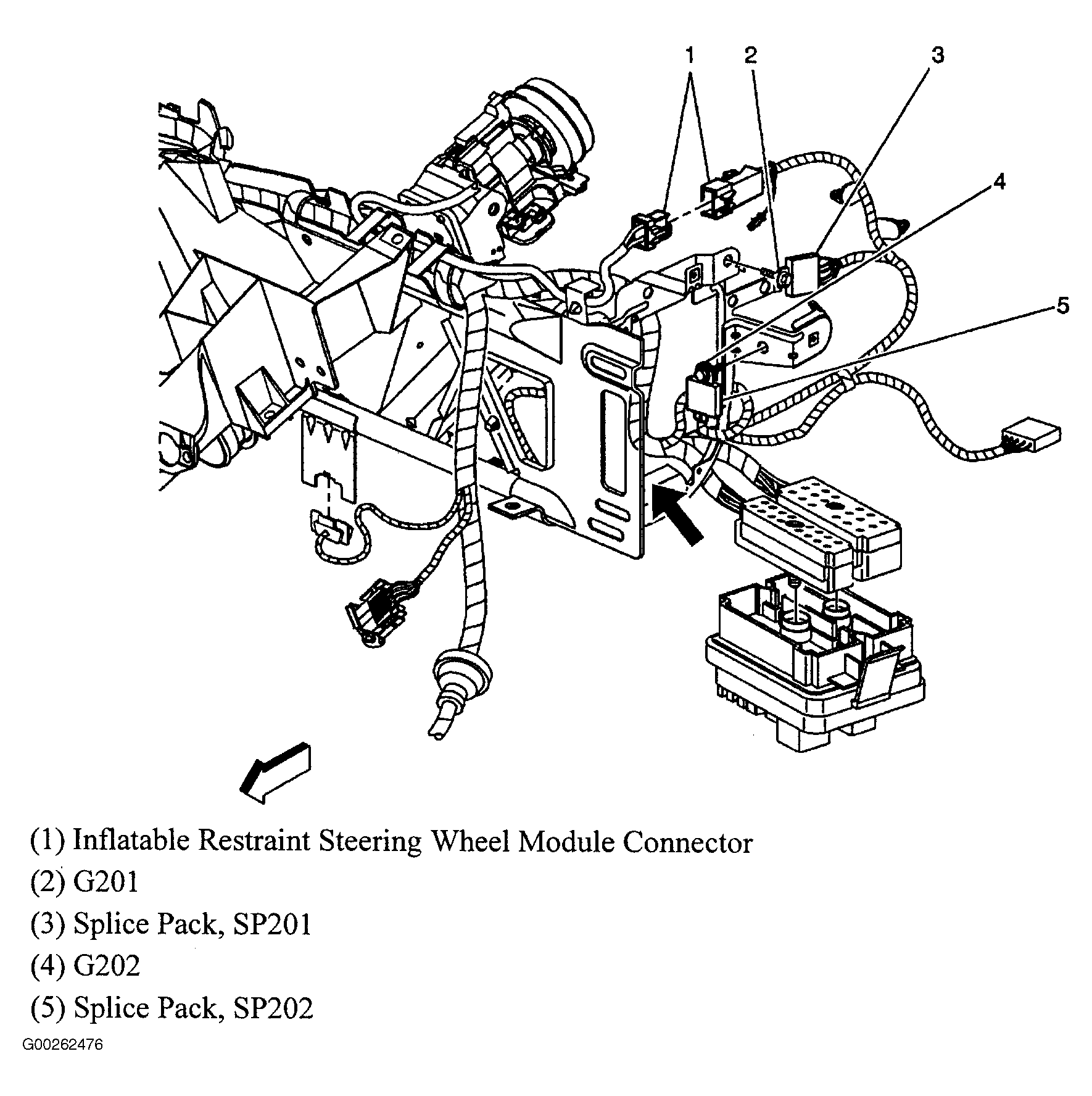

Fig 6: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

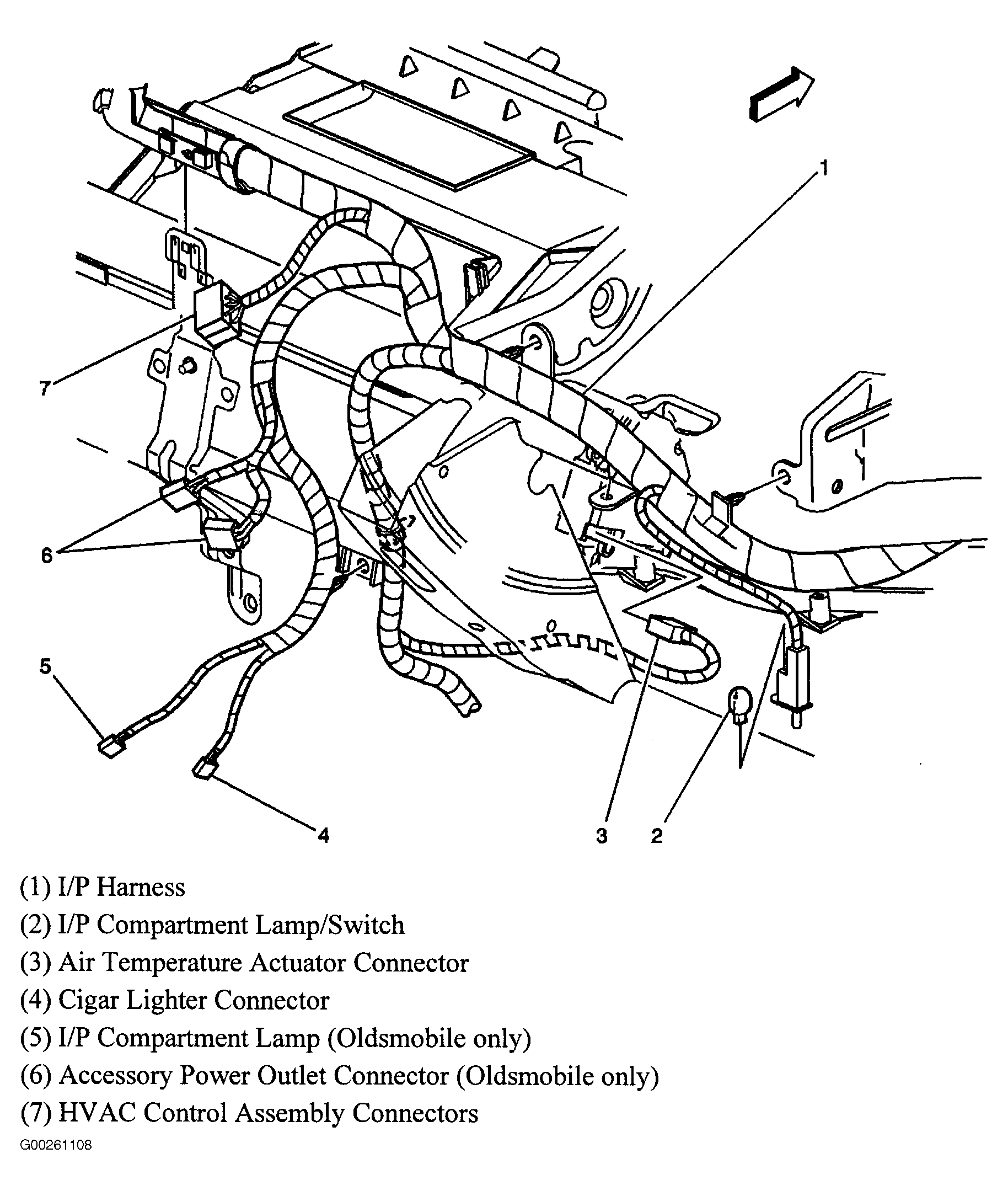

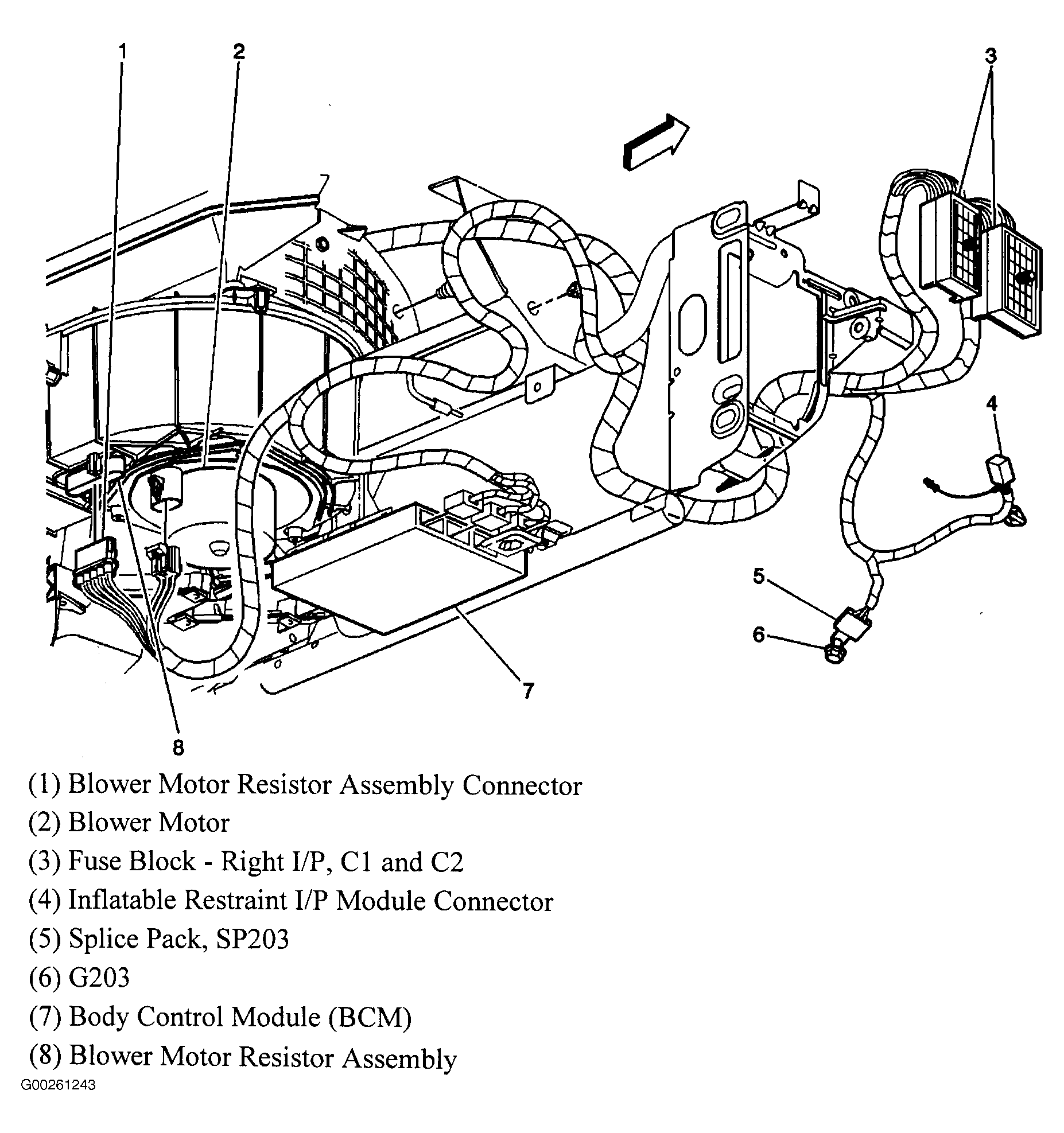

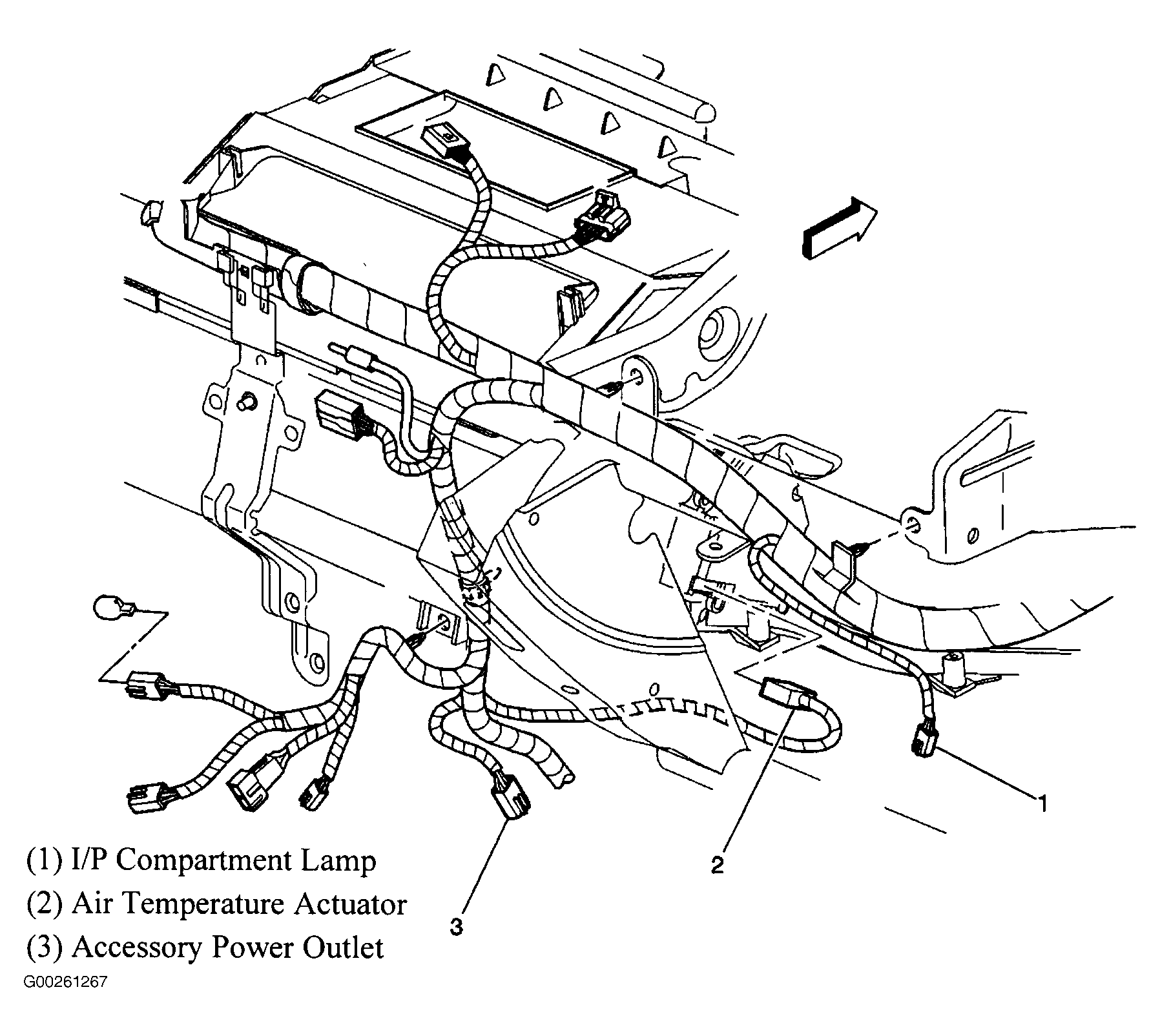

Fig 7: Right Instrument Panel Harness
Courtesy of GENERAL MOTORS CORP.

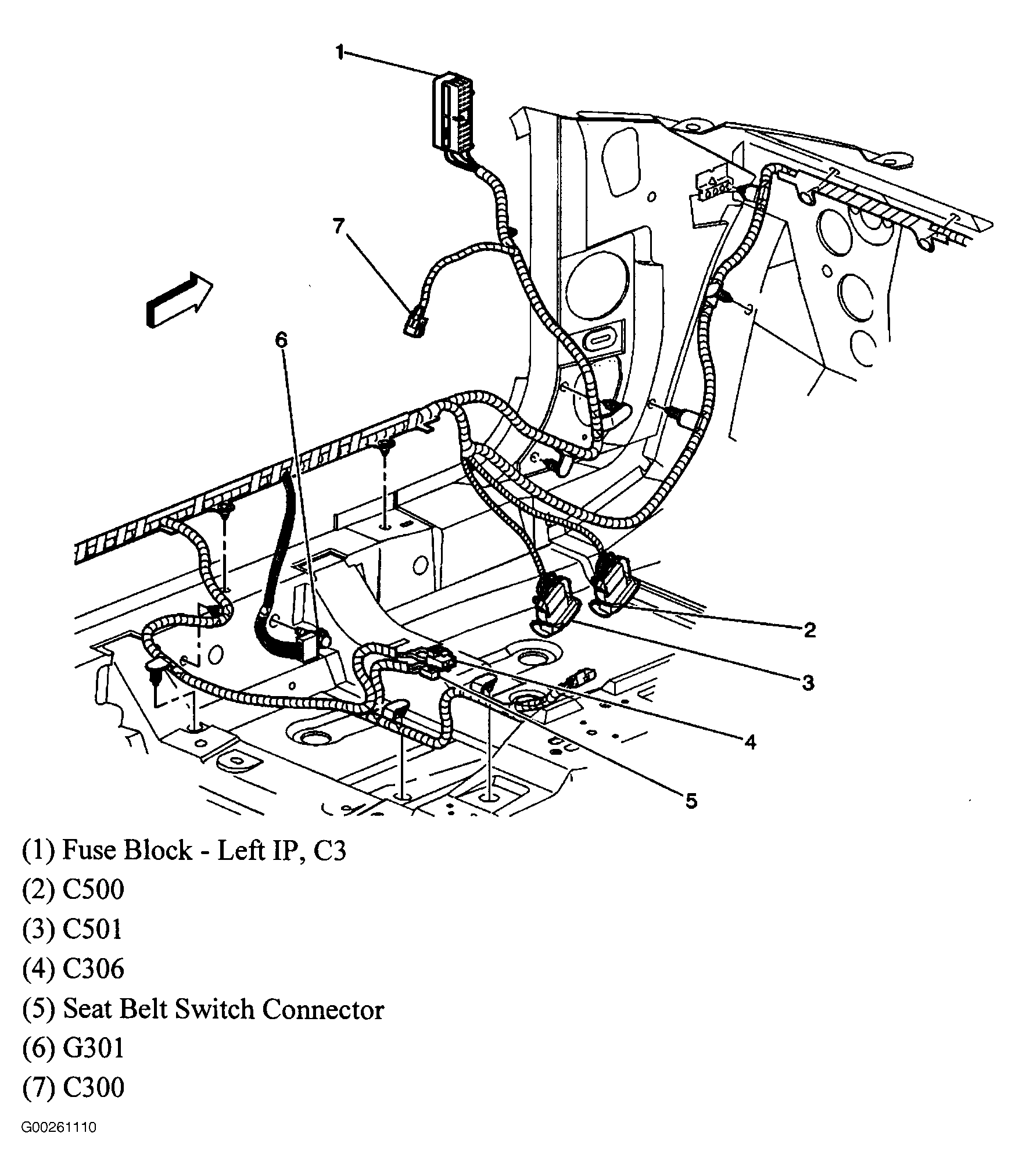

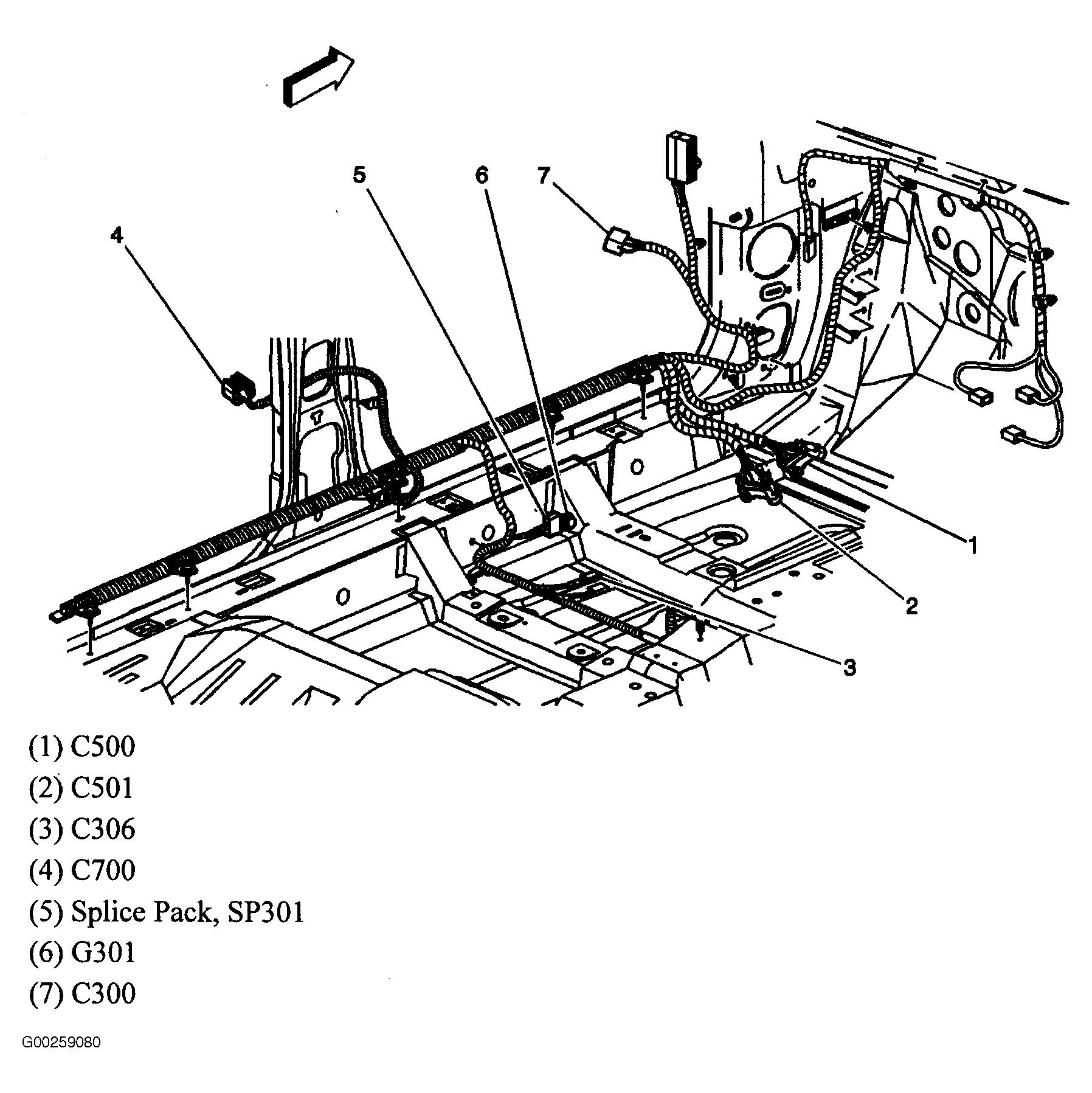

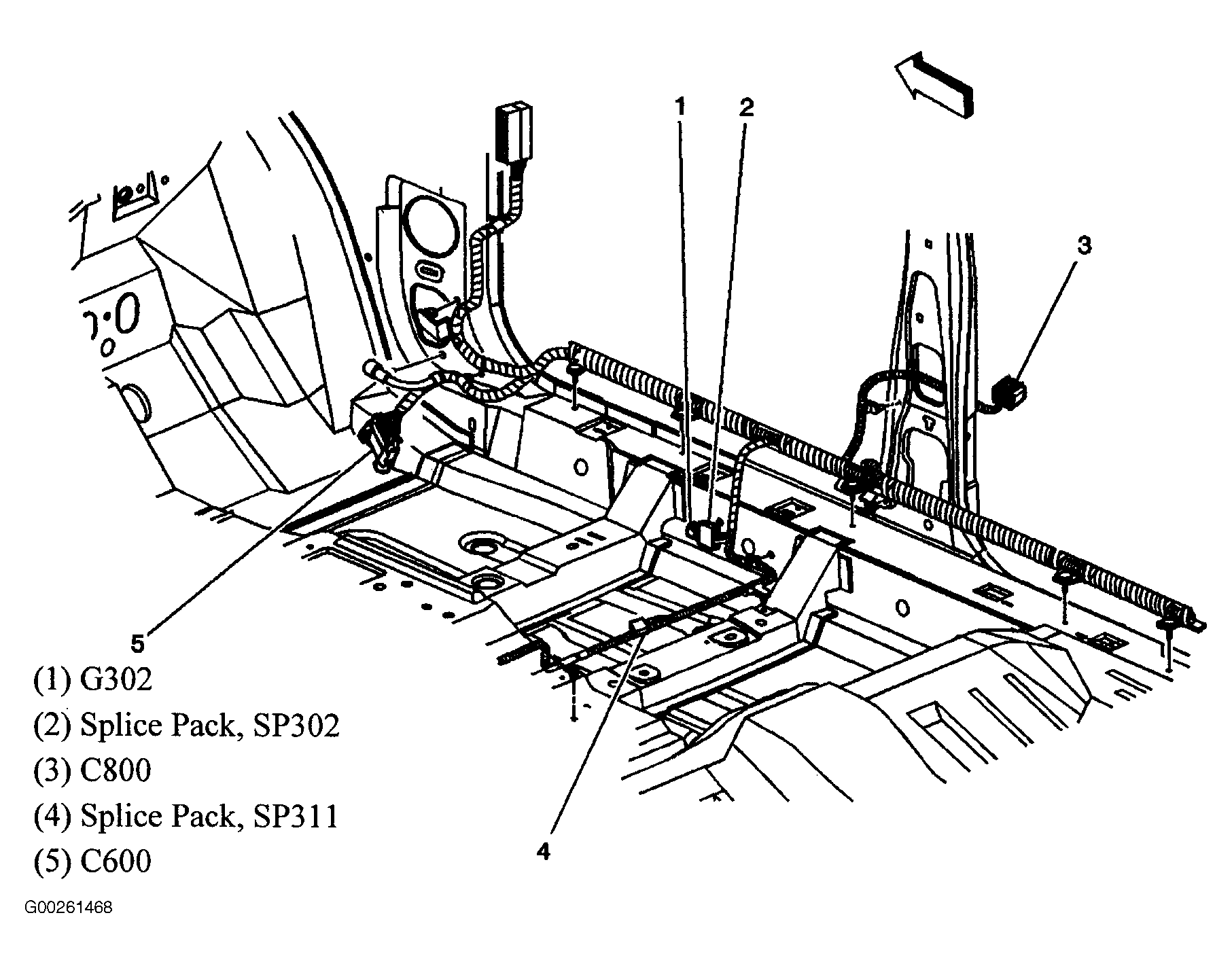

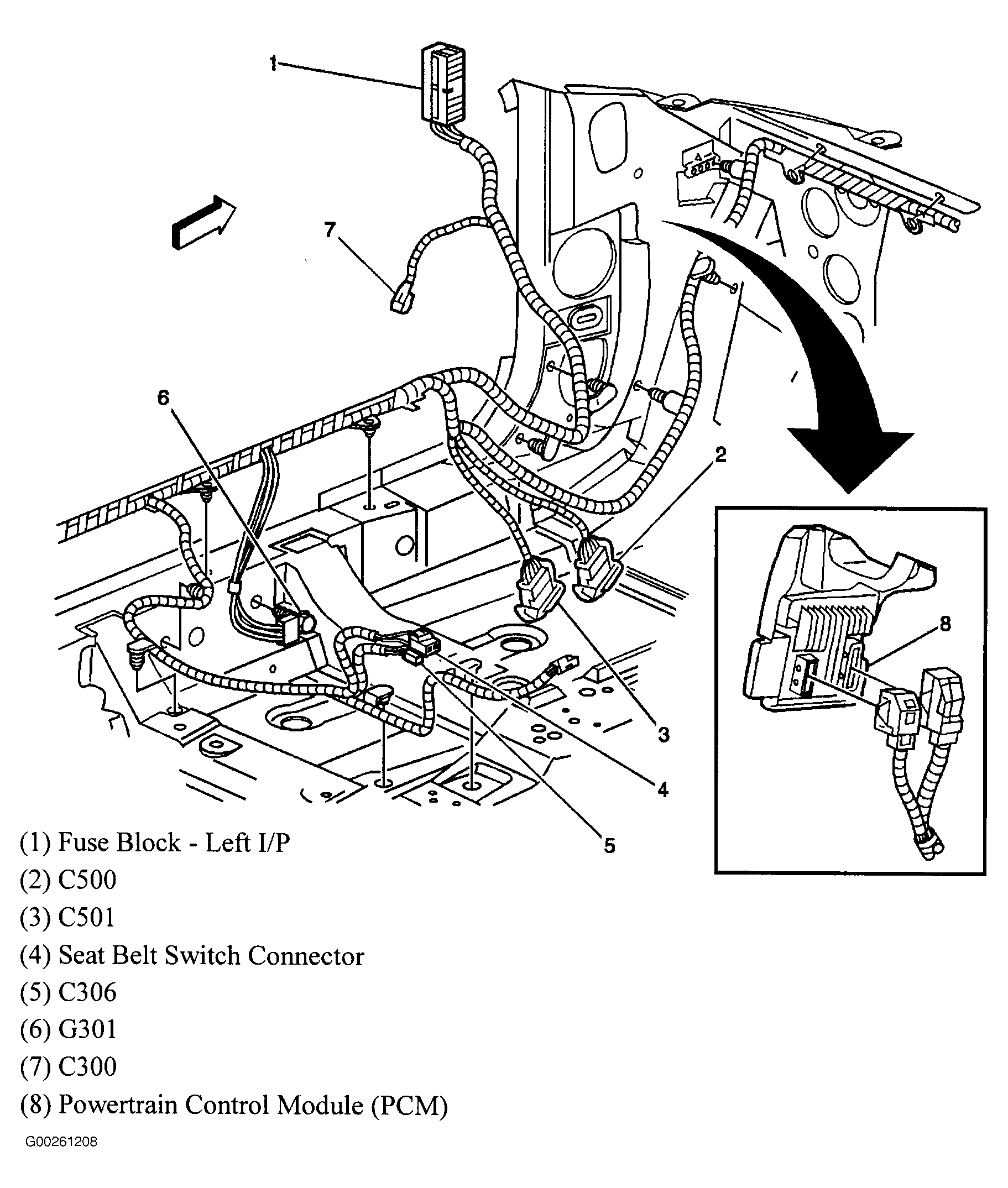

Fig 8: Left Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

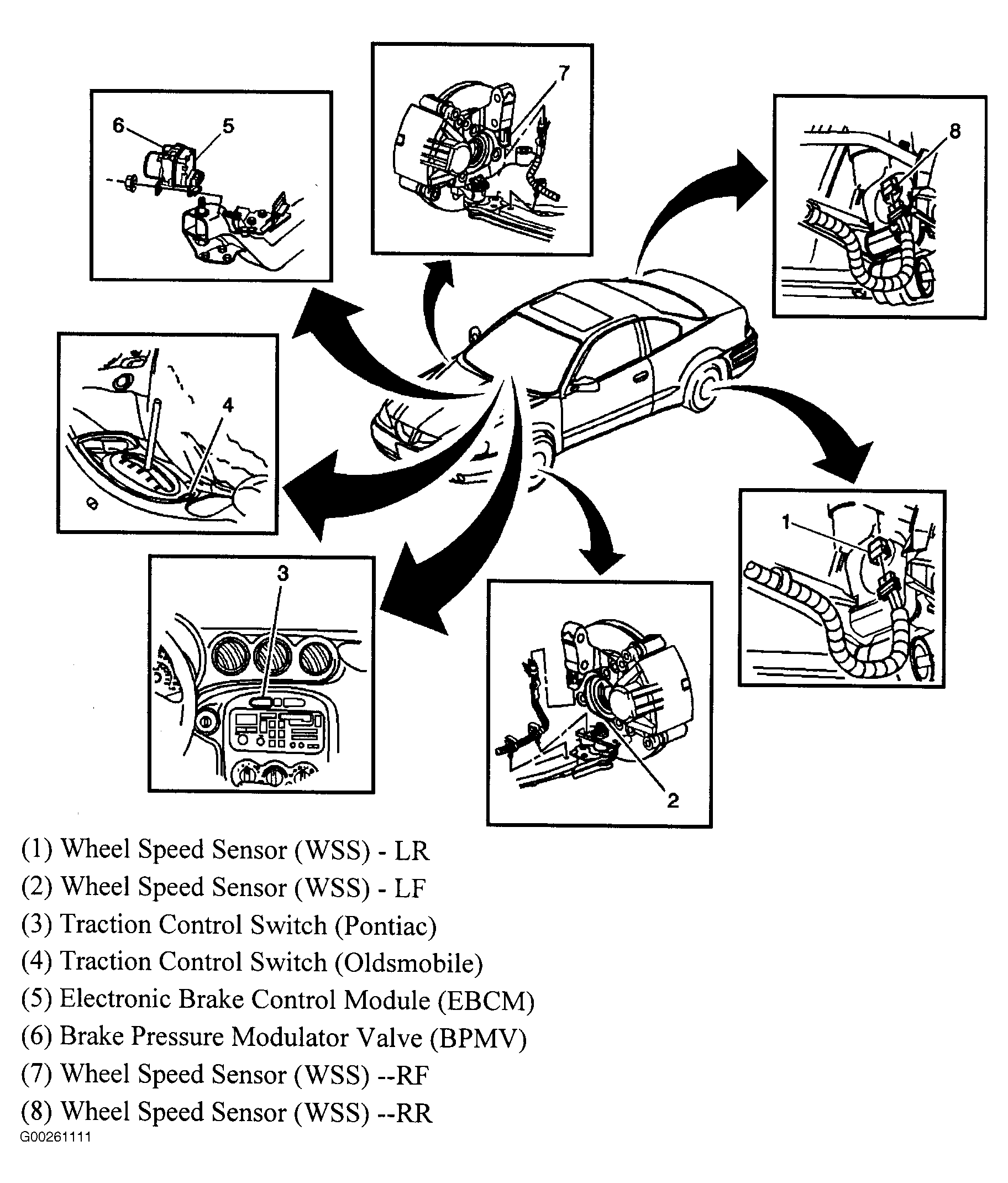

Fig 9: ABS Component Views
Courtesy of GENERAL MOTORS CORP.

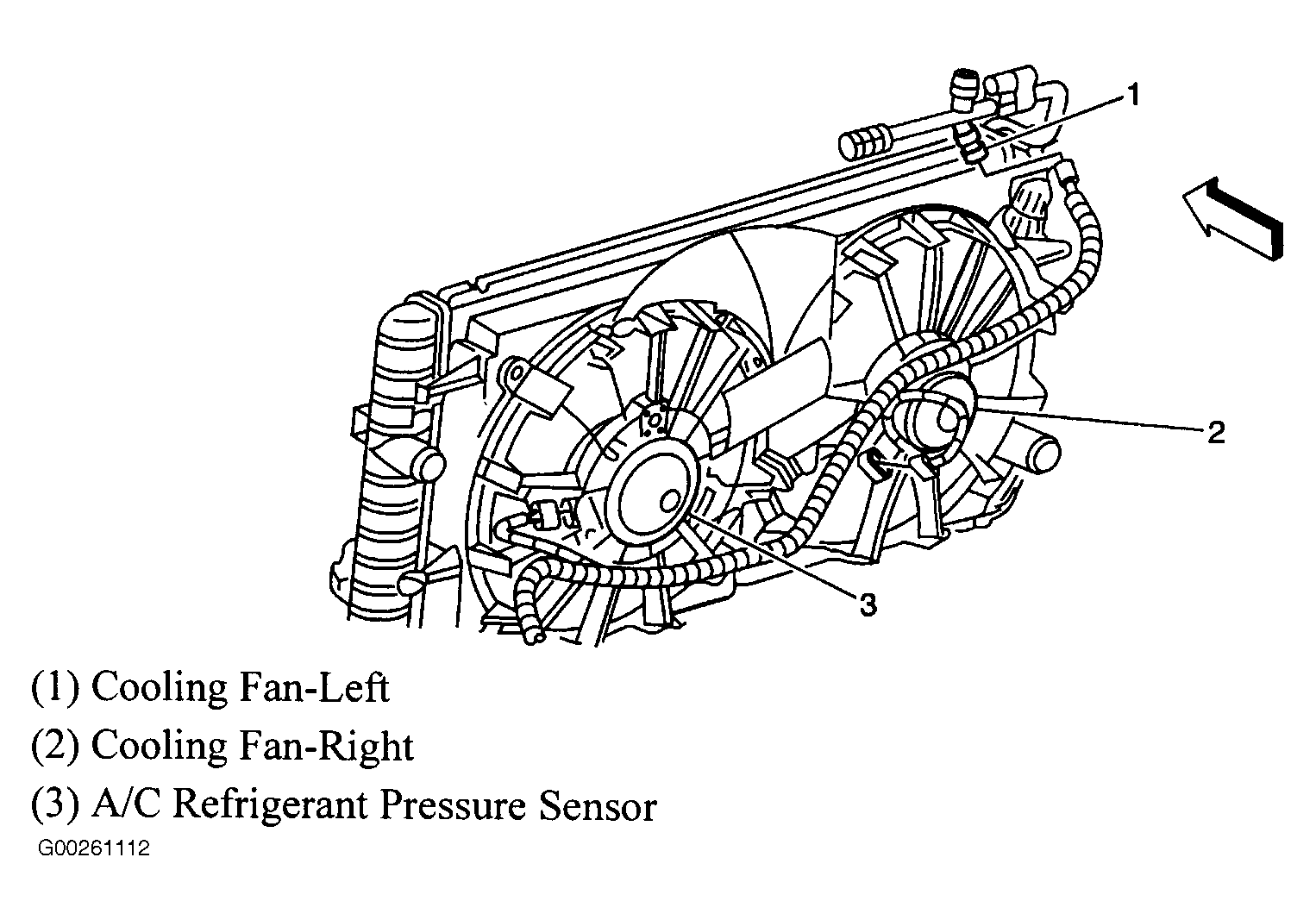

Fig 10: Rear Of Radiator
Courtesy of GENERAL MOTORS CORP.

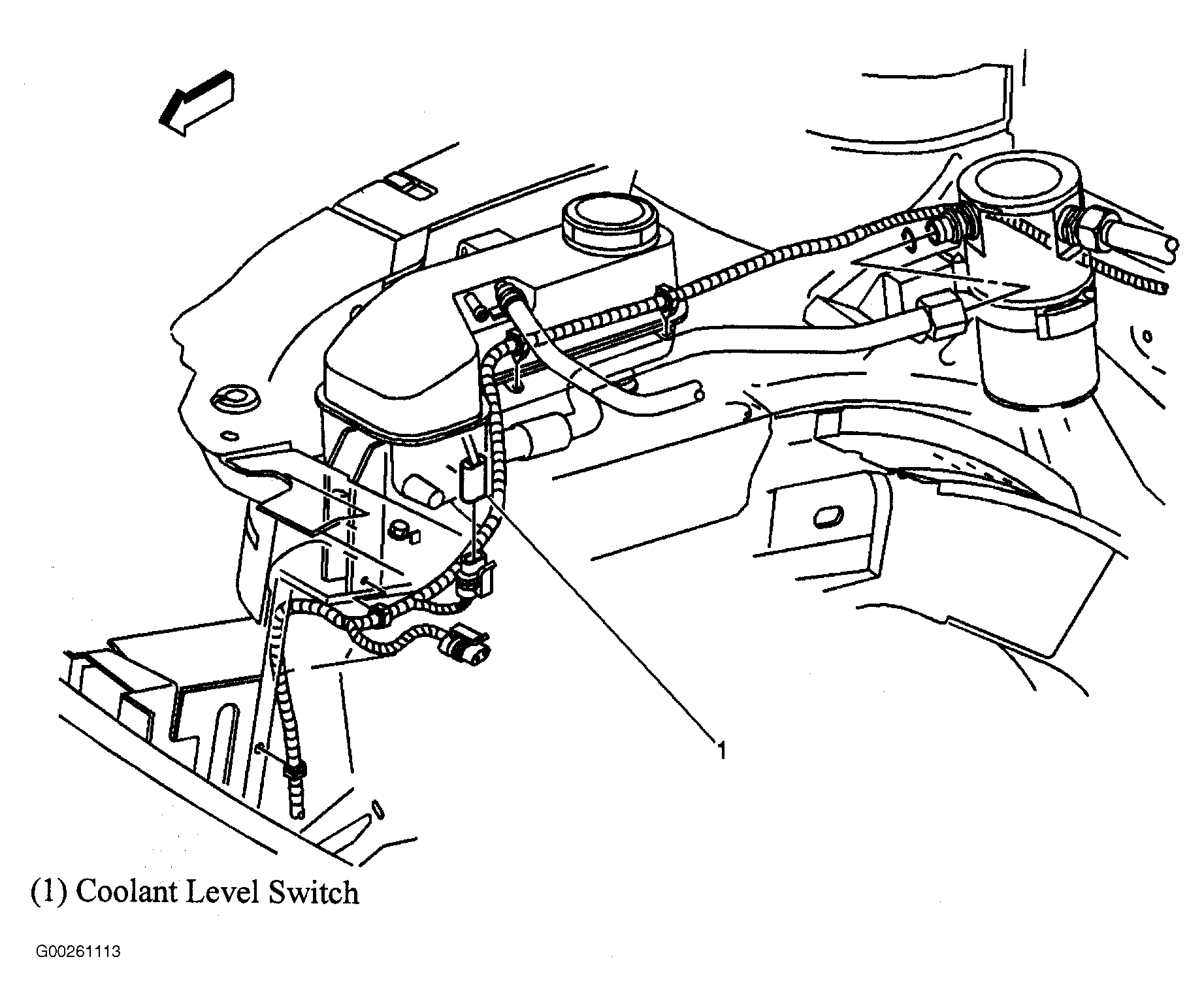

Fig 11: Coolant Level Switch
Courtesy of GENERAL MOTORS CORP.
Fig 12: Starter
Courtesy of GENERAL MOTORS CORP.

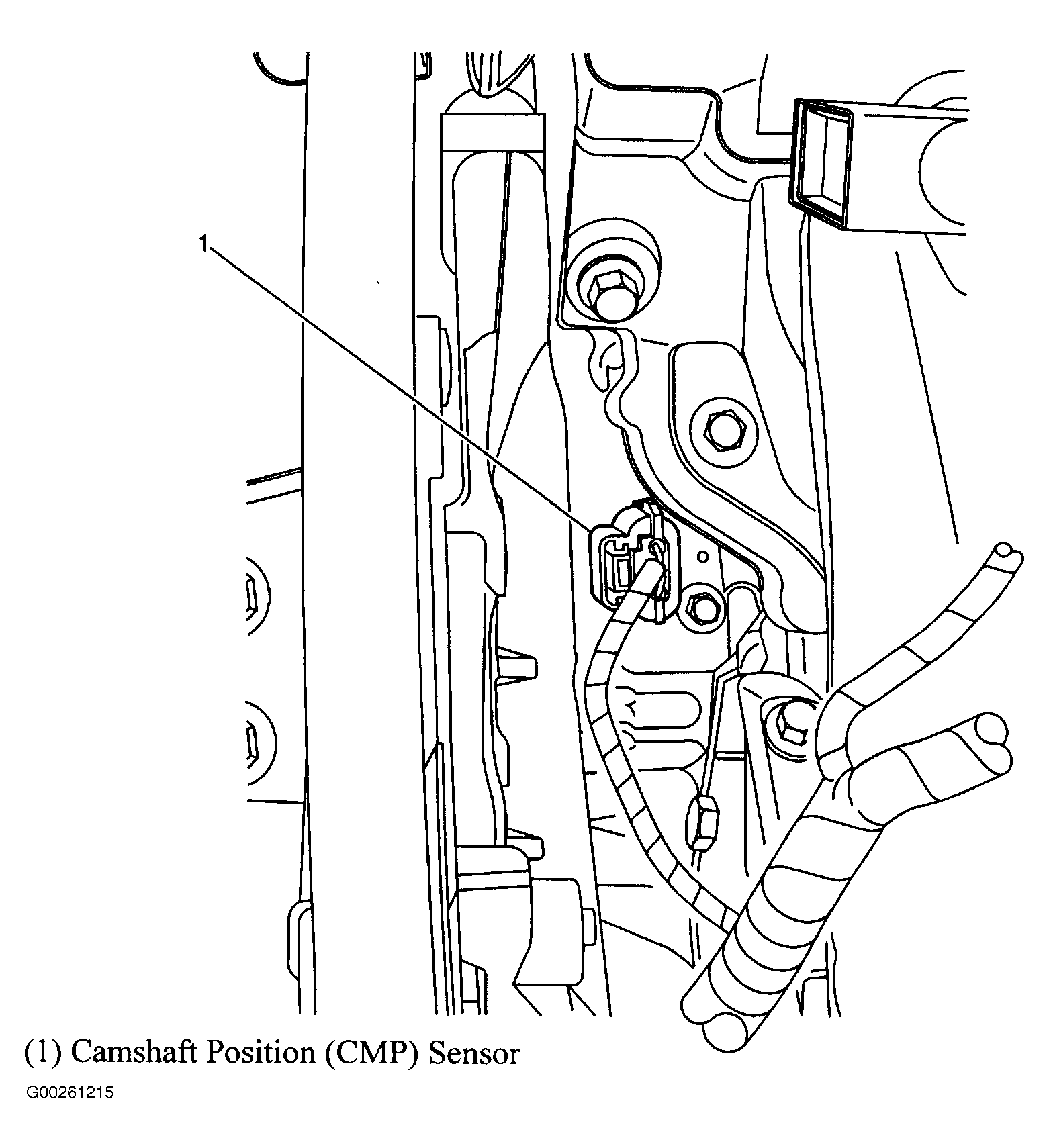

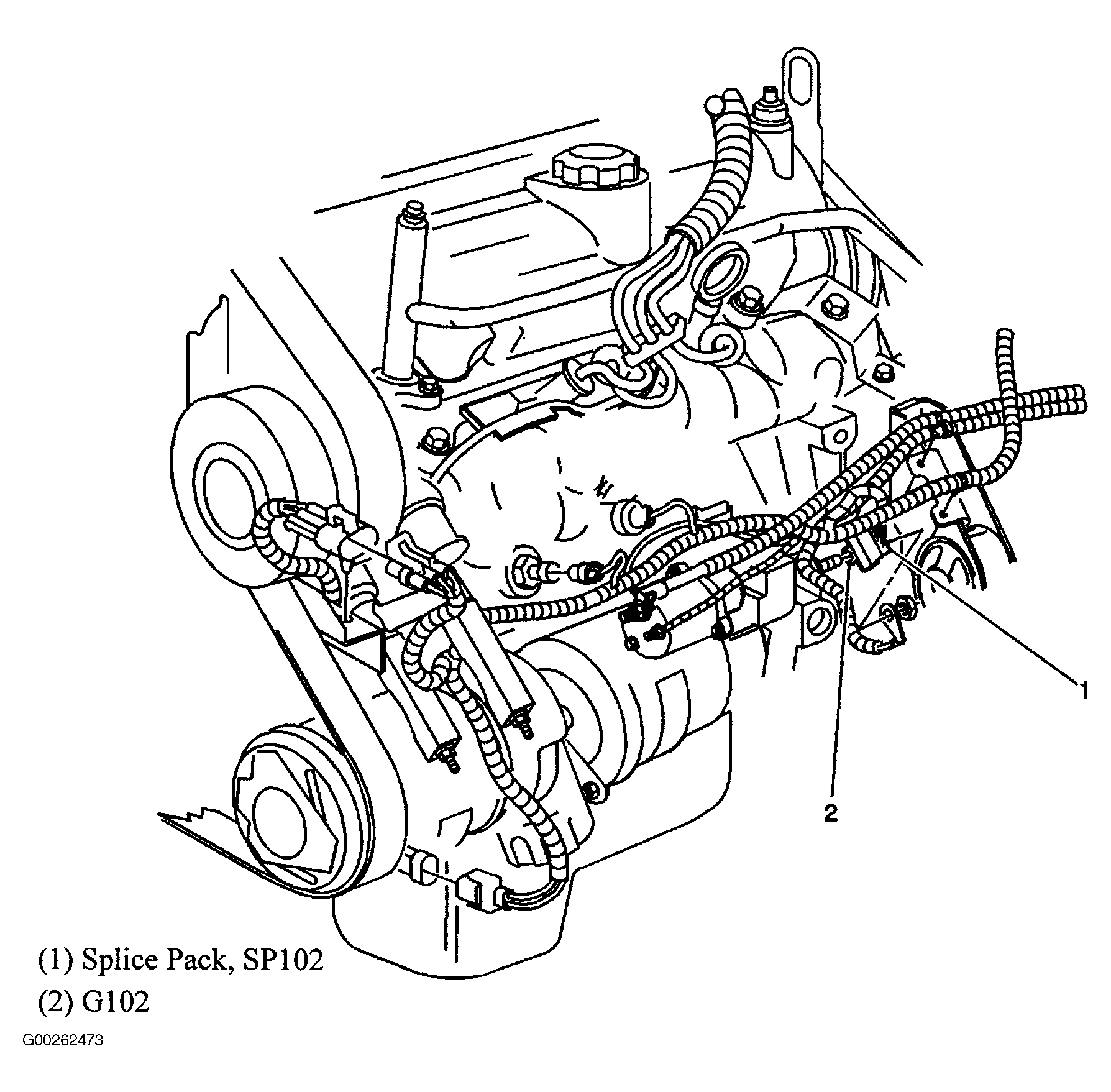

Fig 13: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.

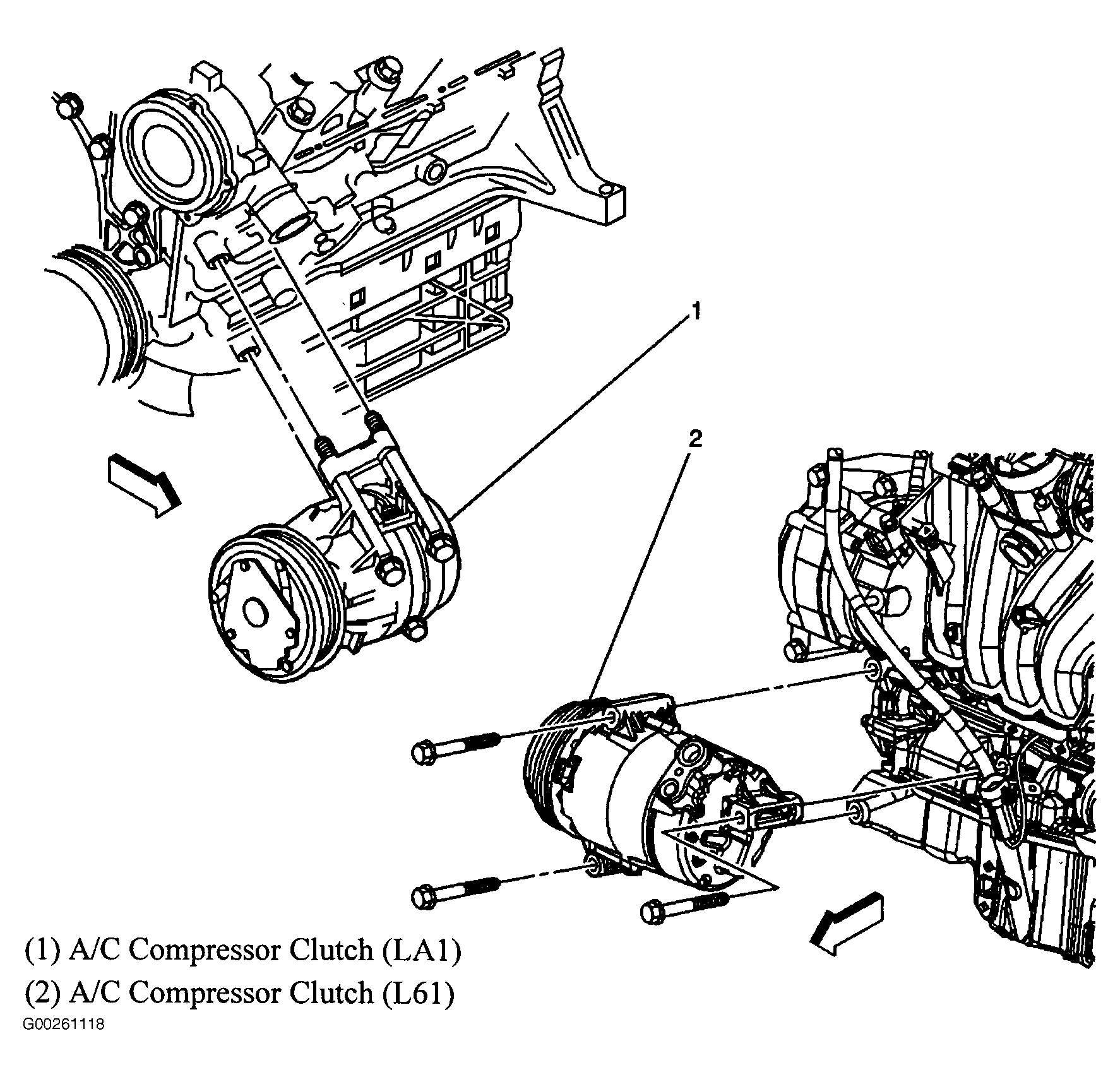

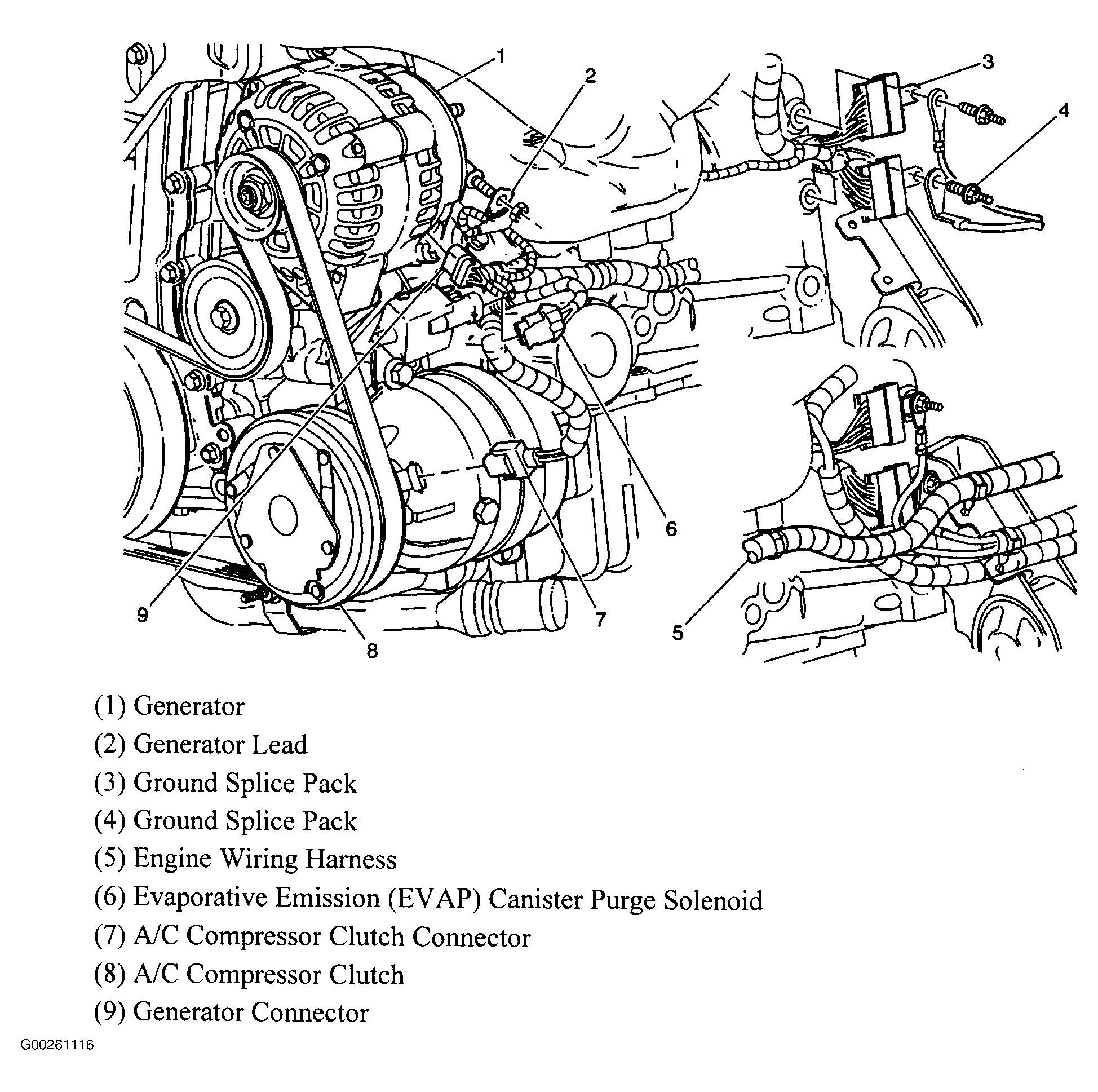

Fig 14: A/C Compressor Clutch
Courtesy of GENERAL MOTORS CORP.

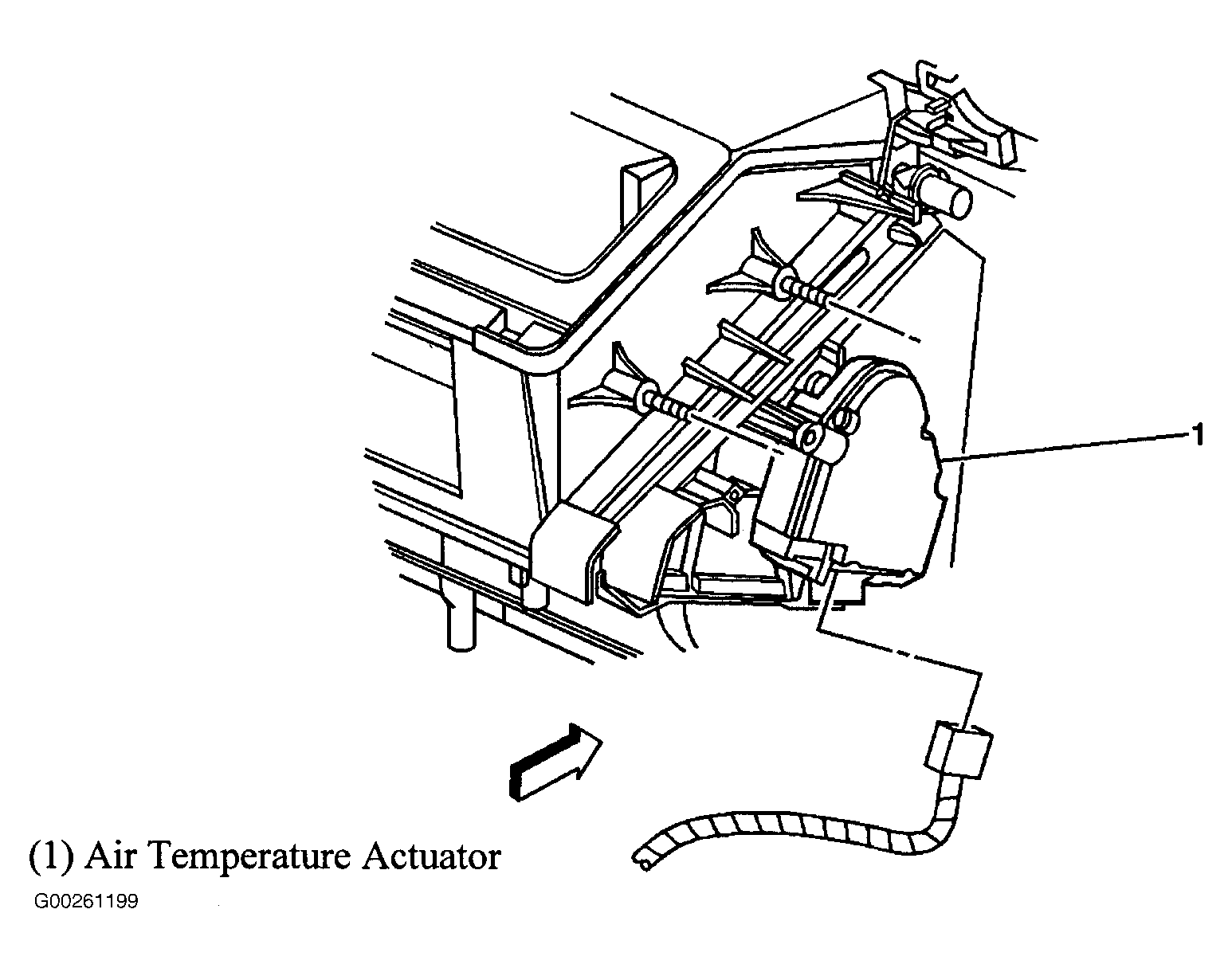

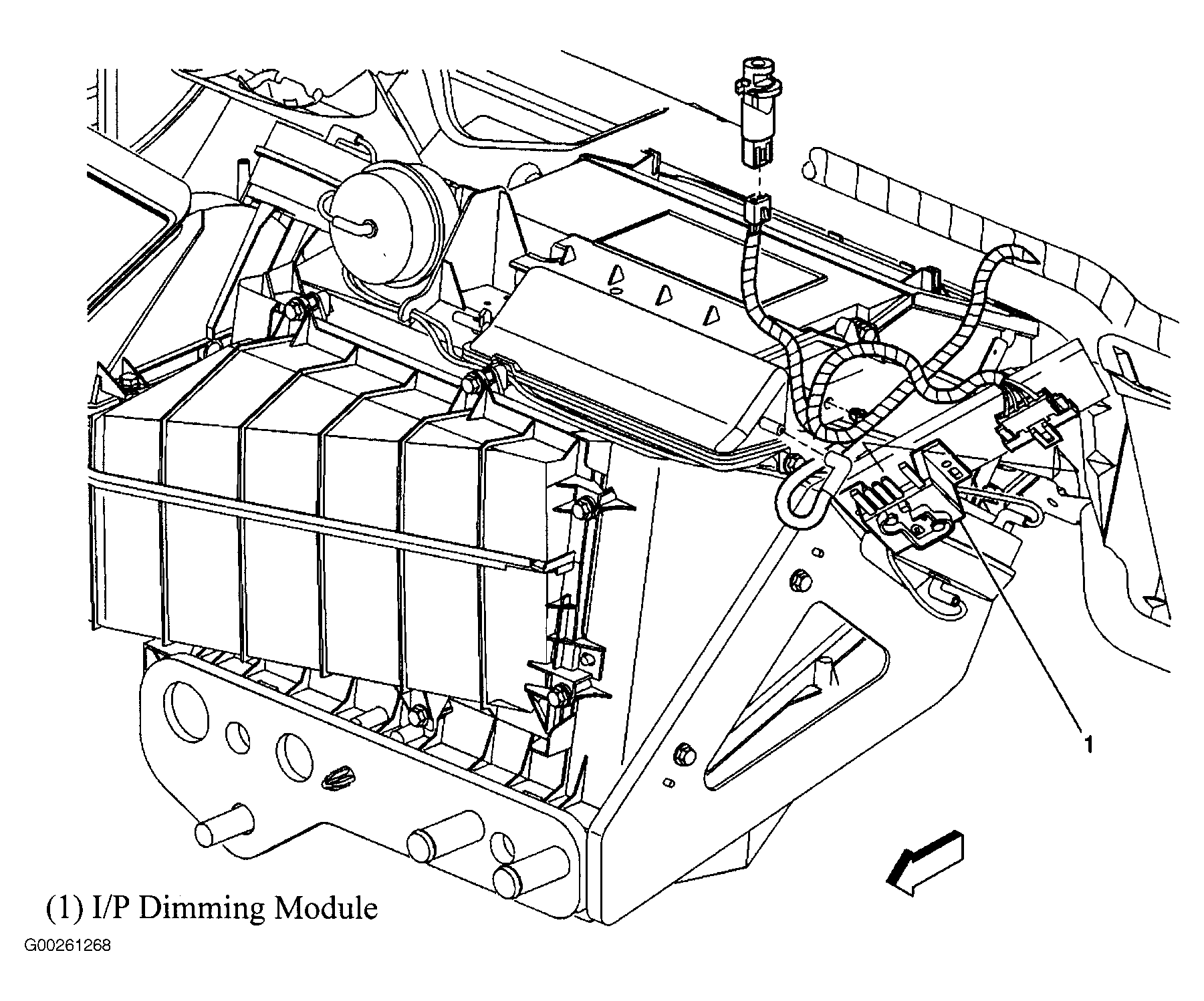

Fig 15: Right Side Of Evaporator
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

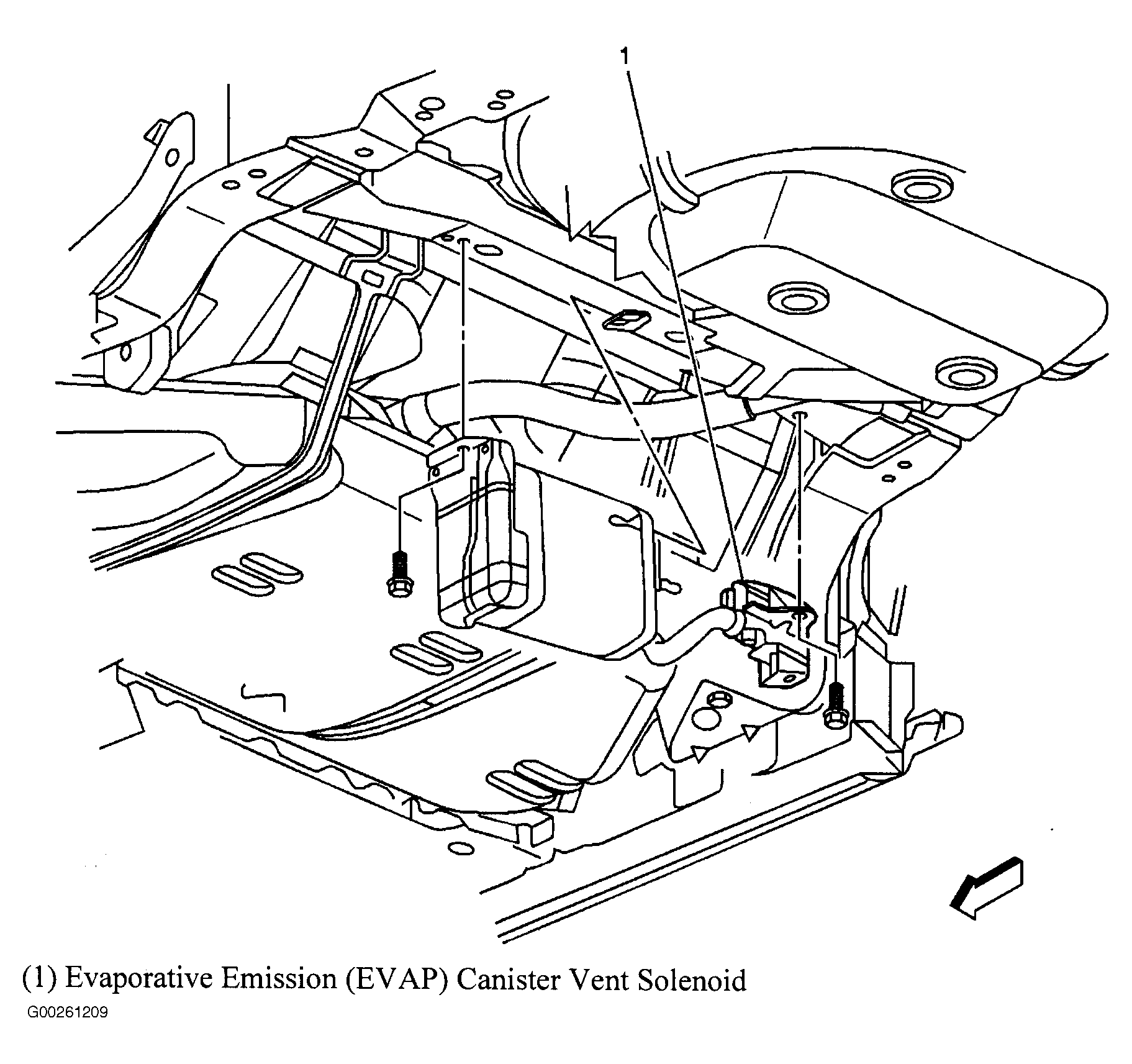

Fig 17: Evaporative Emission (EVAP) Canister Vent Solenoid
Courtesy of GENERAL MOTORS CORP.

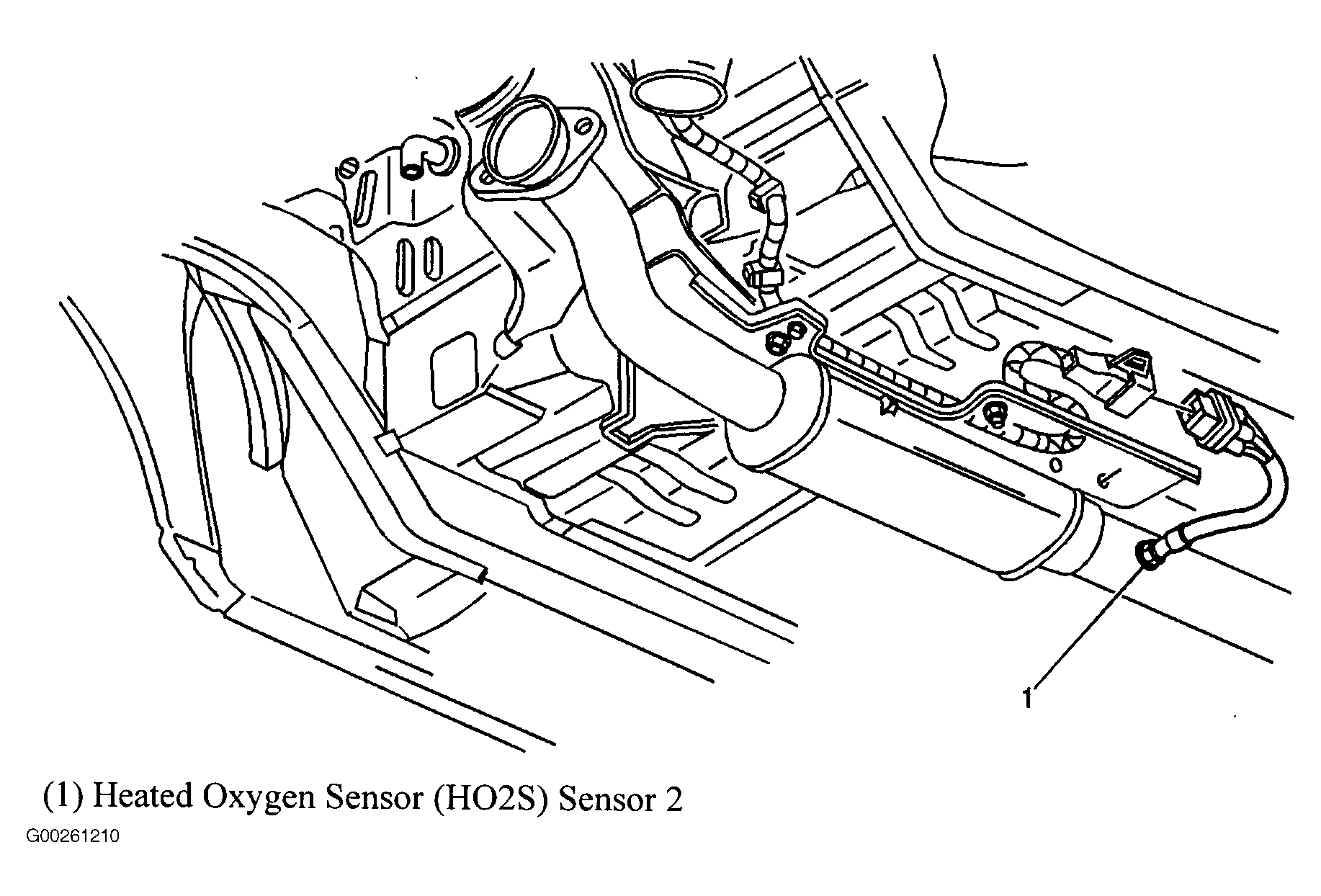

Fig 18: Heated Oxygen (HO2S) Sensor 2
Courtesy of GENERAL MOTORS CORP.

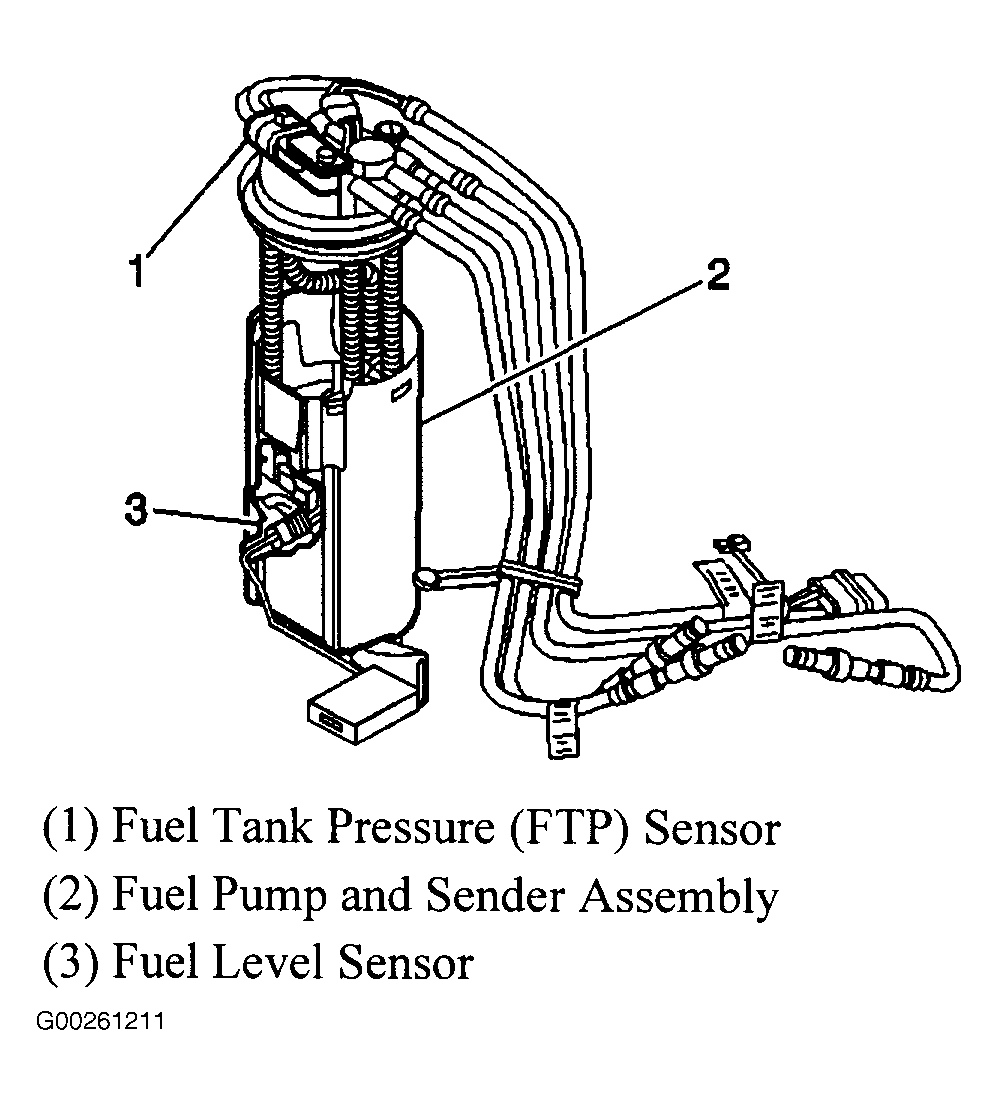

Fig 19: Fuel Pump & Sender Assembly
Courtesy of GENERAL MOTORS CORP.

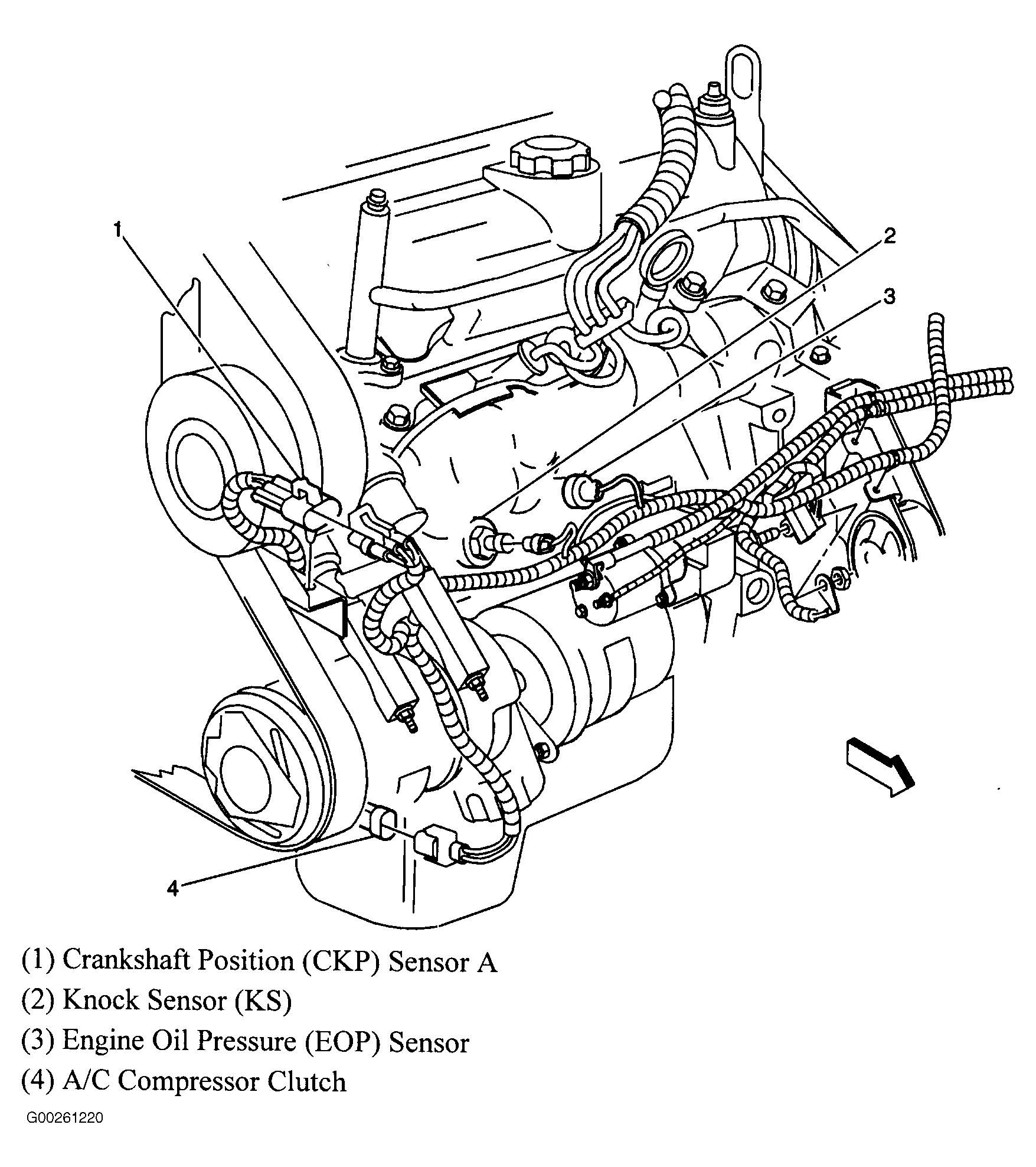

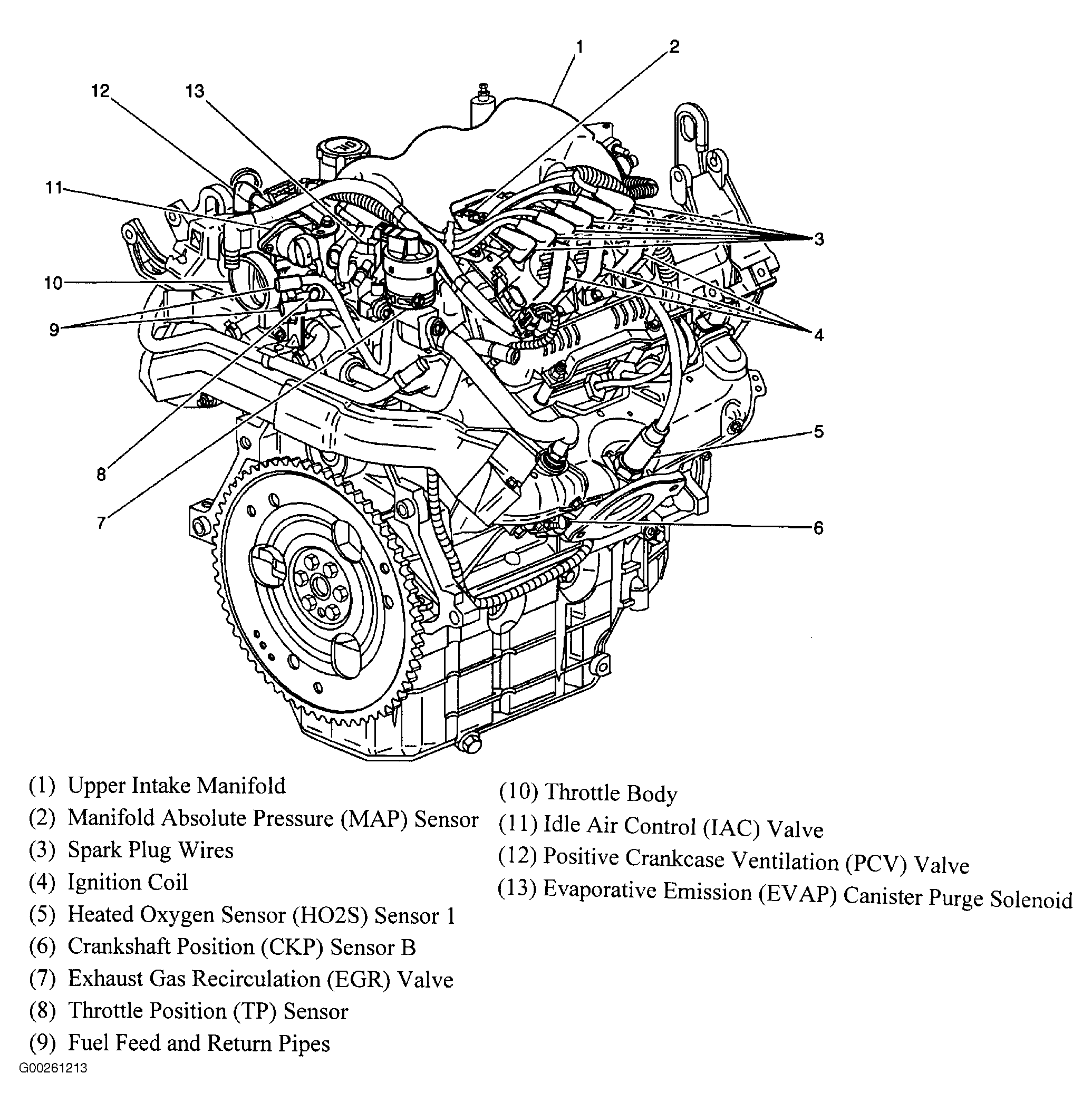

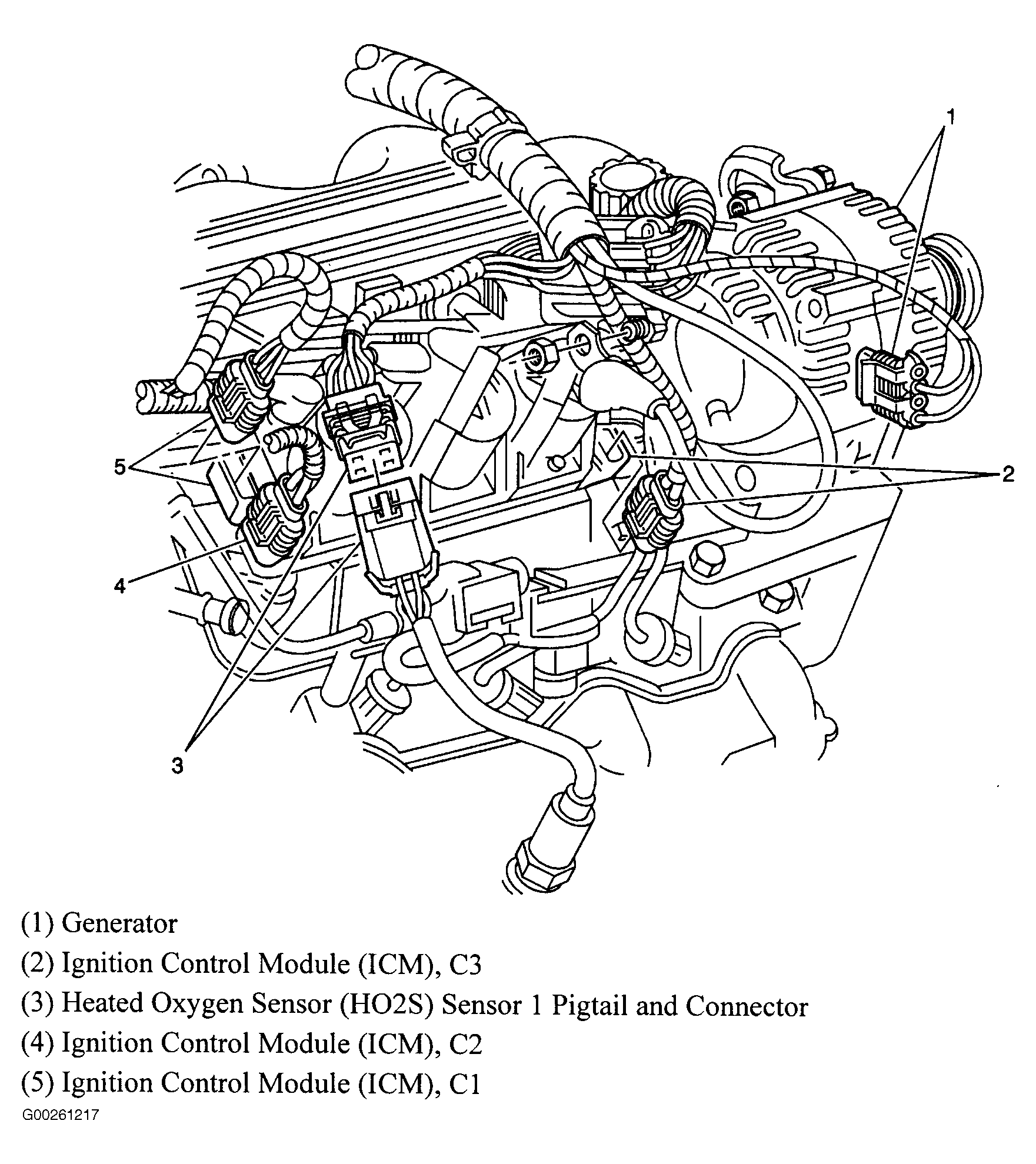

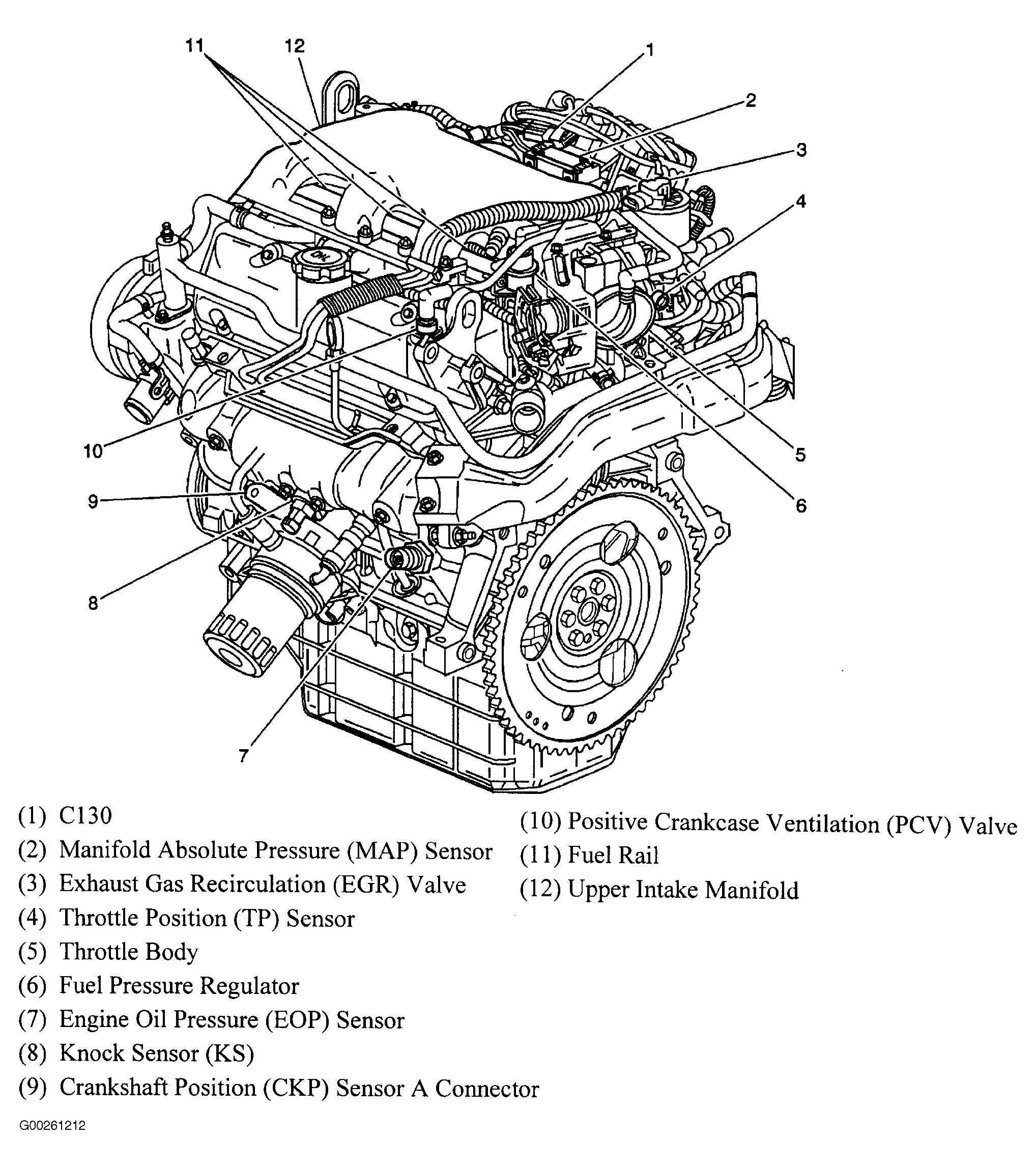

Fig 20: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

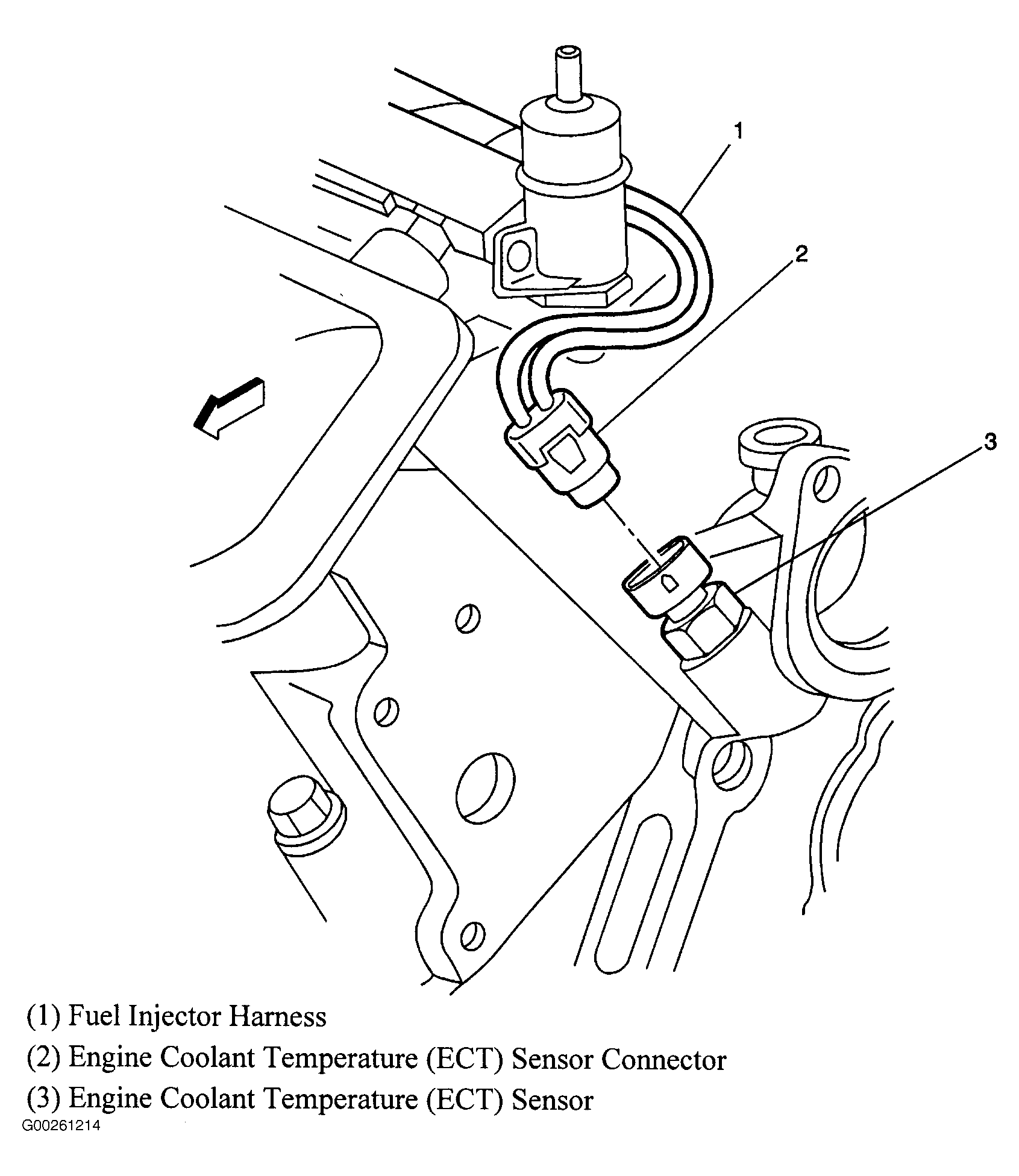

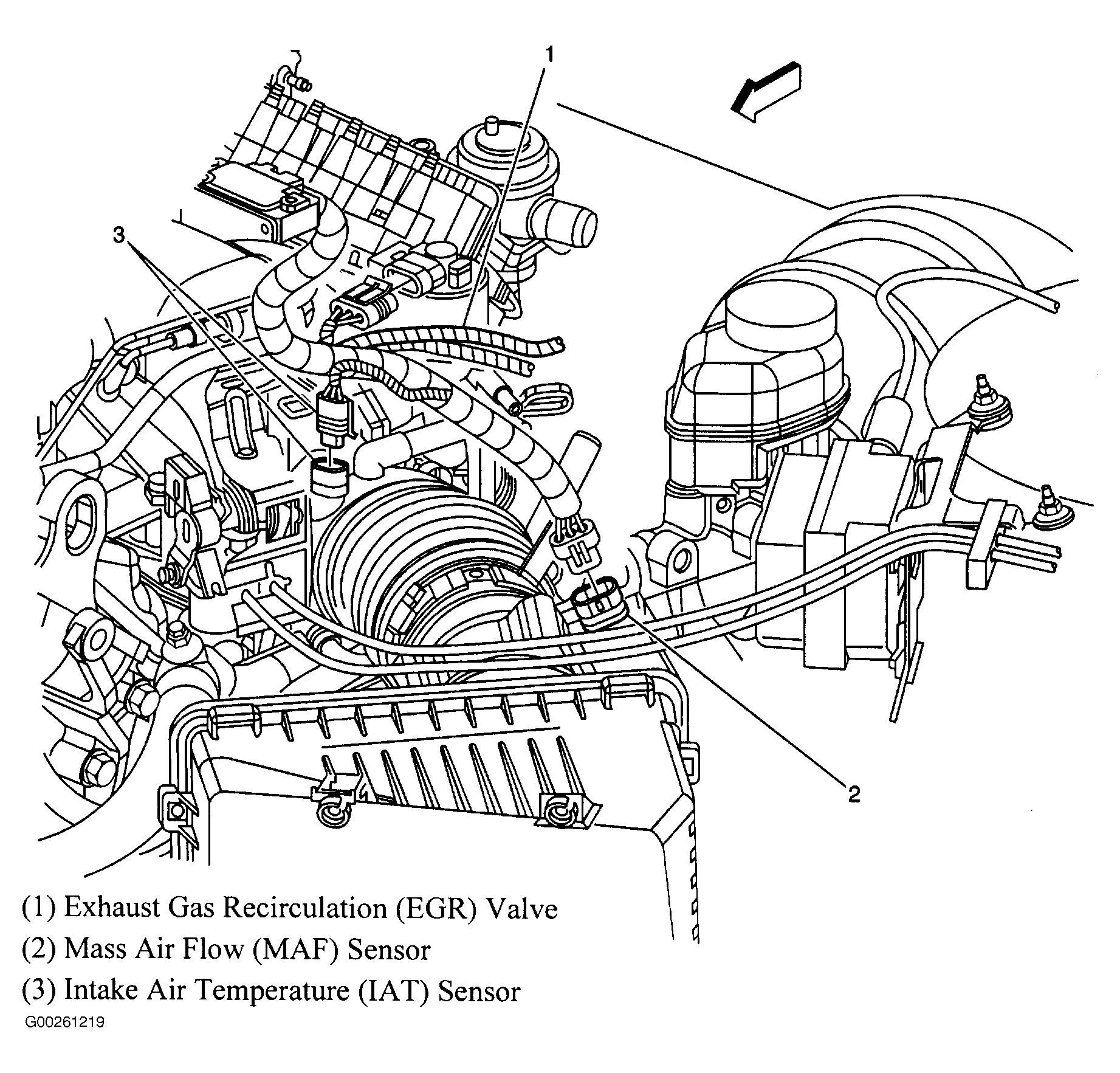

Fig 22: Left Front Of Intake Manifold
Courtesy of GENERAL MOTORS CORP.
Fig 23: Left Center Of Engine
Courtesy of GENERAL MOTORS CORP.

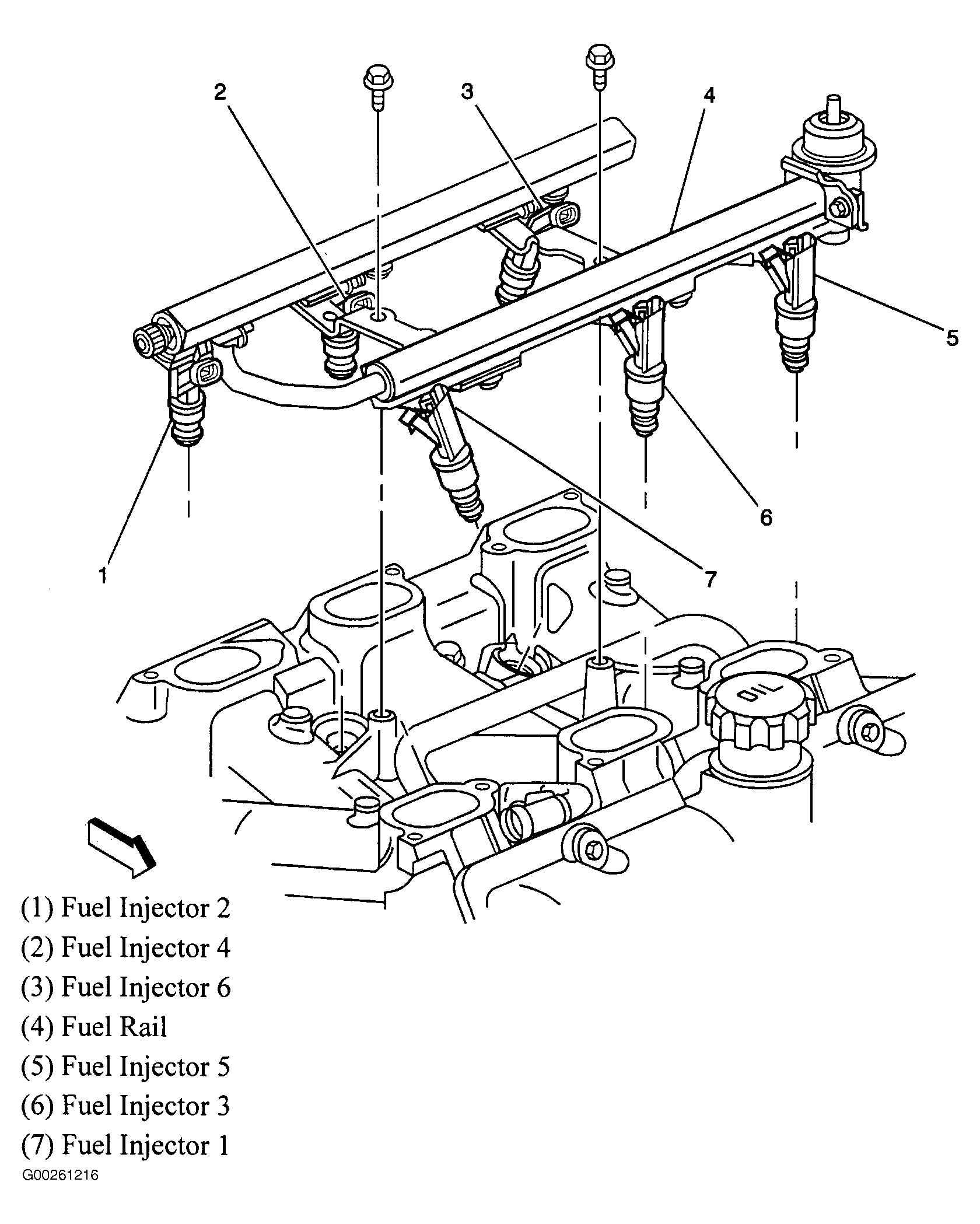

Fig 24: Fuel Rail
Courtesy of GENERAL MOTORS CORP.
Fig 25: Upper Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 26: Top Left Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 27: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 28: Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

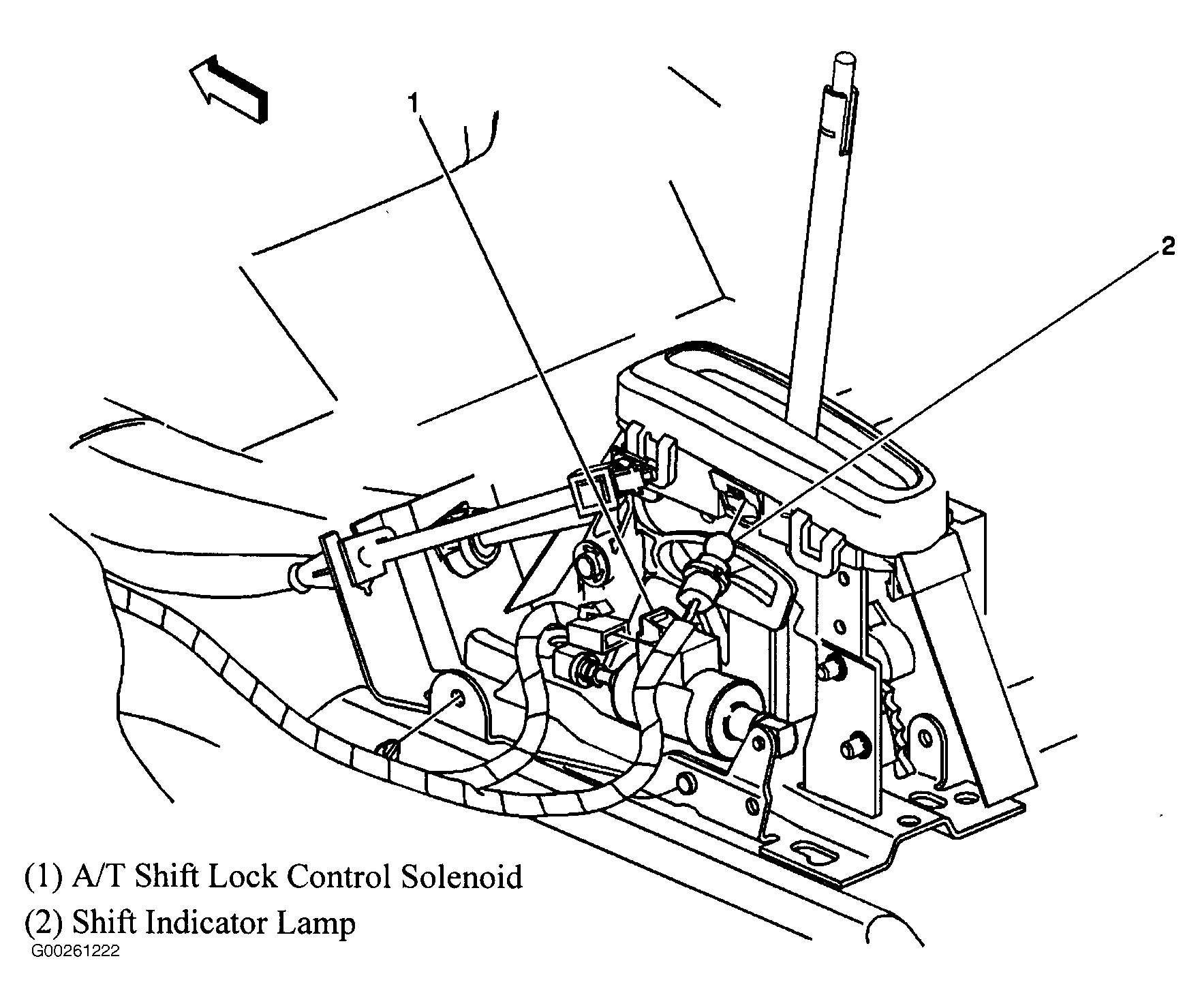

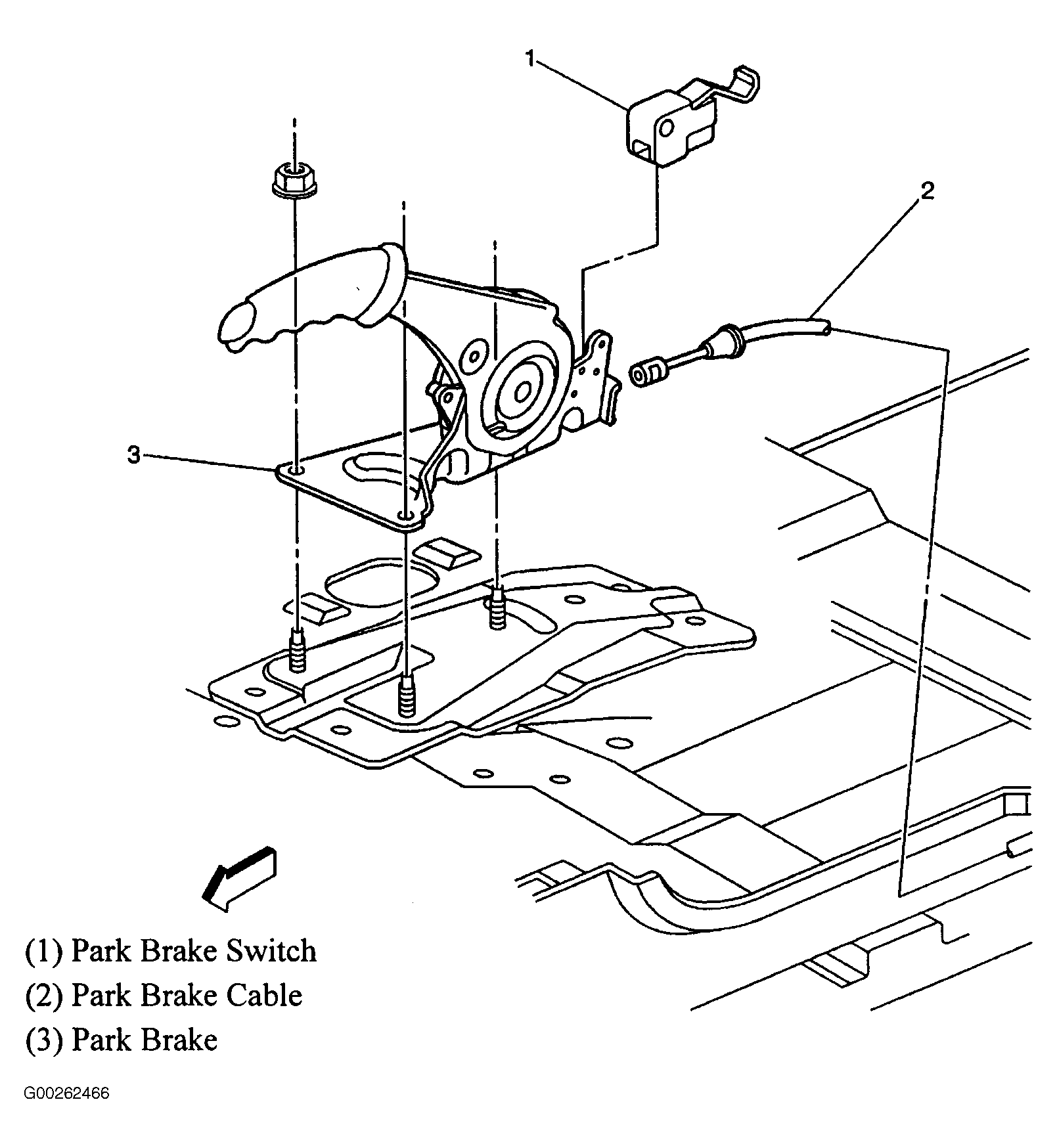

Fig 29: Under Center Console
Courtesy of GENERAL MOTORS CORP.

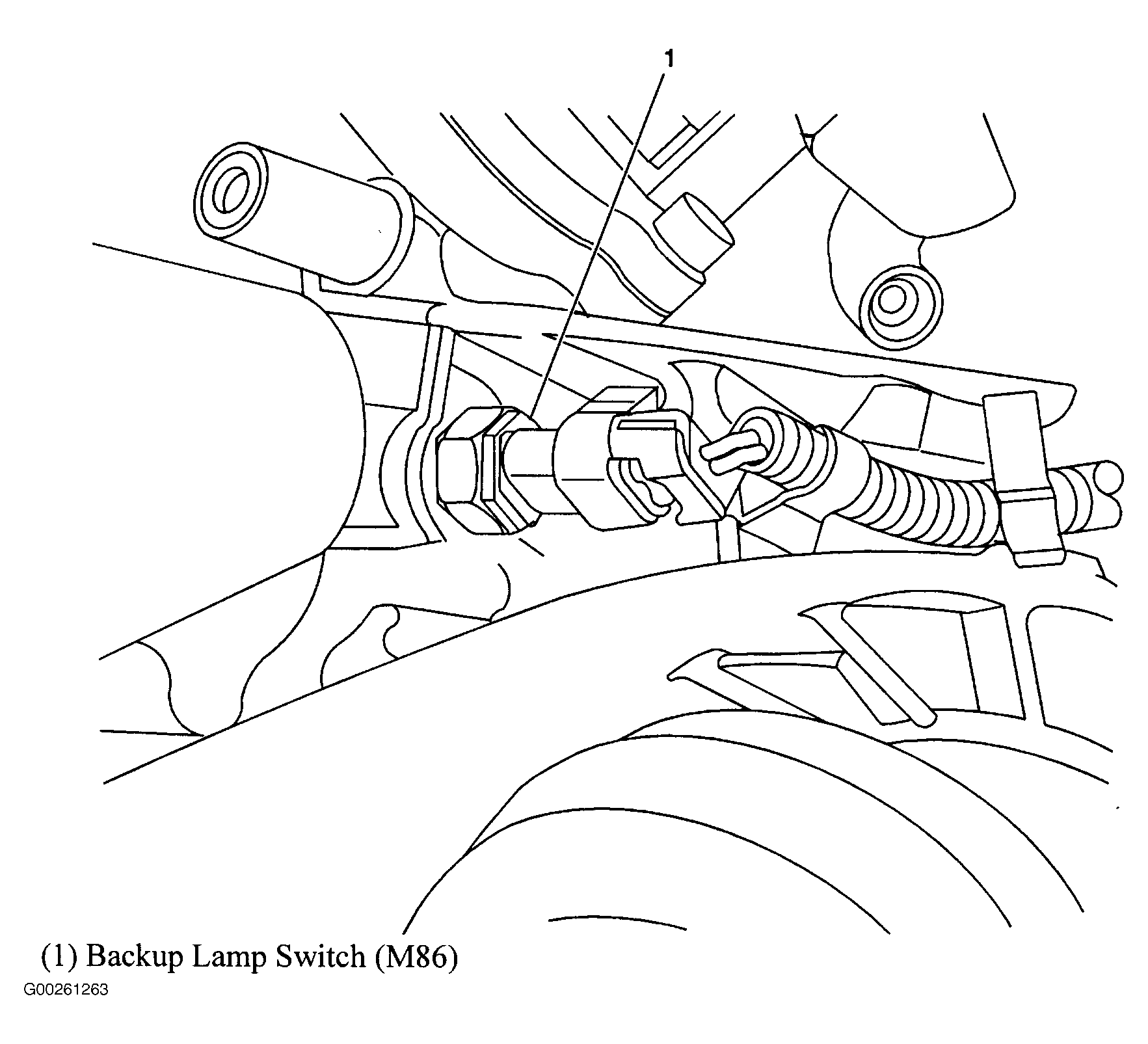

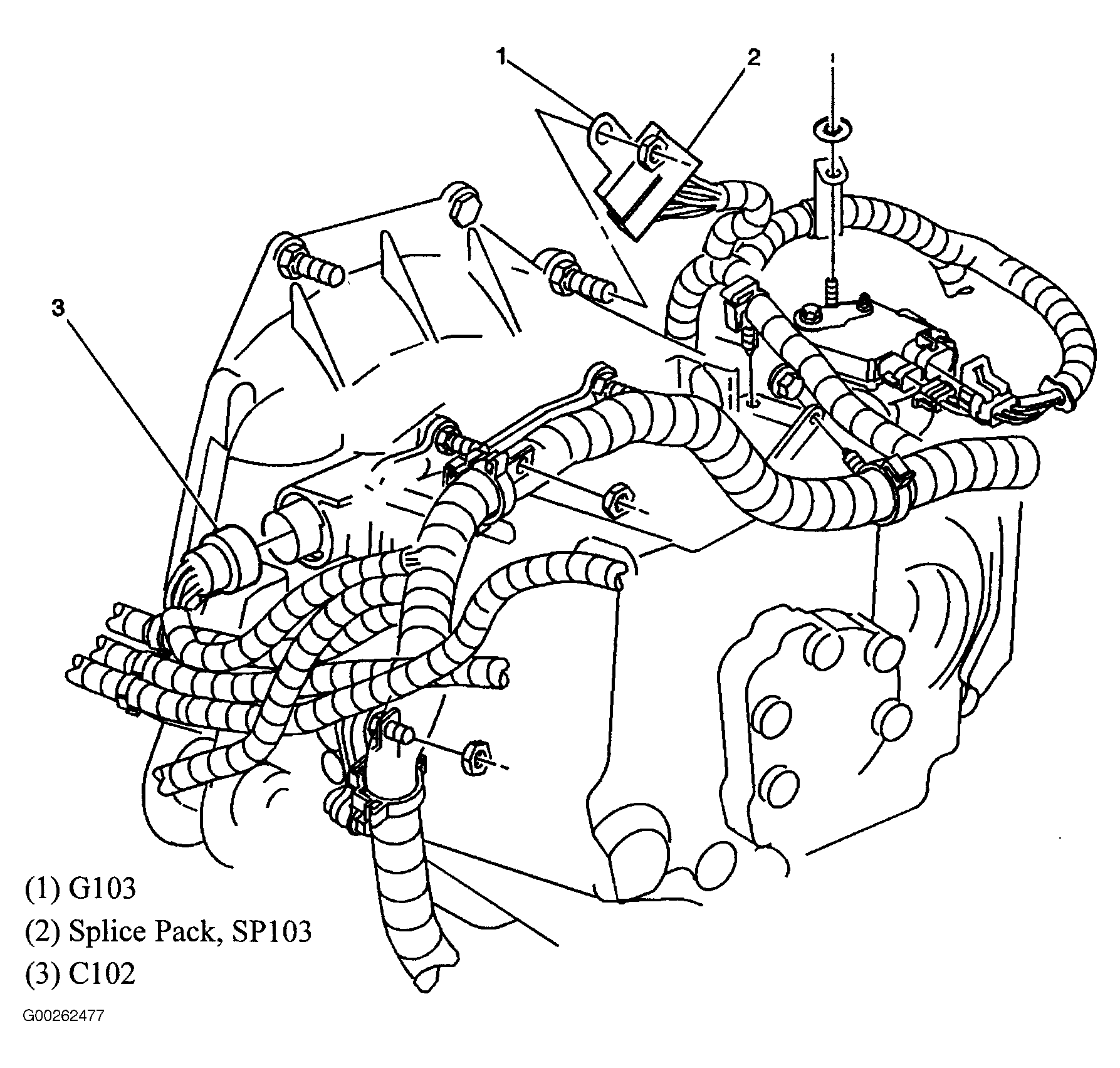

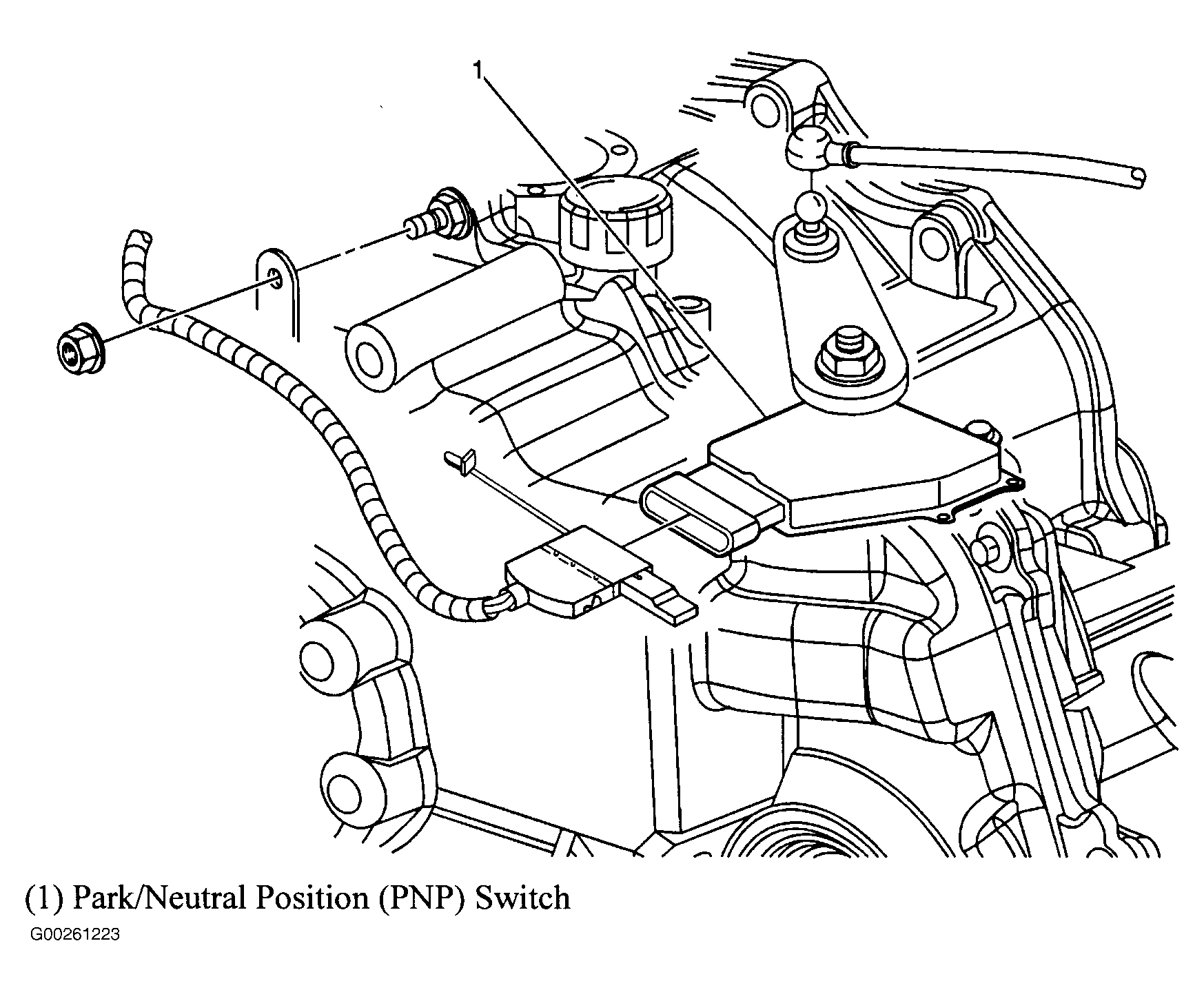

Fig 30: Top Of Transmission
Courtesy of GENERAL MOTORS CORP.

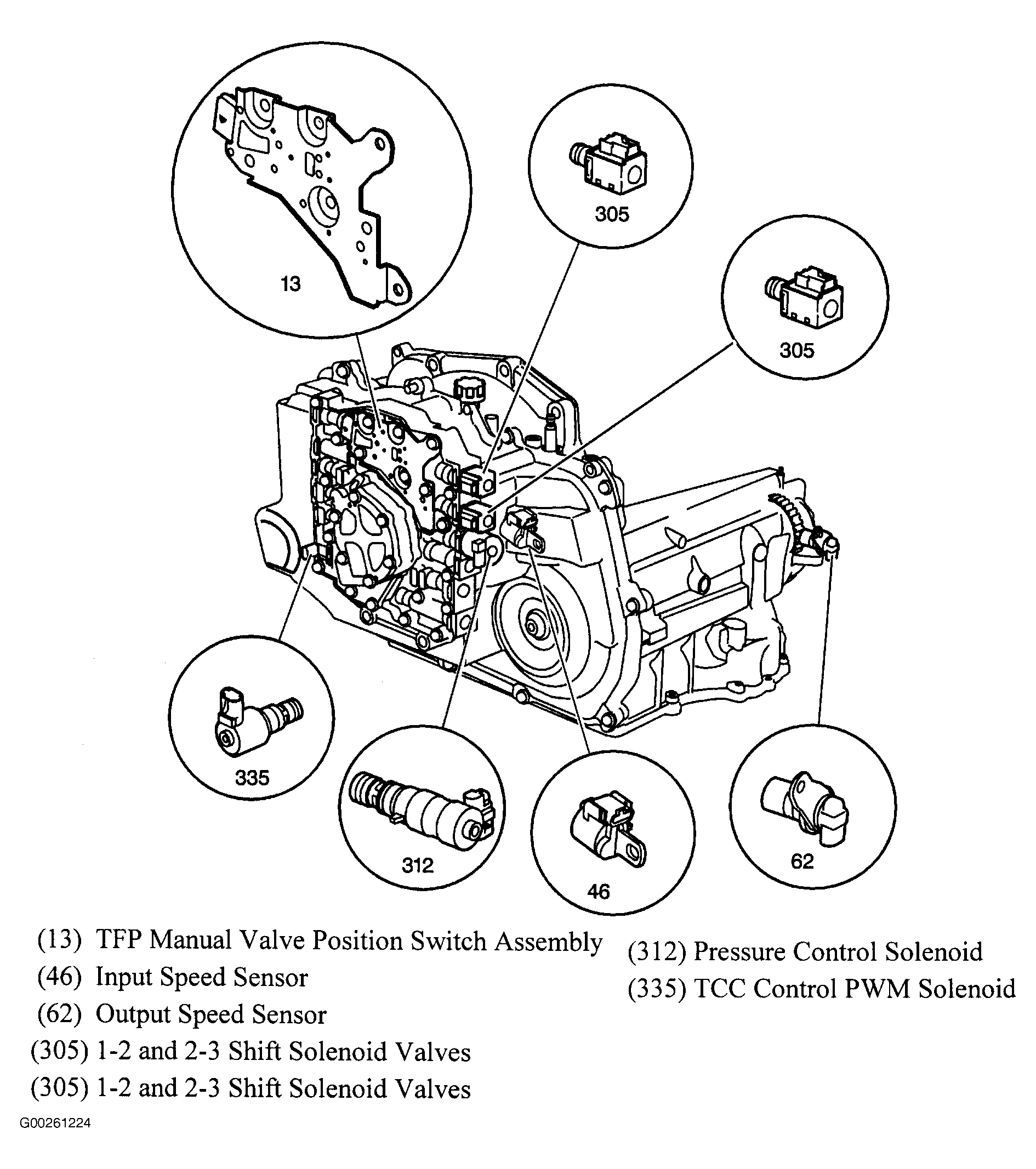

Fig 31: Transmission Electronic Components
Courtesy of GENERAL MOTORS CORP.

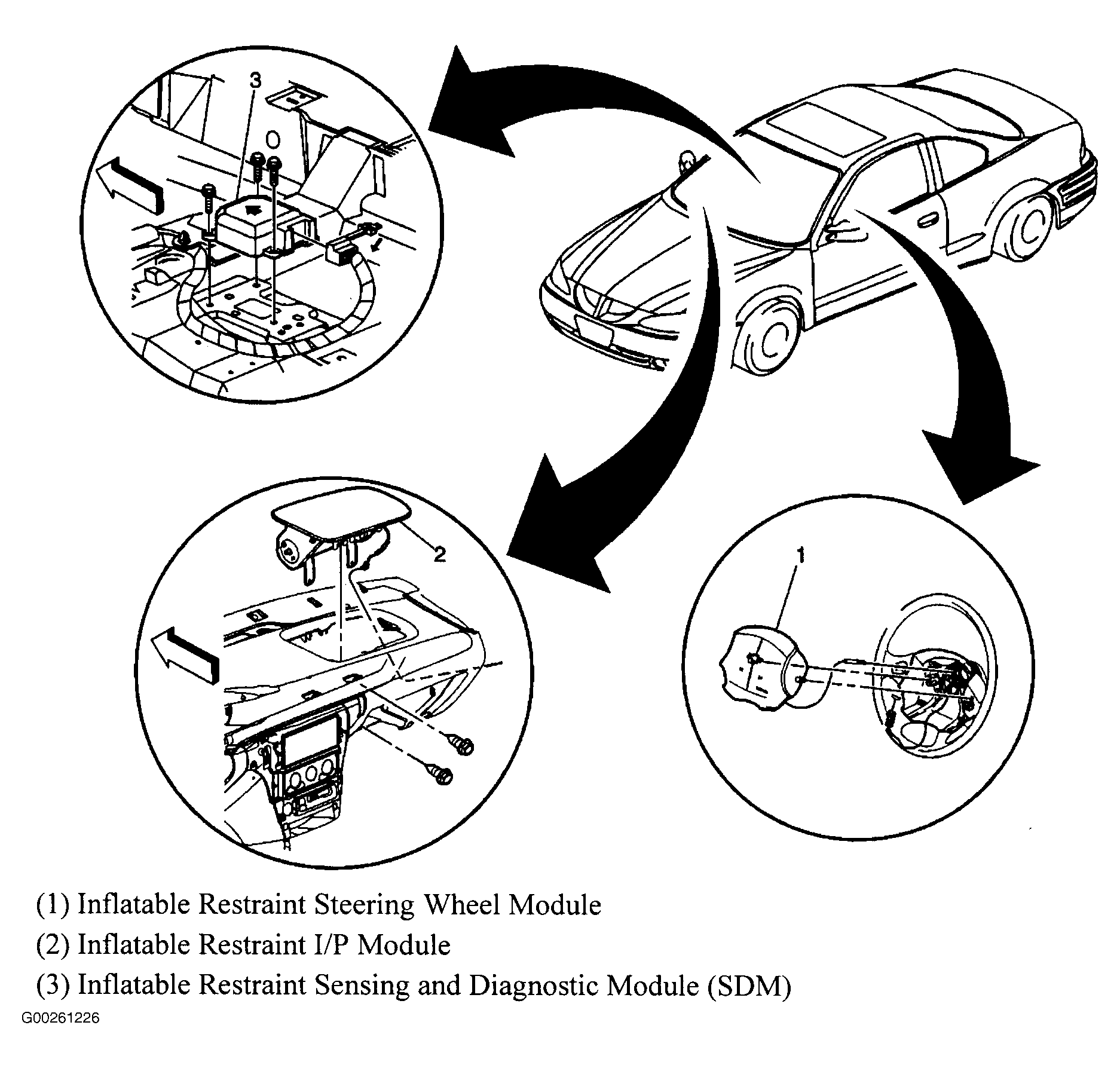

Fig 32: Inflatable Restraint Components
Courtesy of GENERAL MOTORS CORP.
Fig 33: Right Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

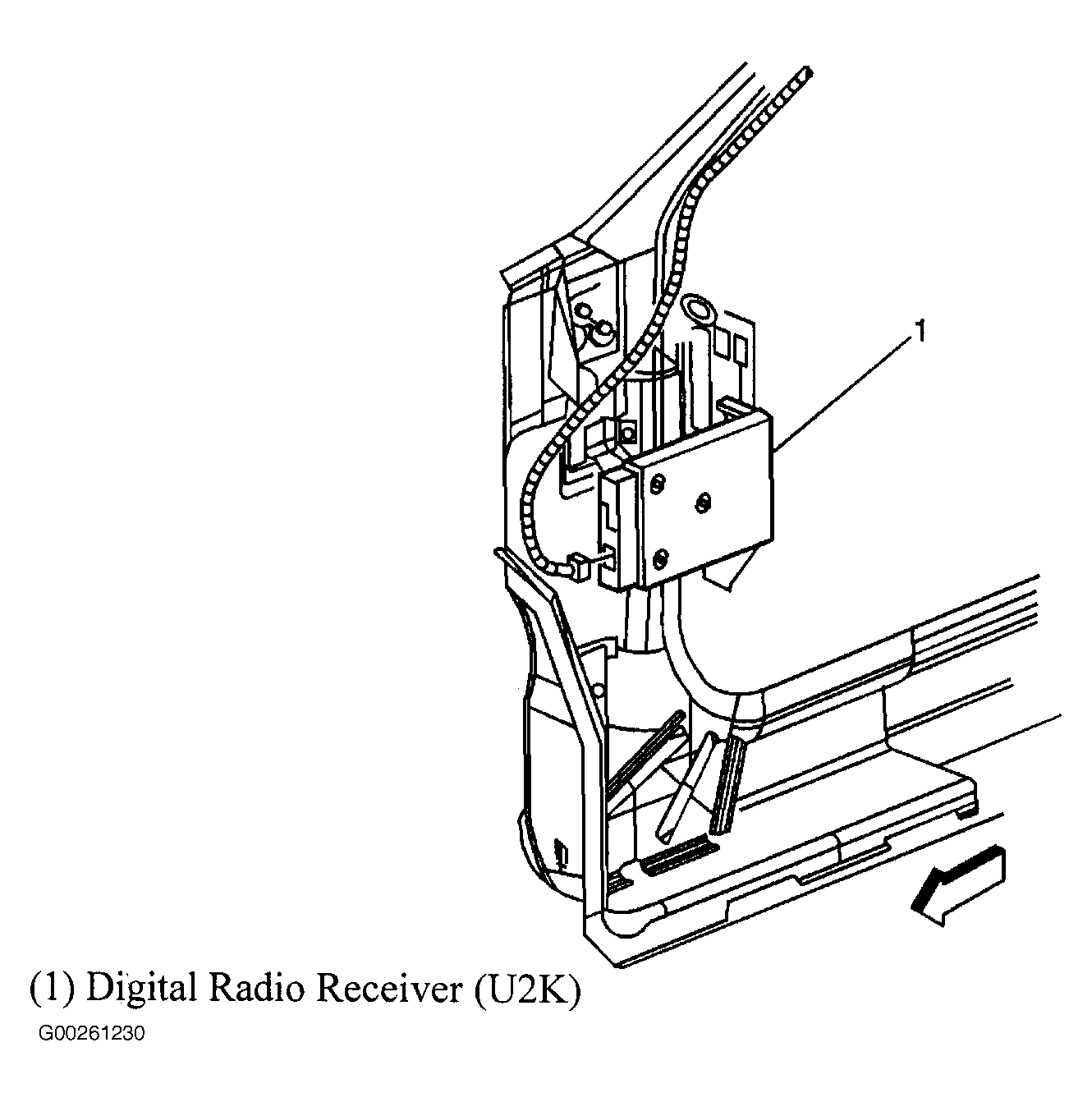

Fig 34: Digital Radio Receiver
Courtesy of GENERAL MOTORS CORP.
Fig 35: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

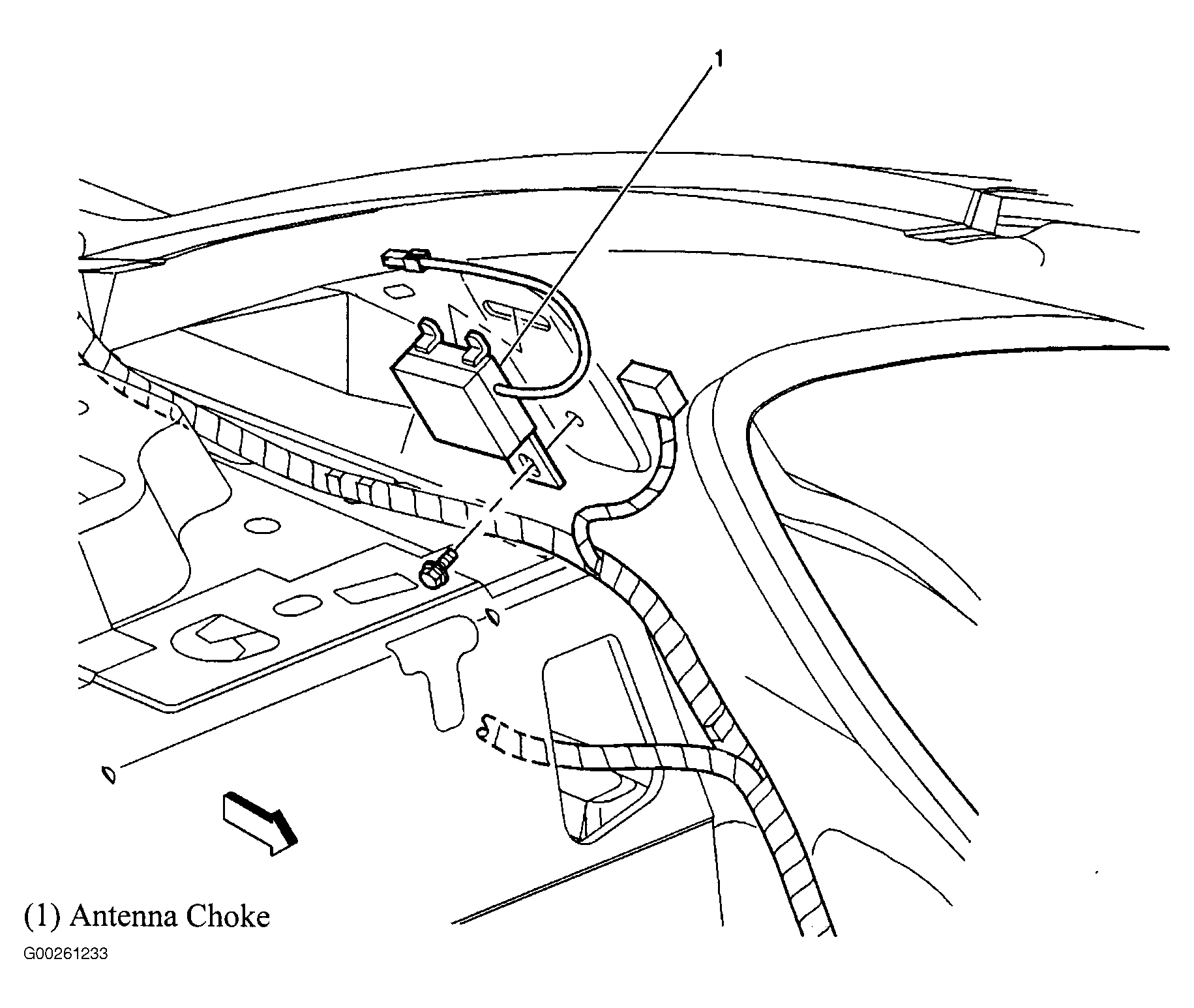

Fig 36: Antenna Choke
Courtesy of GENERAL MOTORS CORP.

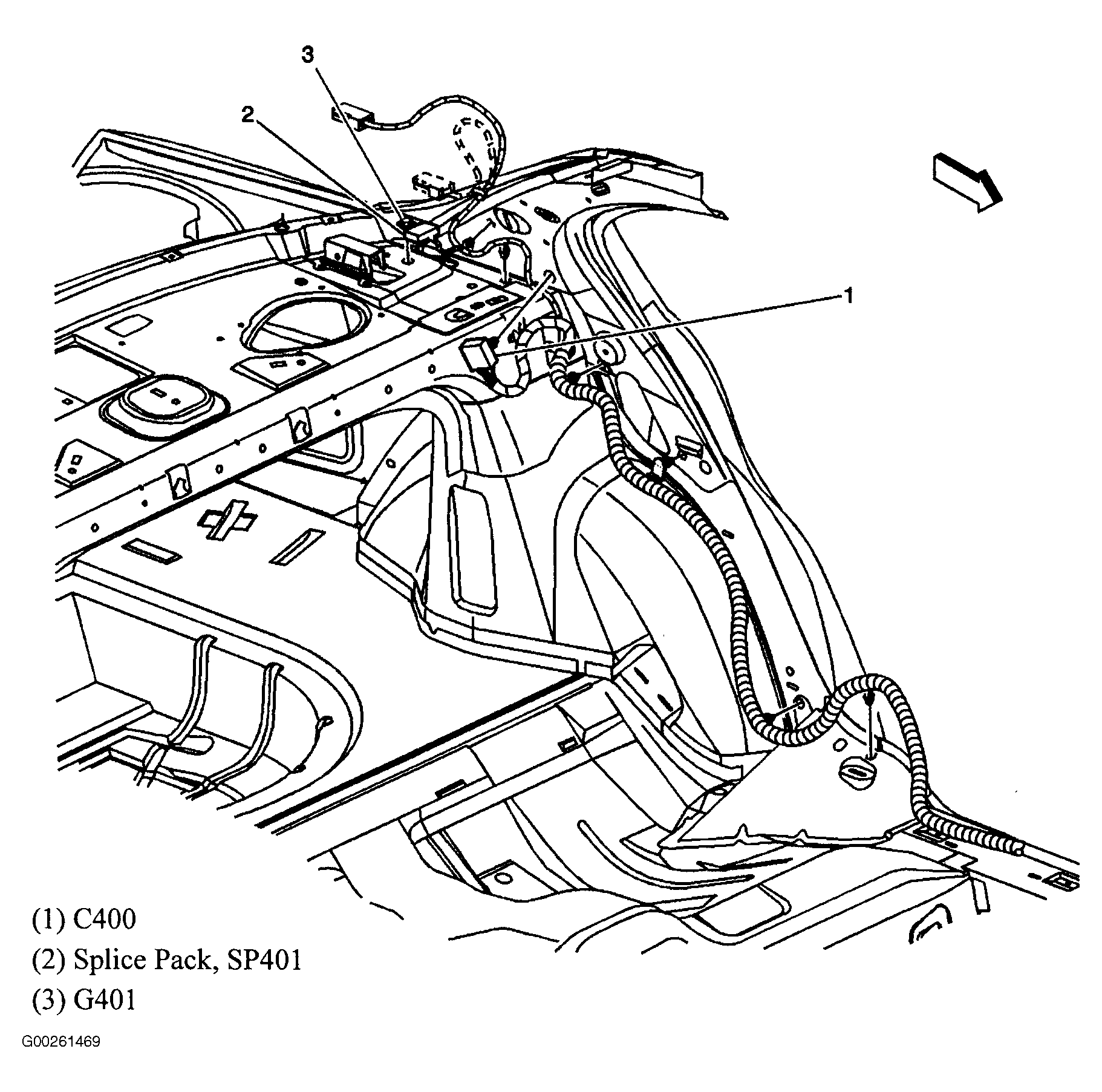

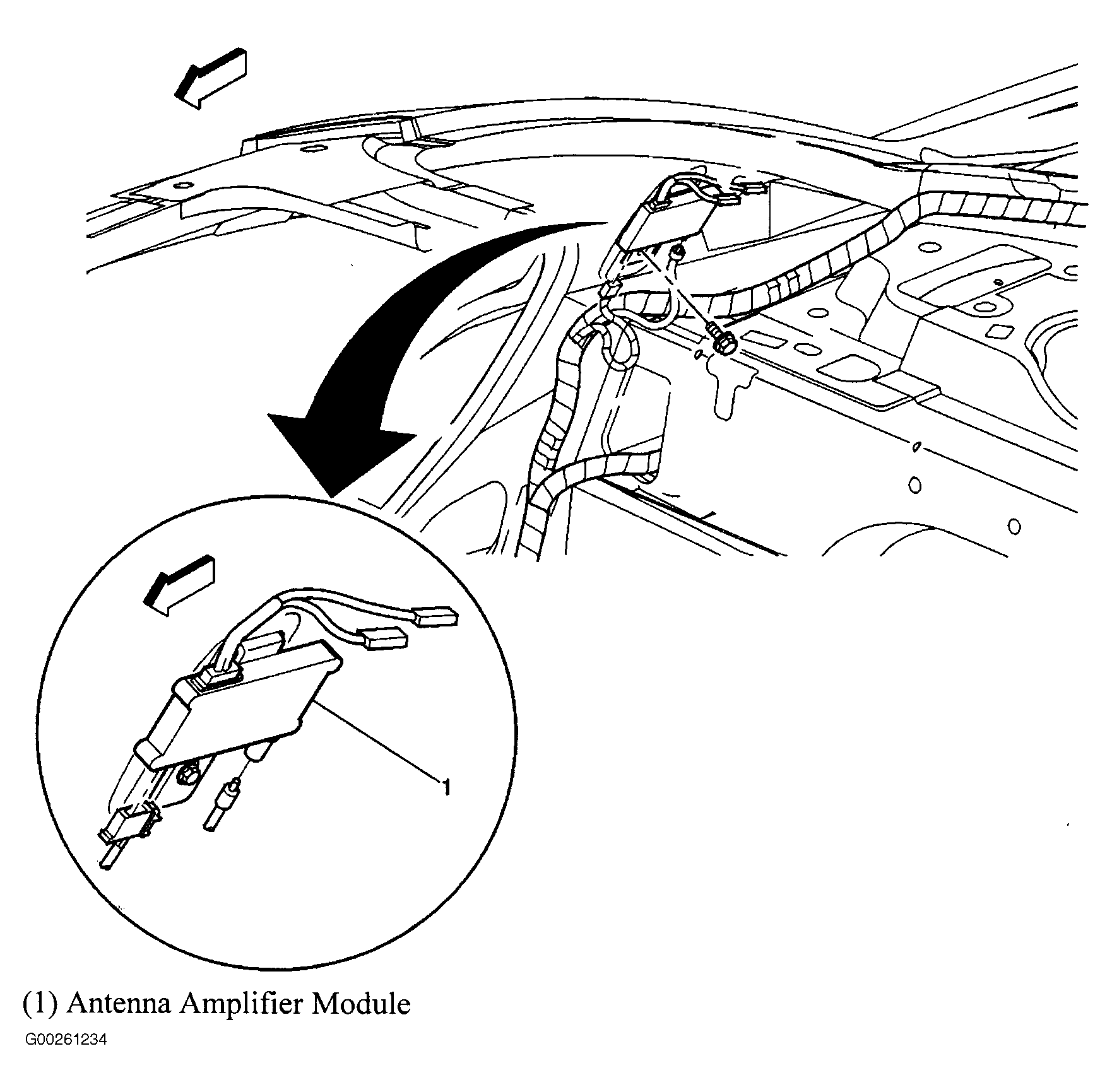

Fig 37: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.

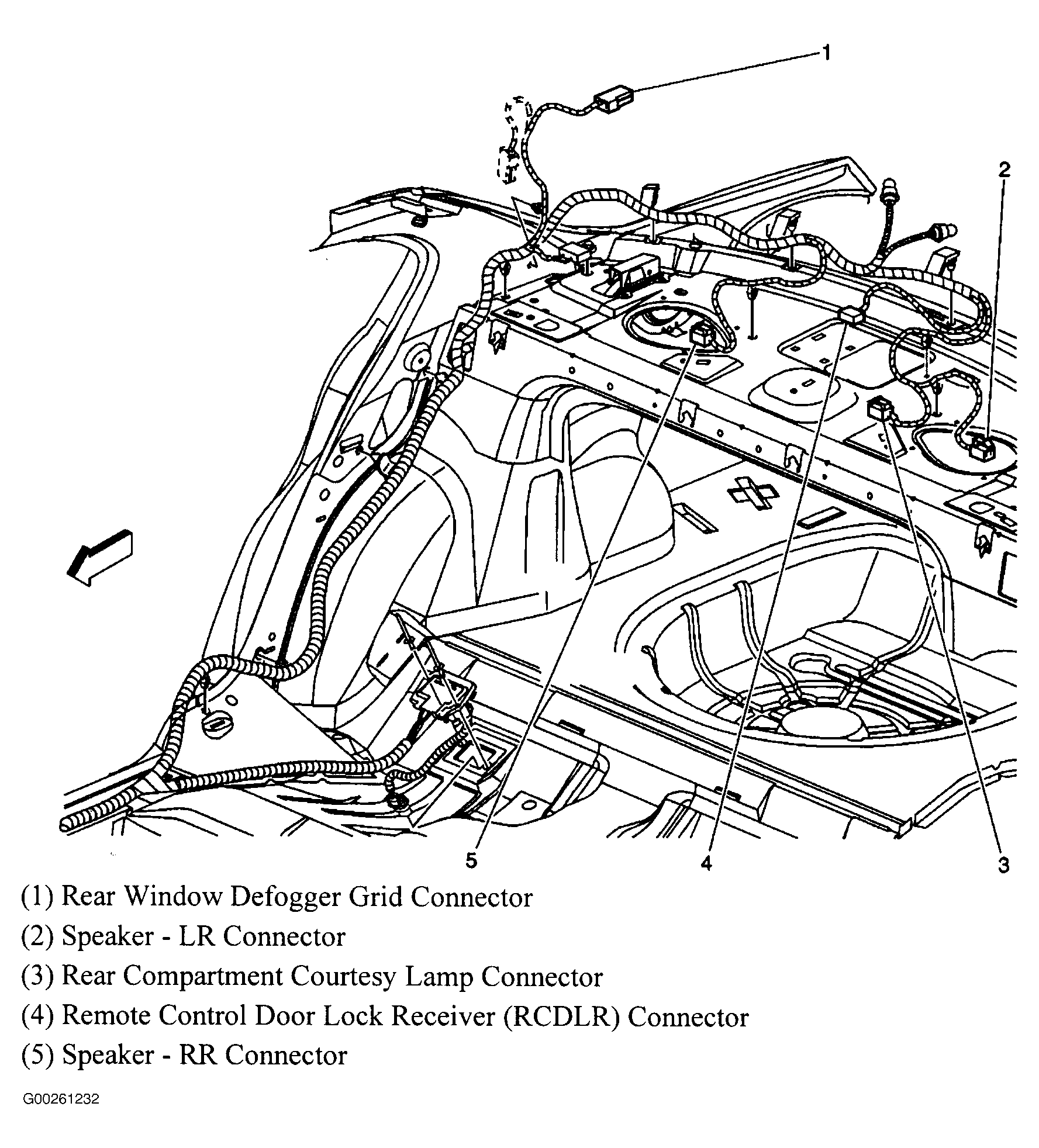

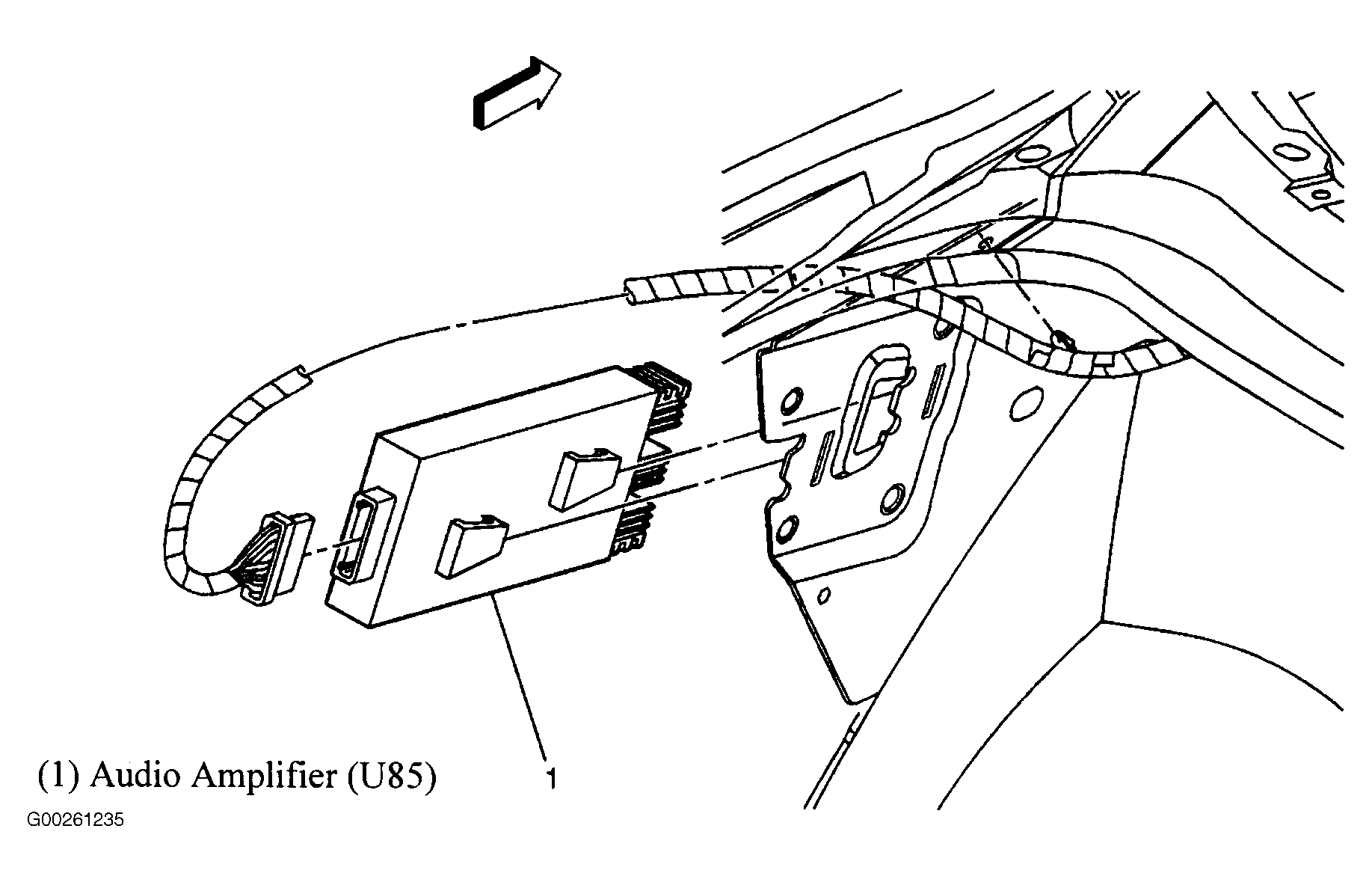

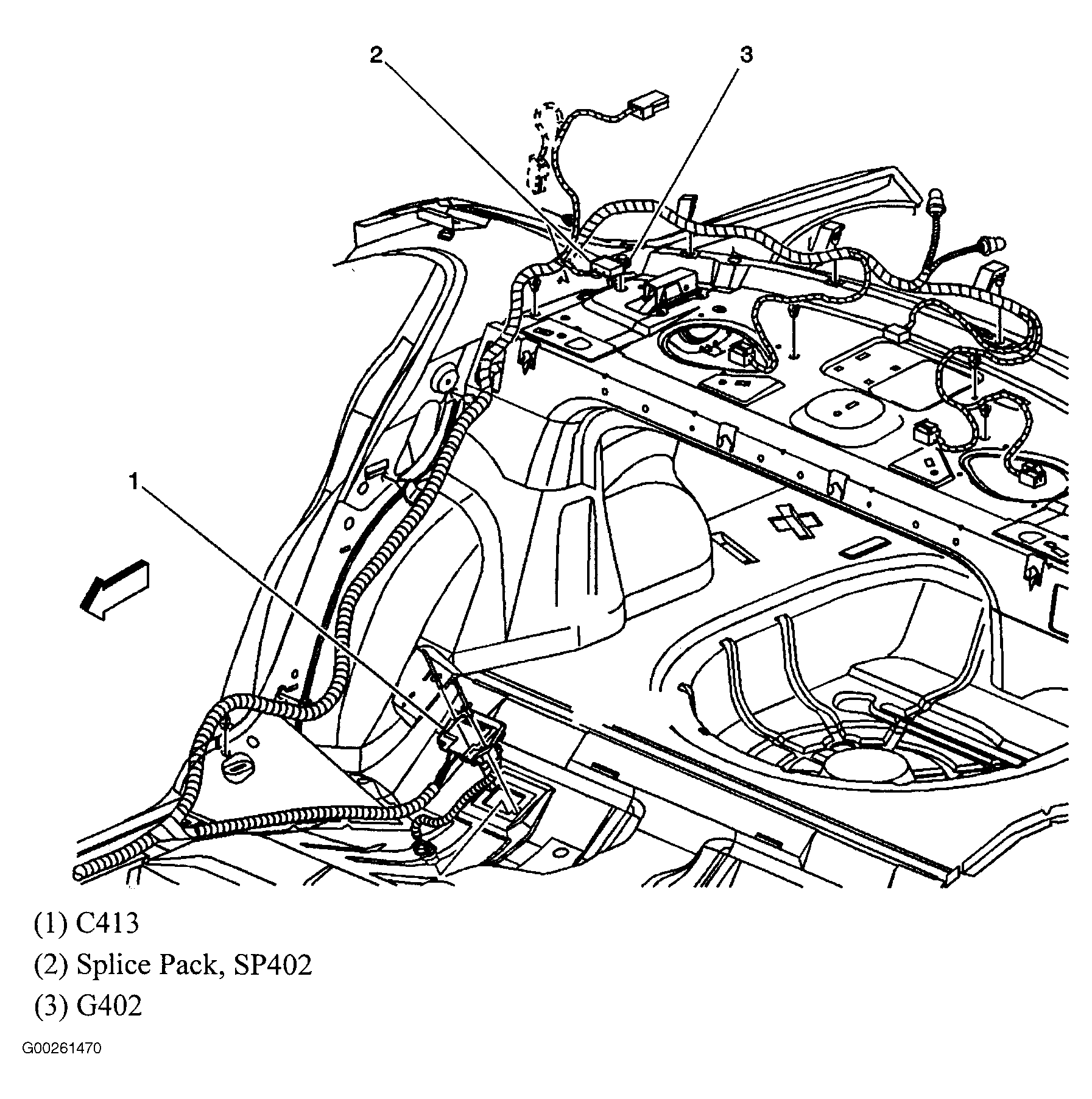

Fig 38: Inside Left Rear Of Compartment
Courtesy of GENERAL MOTORS CORP.

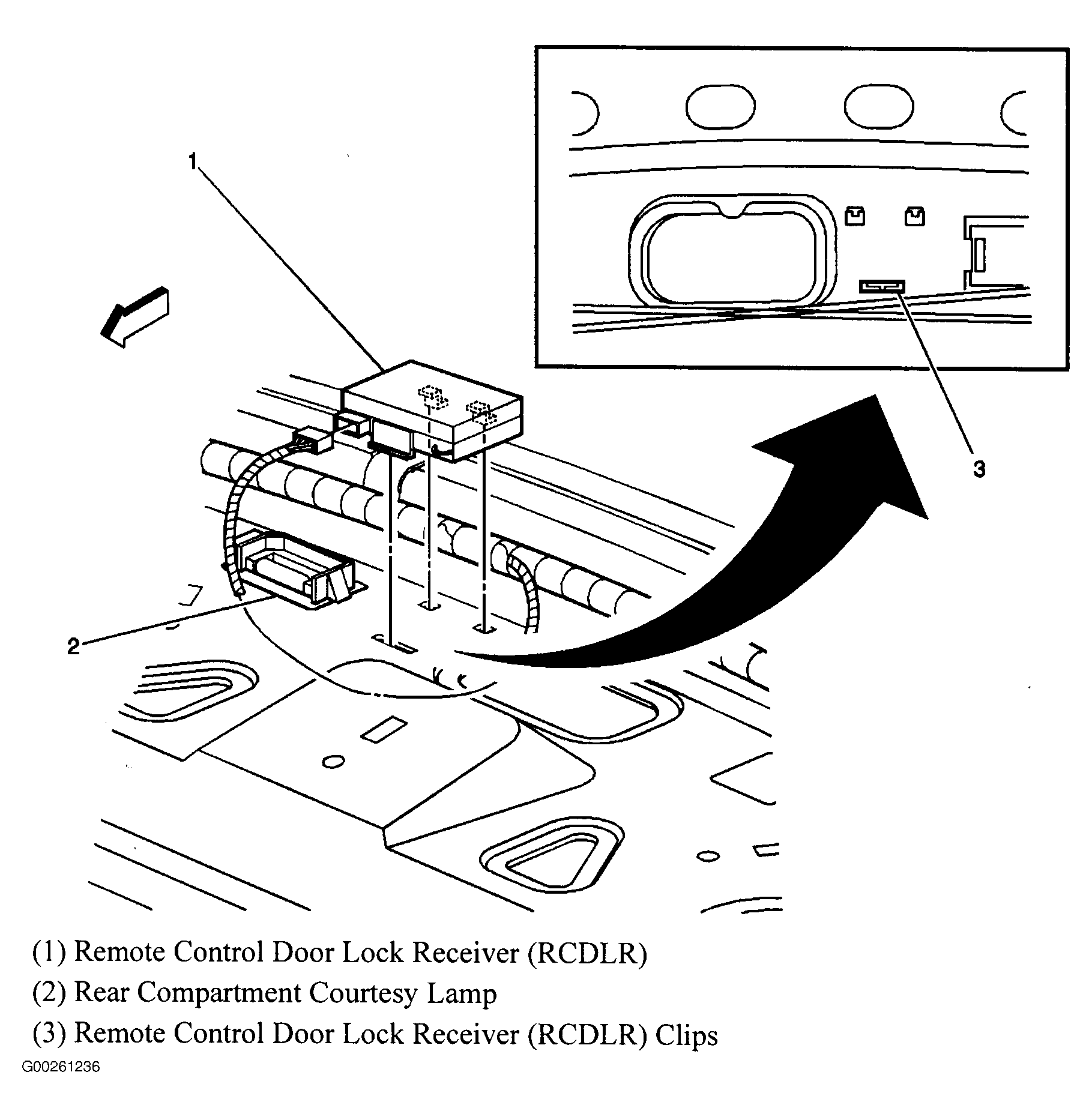

Fig 39: Remote Control Door Lock Receiver (RCDLR)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

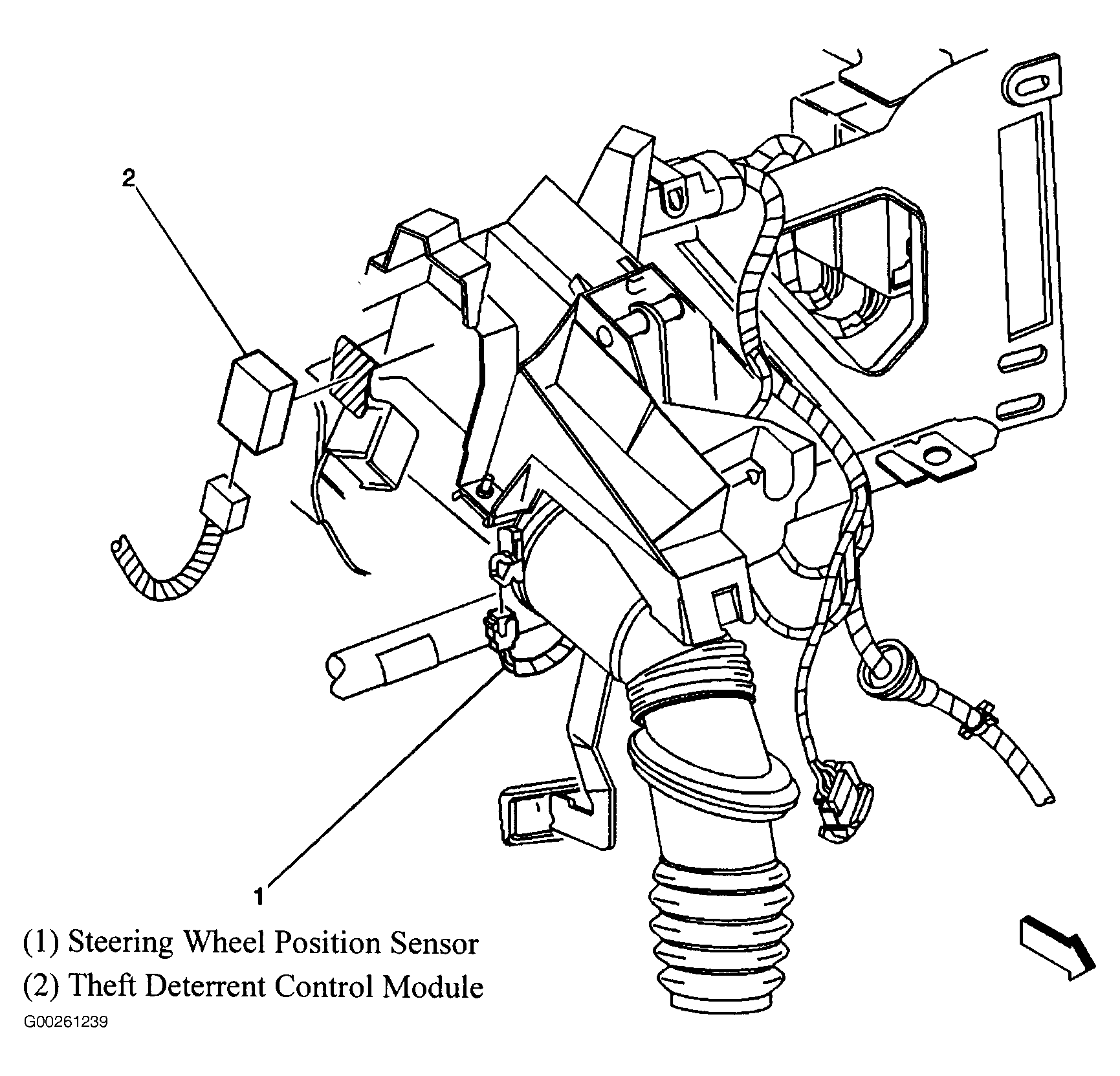

Fig 41: Theft Deterrent Module
Courtesy of GENERAL MOTORS CORP.

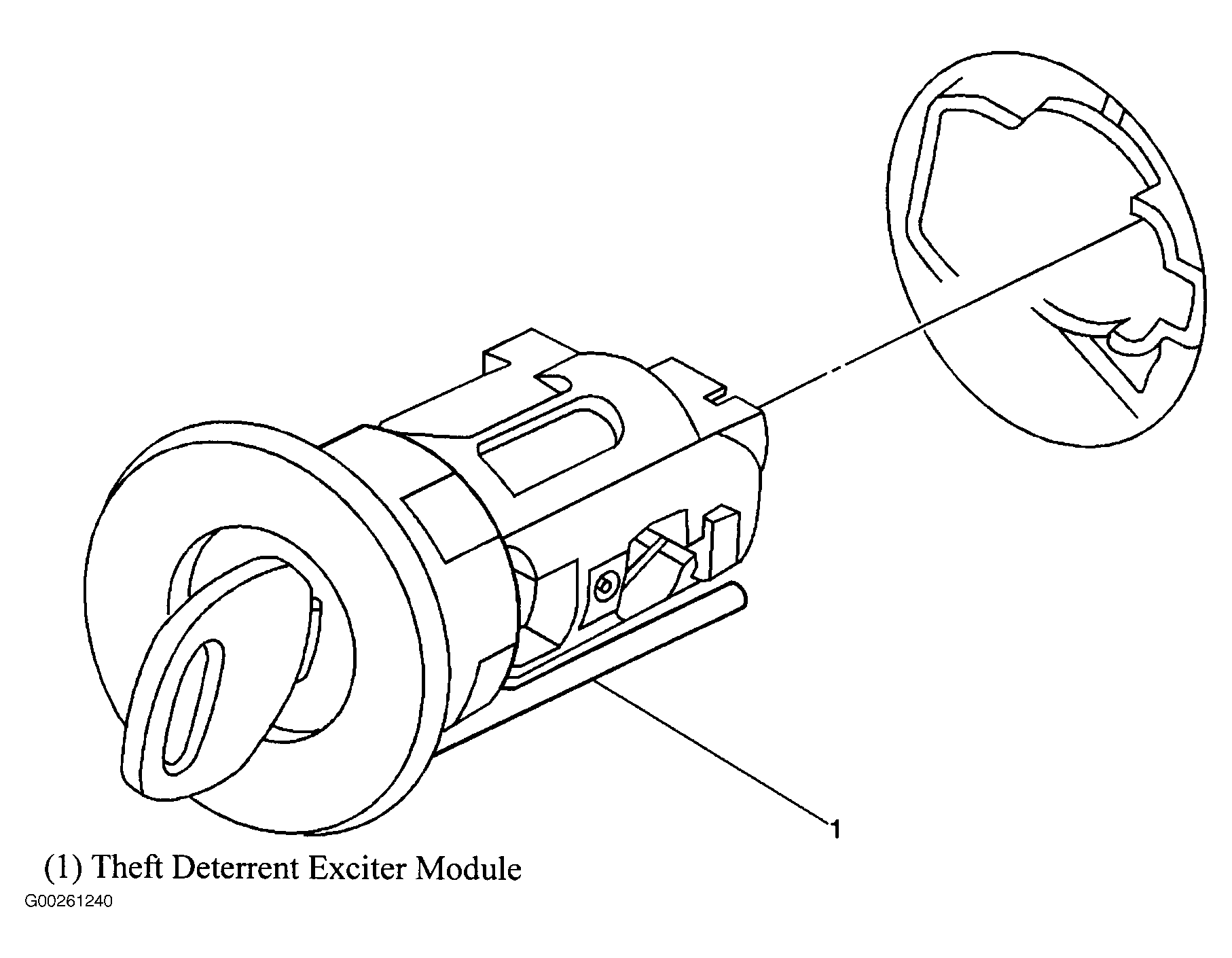

Fig 42: Theft Deterrent Exciter Module
Courtesy of GENERAL MOTORS CORP.
Fig 43: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

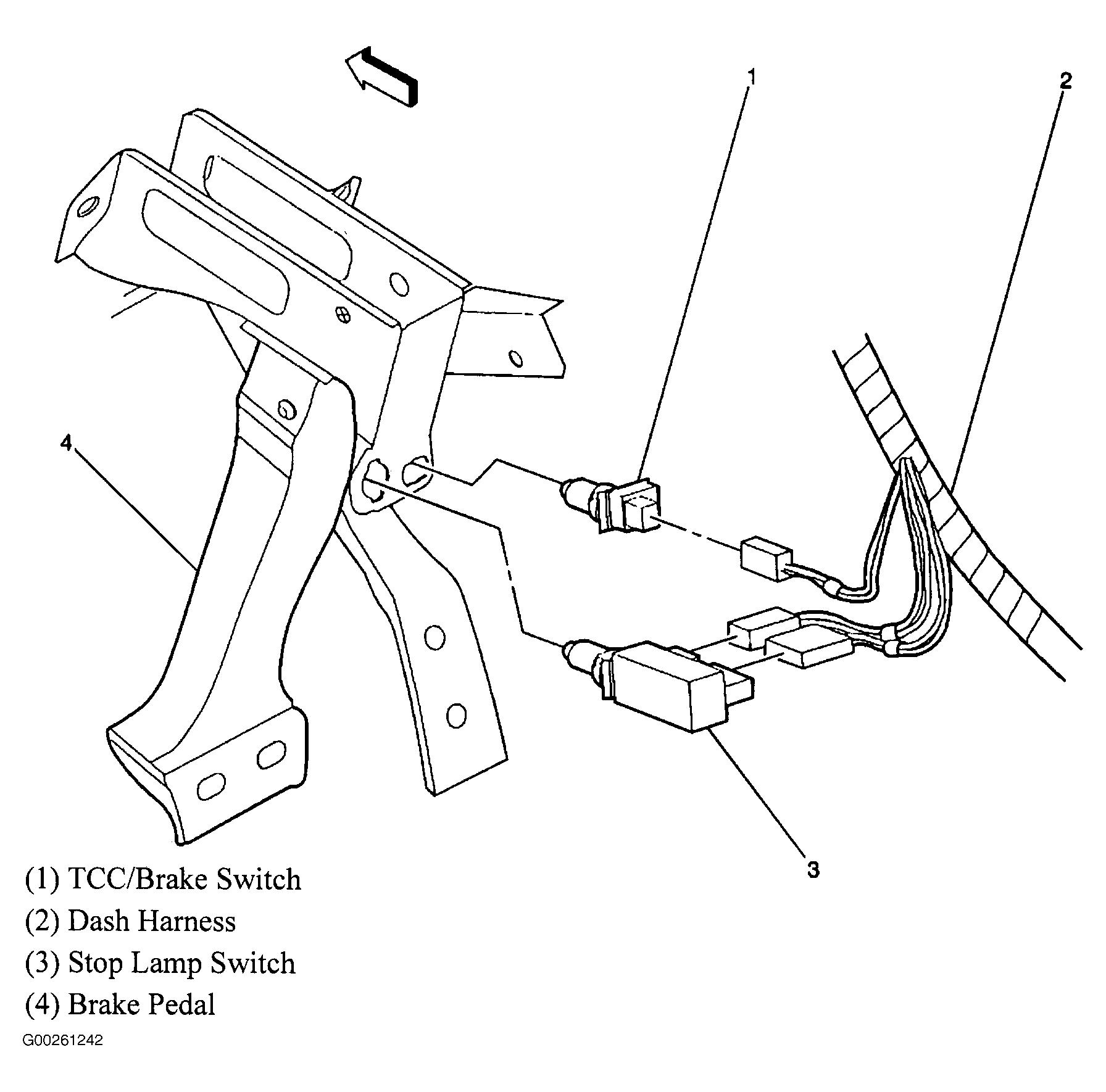

Fig 44: Brake Pedal Support
Courtesy of GENERAL MOTORS CORP.
Fig 45: Below Right Side Of Dashboard
Courtesy of GENERAL MOTORS CORP.

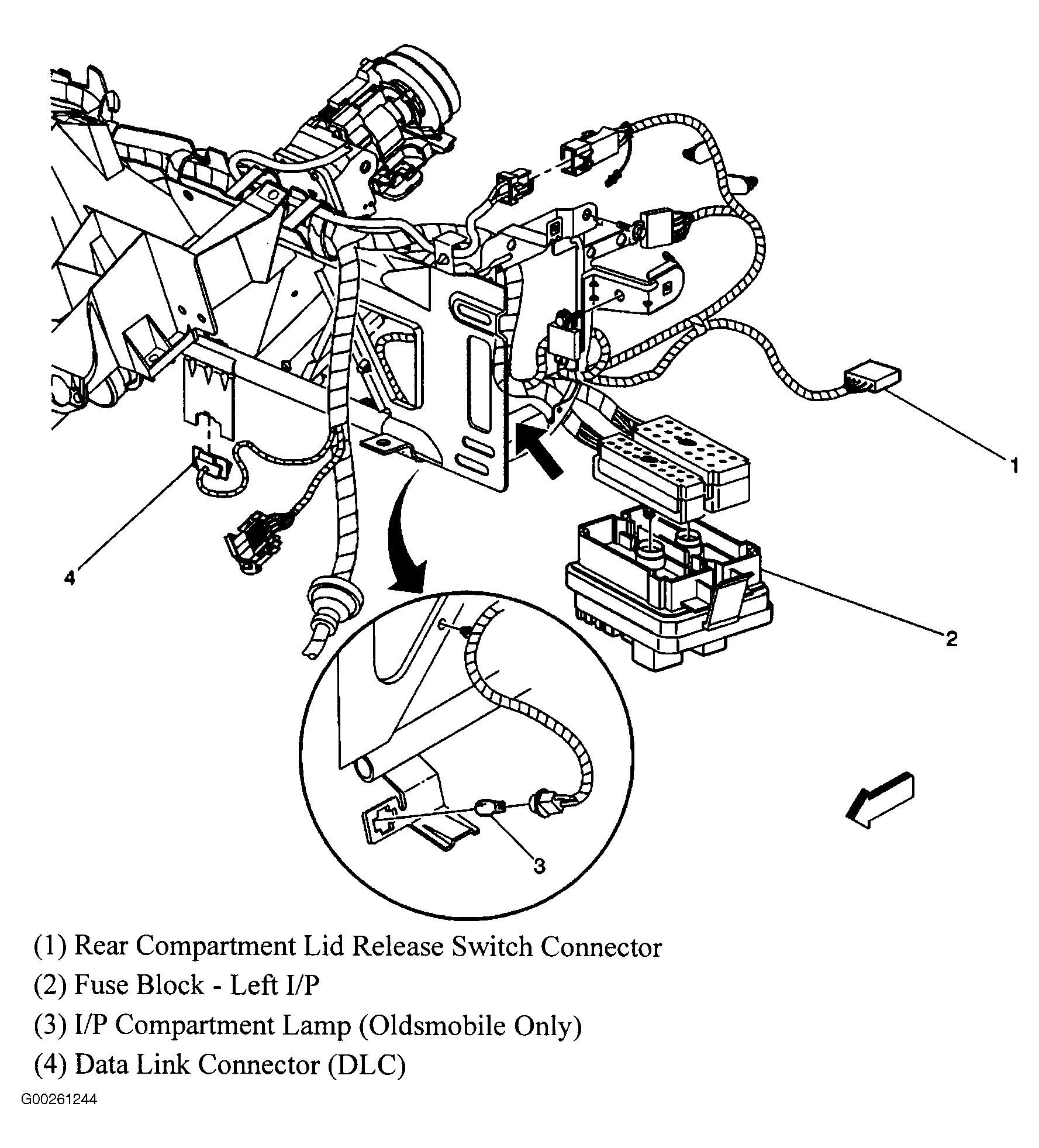

Fig 46: Below Left Side Of Dashboard
Courtesy of GENERAL MOTORS CORP.

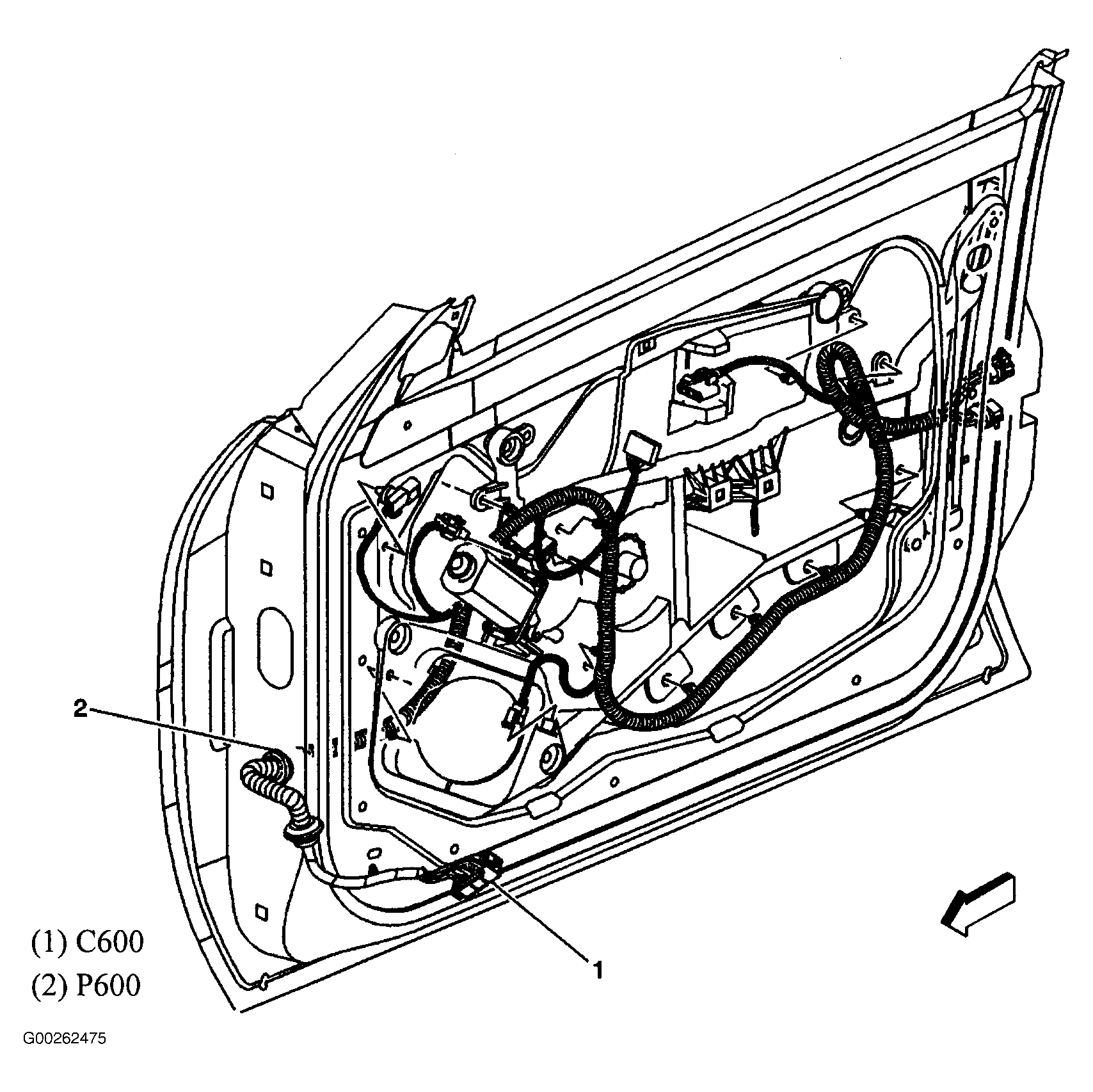

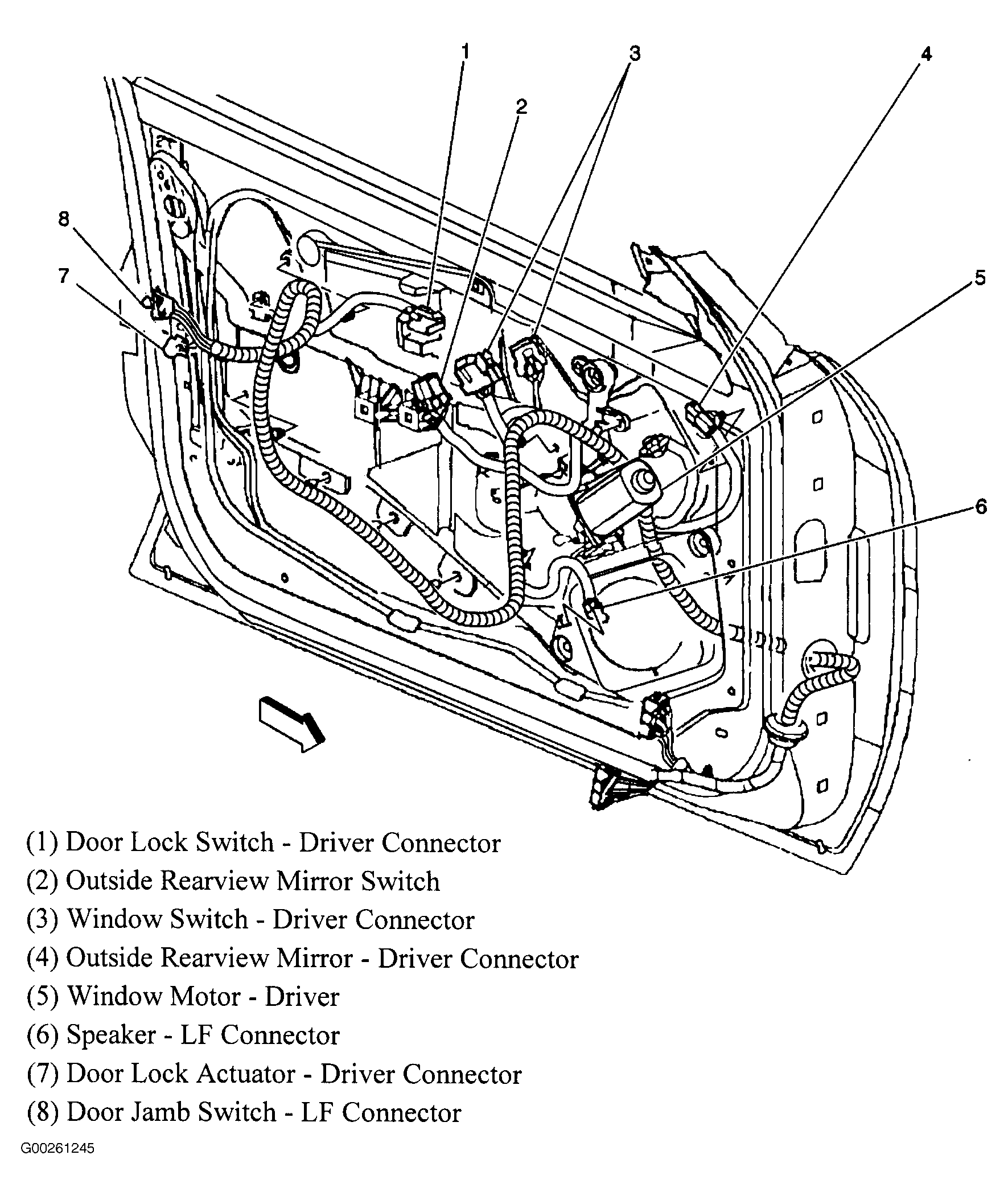

Fig 47: Left Front Door
Courtesy of GENERAL MOTORS CORP.

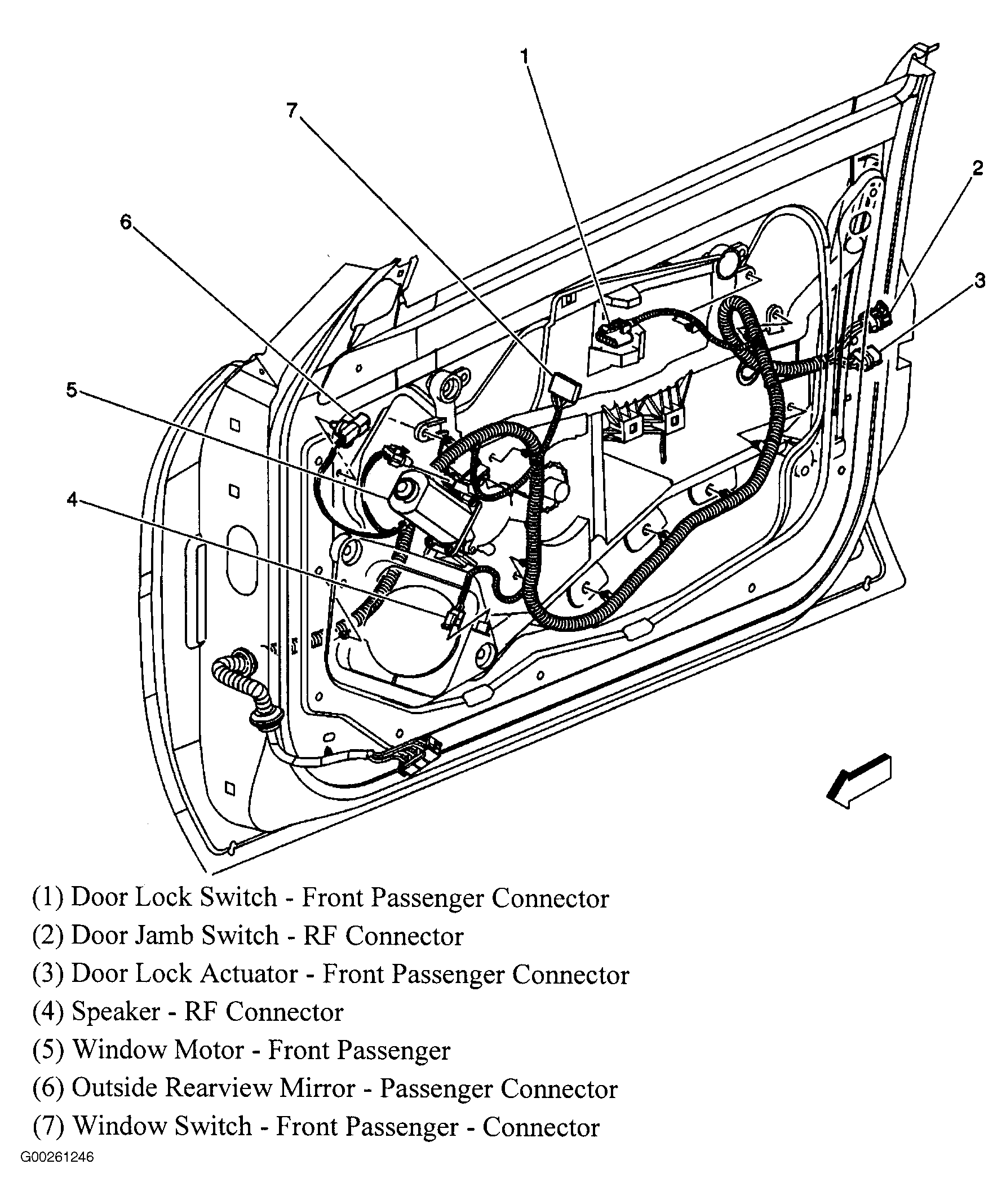

Fig 48: Right Front Door
Courtesy of GENERAL MOTORS CORP.

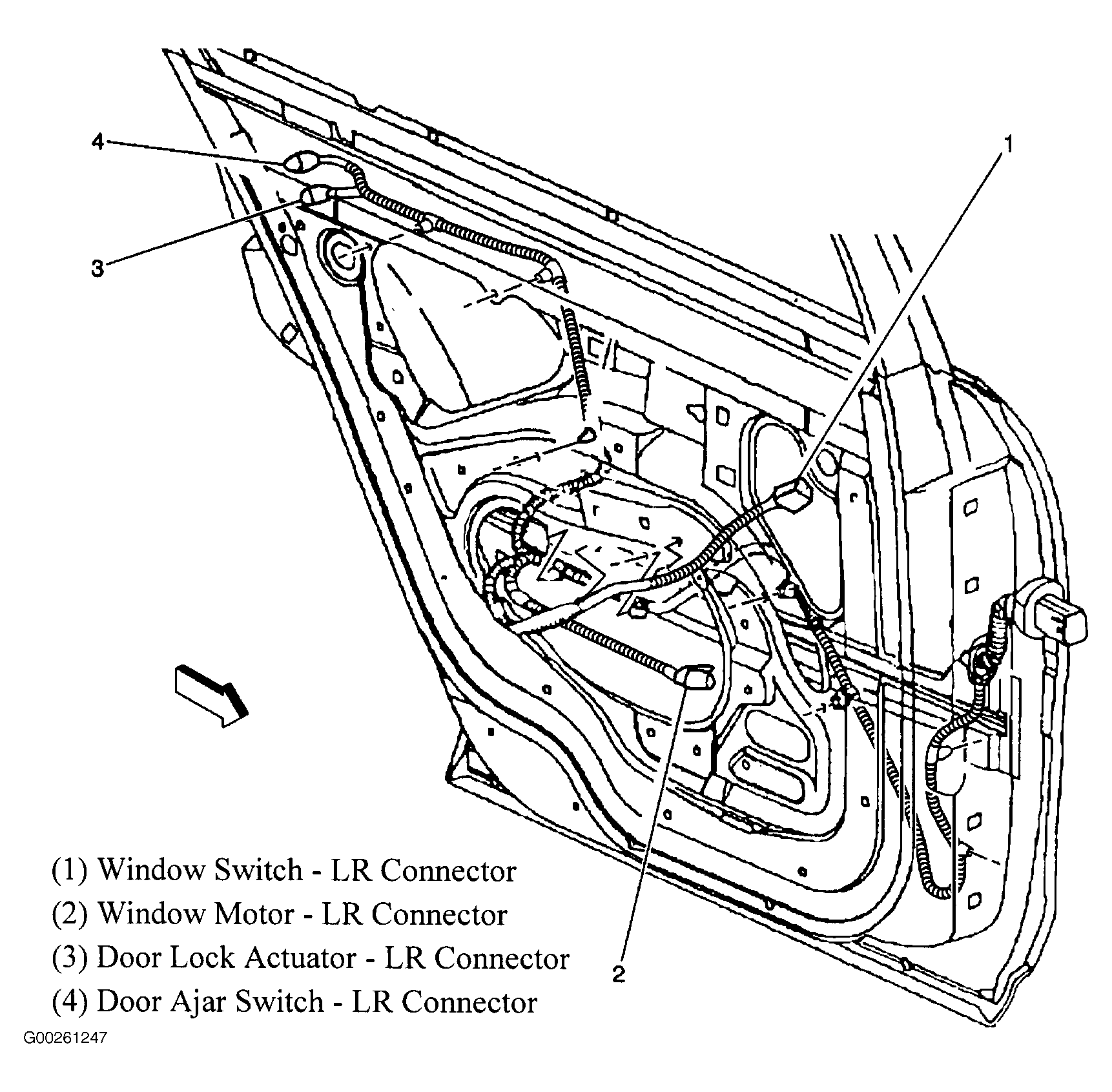

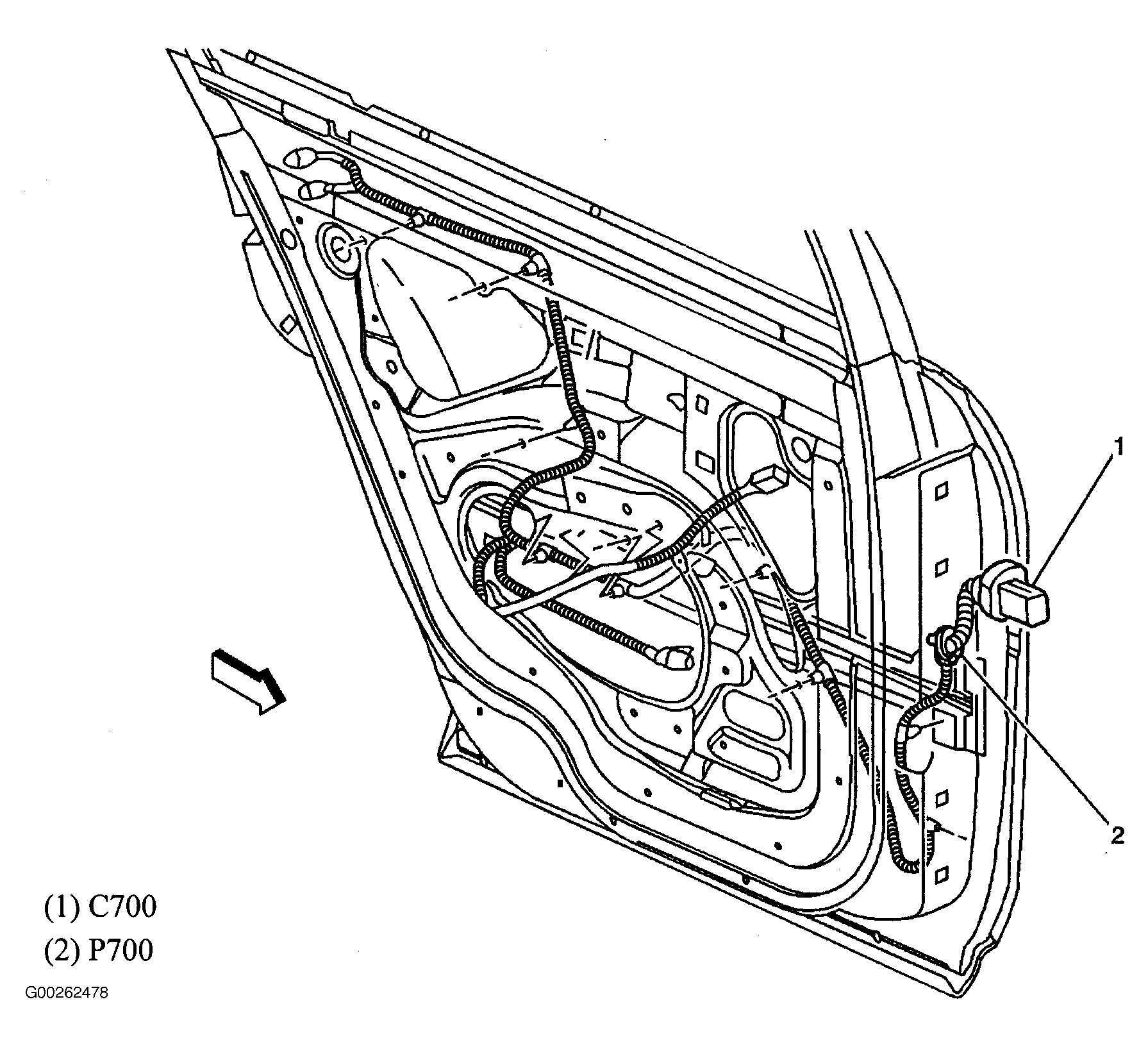

Fig 49: Left Rear Door (Right Rear Similar)
Courtesy of GENERAL MOTORS CORP.

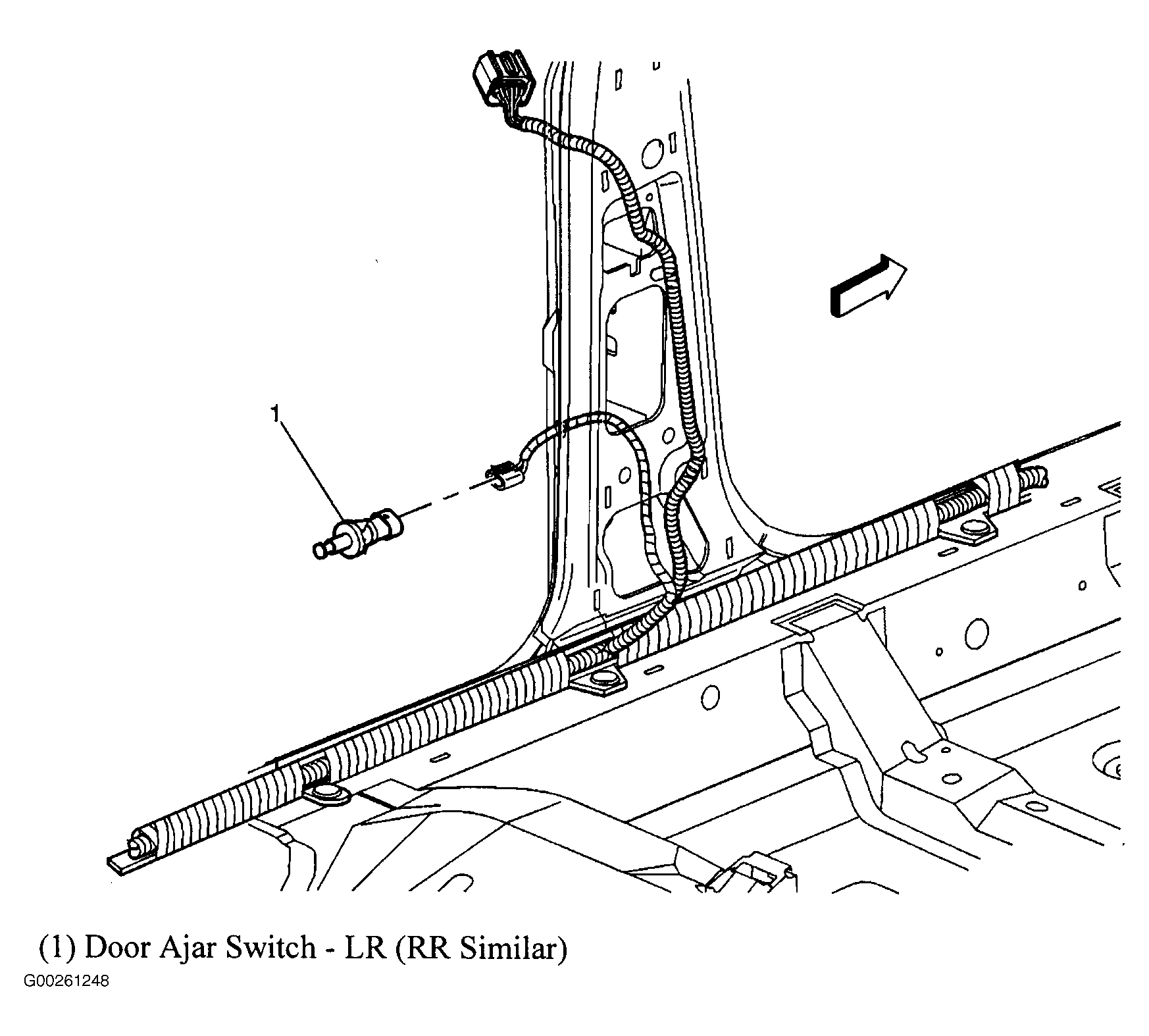

Fig 50: Left Rear Door Ajar Switch
Courtesy of GENERAL MOTORS CORP.

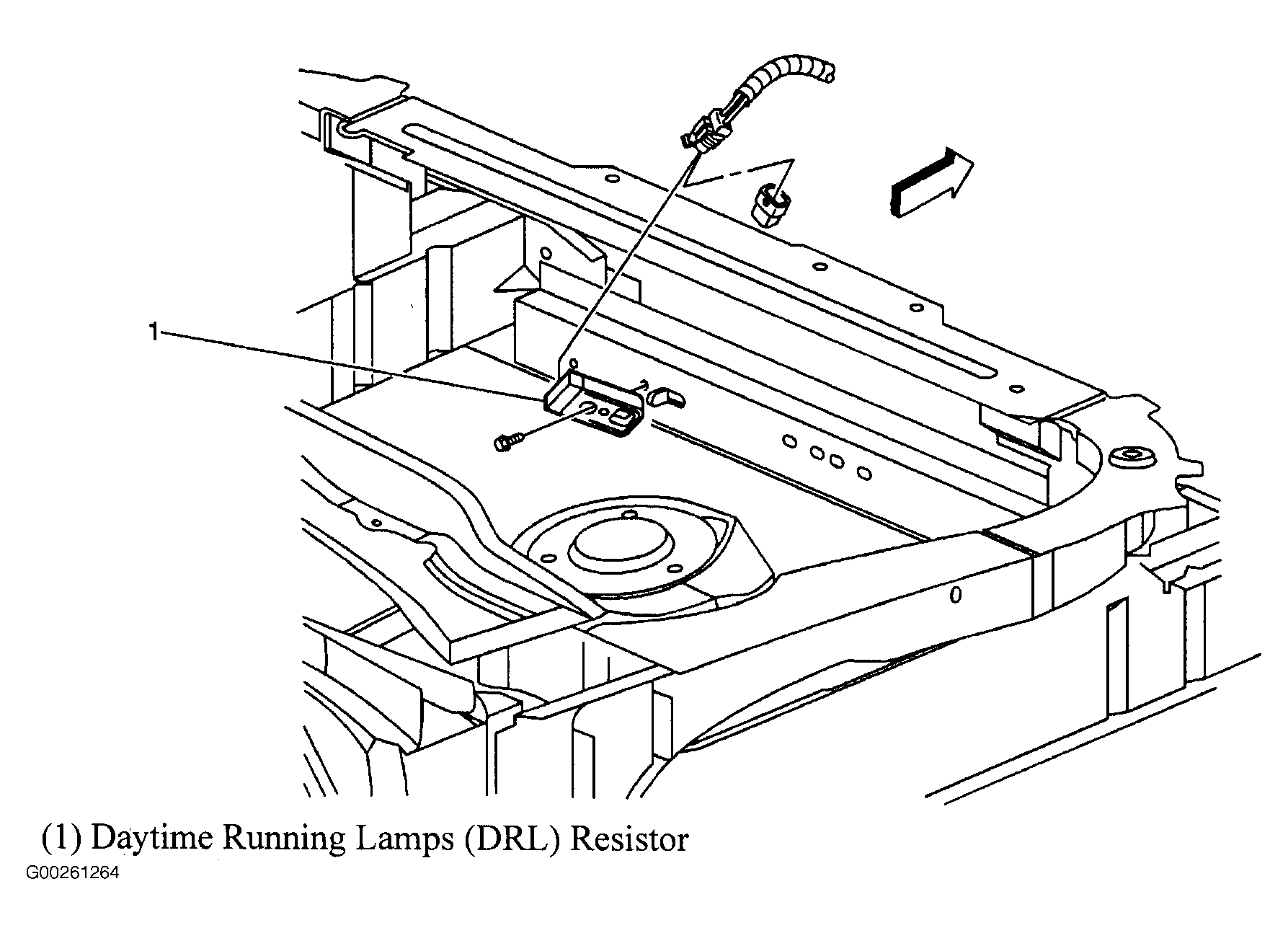

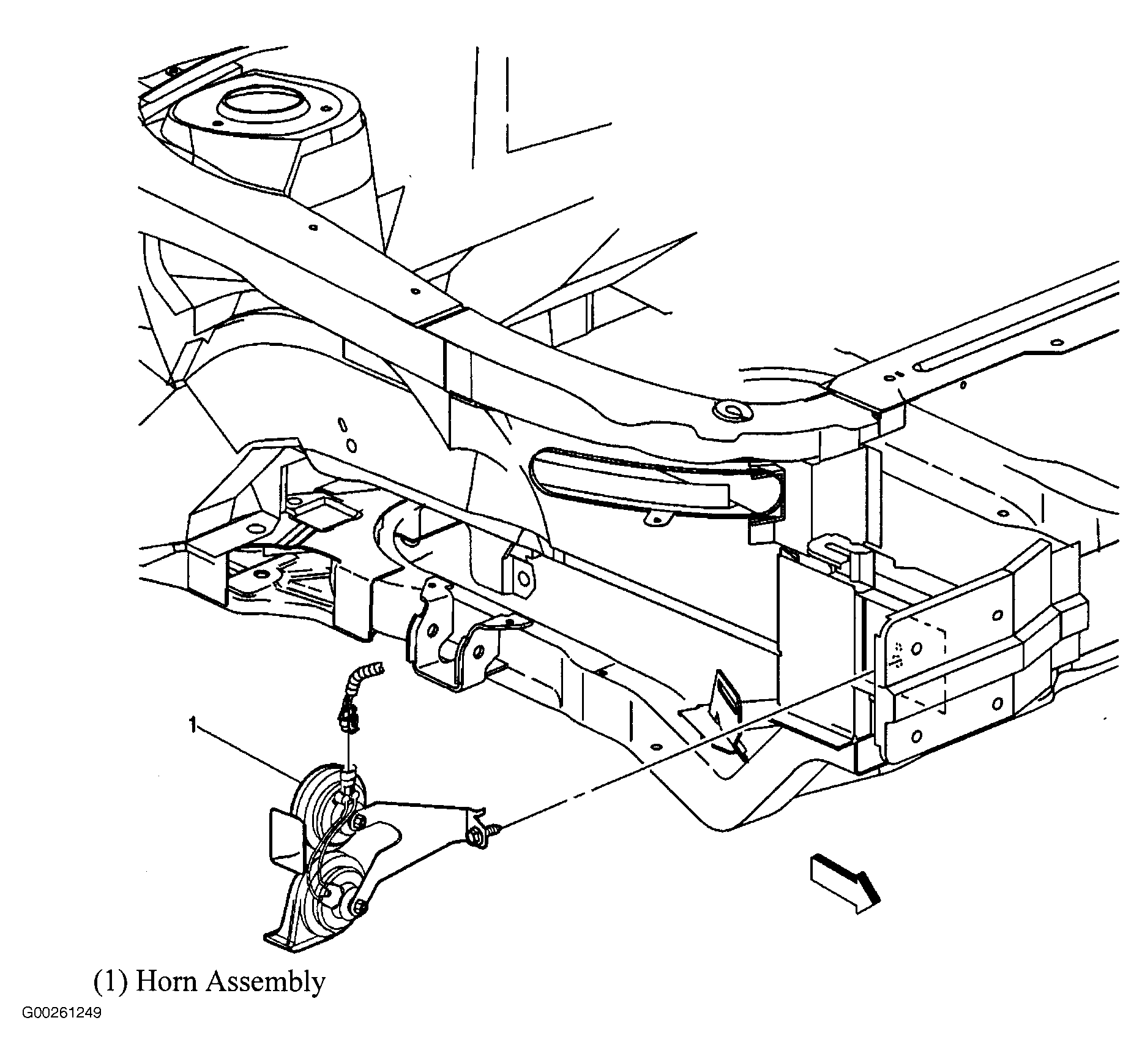

Fig 51: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

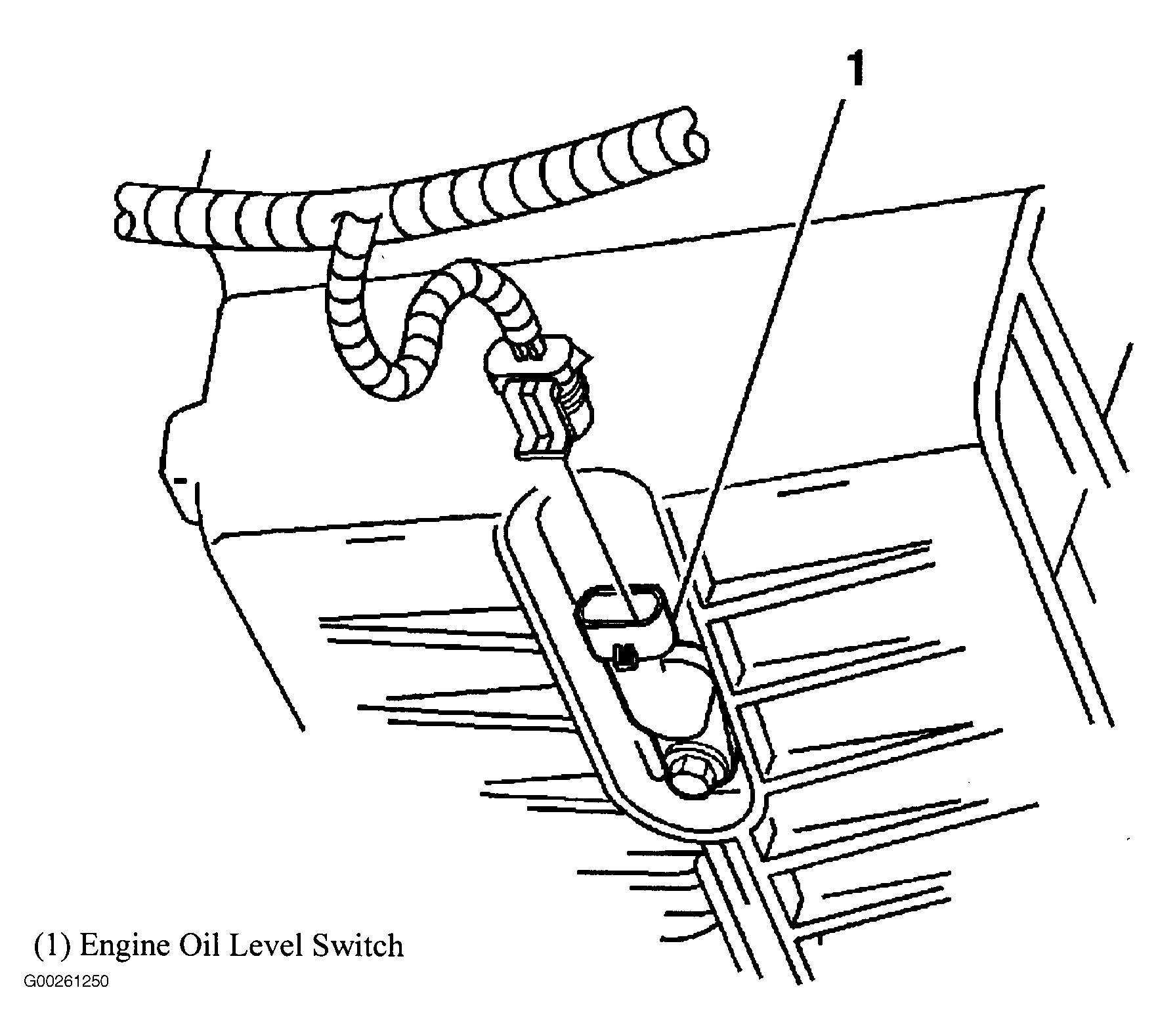

Fig 52: Bottom Of Oil Pan
Courtesy of GENERAL MOTORS CORP.

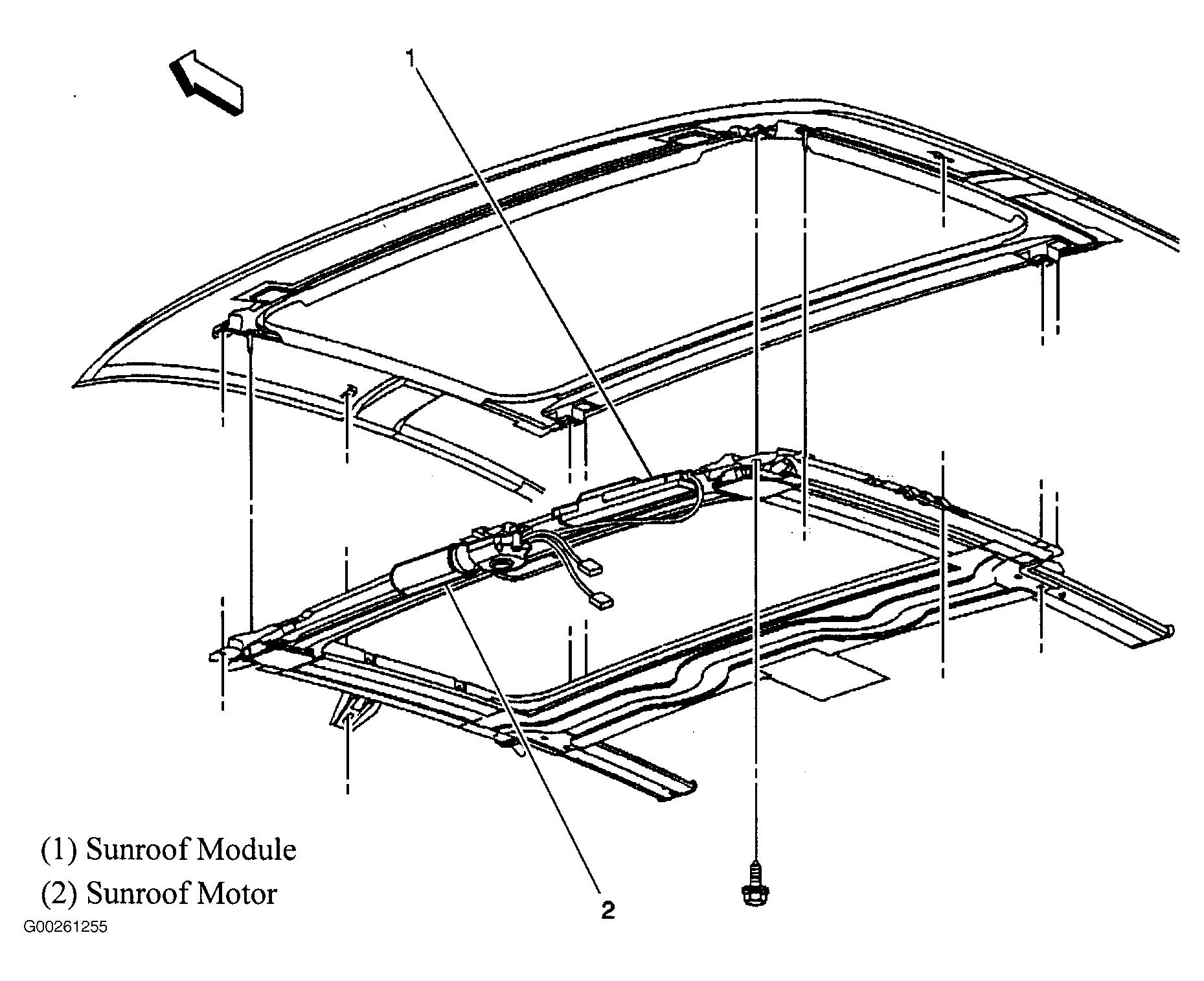

Fig 53: Sunroof Assembly
Courtesy of GENERAL MOTORS CORP.

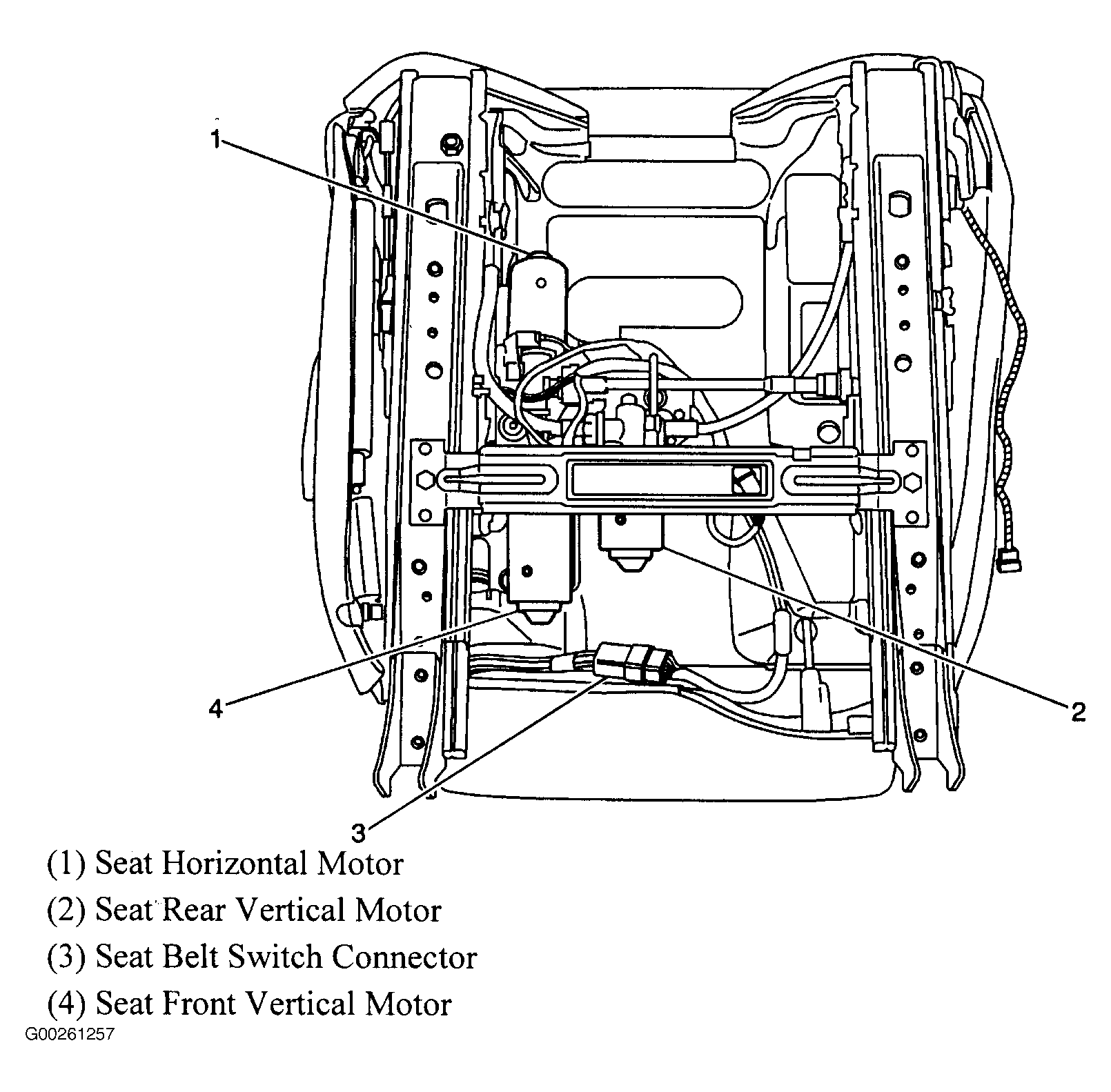

Fig 54: Under Left Front Seat
Courtesy of GENERAL MOTORS CORP.

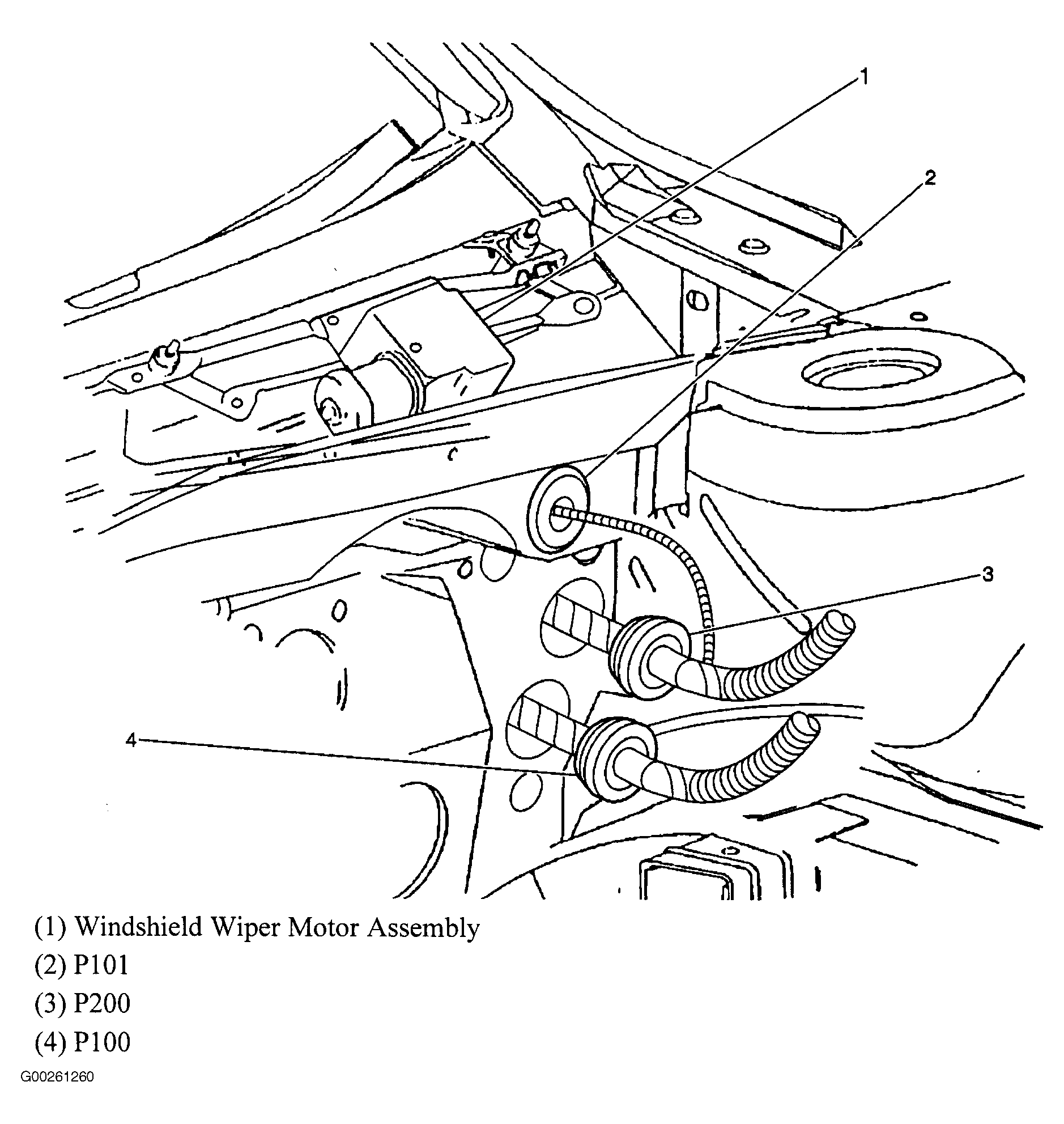

Fig 55: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

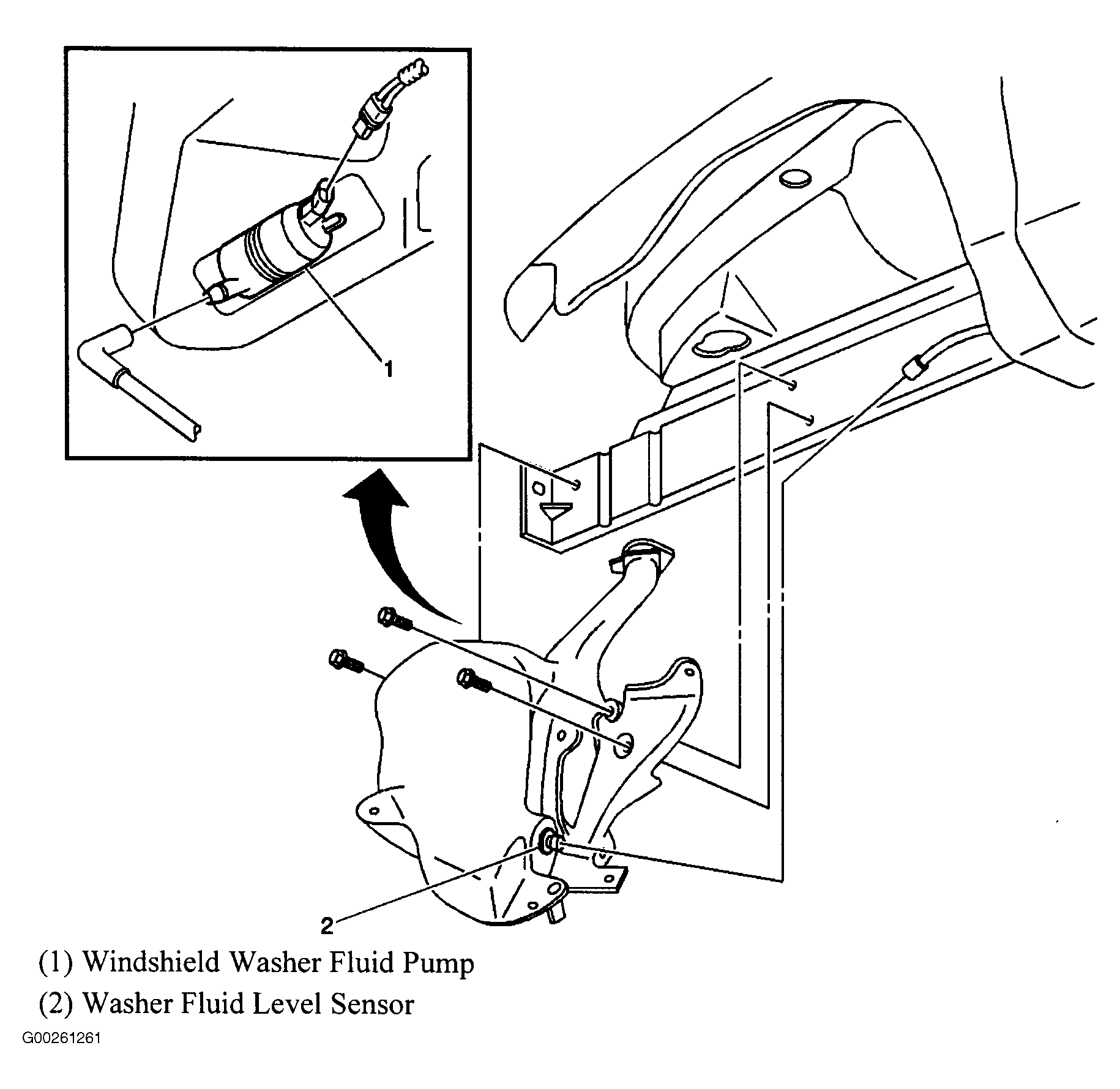

Fig 56: Windshield Washer Reservoir
Courtesy of GENERAL MOTORS CORP.
Fig 57: Top Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 58: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 59: Top Right Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 60: Instrument Panel Wiring Harness
Courtesy of GENERAL MOTORS CORP.

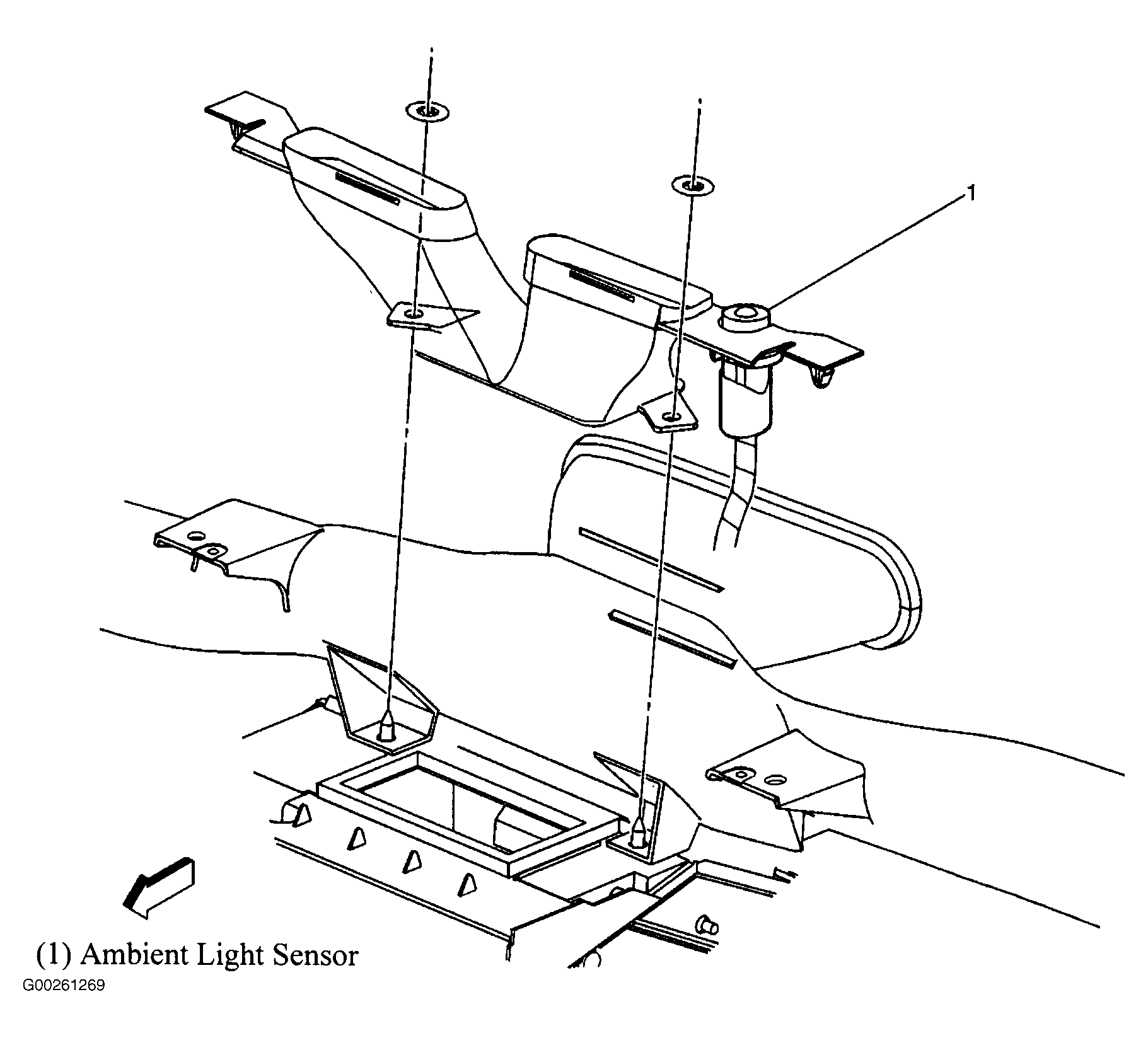

Fig 61: Top Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

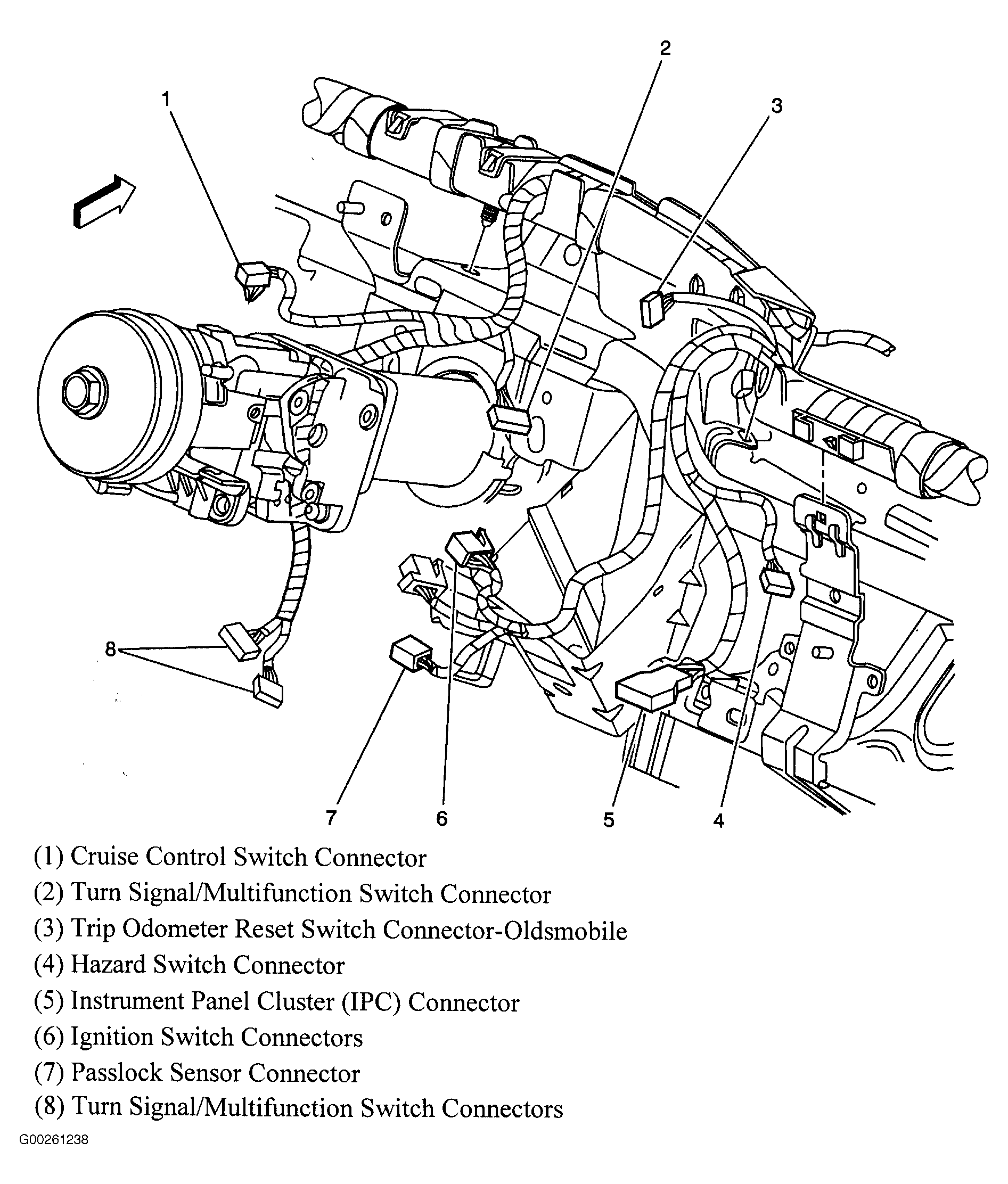

Fig 62: Below Left Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

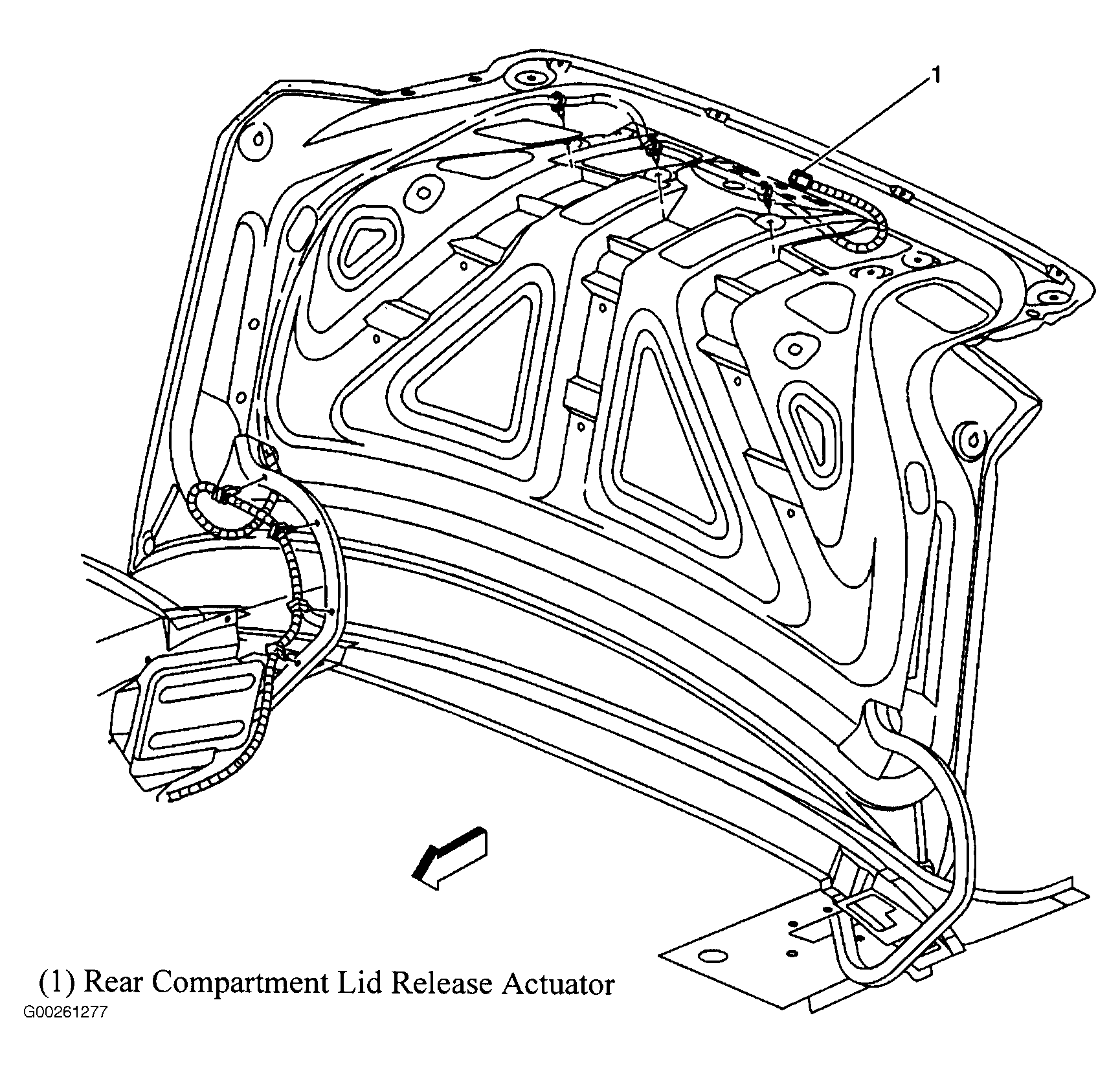

Fig 63: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Fig 64: Top Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

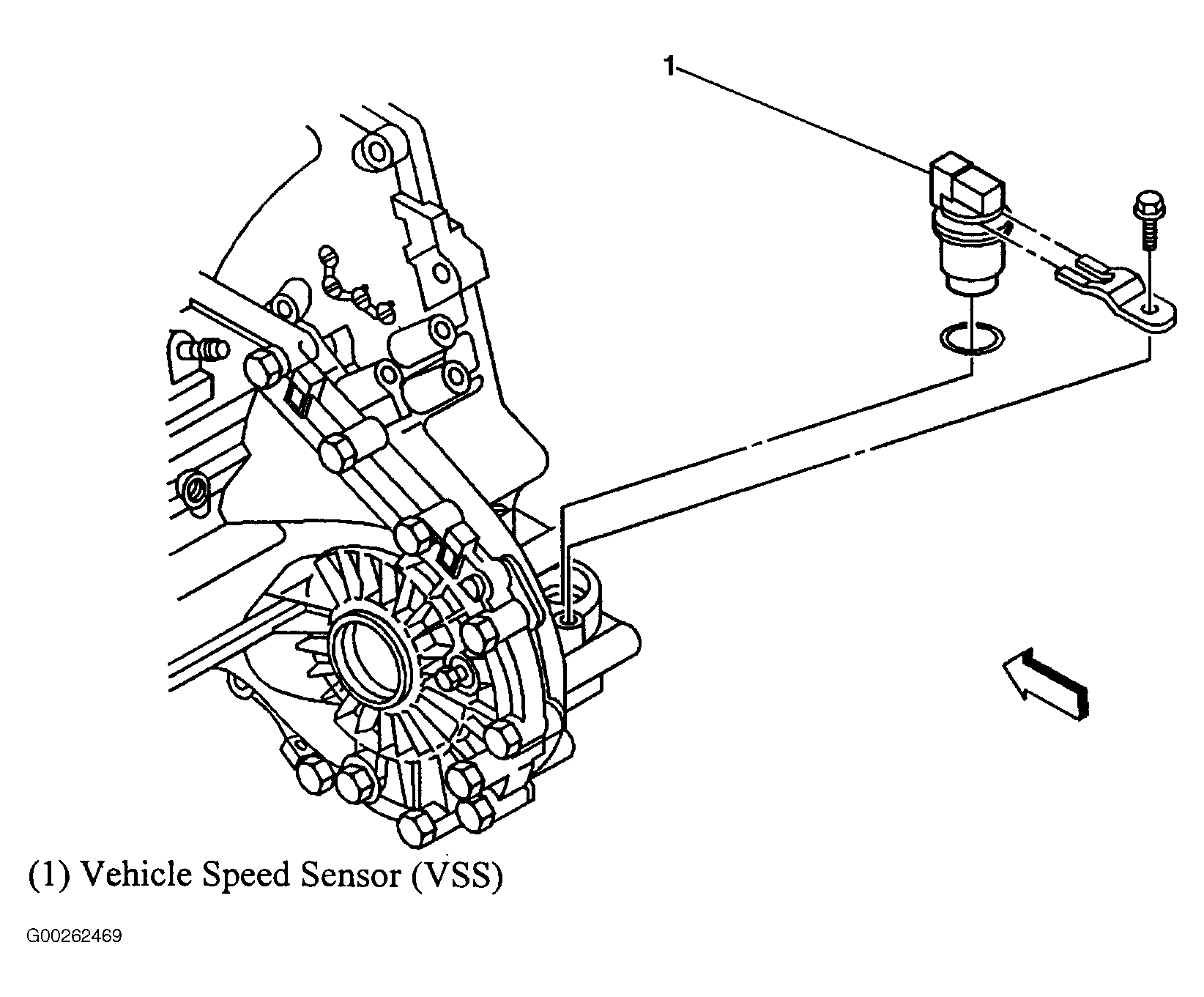

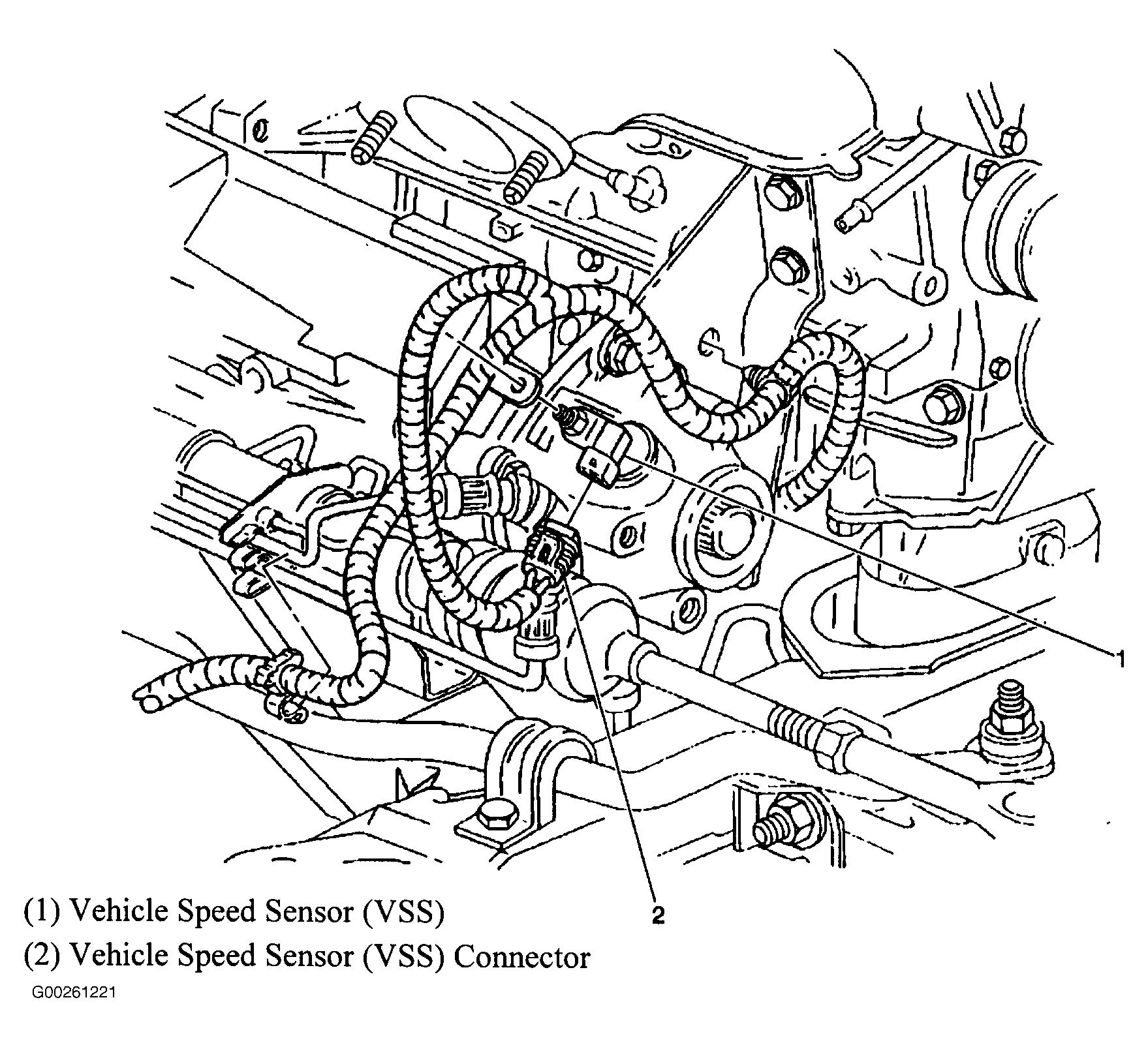

Fig 65: Vehicle Speed Sensor (M/T)
Courtesy of GENERAL MOTORS CORP.

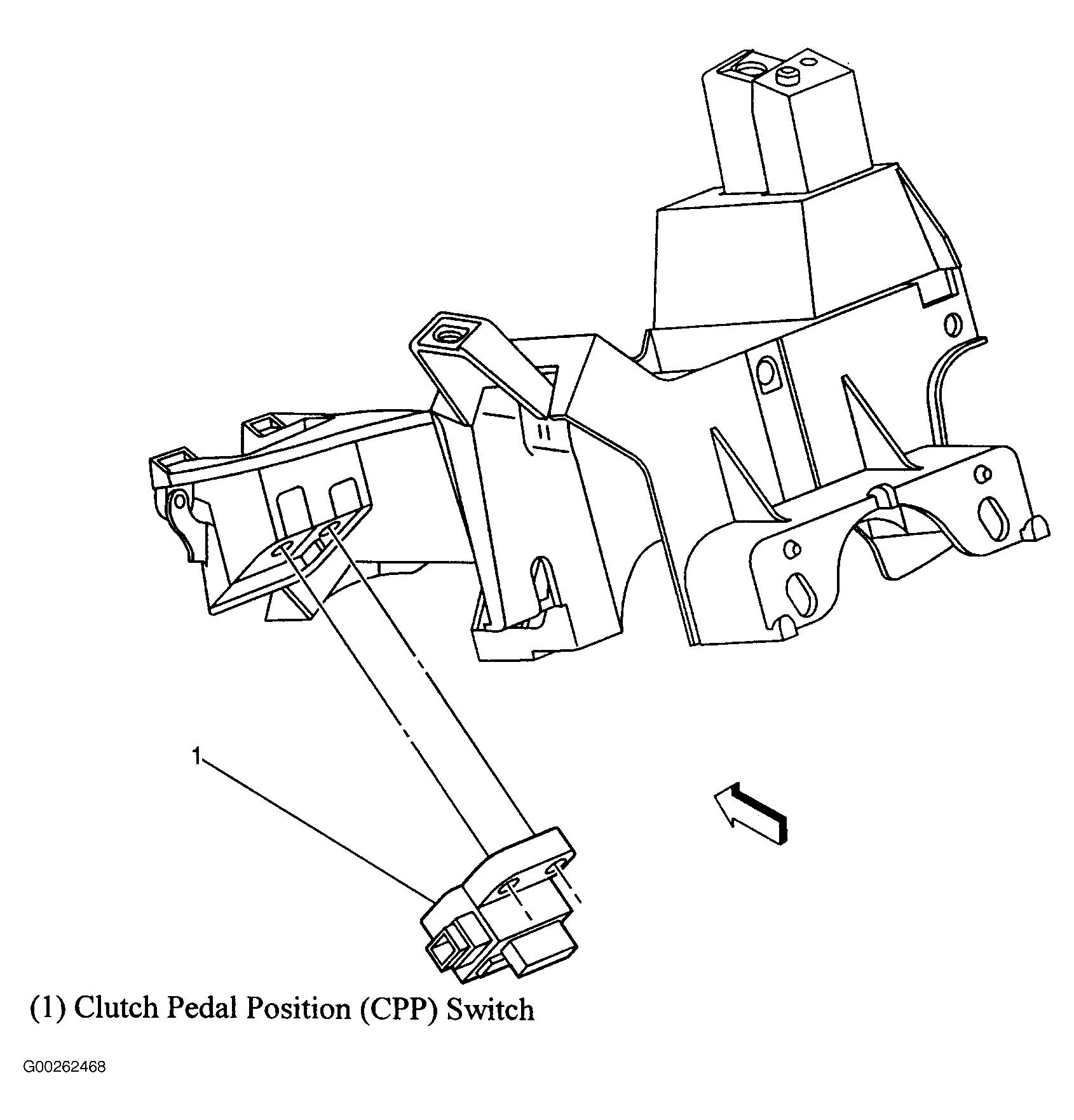

Fig 66: Clutch Pedal Position (CPP) Switch
Courtesy of GENERAL MOTORS CORP.

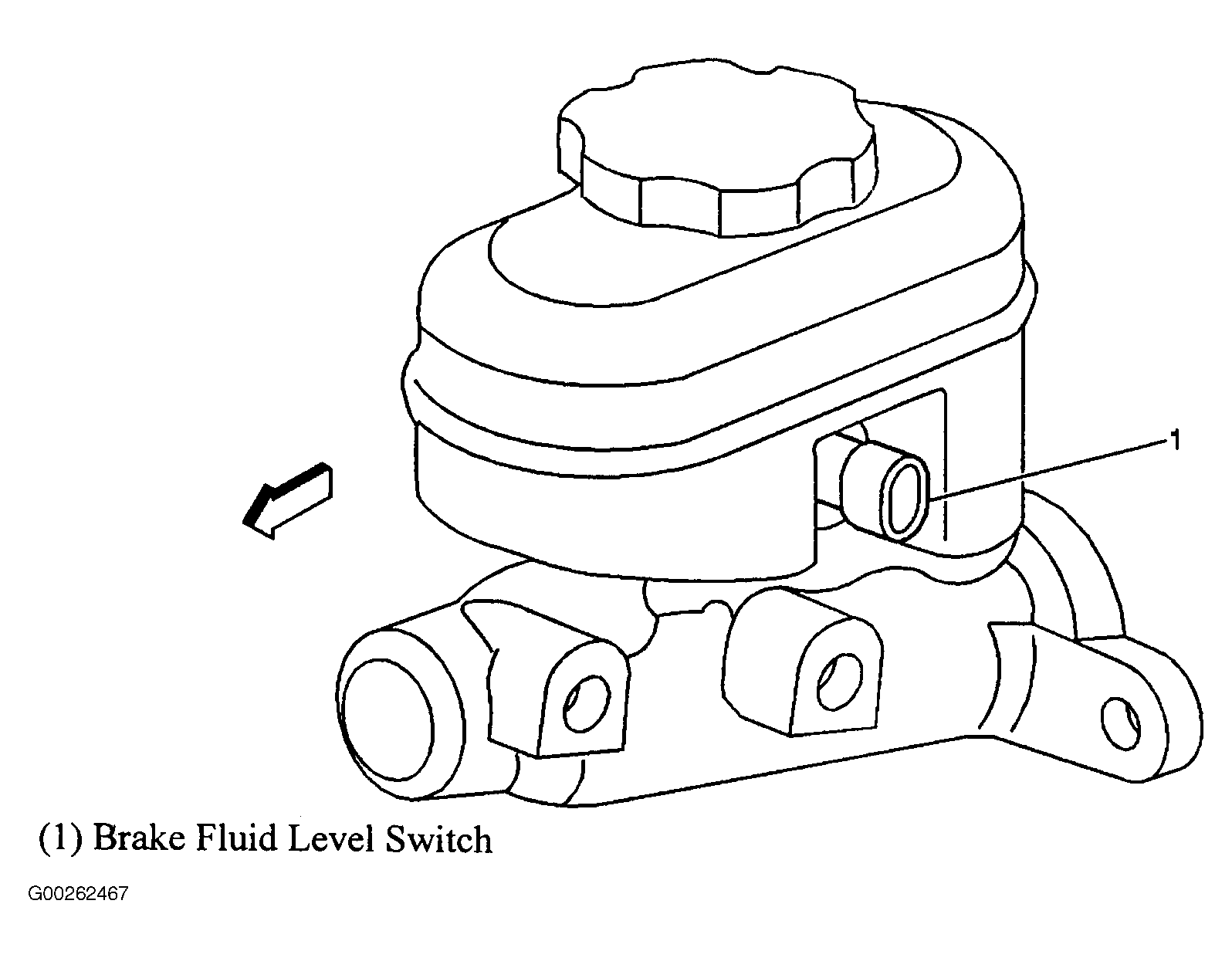

Fig 67: Brake Fluid Level Switch
Courtesy of GENERAL MOTORS CORP.
Fig 68: Center Of Floor
Courtesy of GENERAL MOTORS CORP.

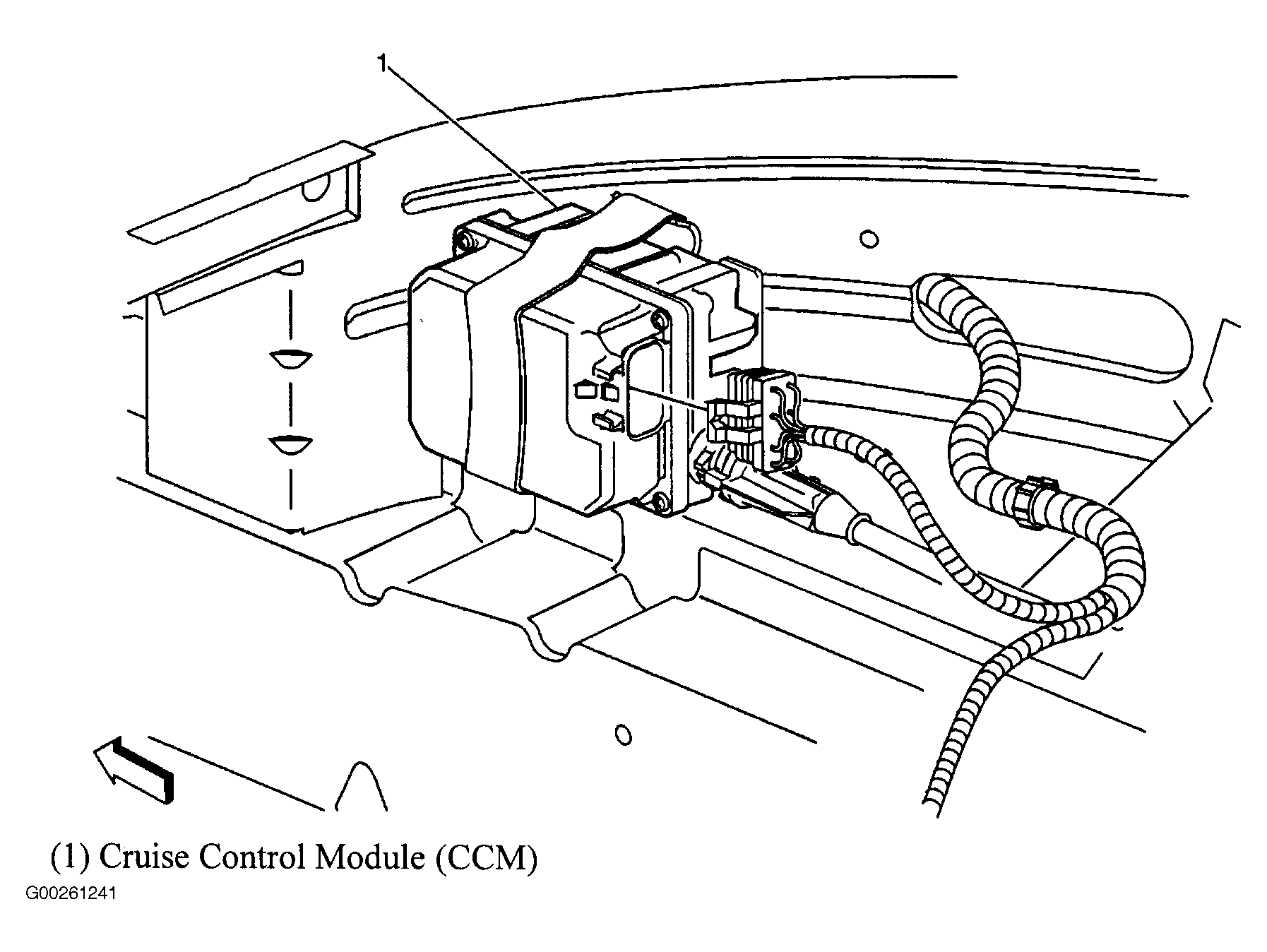

Fig 69: Left Strut Tower
Courtesy of GENERAL MOTORS CORP.
Fig 70: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 71: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 72: Right Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 73: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 74: Rear Of Transmission
Courtesy of GENERAL MOTORS CORP.

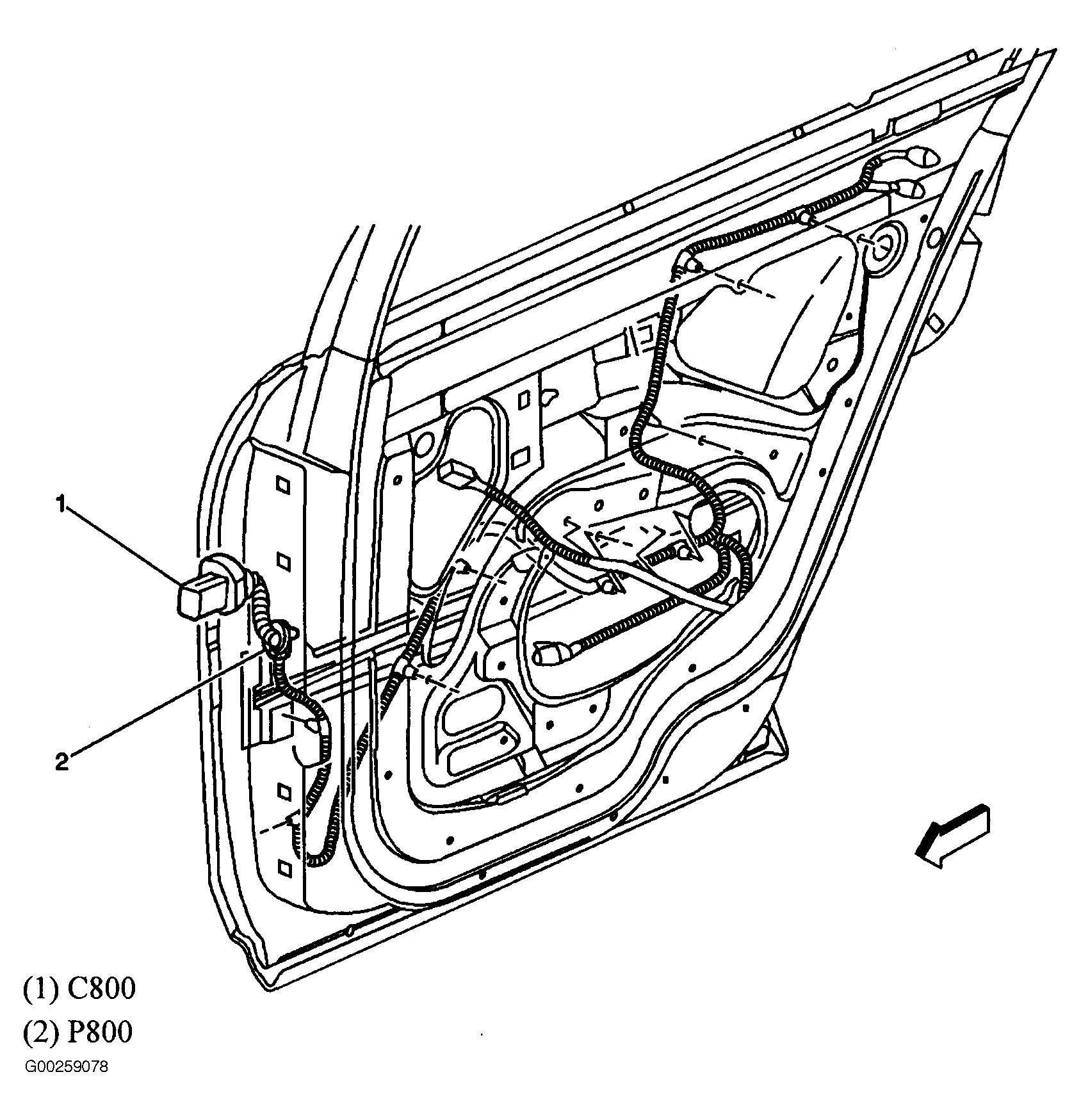

Fig 75: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 76: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

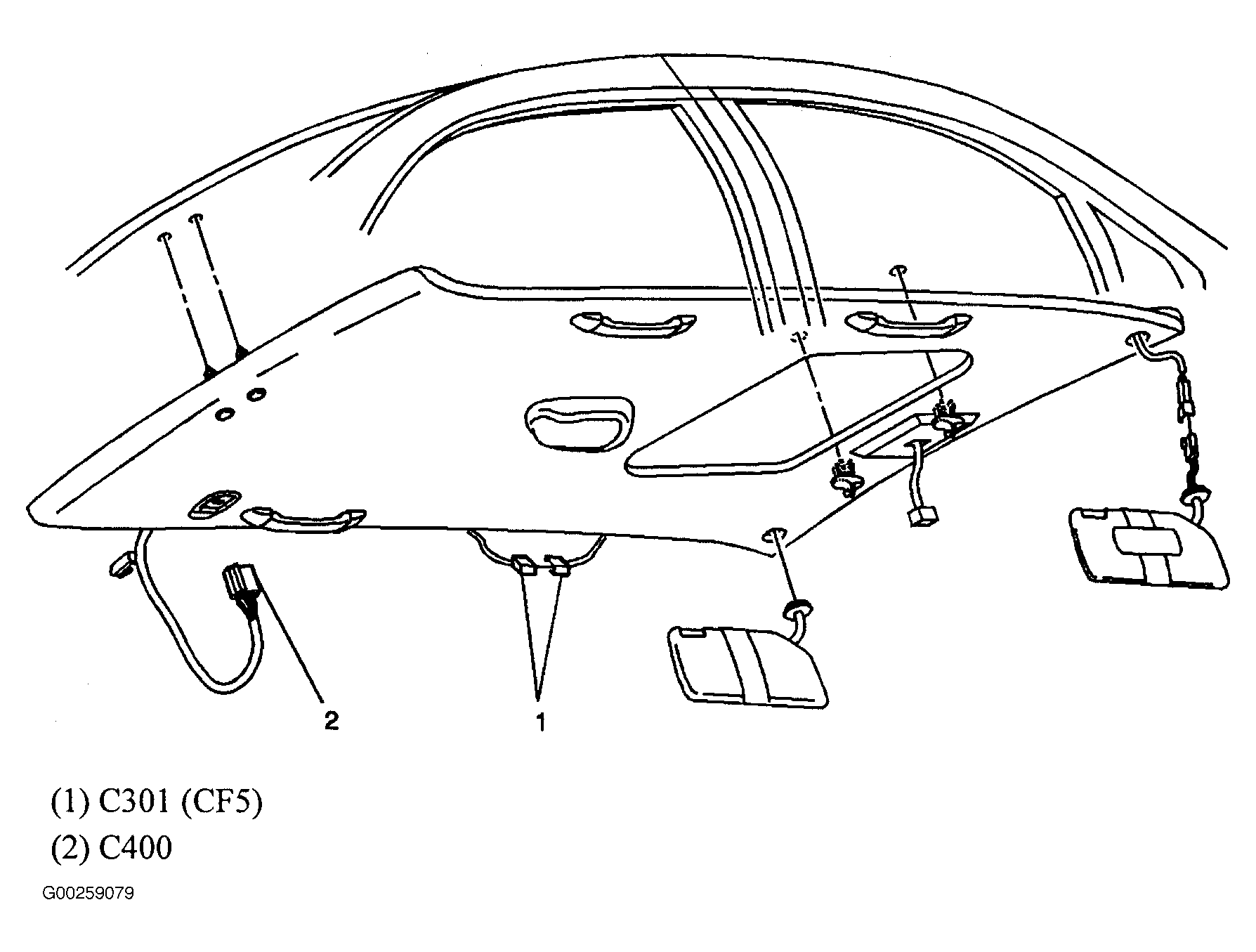

Fig 77: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 78: Left Front Floor
Courtesy of GENERAL MOTORS CORP.
Fig 79: Right Front Floor
Courtesy of GENERAL MOTORS CORP.
Fig 80: Left Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 81: Right Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
