Installation Procedure

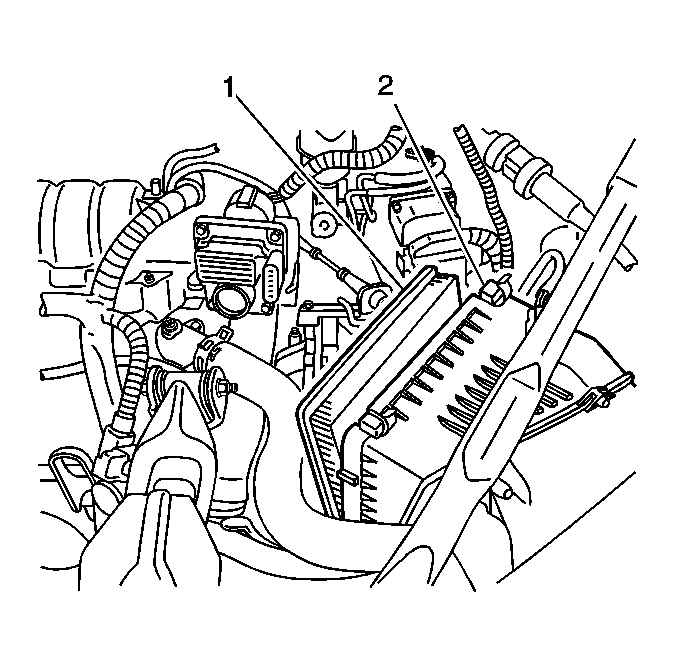

    Fig 1: View Of Air Cleaner Element
    GM1207827Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner element (1) to the air cleaner housing (2).

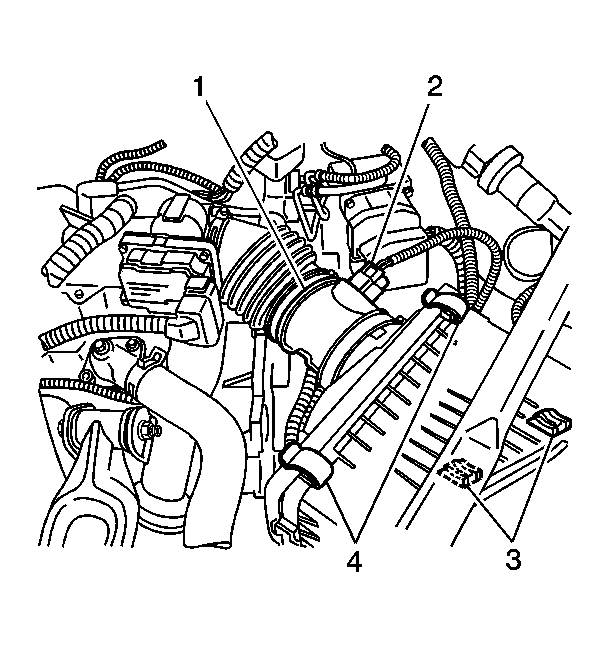

    2. Fig 2: Identifying MAF/IAT Sensor
    GM1208107Courtesy of GENERAL MOTORS CORP.
  2. Install the air cleaner cover, and clip the cover retaining fasteners (4).
  3. Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
