Installation Procedure

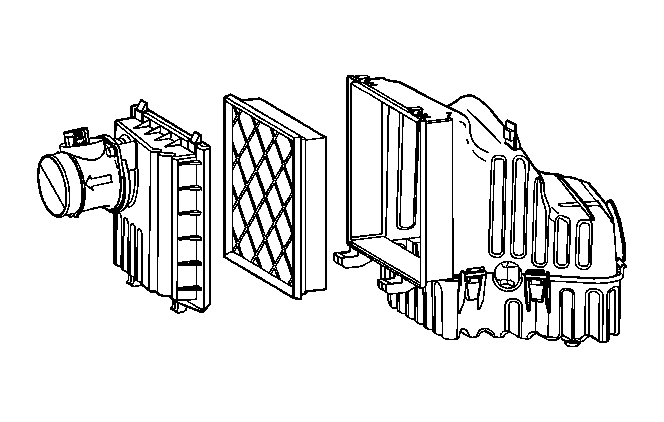

    Fig 1: Air Cleaner Housing & Element
    GM1556019Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW air filter element.
  2. Install the air cleaner housing cover.
  3. Engage the spring clamps on top of the air cleaner housing.
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
