Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.

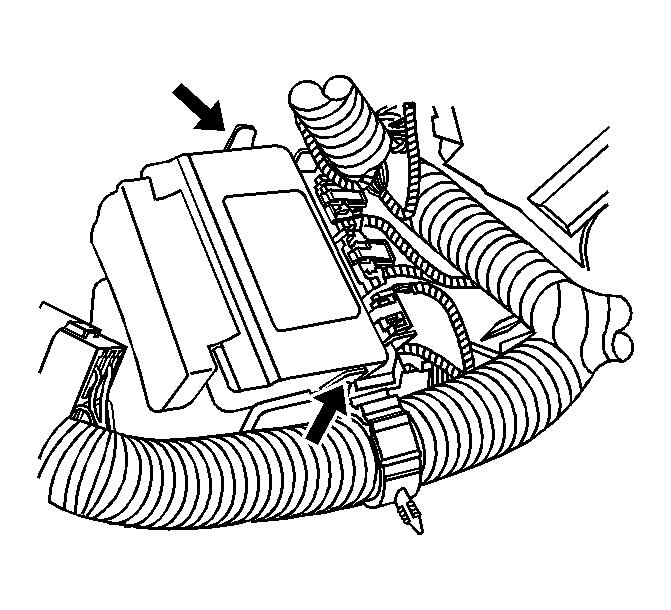

    2. Fig 1: Identifying BCM Lock Tabs
    GM763283Courtesy of GENERAL MOTORS CORP.
  2. Release the body control module (BCM) wire harness retainer from the BCM bracket.
  3. Disconnect the BCM electrical connectors from the BCM.
  4. Release the lock tabs and remove the BCM from the BCM bracket.

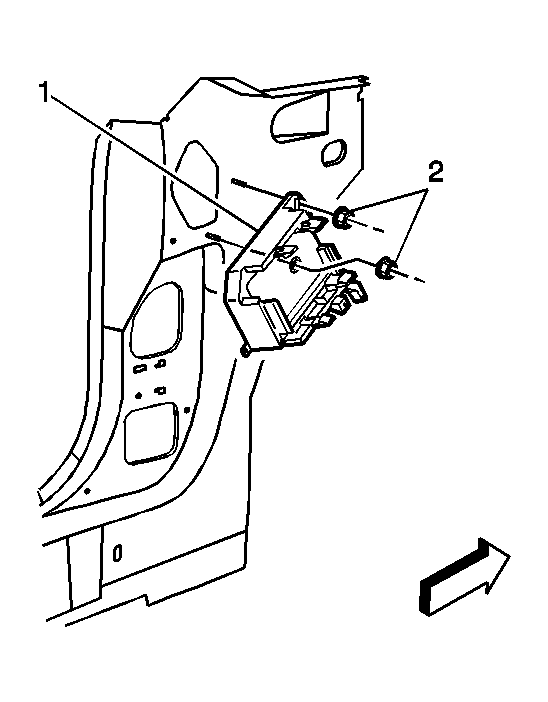

    5. Fig 2: Removing BCM Bracket Nuts
    GM581535Courtesy of GENERAL MOTORS CORP.
  5. Remove the BCM bracket nuts (2) if required.
  6. Remove the BCM bracket (1) as an assembly if required.
