Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Of Brake Pedal
Courtesy of GENERAL MOTORS CORP.

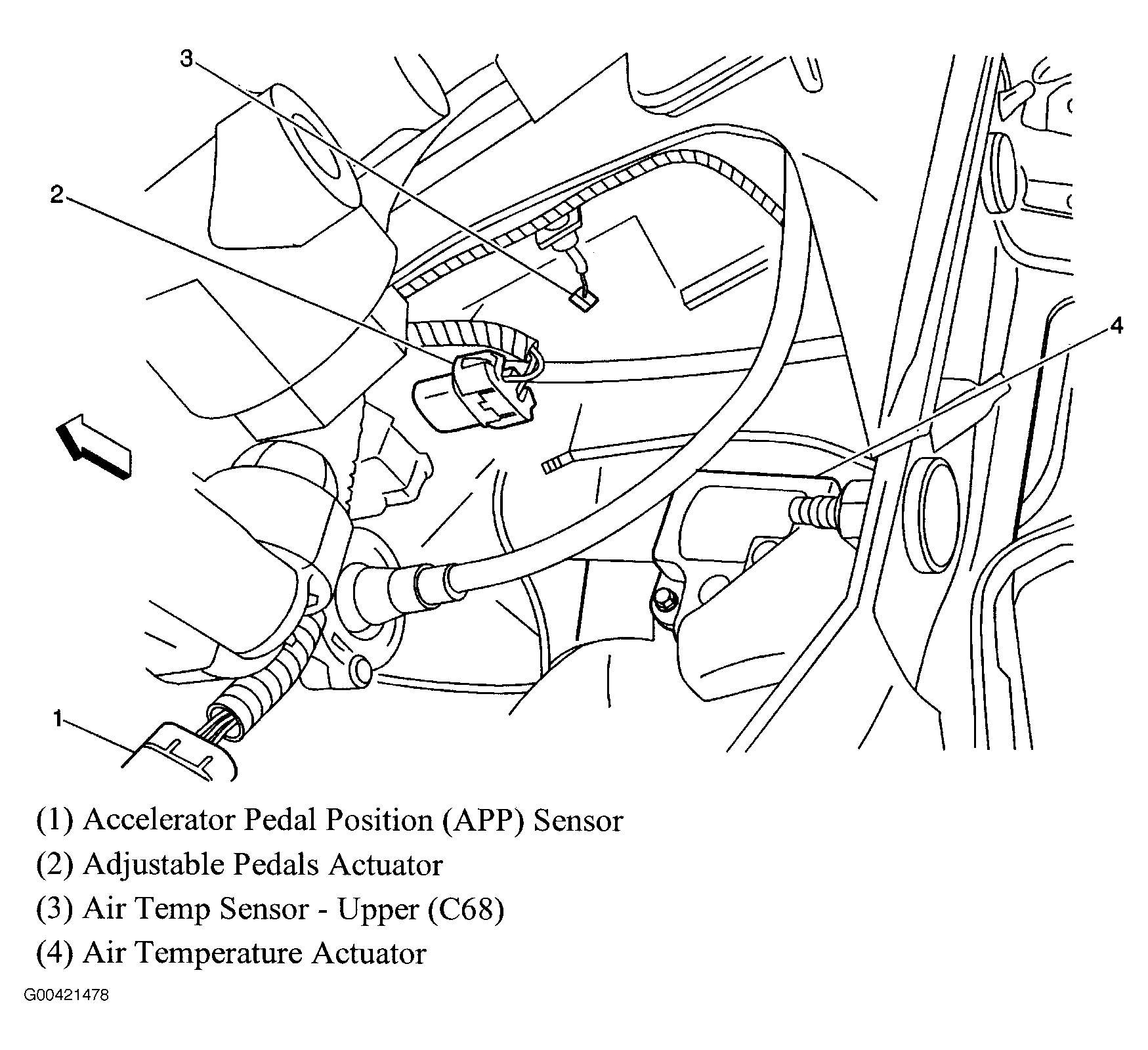

Fig 3: Above Brake Pedal
Courtesy of GENERAL MOTORS CORP.
Fig 4: Left Side Of HVAC Case
Courtesy of GENERAL MOTORS CORP.
Fig 5: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left Rear Engine Compartment (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Left Front Of Floor Console
Courtesy of GENERAL MOTORS CORP.

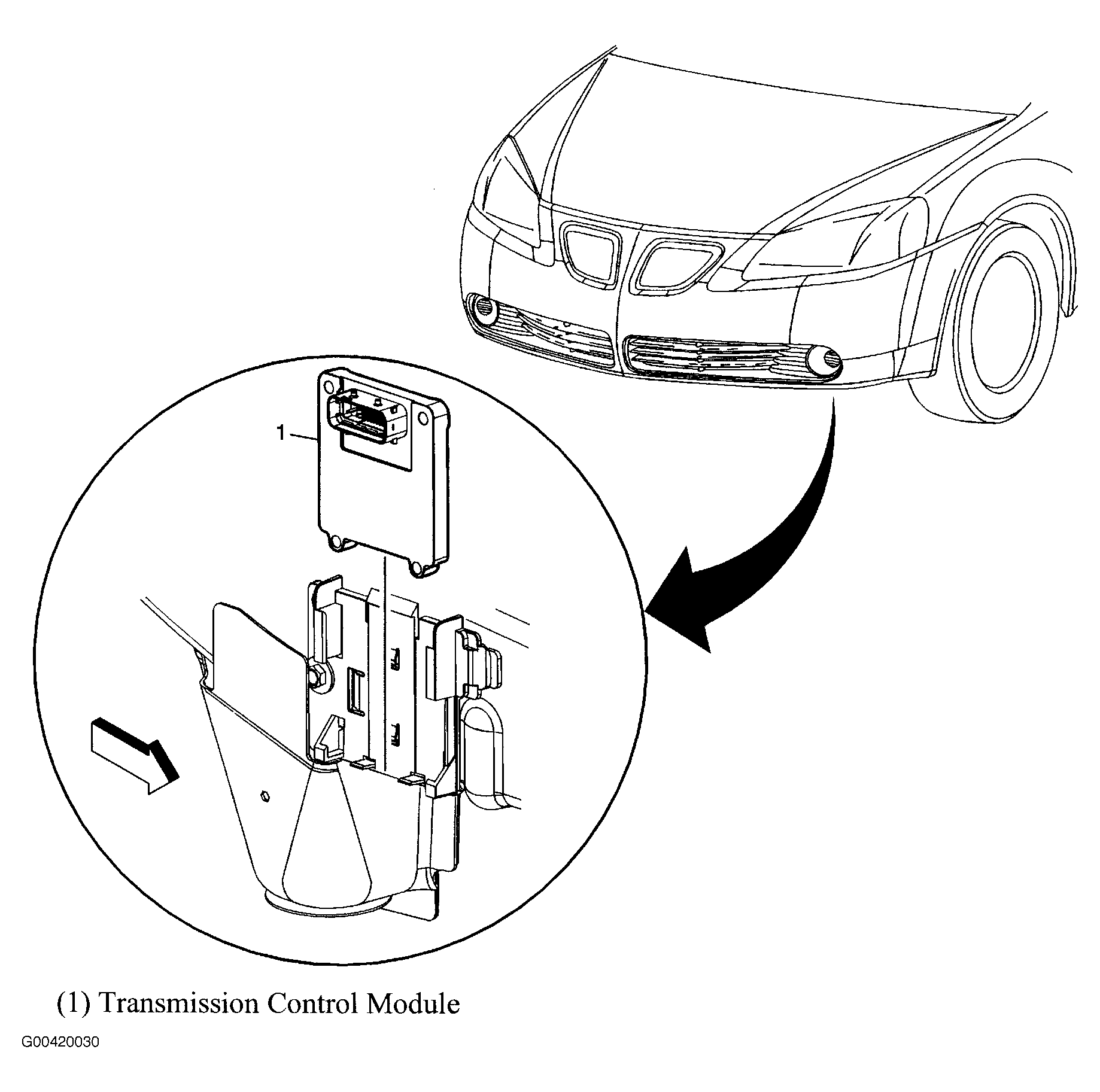

Fig 8: Automatic Transmission Electronic Component Views (4T45-E)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Left Front Door
Courtesy of GENERAL MOTORS CORP.

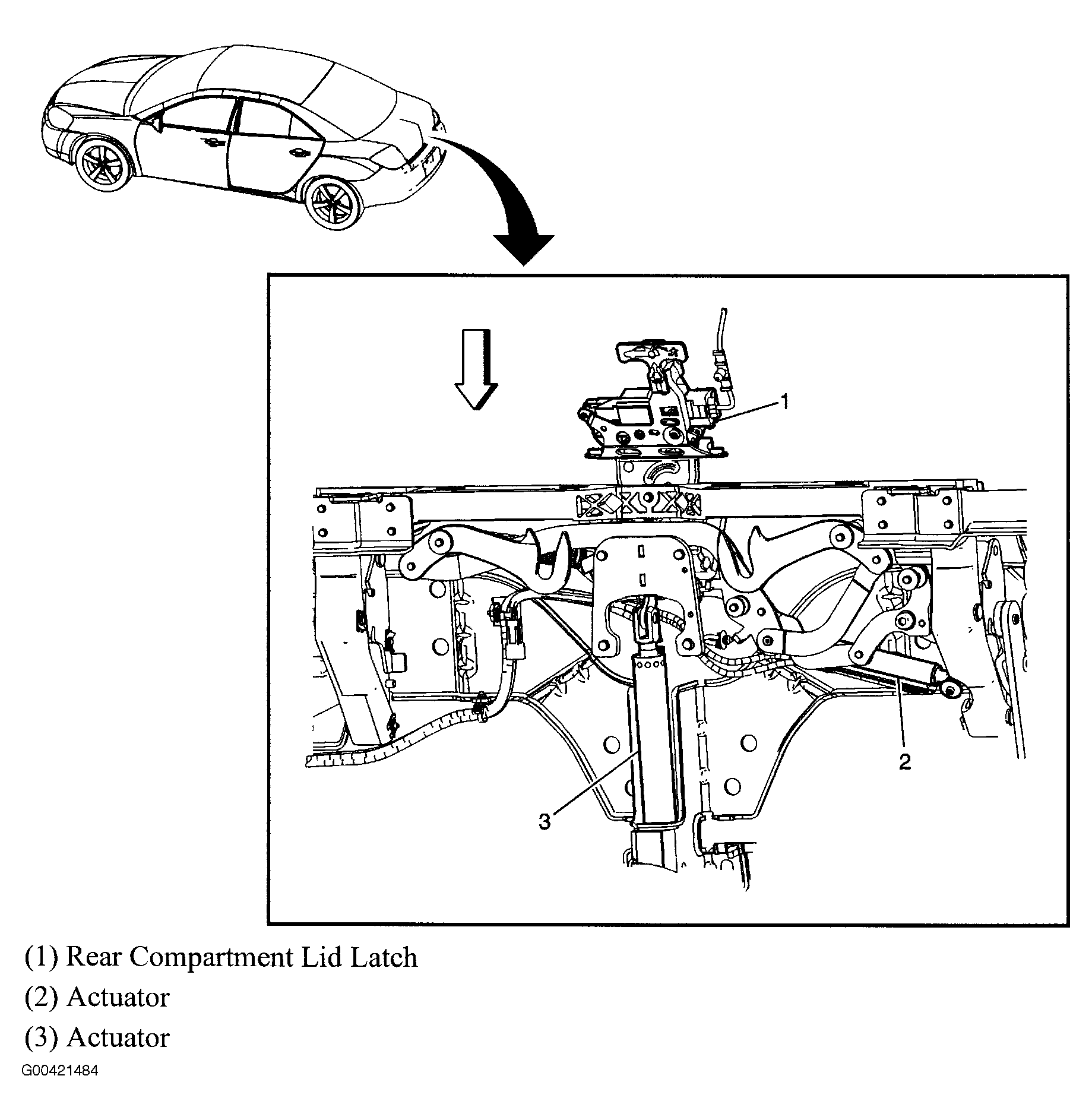

Fig 10: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Fig 11: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 12: Interior
Courtesy of GENERAL MOTORS CORP.
Fig 13: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 15: Rear Of Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 16: Right Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 17: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Top Of Engine (3.5L/3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Lower Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Top Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Exhaust Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 28: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 29: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 30: Radiator Support
Courtesy of GENERAL MOTORS CORP.
Fig 31: Radiator Support
Courtesy of GENERAL MOTORS CORP.
Fig 32: Left Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Rear Roof Rail
Courtesy of GENERAL MOTORS CORP.
Fig 34: Right Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 35: Front Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 36: Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 38: Left Side Of HVAC Case
Courtesy of GENERAL MOTORS CORP.
Fig 39: HVAC Unit (Manual)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 41: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 42: Parking Brake Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 43: Upper Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 44: Inside Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 45: Rear Of Sunroof
Courtesy of GENERAL MOTORS CORP.
Fig 46: Sunroof Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 47: Front Impact Bar
Courtesy of GENERAL MOTORS CORP.
Fig 48: Left Door
Courtesy of GENERAL MOTORS CORP.
Fig 49: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 50: Side Impact Modules
Courtesy of GENERAL MOTORS CORP.
Fig 51: Left "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 52: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.

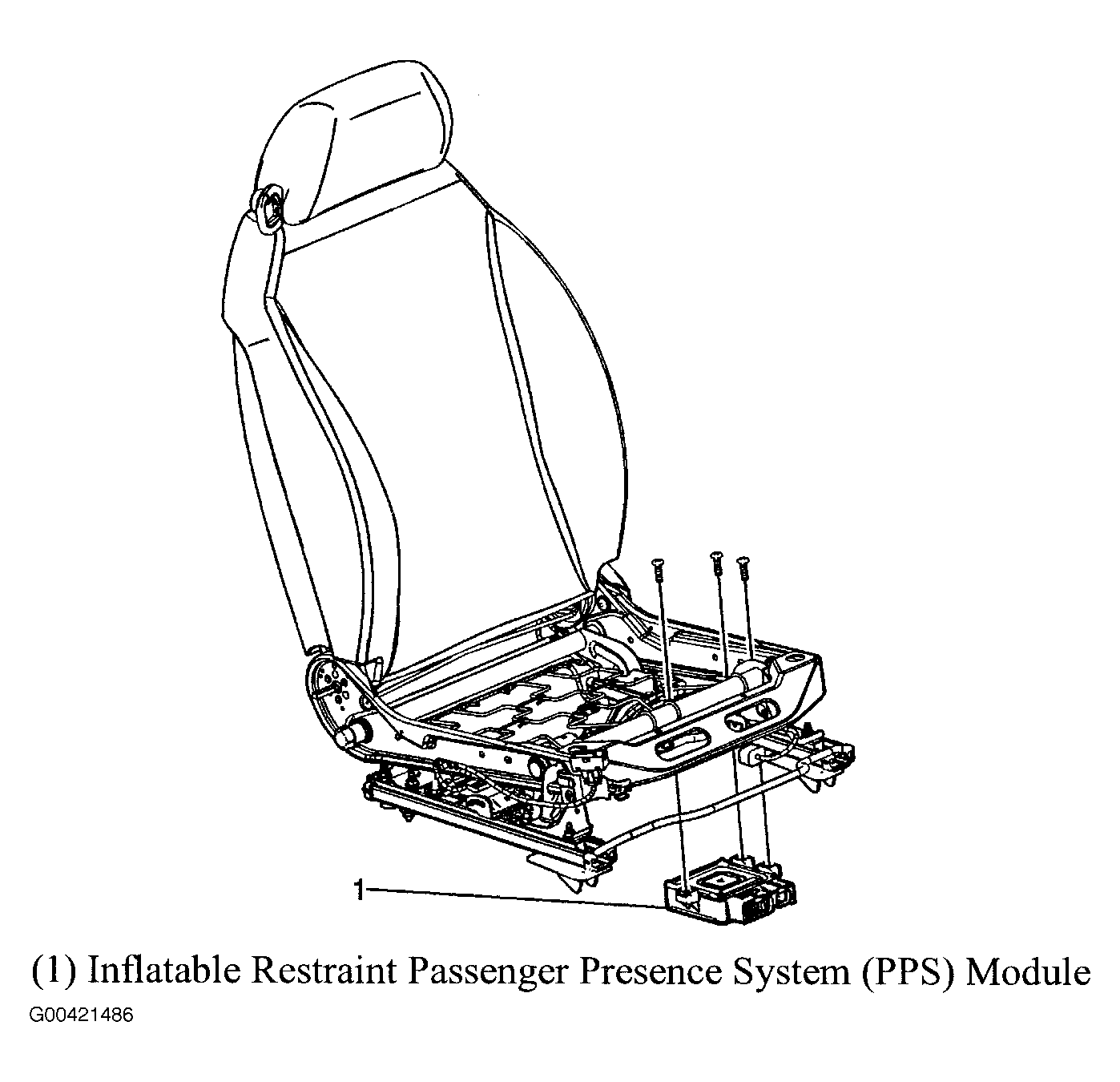

Fig 53: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 54: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 55: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 56: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 57: Automatic Transmission Shift Lock Control Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 58: Theft Deterrent System Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 59: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 60: Front Side Of Core Support
Courtesy of GENERAL MOTORS CORP.
Fig 61: Left Side Of Core Support
Courtesy of GENERAL MOTORS CORP.
Fig 62: Under Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 63: Behind Left Side Of Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 64: Left Rear Quarter Panel
Courtesy of GENERAL MOTORS CORP.
Fig 65: Rear Bumper Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 66: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 67: Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Left Side Of Console
Courtesy of GENERAL MOTORS CORP.
Fig 69: Right Side Of Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 70: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 71: Left Front Door Trim Pad
Courtesy of GENERAL MOTORS CORP.
Fig 72: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 73: Right Front Door Trim Pad
Courtesy of GENERAL MOTORS CORP.
Fig 74: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 75: Front Pan
Courtesy of GENERAL MOTORS CORP.
Fig 76: Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 77: Headliner (W/O Sunroof)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Headliner (W/ Sunroof)
Courtesy of GENERAL MOTORS CORP.
Fig 79: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 80: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 81: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 82: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 83: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 84: Body Control Module (BCM)
Courtesy of GENERAL MOTORS CORP.
Fig 85: Front Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 86: Top Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 87: Front Of Engine Compartment (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 88: Left Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 89: Right Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 90: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 91: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 92: Right Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 93: Left Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 94: Under Center Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 95: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 96: Automatic Transmission Electronic Component Views (4T65-E)
Courtesy of GENERAL MOTORS CORP.
Fig 97: Left Rear Of Engine Compartment (2.4L/3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 98: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 99: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 100: Under Driver/Front Passenger Seats
Courtesy of GENERAL MOTORS CORP.
Fig 101: HVAC Unit (Automatic)
Courtesy of GENERAL MOTORS CORP.
Fig 102: Left Side Of HVAC
Courtesy of GENERAL MOTORS CORP.
Fig 103: Front Right Side Of Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 104: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

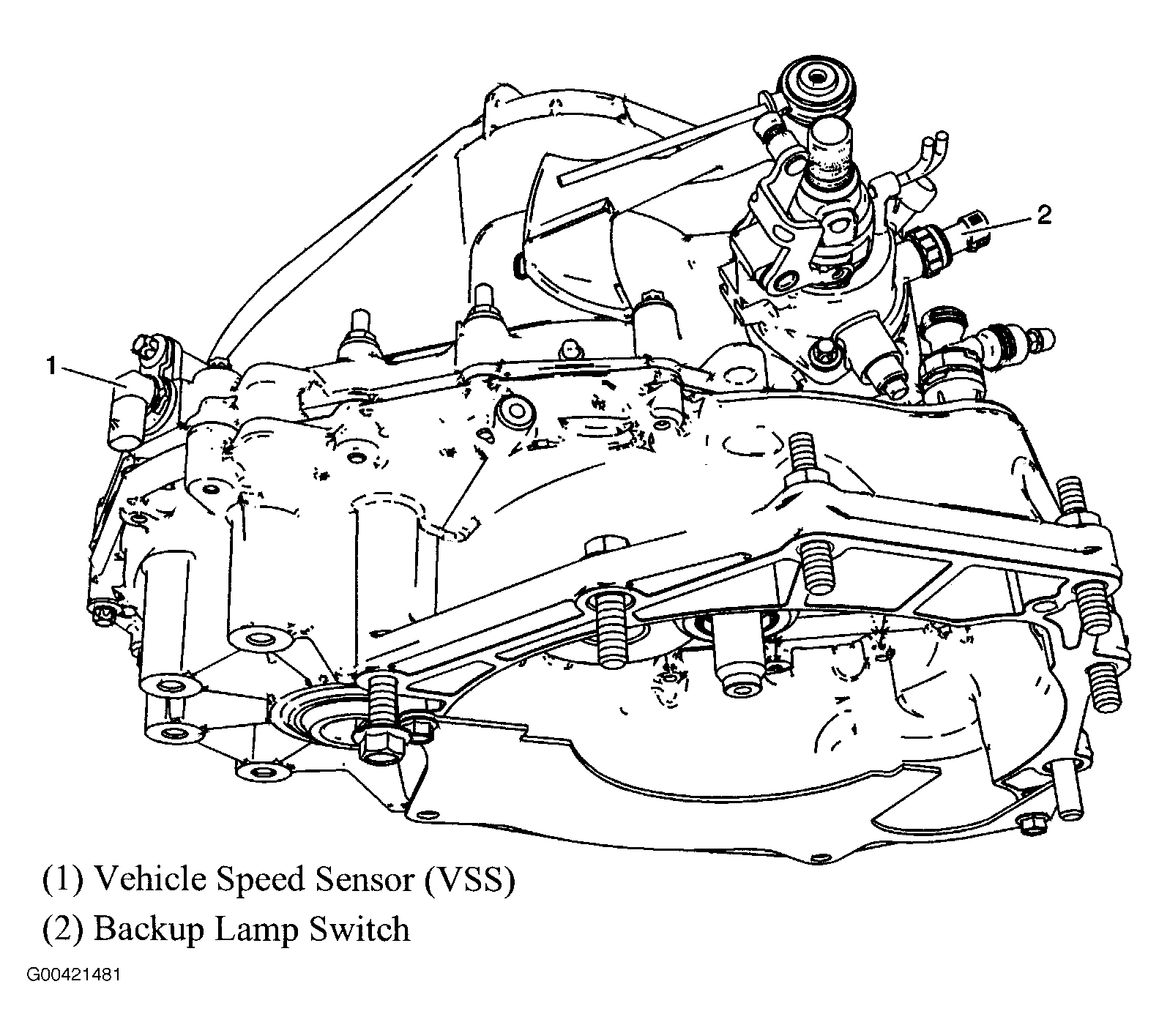

Fig 105: Manual Transmission
Courtesy of GENERAL MOTORS CORP.

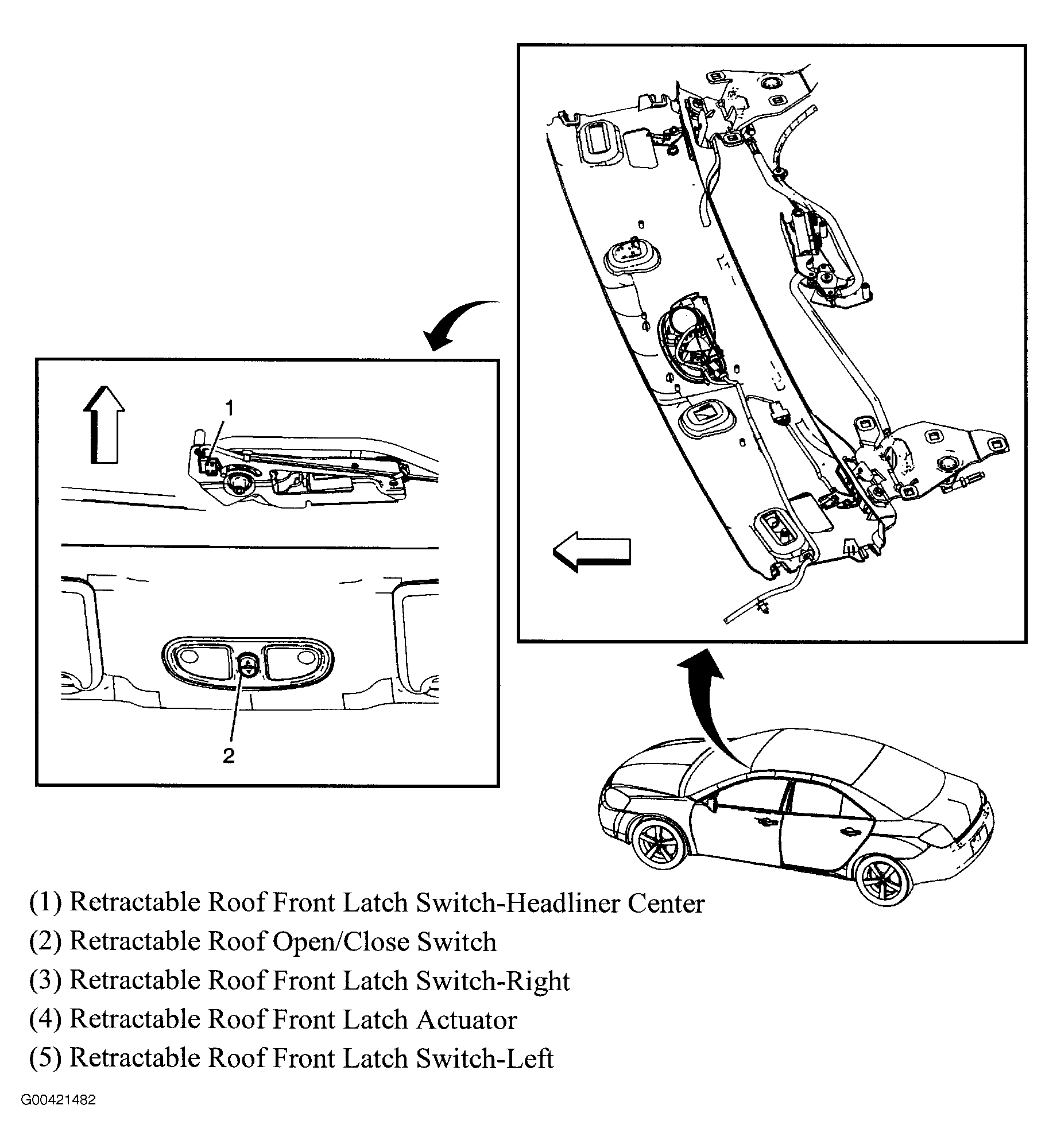

Fig 106: Roof (Convertible)
Courtesy of GENERAL MOTORS CORP.

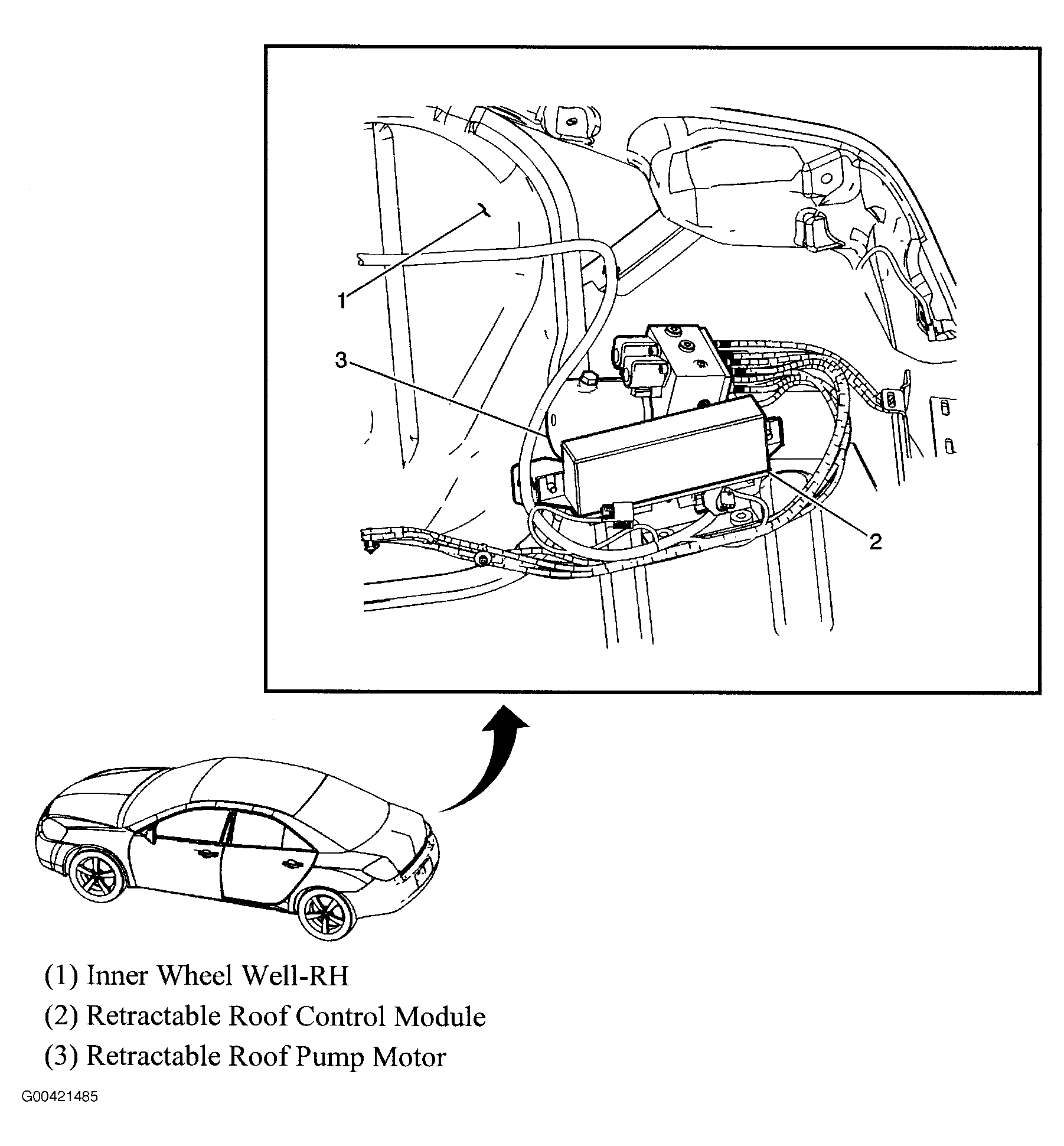

Fig 107: Rear Compartment (Convertible)
Courtesy of GENERAL MOTORS CORP.
Fig 108: Rear Compartment (Convertible)
Courtesy of GENERAL MOTORS CORP.
Fig 109: Rear Compartment (Convertible)
Courtesy of GENERAL MOTORS CORP.
Fig 110: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 111: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 112: Left "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 113: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.
