Body Control Module

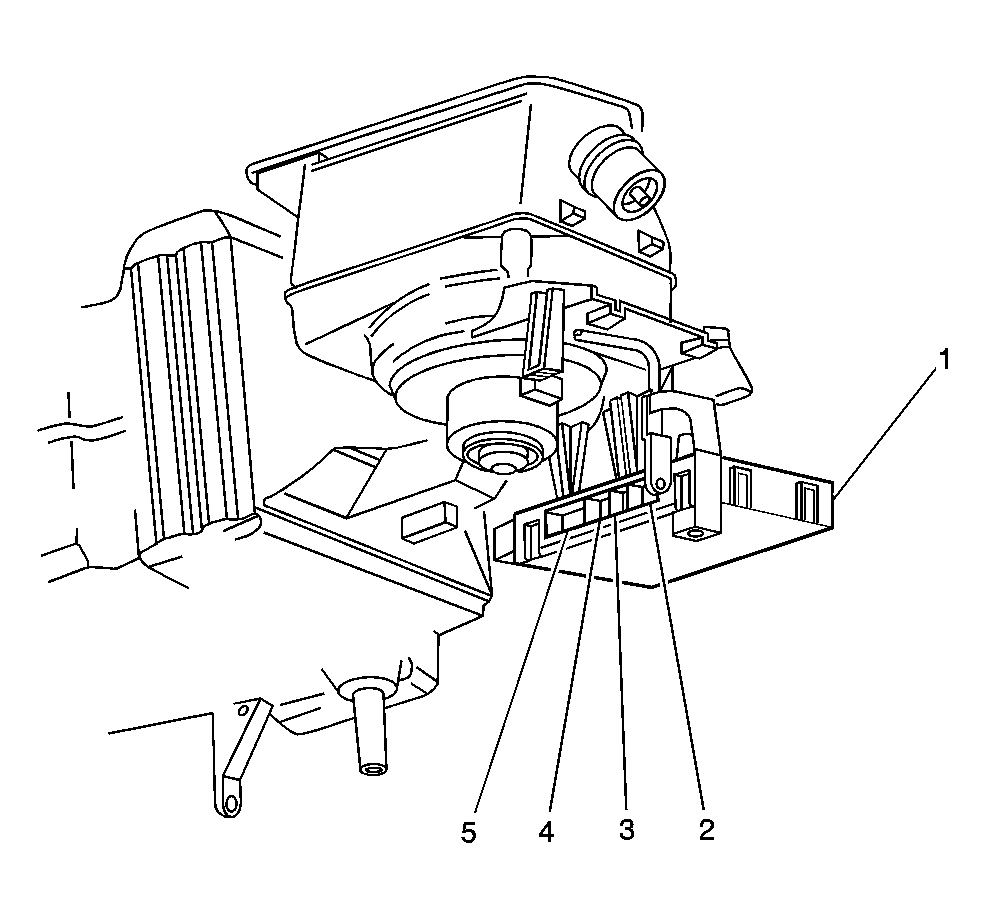

Fig 1: Body Control Module
GM1355387Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 BCM Connector-4
3 BCM Connector-3
4 BCM Connector-2
5 BCM Connector-1
