Installation Procedure

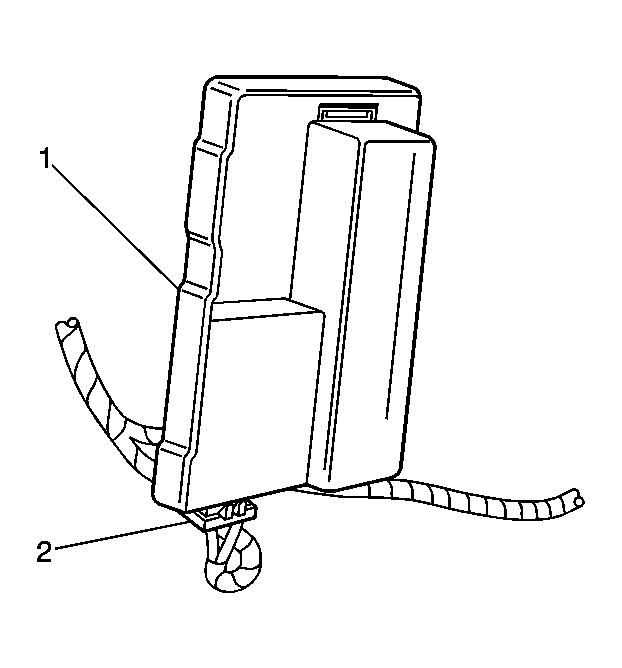

    Fig 1: View Of PIM Control Module & Electrical Connector
    GM1393388Courtesy of GENERAL MOTORS CORP.
  1. Position the (PIM) control module (1) to the vehicle.
  2. Connect the electrical connector (2) to the (PIM) control module (1).
  3. The (PIM) control module (1) must be security linked to the (BCM) body control module and the (ECM). Refer to Body Control Module (BCM) Programming/RPO Configuration  and Service Programming System (SPS) .
