Installation Procedure

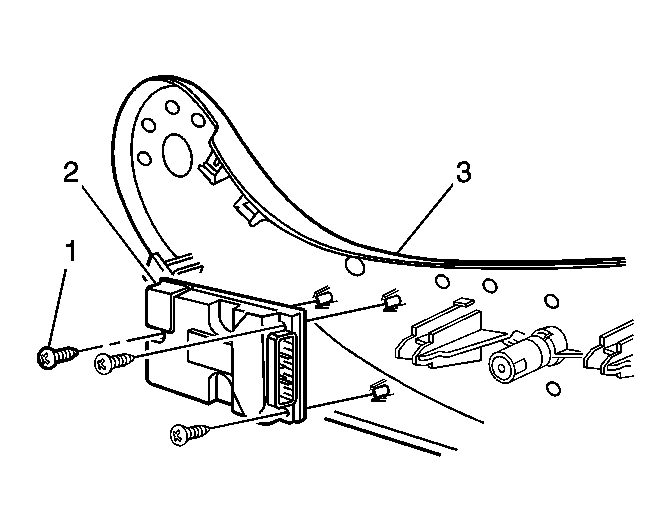

    Fig 1: Driver Seat Control Module
    GM1702994Courtesy of GENERAL MOTORS CORP.
  1. Position the driver seat control module (2) to the seat cushion outer trim panel (3).
    2. NOTE: Refer to Fastener Notice .
  2. Install the three screws (1) to the driver seat control module (2).

    Tighten:  Tighten the driver seat control module retaining screws to 2 N.m (18 lb in).

  3. Install the seat cushion outer trim panel. Refer to Seat Cushion Outer Trim Panel Replacement .
