Window Handle Replacement
Window Handle Replacement

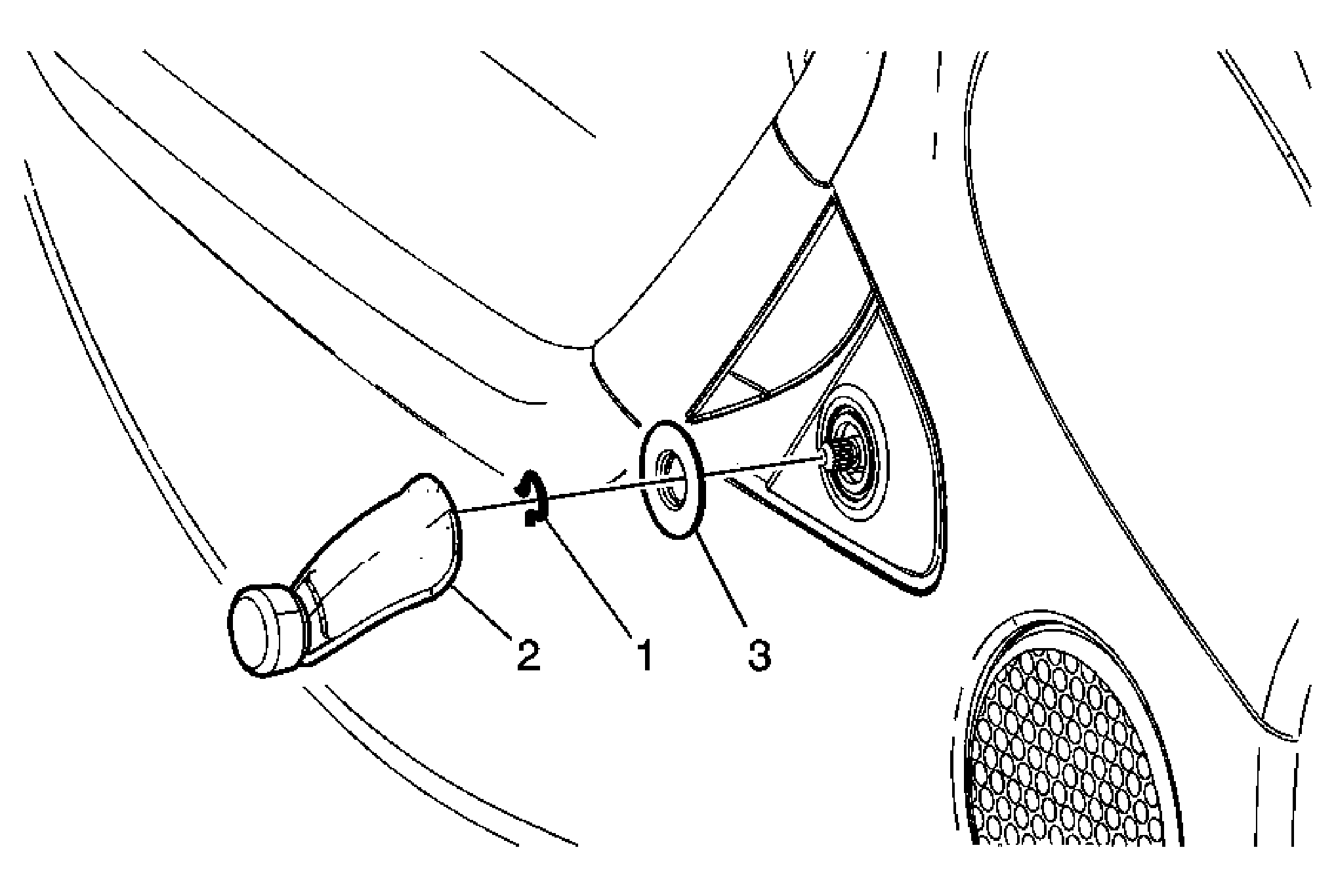

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Front Side Door Window Regulator Clip Tip: Use a J 9886-01 Door Handle Clip Remover, or equivalent to remove the window regulator handle clip. |
| 2 | Front Side Door Window Regulator Handle Assembly |
| 3 | Side Door Window Regulator Handle Bearing |
