ABS Component Views

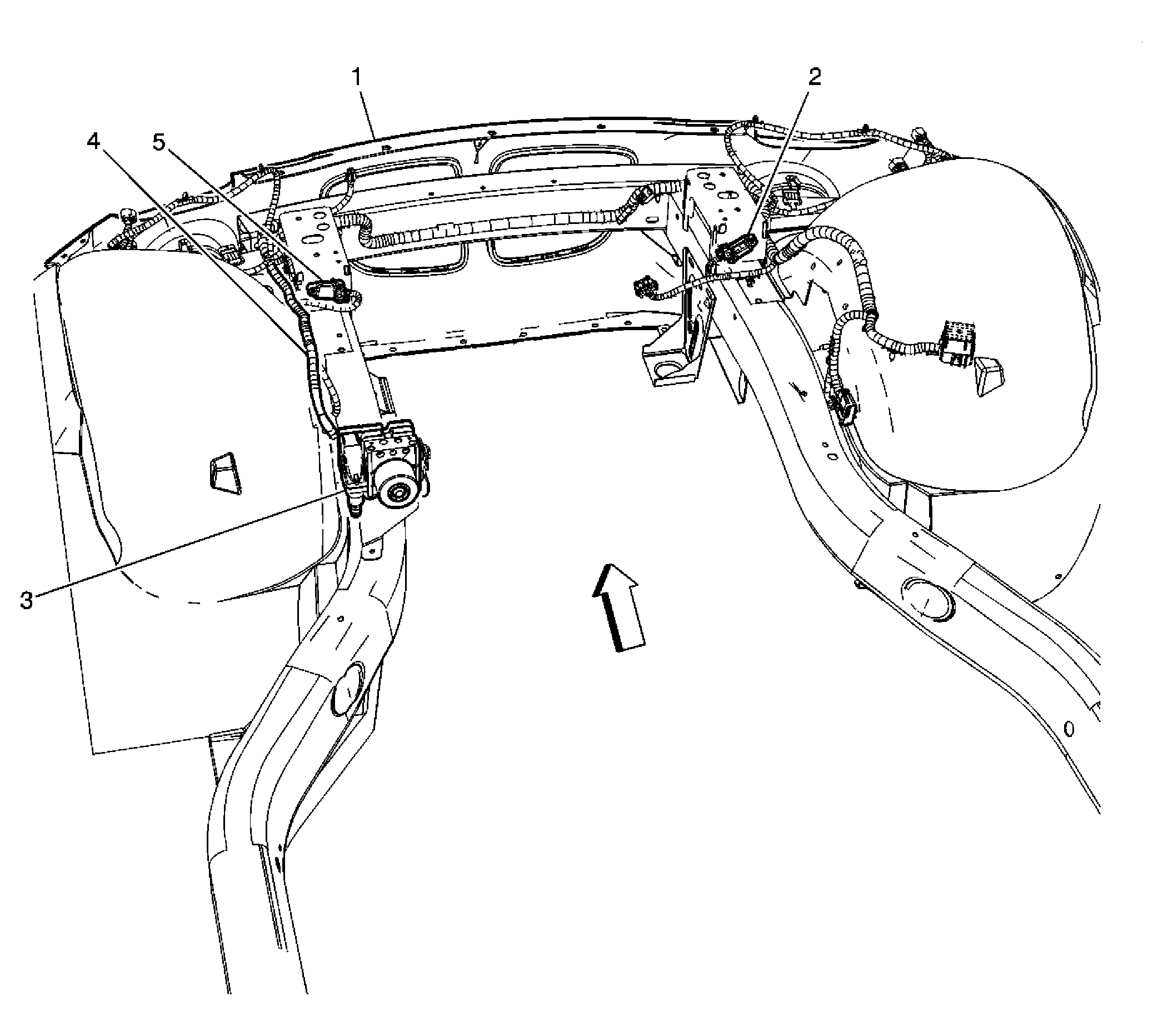

Fig 1: Front Engine Compartment

GM1631752

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fascia
2	Inflatable Restraint Front End Discriminating Sensor-Right
3	Electronic Brake Control Module (EBCM)
4	Forward Lamp Harness
5	Inflatable Restraint Front End Discriminating Sensor-Left

Fig 2: Left Side of I/P

GM1631645

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Position Sensor
2	Accelerator Pedal Position (APP) Sensor
3	Data Link Connector (DLC)
4	Data Link Connector (DLC) Resistor
5	Clutch Pedal Position (CPP) Switch
6	Clutch Start Switch
7	C201 Driver Door Harness to I/P Body Harness
8	C202 Driver Door Harness to I/P Body Harness

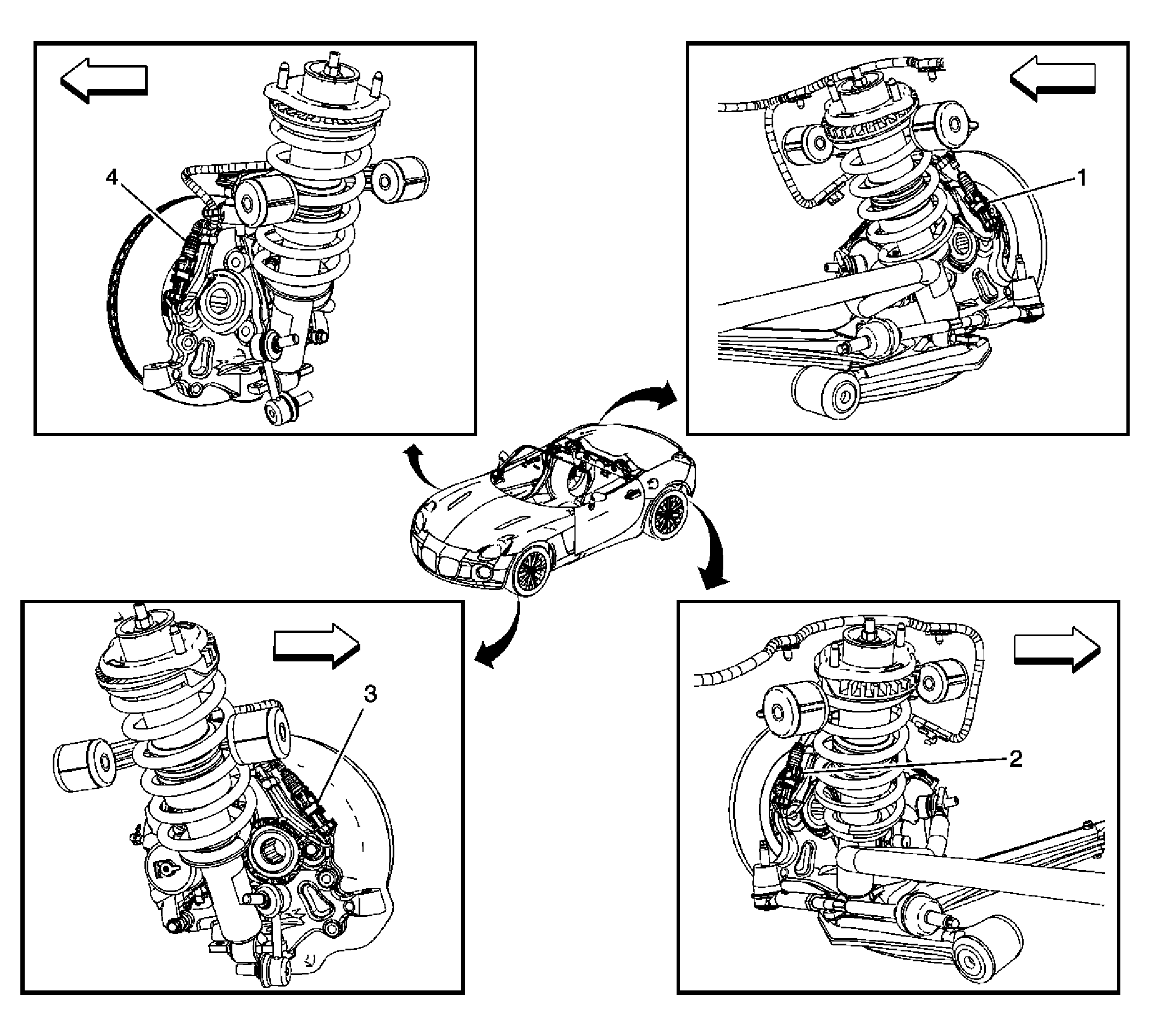

Fig 3: Wheel Speed Sensors

GM1631750

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS)-RR
2	Wheel Speed Sensor (WSS)-LR
3	Wheel Speed Sensor (WSS)-LF
4	Wheel Speed Sensor (WSS)-RF
