Automatic Transmission Shift Lock Actuator Replacement

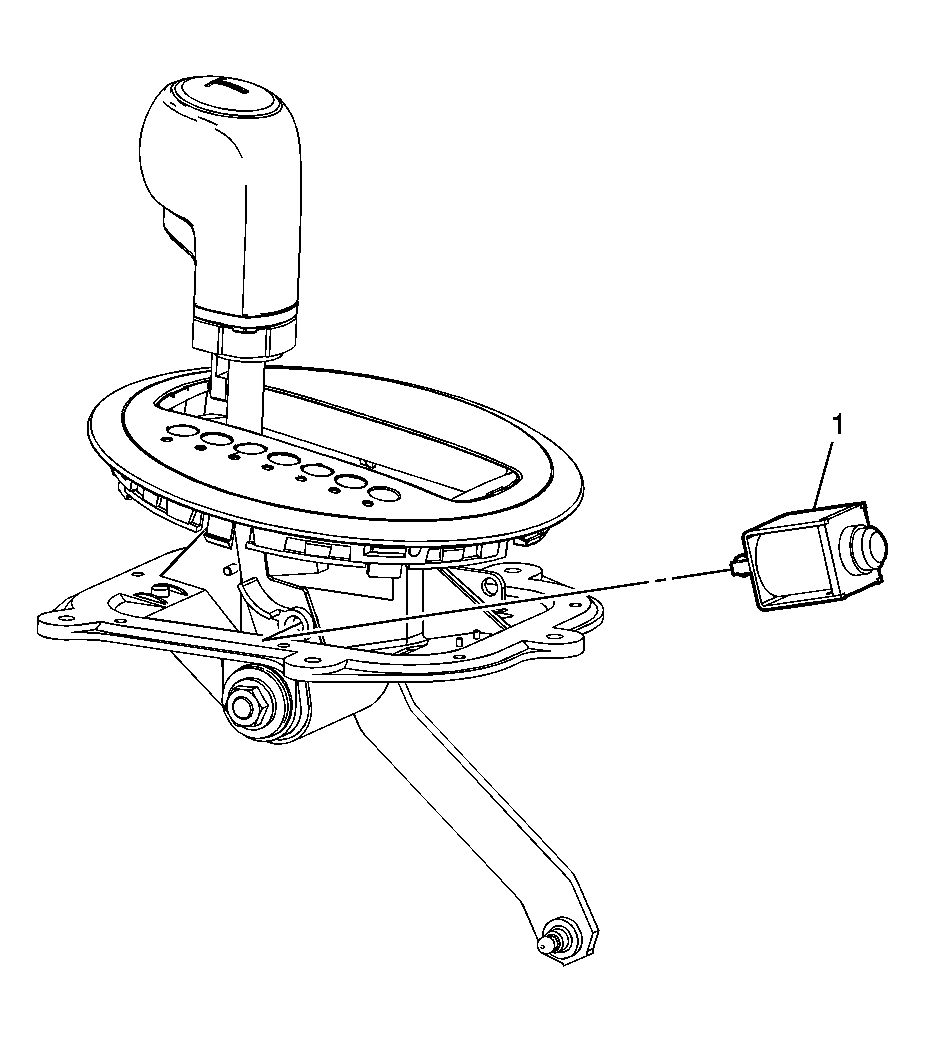

Fig 1: A/T Shift Lock Actuator
GM1615628Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Shift Lock Actuator Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications (Unit Repair) or Fastener Tightening Specifications (On Vehicle) .
Preliminary Procedure:
Remove the shift control. Refer to Floor Shift Control Replacement .
1 Solenoid, Shift Lock
