Stationary Windows Component Views

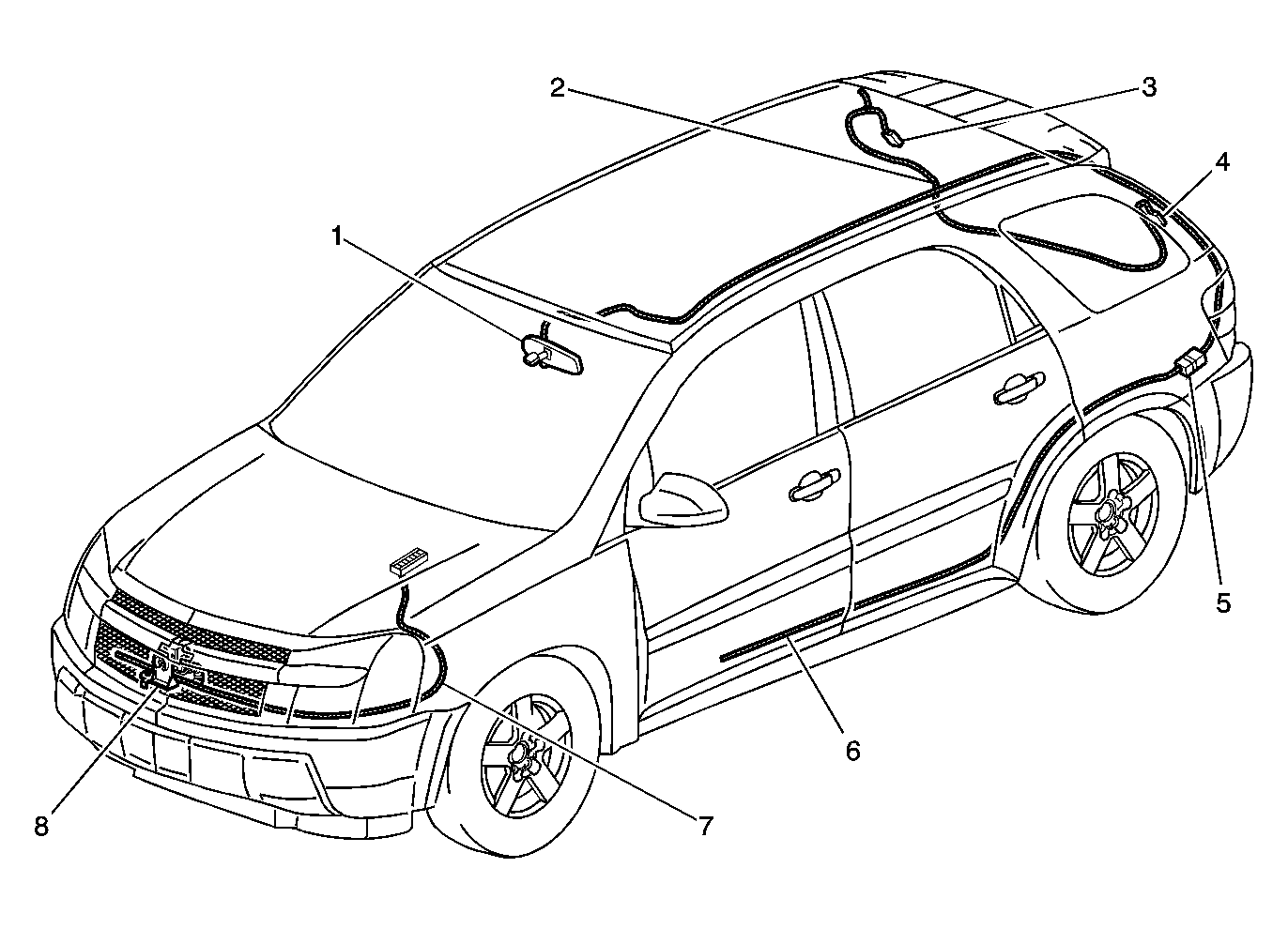

Fig 1: Stationary Window Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror
2	Liftgate Harness
3	Rear Defogger Grid C2
4	Rear Defogger Grid C1
5	C300
6	Body Harness
7	Forward Lamp Harness
8	Ambient Air Temperature Sensor (DH3/DF5)
