ABS Component Views

Fig 1: View of LF Suspension Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C104 Left Shown, C105 Right Similar
2	Wheel Speed Sensor (WSS) - LF, RF Similar

Fig 2: View of Electronic Power Steering Harness, Underhood Side Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	EPS Inline Fuse Holder
2	PSCM Harness Connection to the Underhood Fuse Block
3	Electronic Brake Control Module (EBCM)

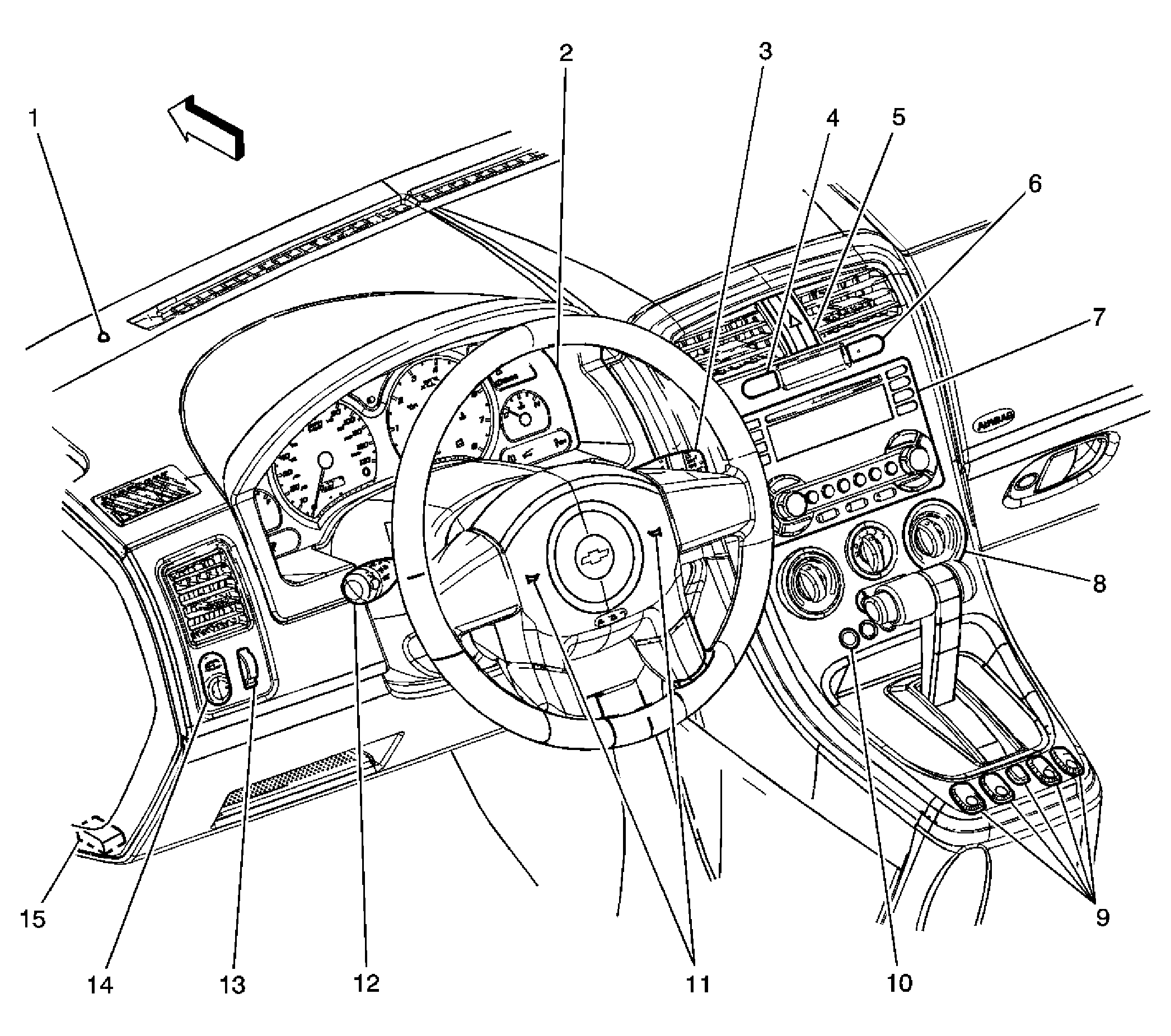

Fig 3: Left Side of the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Instrument Panel Cluster (IPC)
3	Windshield Wiper/Washer Switch
4	Traction Control (TC) Switch (JM4)
5	Hazard Switch
6	Fog Lamp Switch (T96)
7	Radio
8	HVAC Control Module
9	Power Window Switch - Main
10	Transmission Range Indicator
11	Horn Switch/Pad - Part of the Inflatable Restraint Steering Wheel Module
12	Headlamp Switch
13	Dimmer Switch
14	Outside Rearview Mirror Switch
15	Data Link Connector (DLC)

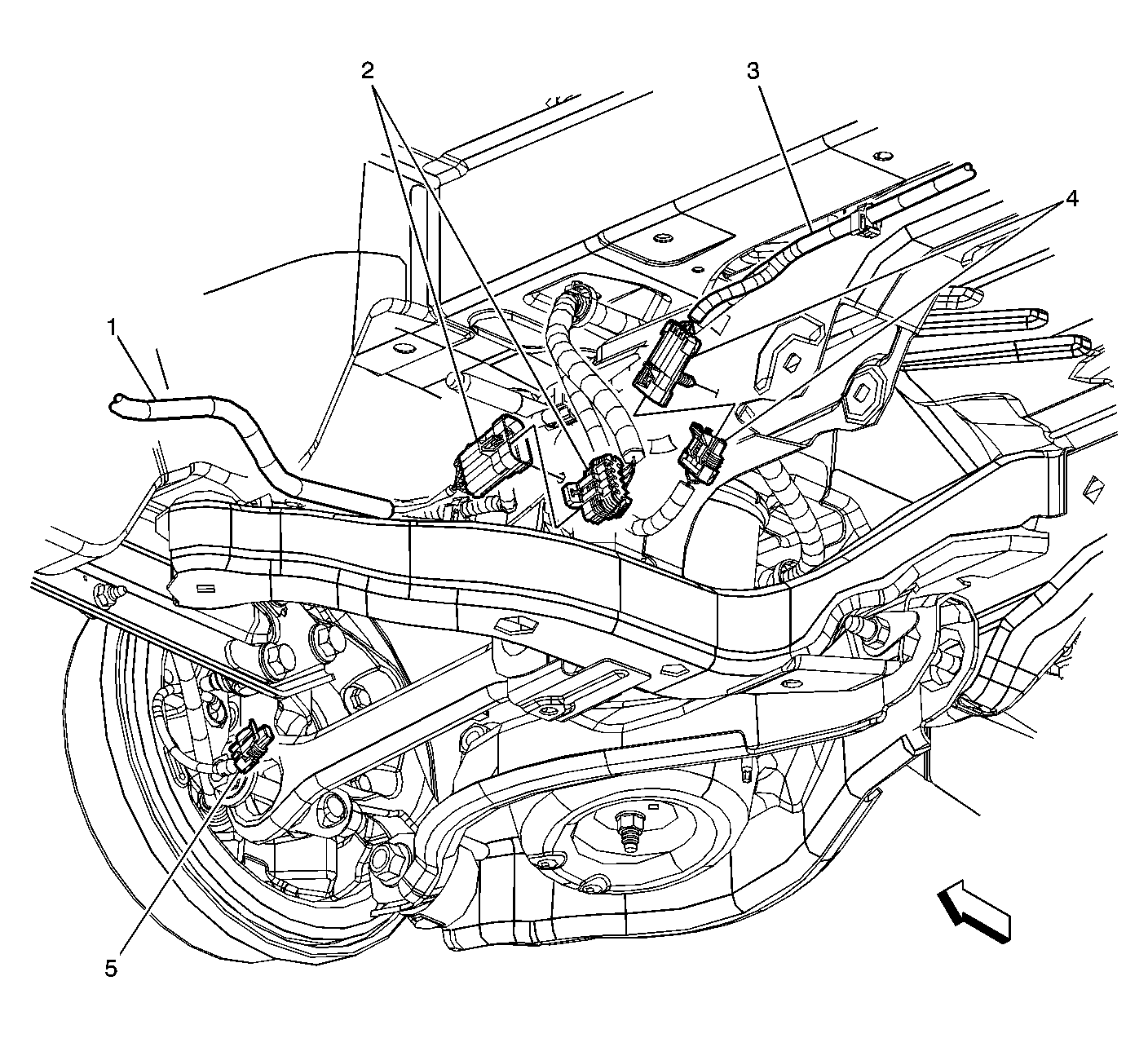

Fig 4: View of Under the Rear of the Vehicle Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Harness
2	C406
3	Rear ABS Wheel Speed Sensor (WSS) Harness
4	C404
5	Wheel Speed Sensor (WSS) - RR Shown, LR Similar
