Installation Procedure

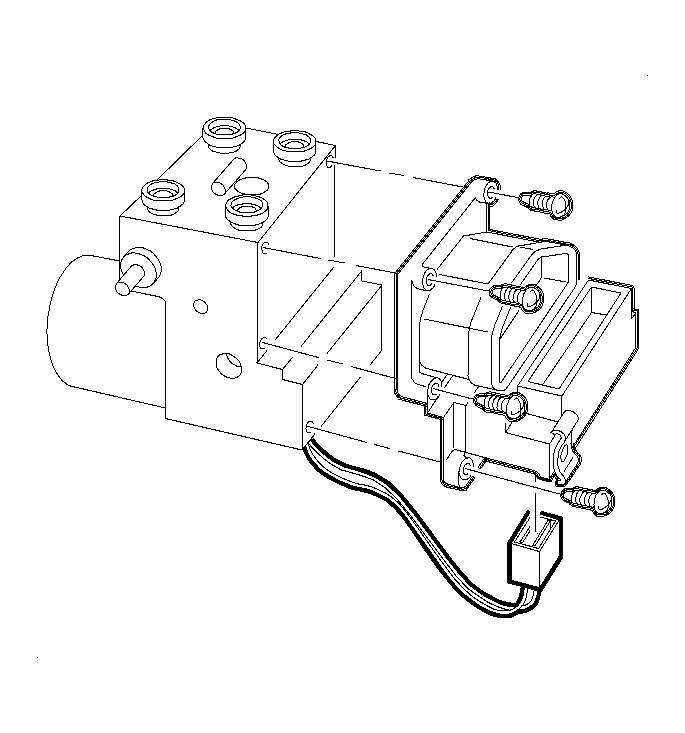

    Fig 1: Disconnecting/Connecting Pump Motor Electrical Connector
    GM943835Courtesy of GENERAL MOTORS CORP.
  1. Clean the sealing surface of the BPMV, with denatured alcohol and a clean shop cloth.
  2. Install the EBCM to the BPMV.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the EBCM-to-BPMV attaching screws. Tighten the bolts in a cross pattern.

    Tighten:  Tighten the bolts to 3 N.m (27 lb in).

  4. Connect the pump motor electrical connector.

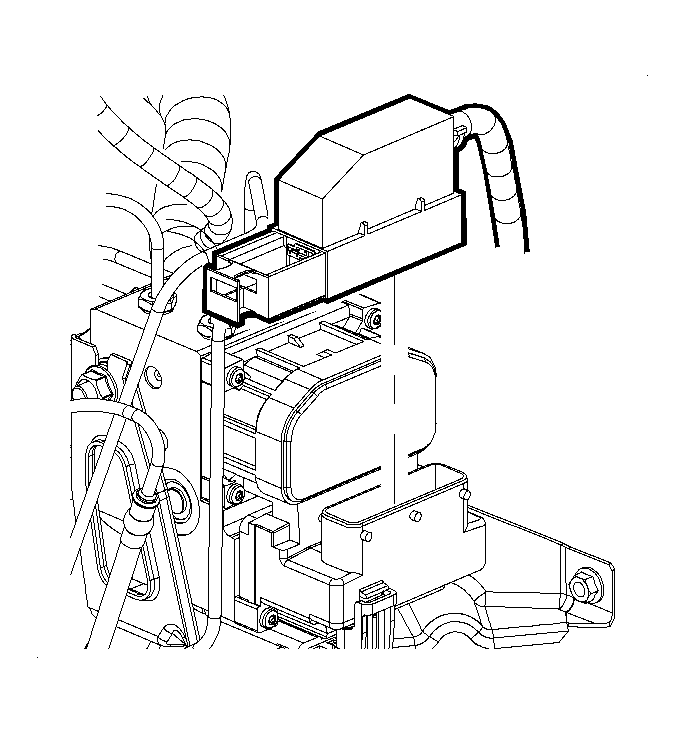

    5. Fig 2: Disconnecting/Connecting Electrical Connector From Electronic Brake Control Module (EBCM)
    GM927847Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector to the EBCM.

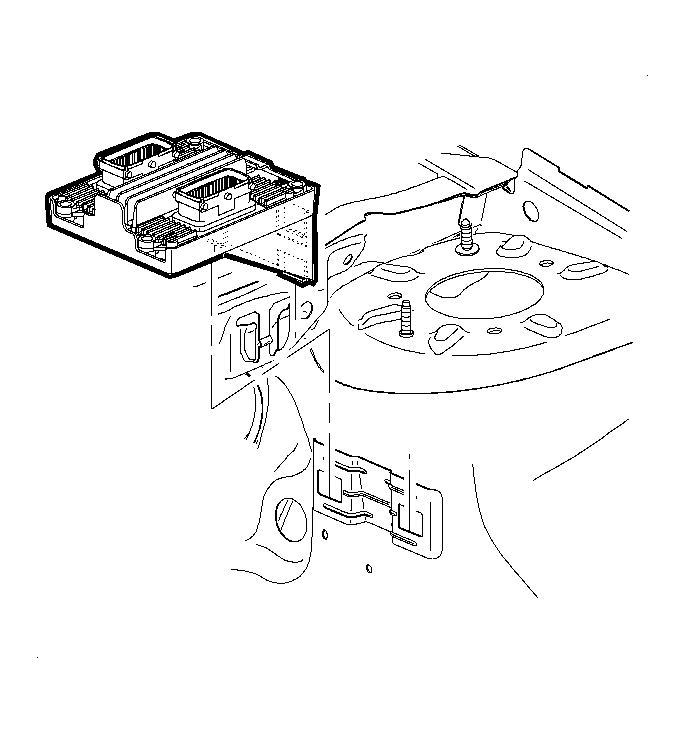

    6. Fig 3: View Of Transmission Control Module
    GM927845Courtesy of GENERAL MOTORS CORP.
  6. Reposition the TCM, if equipped, to the mounting bracket.
  7. Turn the ignition switch to the ON position. DO NOT start the engine.
  8. Perform the Diagnostic System Check - Vehicle in Vehicle DTC Information.
