Engine Electrical Component Views

Fig 1: View of Top Rear Side of the Engine Harness Routing

GM1381483

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve
2	Throttle Actuator Control (TAC) Module
3	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
4	Evaporative Emissions (EVAP) Canister Purge Solenoid
5	Generator
6	C150
7	Heated Oxygen Sensor (HO2S) 1
8	Engine Coolant Temperature (ECT) Sensor
9	Ignition Control Module (ICM)
10	Manifold Absolute Pressure (MAP) Sensor

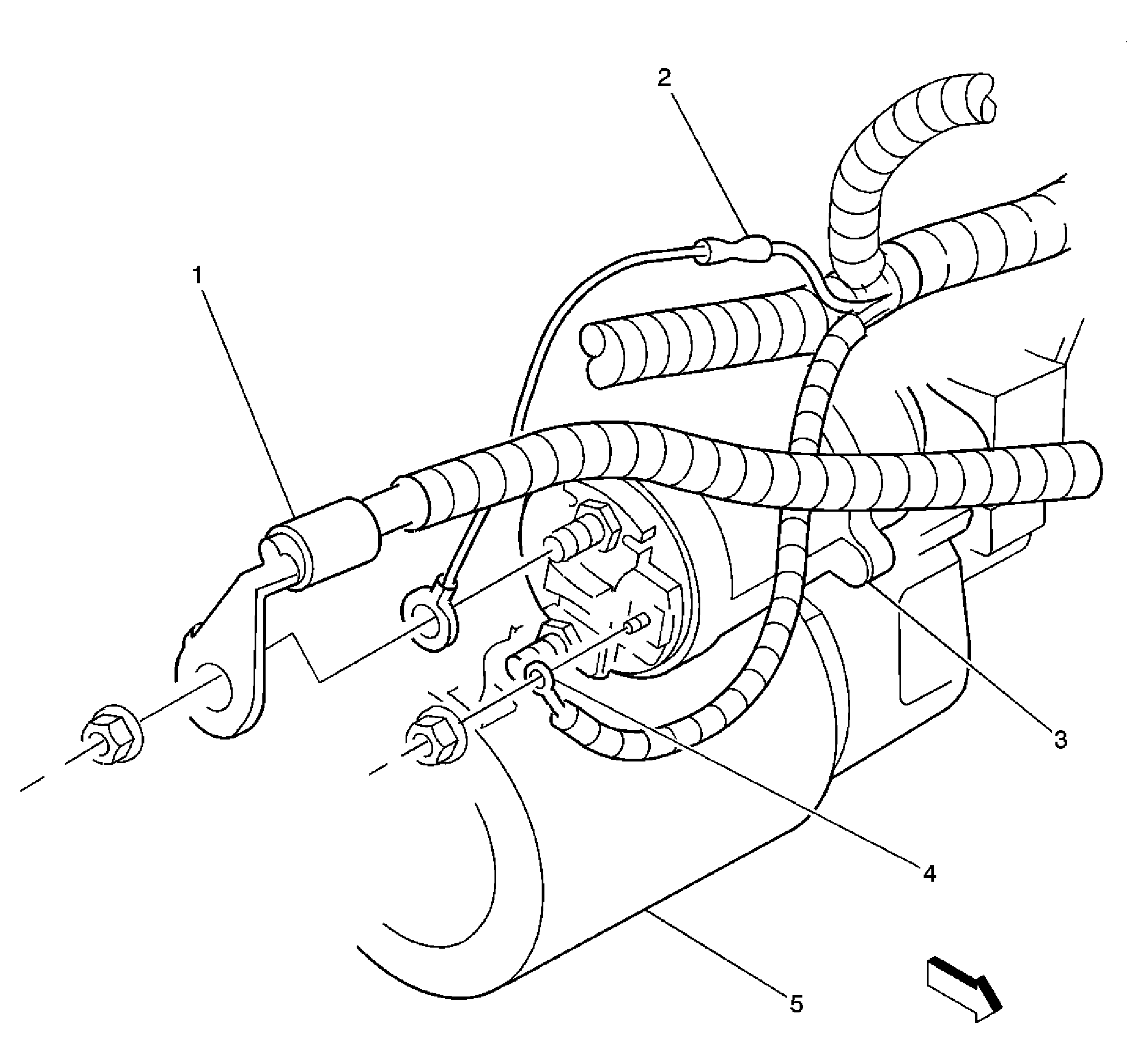

Fig 2: Starter Component Views

GM1370250

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Terminal at Starter Solenoid
2	Fusible Link
3	Starter Solenoid
4	S Terminal
5	Starter
