Mirror Component Views

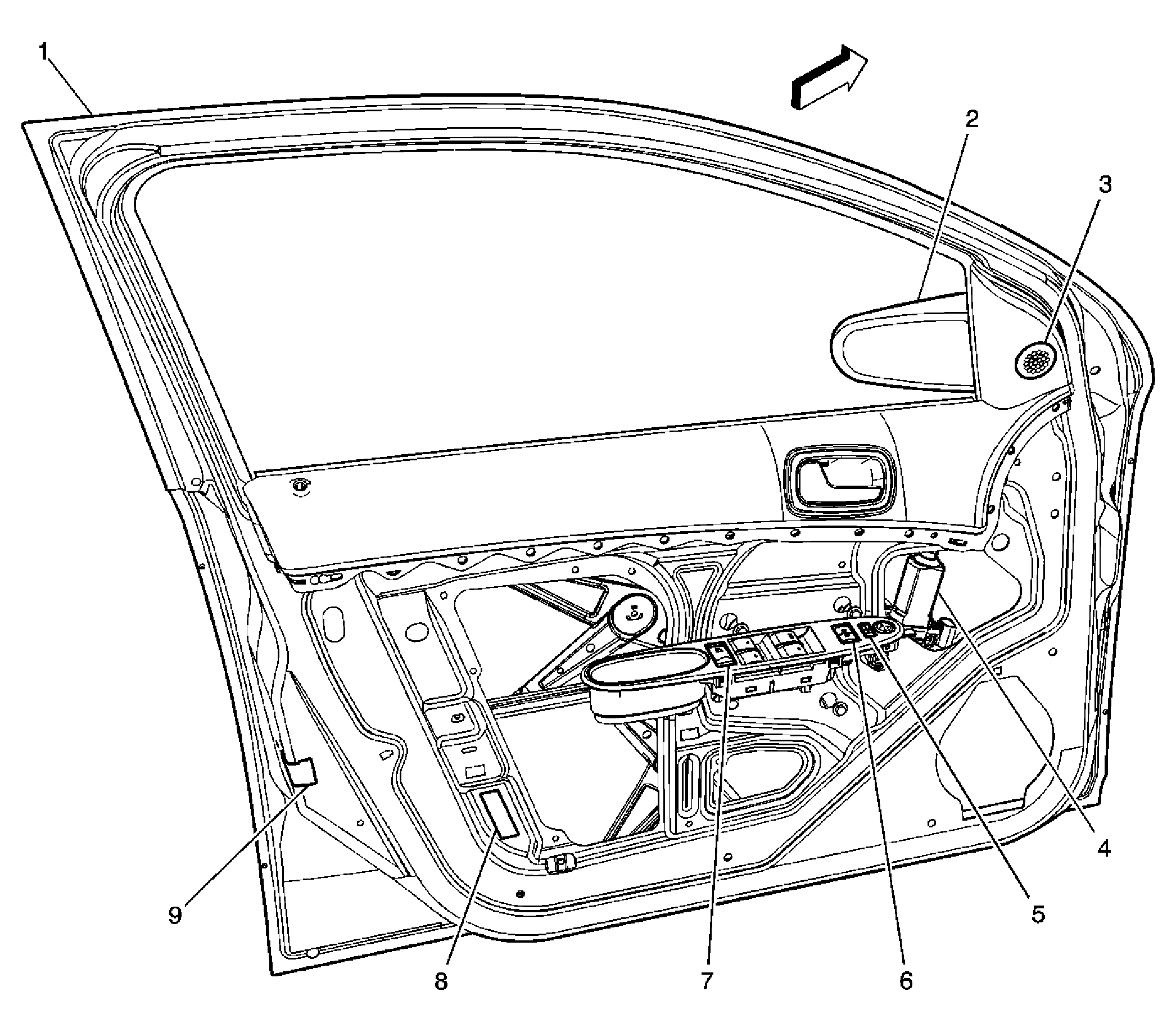

Fig 1: Driver Door Components

GM1549156

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver (DG7)
3	Speaker - LF Door Tweeter (UQ3)
4	Window Motor (A31) - Driver
5	Outside Rearview Mirror Switch (DG7)
6	Door Lock Switch (AU3) - Driver
7	Window Switch (A31) - Driver
8	Inflatable Restraint Side Impact Module (SIS) - Left (ASF)
9	Door Latch (AU3) - Driver

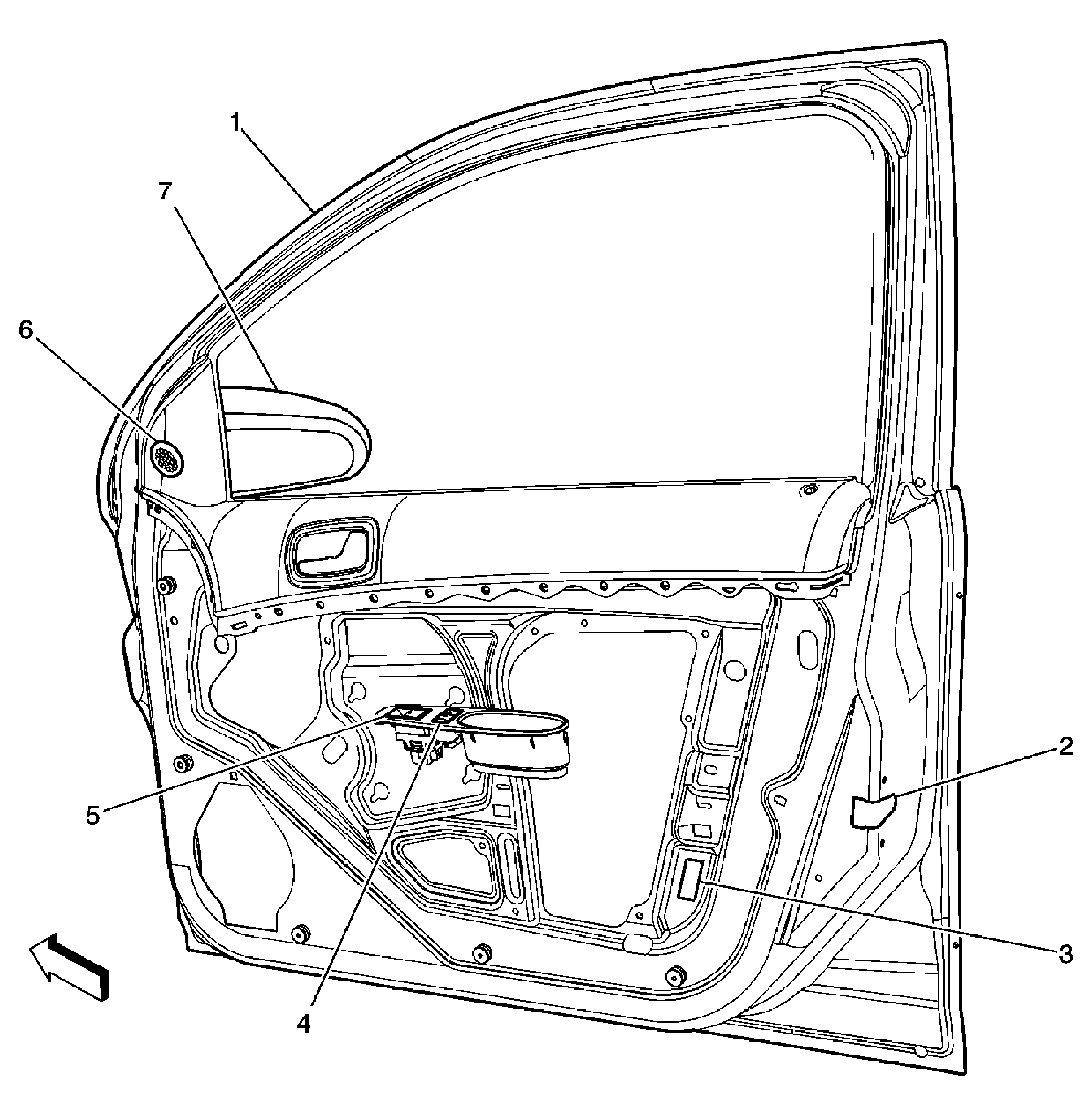

Fig 2: Passenger Door Components

GM1549158

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch (AU3) - Passenger
3	Inflatable Restraint Side Impact Module (SIS) - Right (ASF)
4	Door Lock Switch (AU3) - Passenger
5	Window Switch (A31) - Passenger
6	Speaker - RF Door Tweeter (UQ3)
7	Outside Rearview Mirror - Passenger (DG7)

Fig 3: Headliner Components (CF5)

GM1549148

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Motor (CF5)
2	Sunroof Switch (CF5)
3	Headliner
4	Inside Rearview Mirror (ISRVM)
5	OnStar® Button Assembly (UE1)
6	Windshield
7	Sunroof Panel (CF5)
8	Cellular Telephone Microphone (UE1)
9	Sunroof Switch
