Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

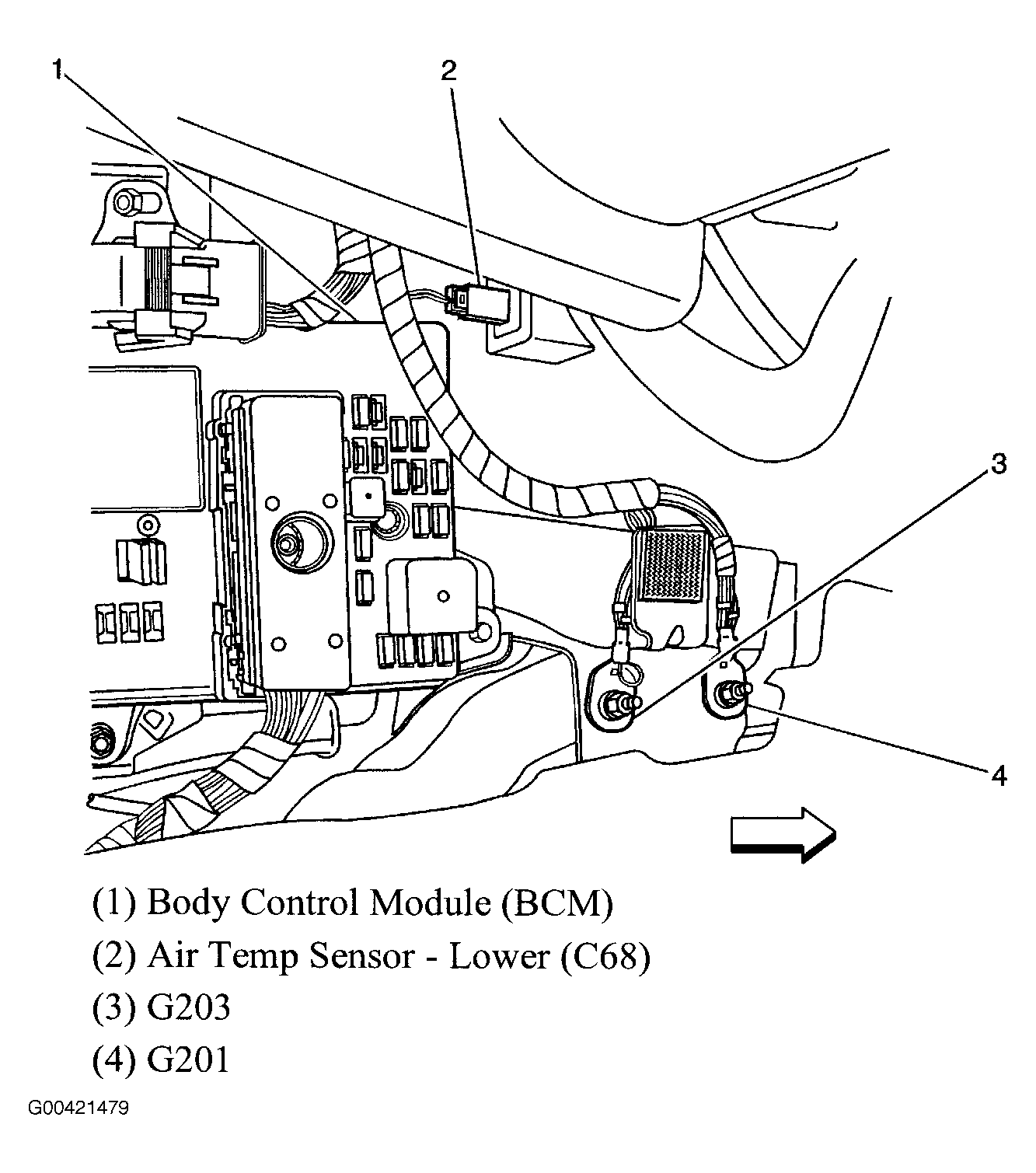

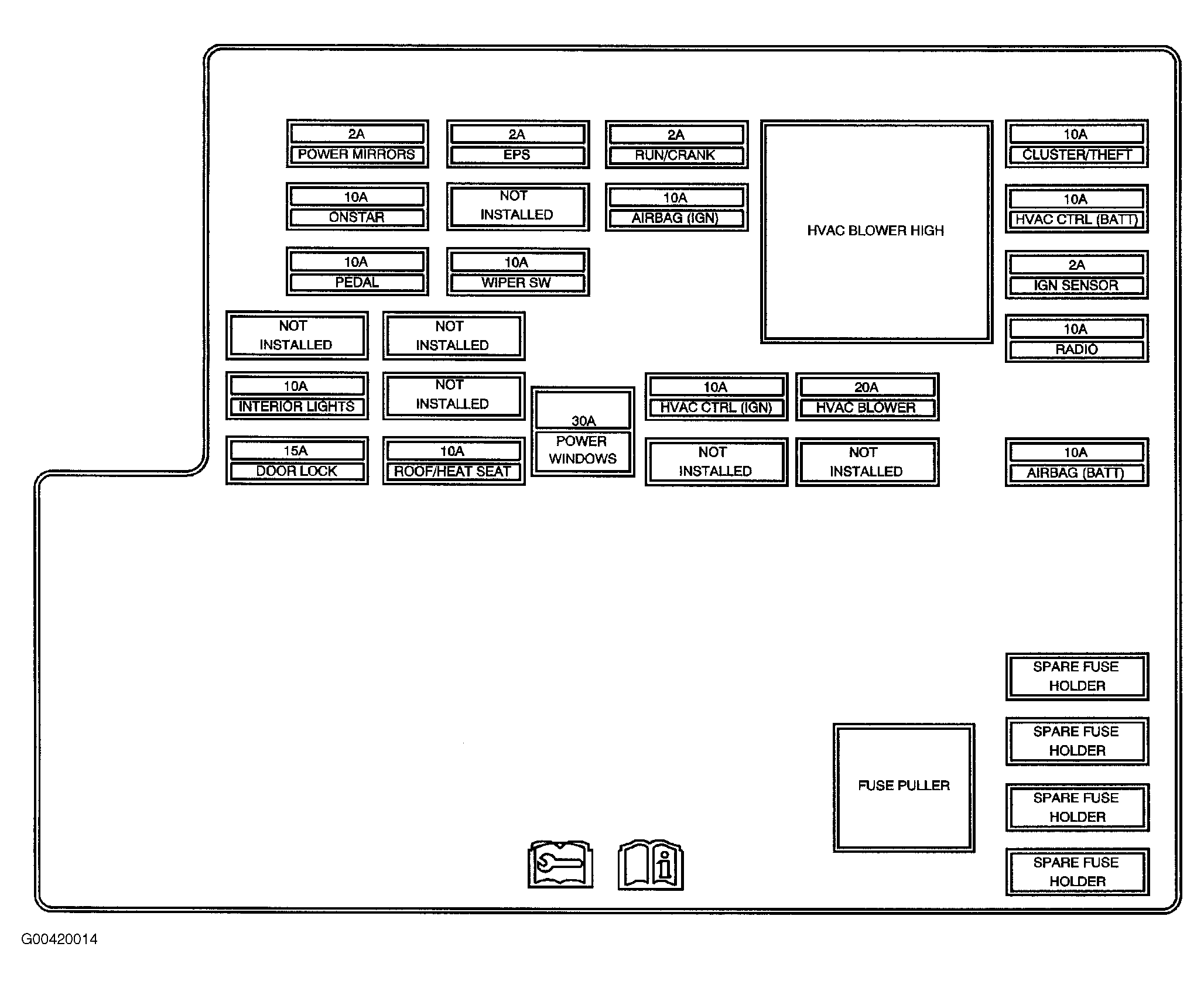

Fig 1: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Of Brake Pedal
Courtesy of GENERAL MOTORS CORP.
Fig 3: Above Brake Pedal
Courtesy of GENERAL MOTORS CORP.

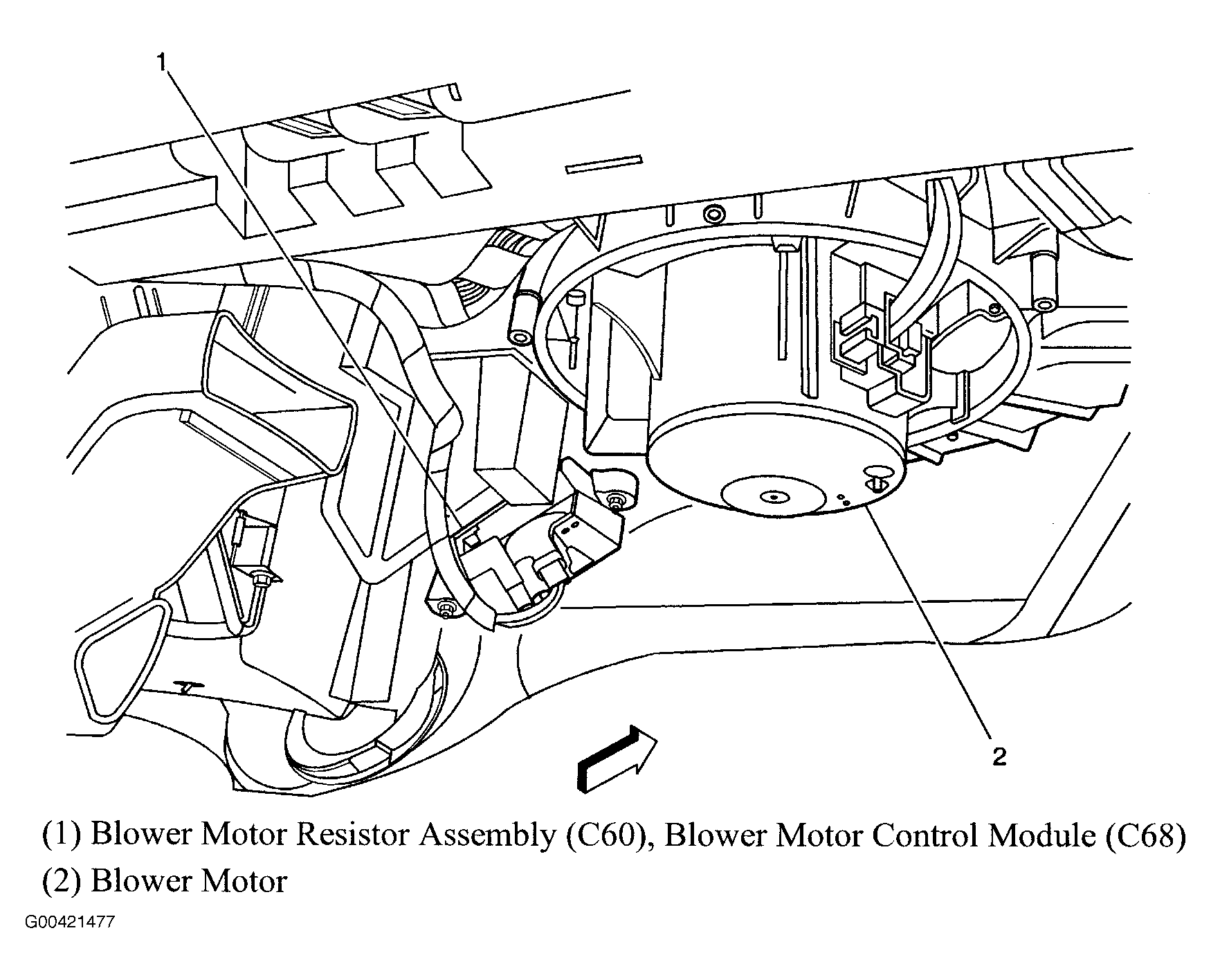

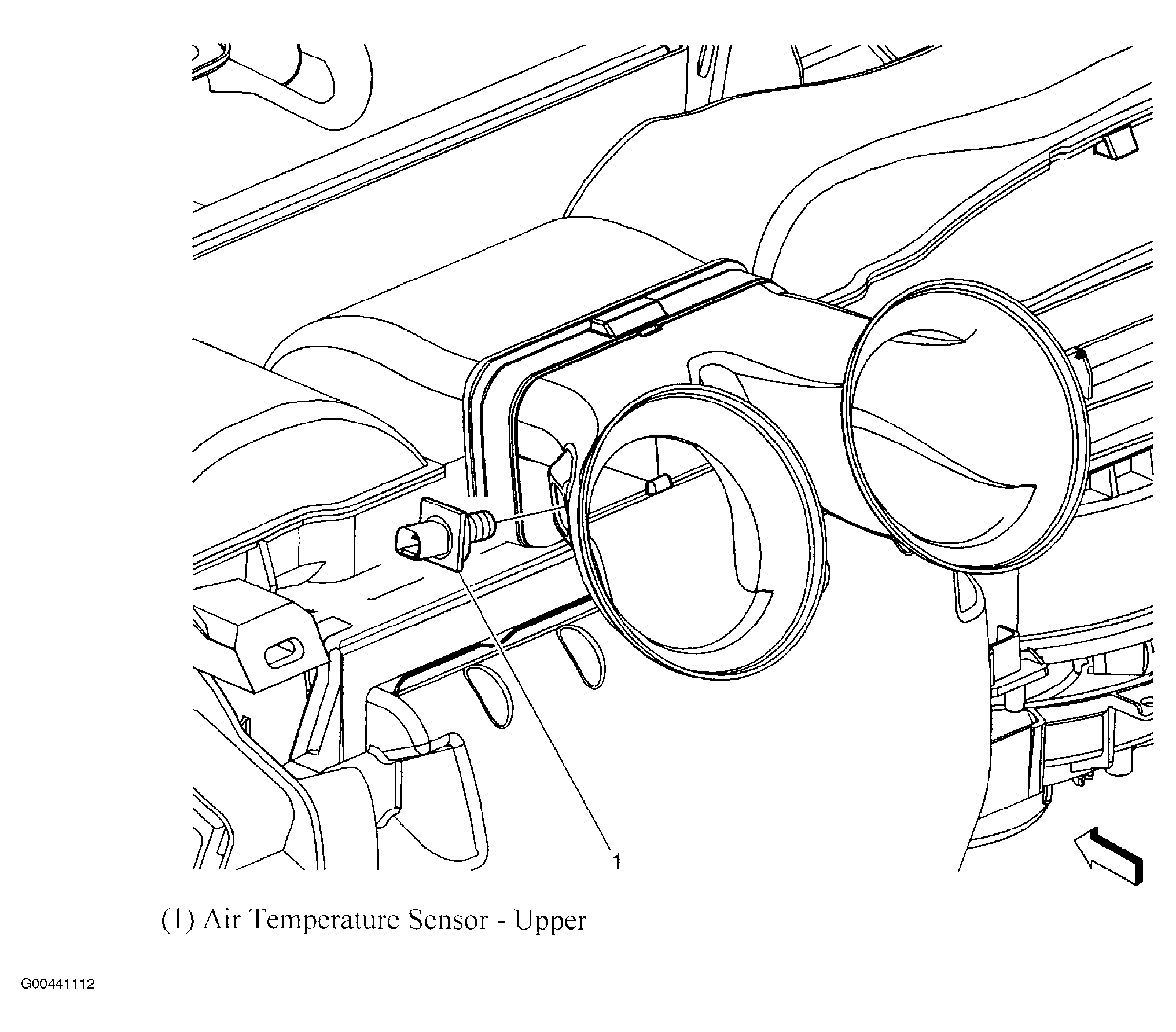

Fig 4: Left Side Of HVAC Case
Courtesy of GENERAL MOTORS CORP.
Fig 5: Left Rear Engine Compartment (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left Front Of Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 7: Automatic Transmission Electronic Component Views (4T45-E)
Courtesy of GENERAL MOTORS CORP.

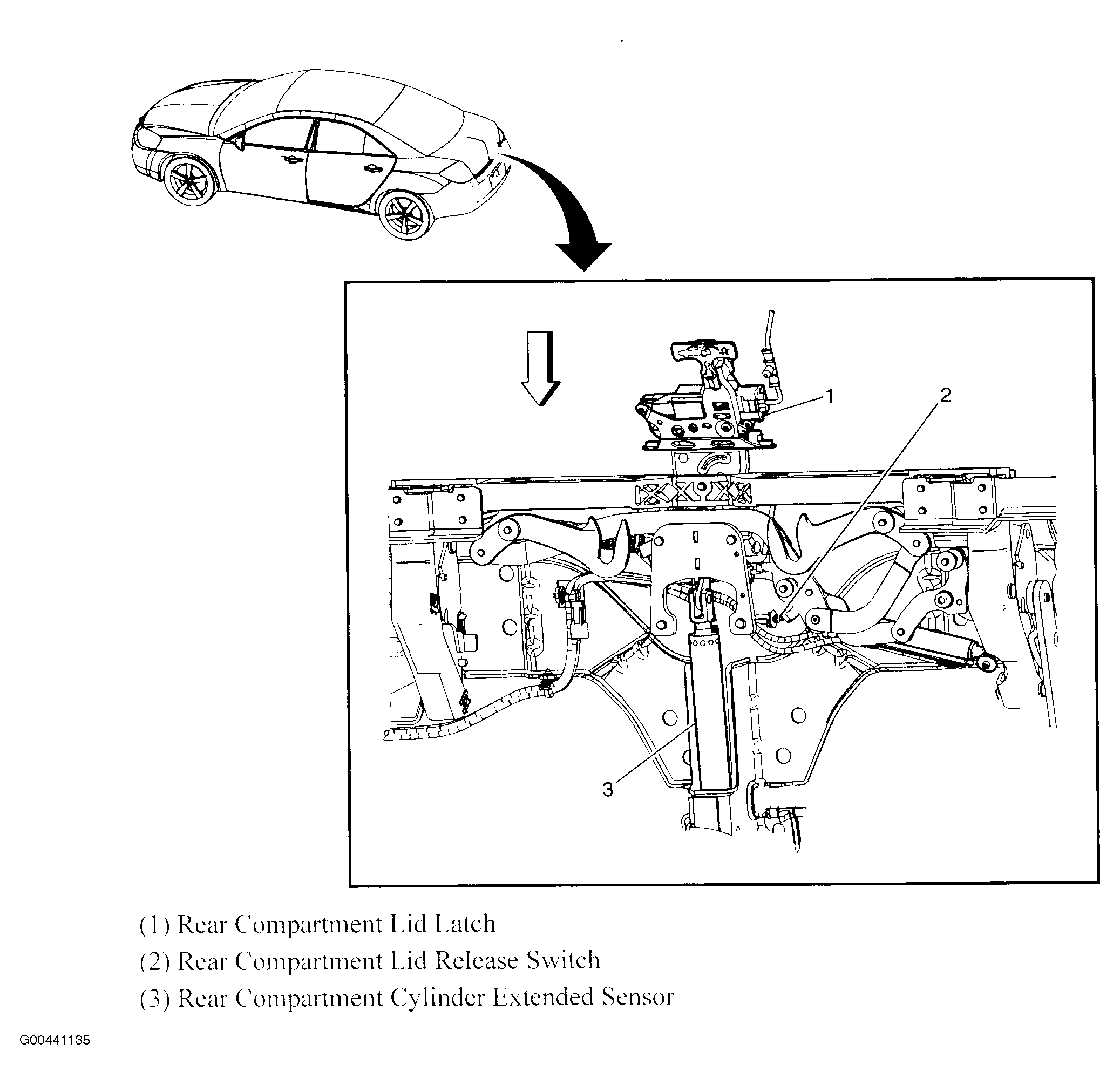

Fig 8: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Fig 9: Interior
Courtesy of GENERAL MOTORS CORP.
Fig 10: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 11: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 12: Right Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 13: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

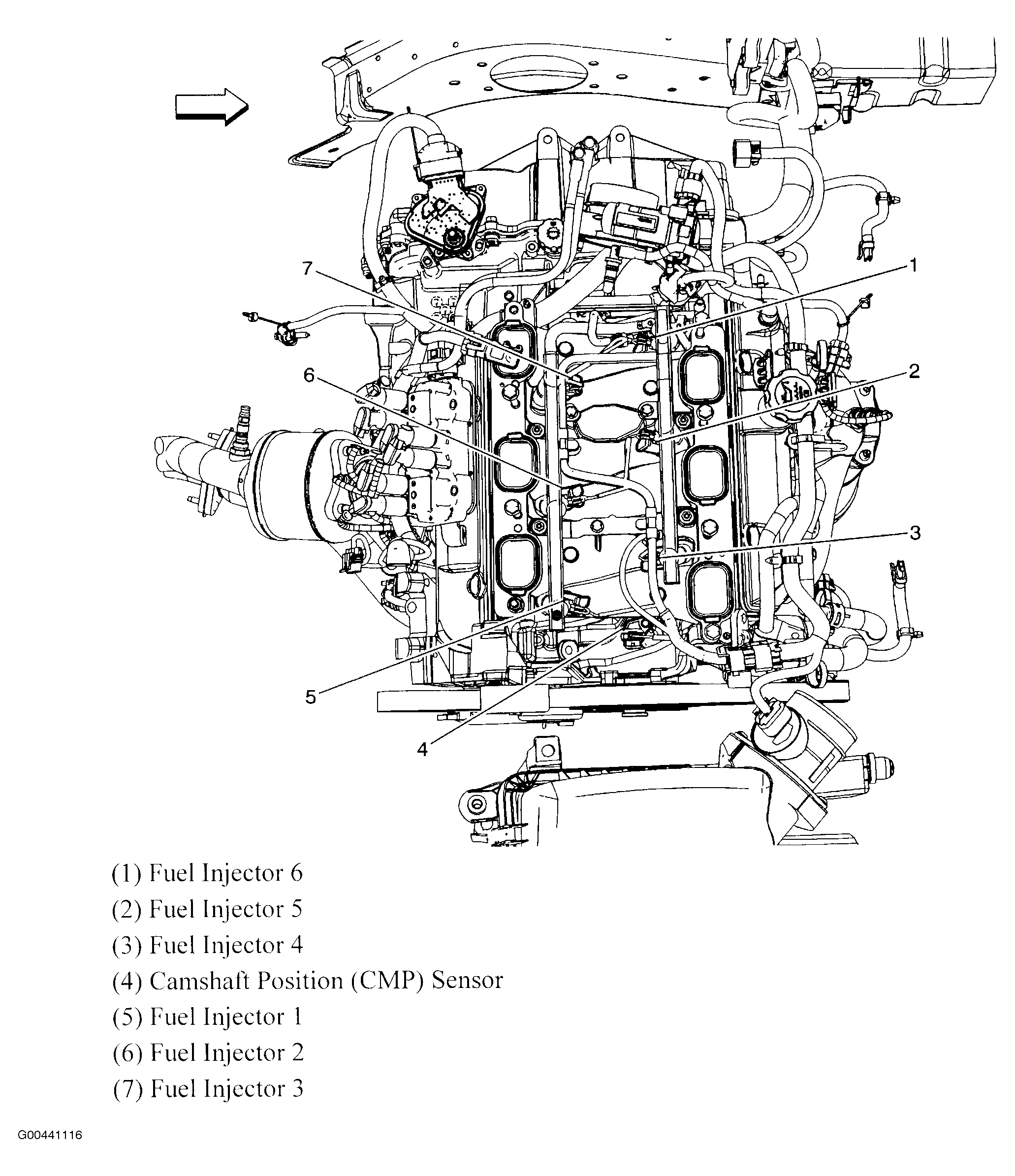

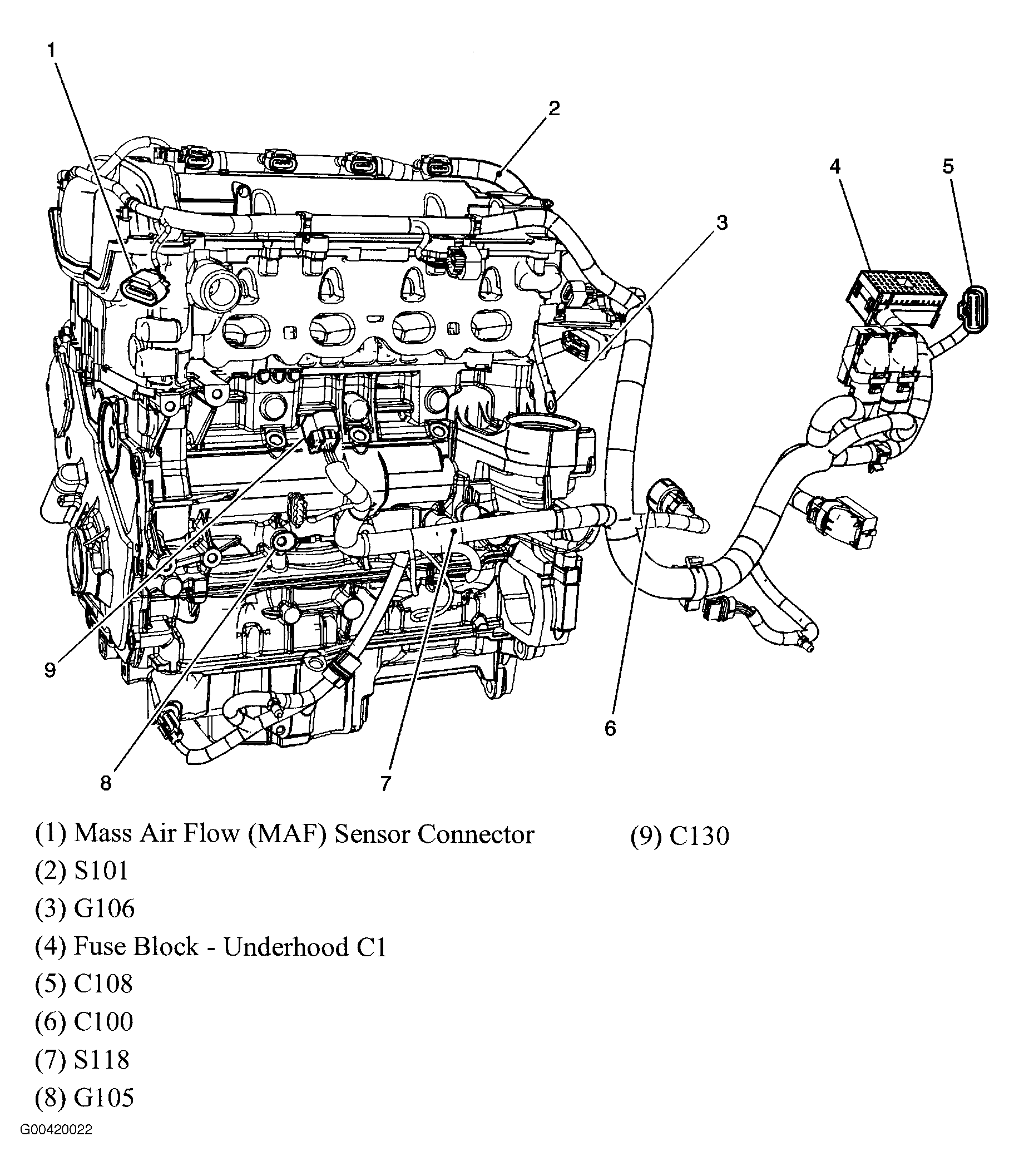

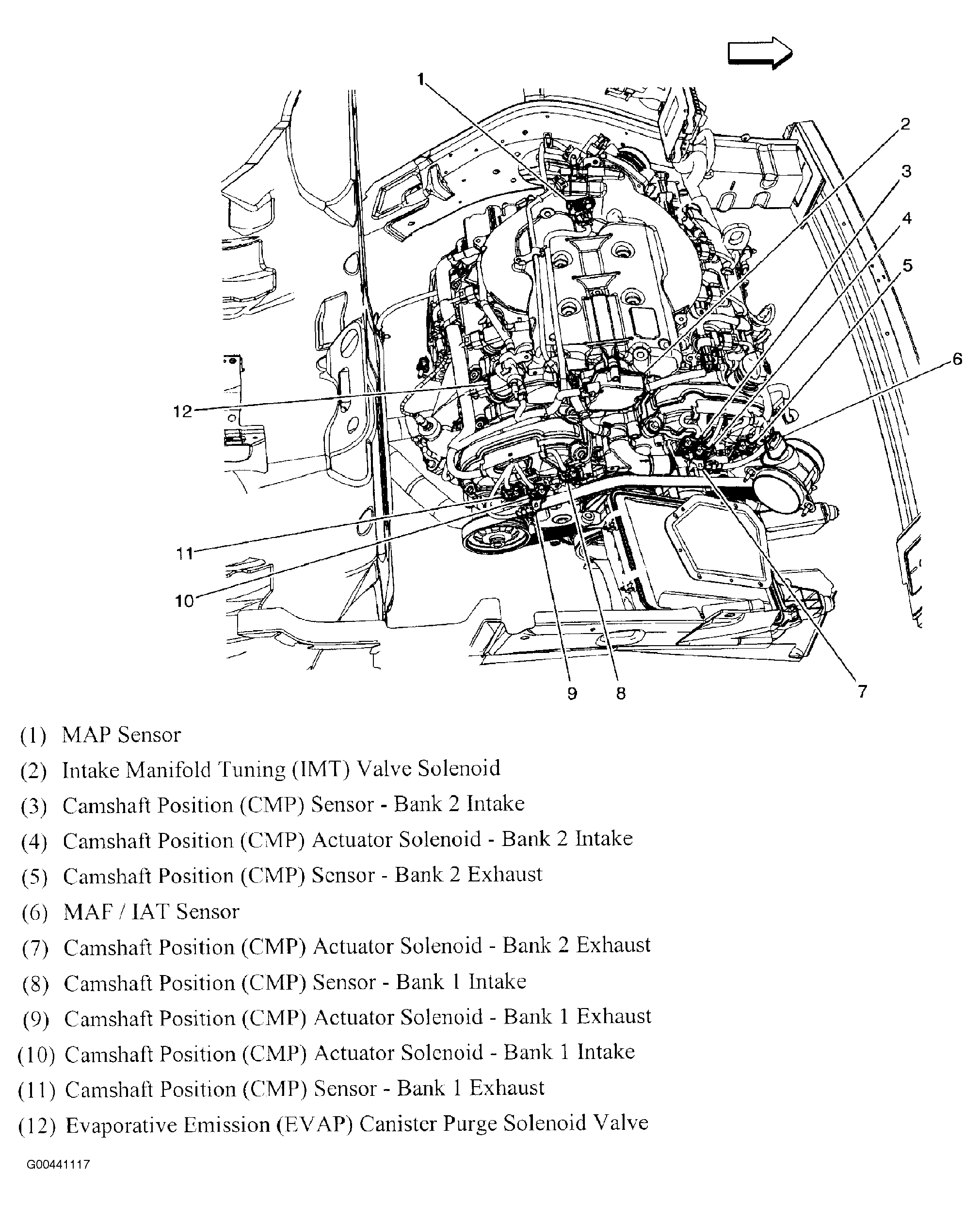

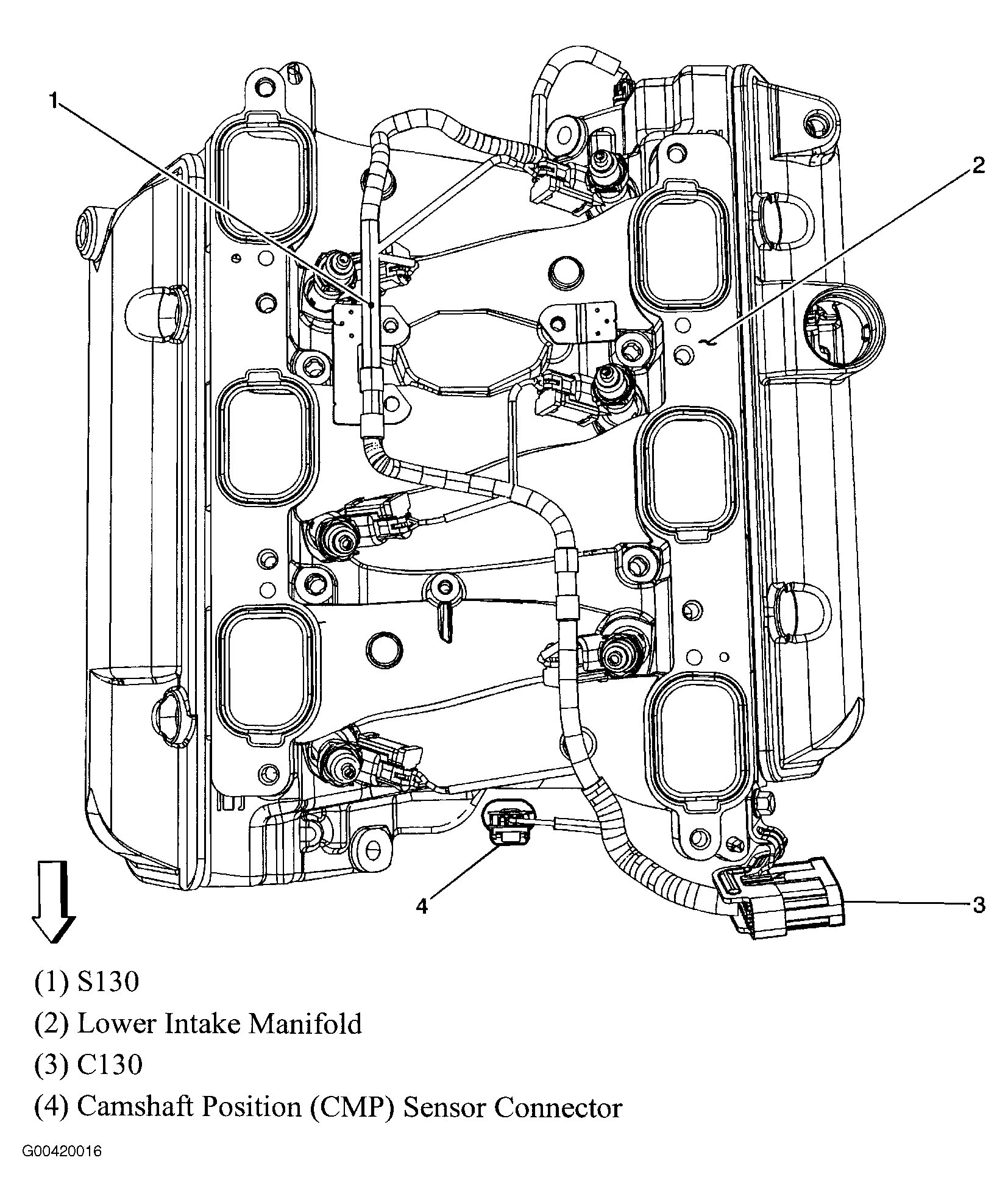

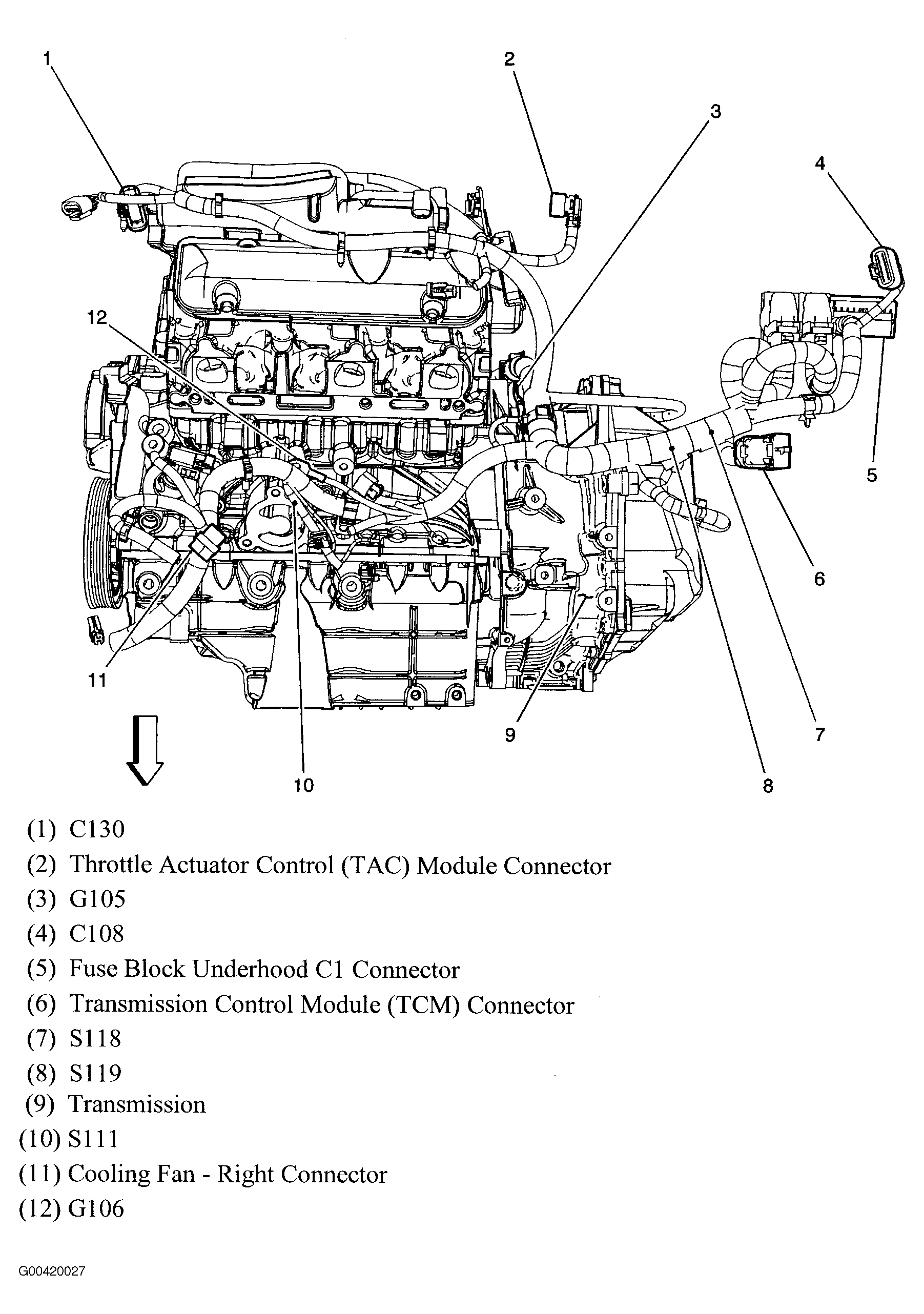

Fig 15: Top Of Engine (3.5L/3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Top Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Exhaust Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 19: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 20: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 21: Radiator Support
Courtesy of GENERAL MOTORS CORP.
Fig 22: Radiator Support
Courtesy of GENERAL MOTORS CORP.

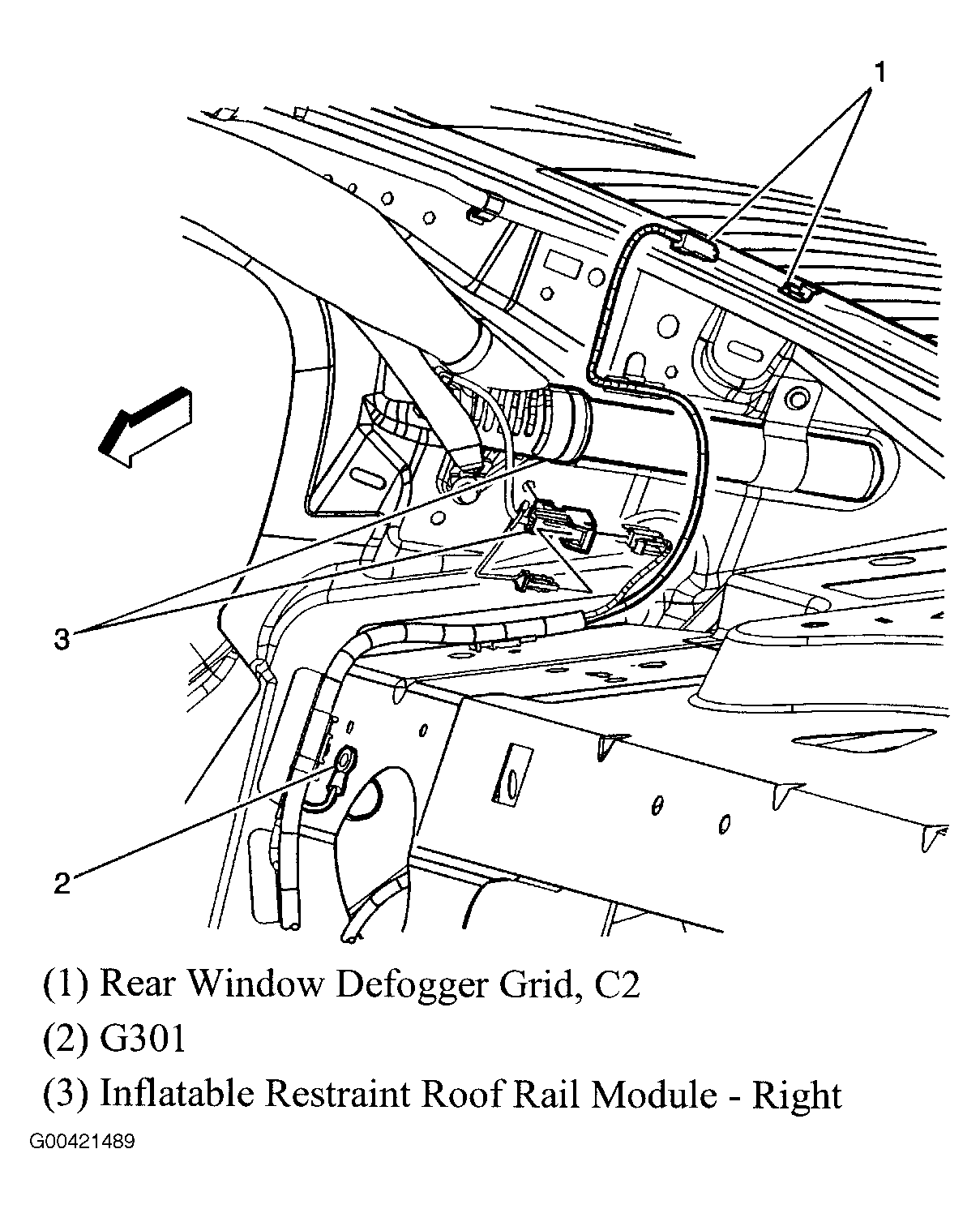

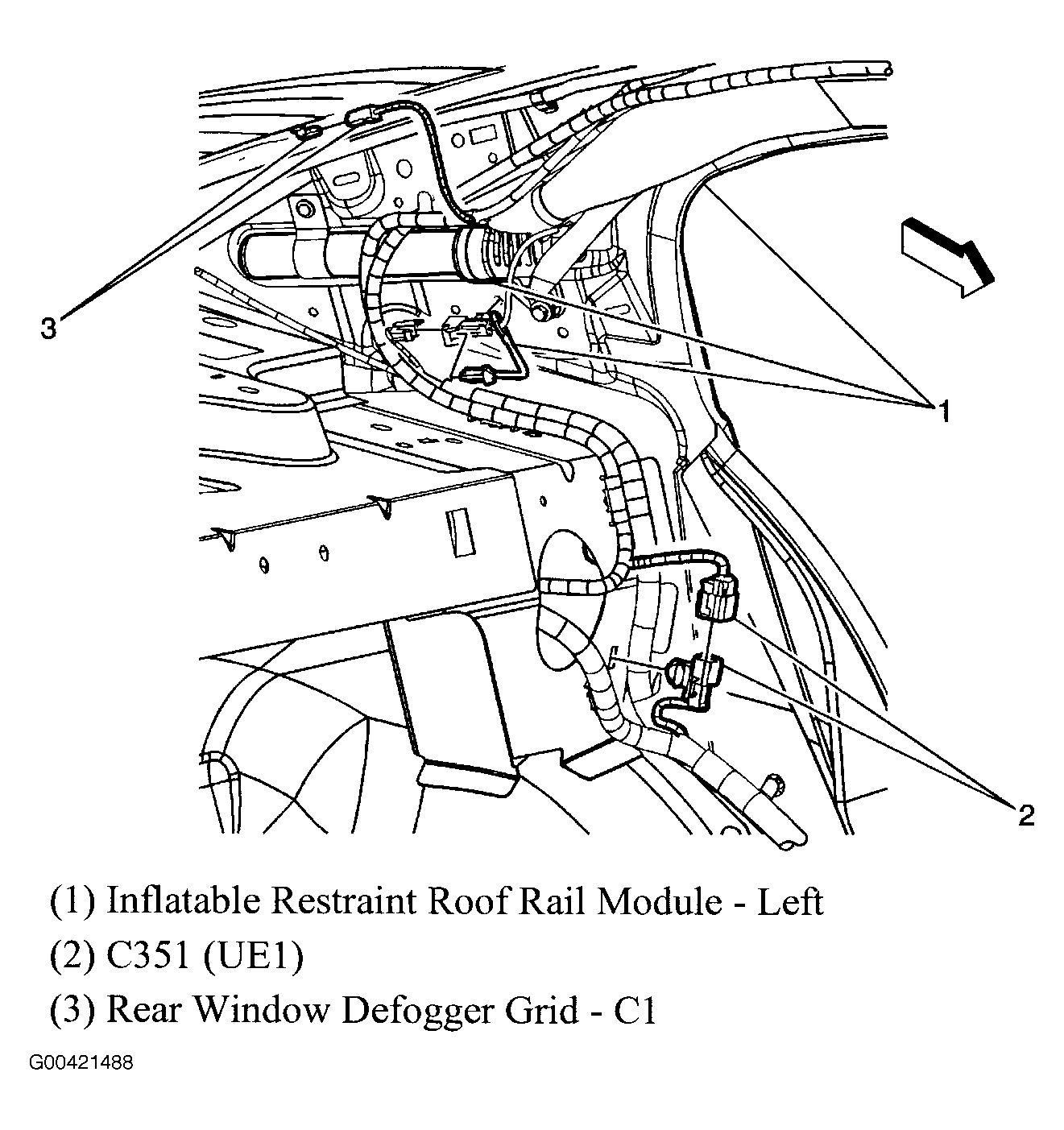

Fig 23: Rear Roof Rail
Courtesy of GENERAL MOTORS CORP.

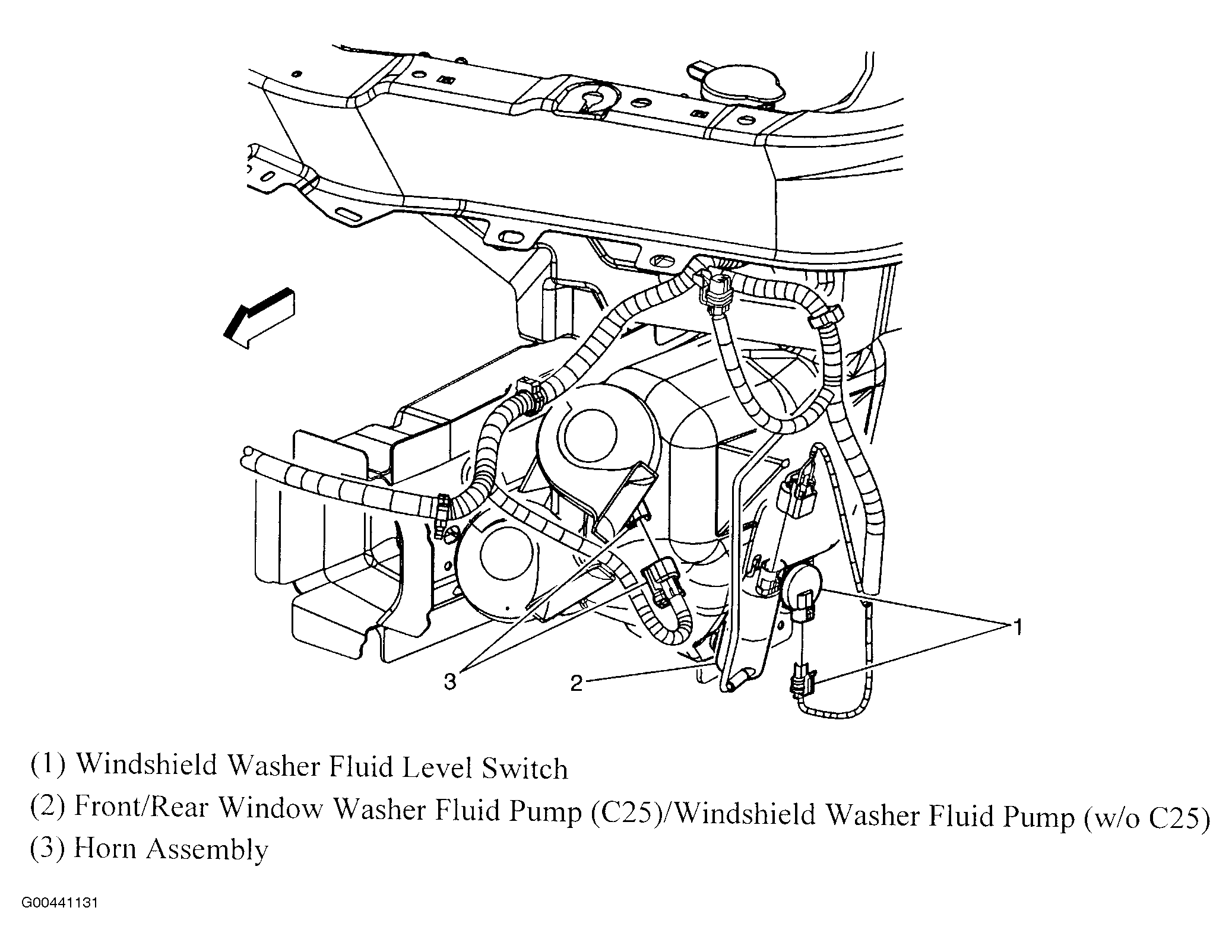

Fig 24: Front Bumper
Courtesy of GENERAL MOTORS CORP.

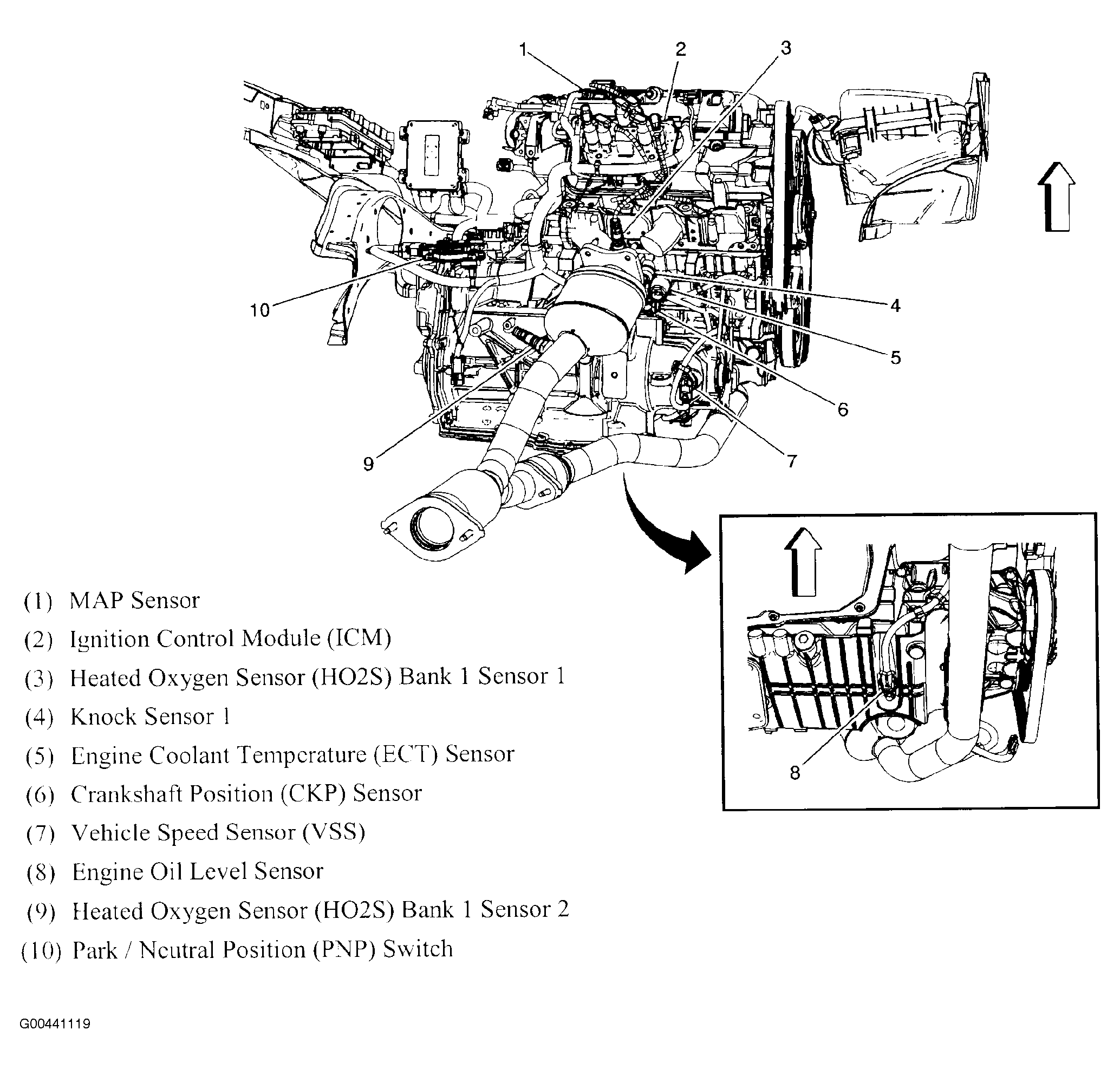

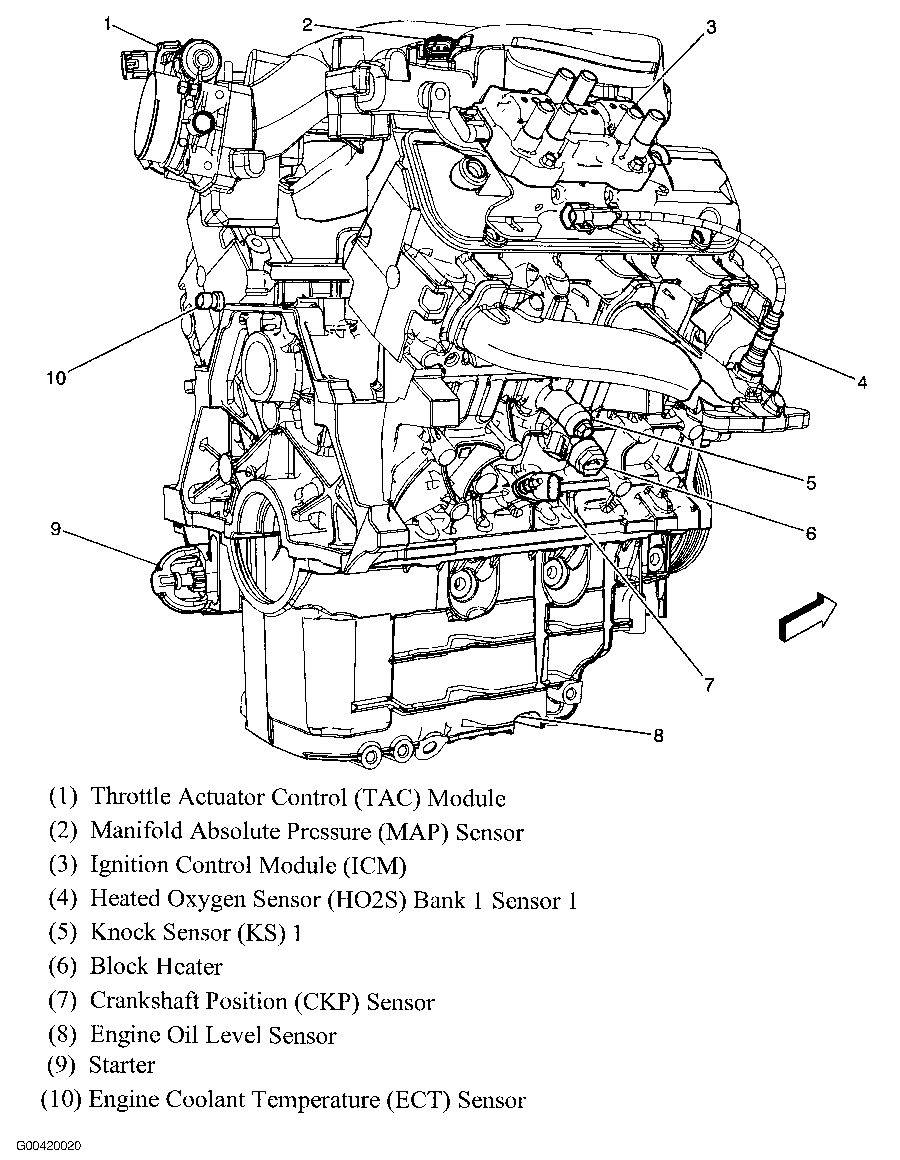

Fig 25: Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 27: Left Side Of HVAC Case
Courtesy of GENERAL MOTORS CORP.
Fig 28: HVAC Unit (Manual)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 30: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 31: Parking Brake Assembly
Courtesy of GENERAL MOTORS CORP.

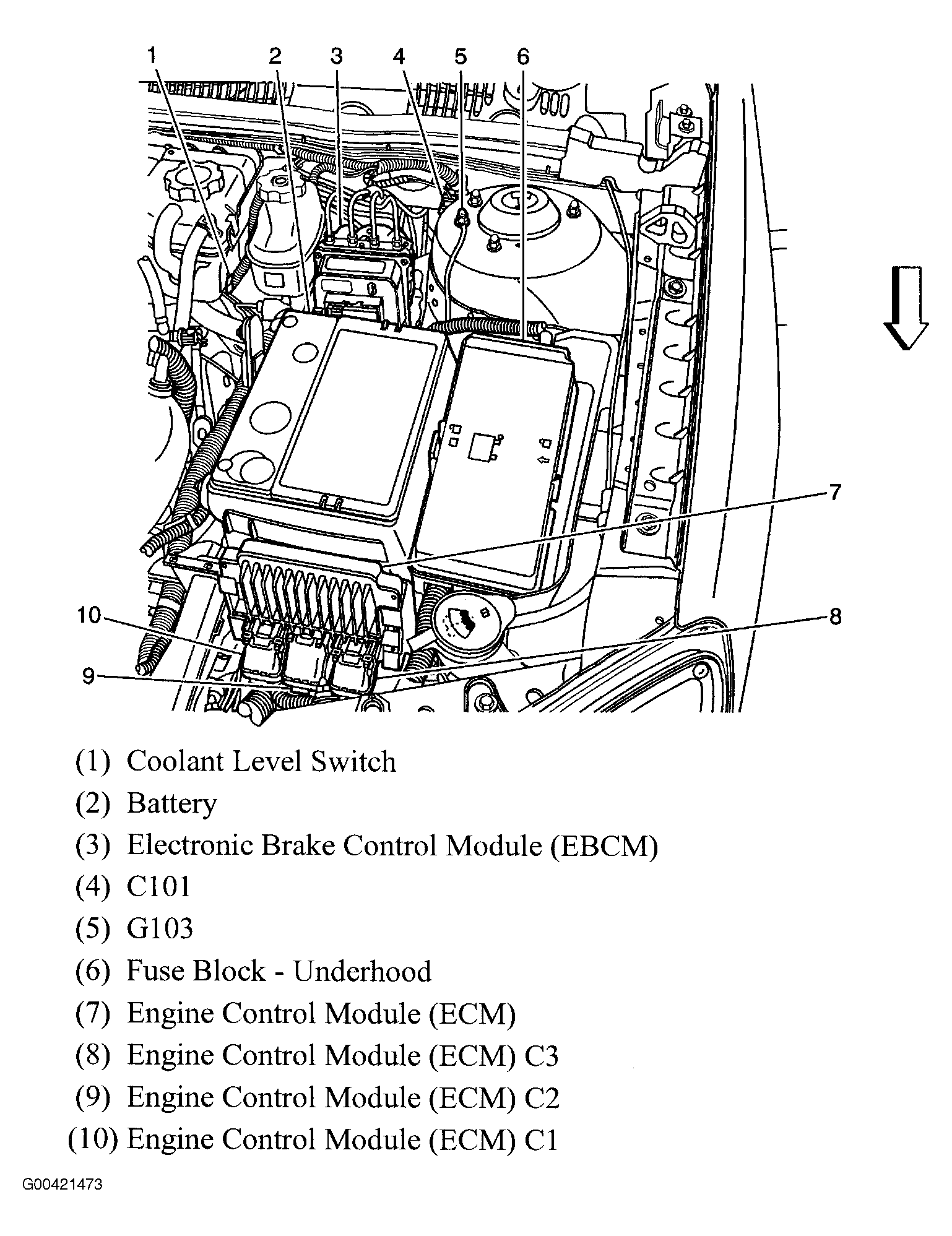

Fig 32: Upper Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 33: Rear Of Sunroof
Courtesy of GENERAL MOTORS CORP.

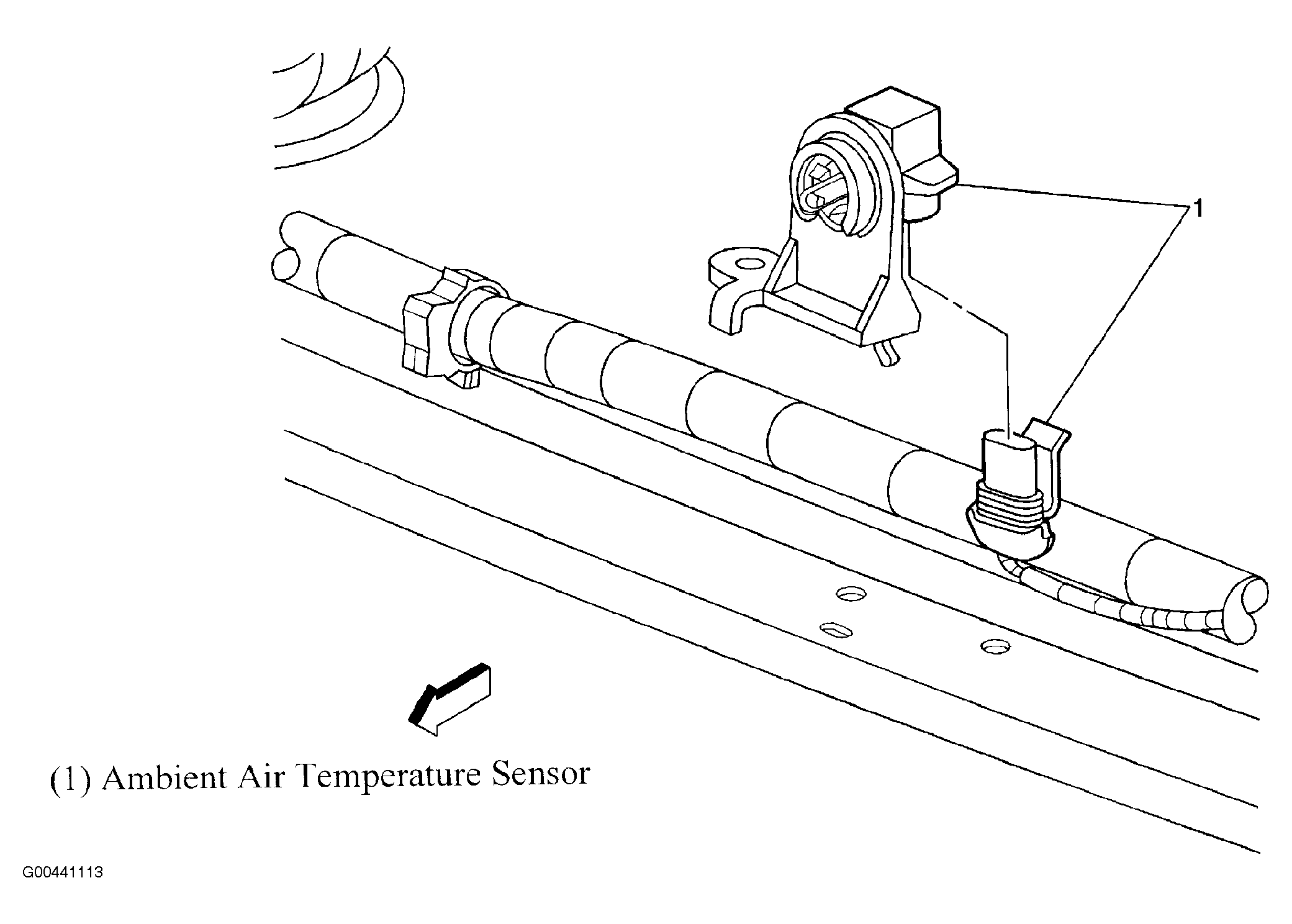

Fig 34: Front Impact Bar
Courtesy of GENERAL MOTORS CORP.
Fig 35: Left Door
Courtesy of GENERAL MOTORS CORP.

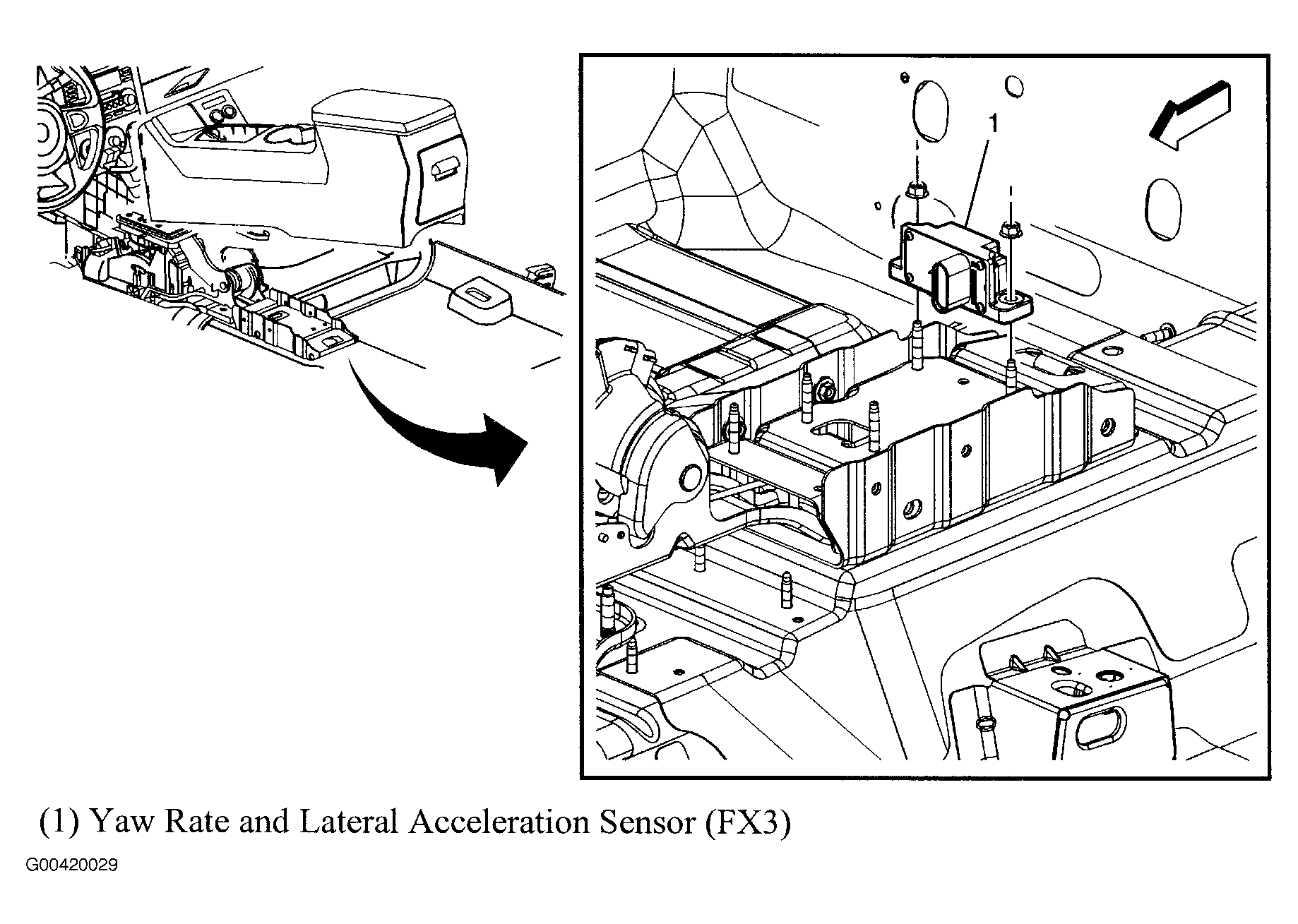

Fig 36: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 37: Side Impact Modules
Courtesy of GENERAL MOTORS CORP.

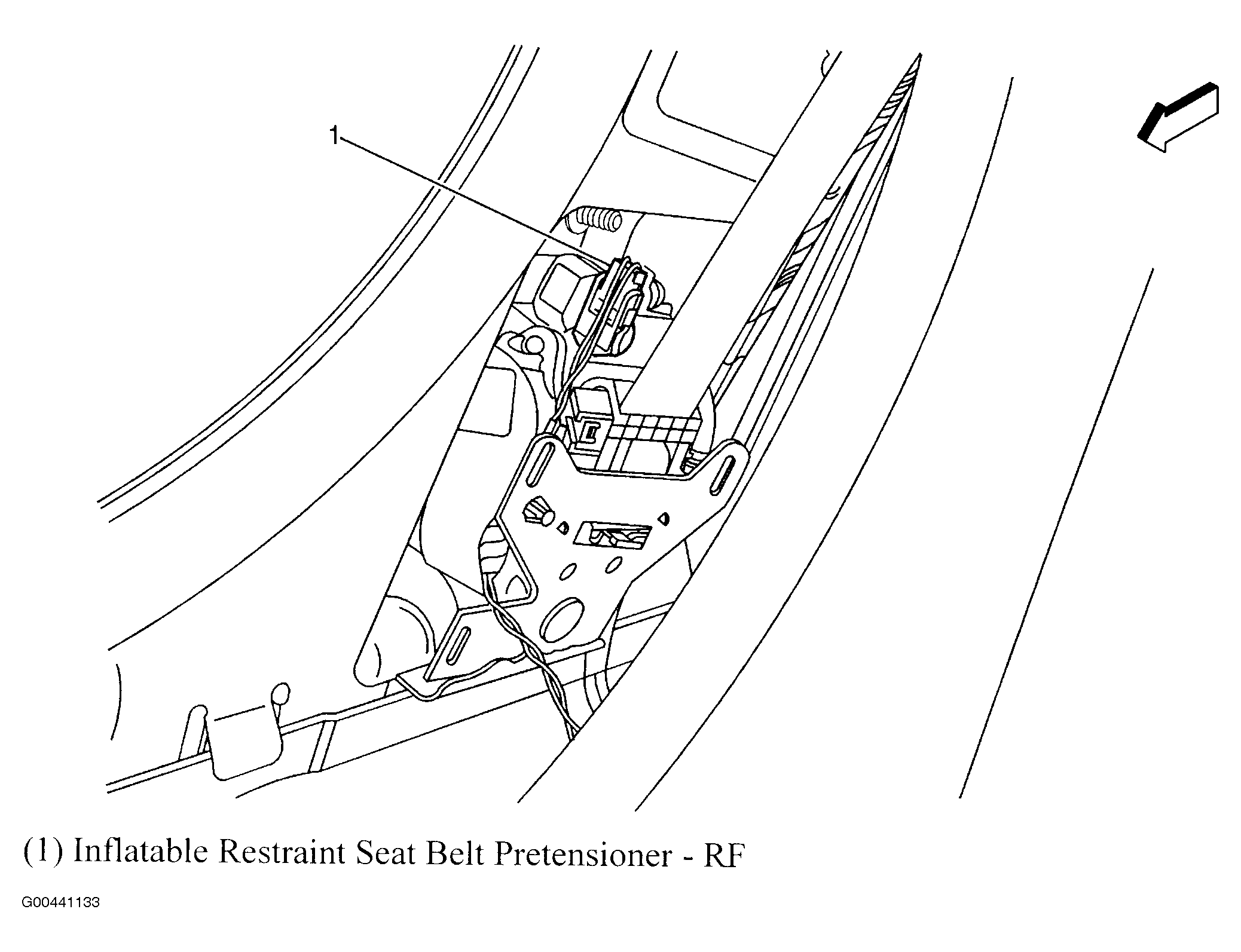

Fig 38: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 39: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 40: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 41: Theft Deterrent System Component Views
Courtesy of GENERAL MOTORS CORP.

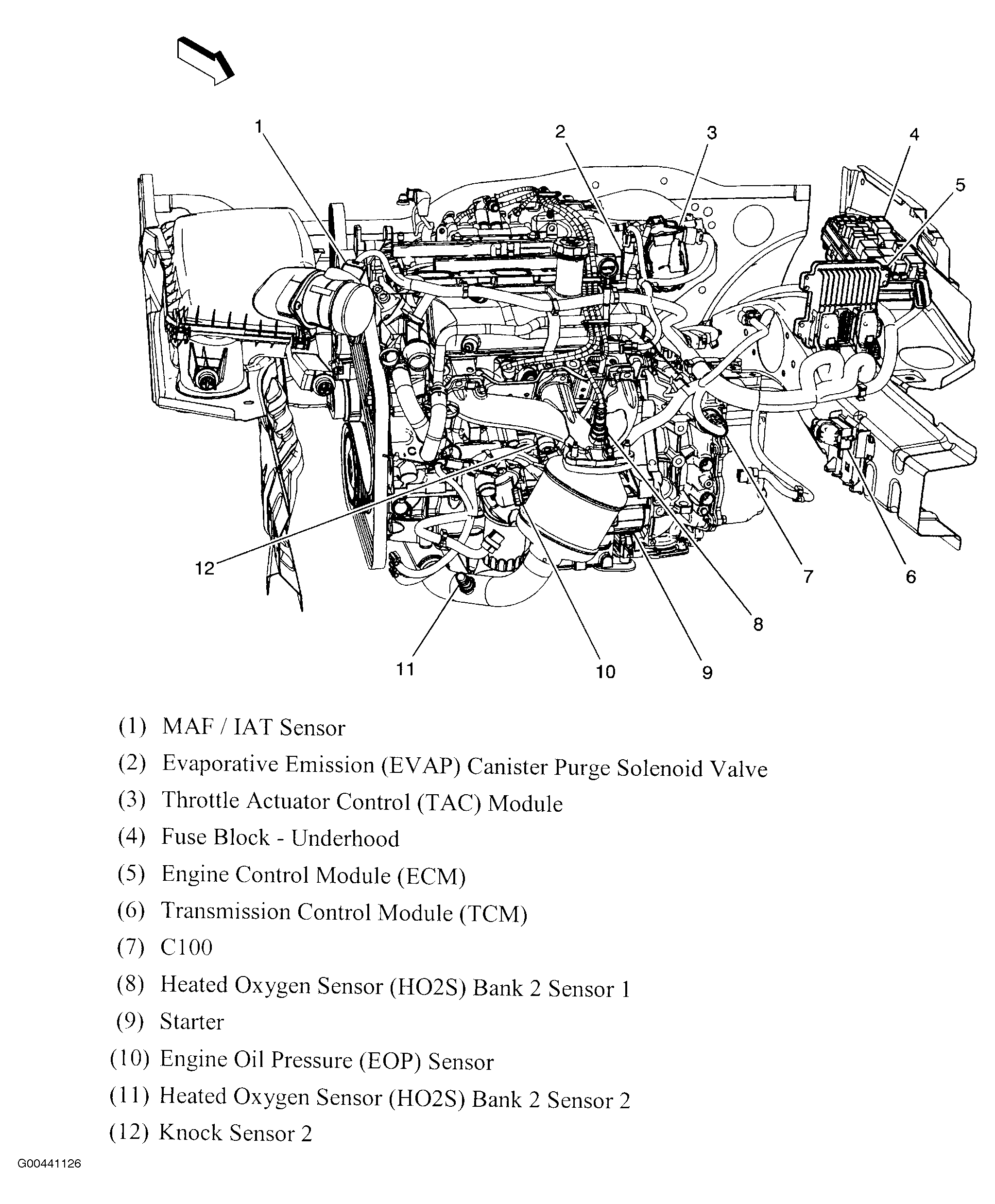

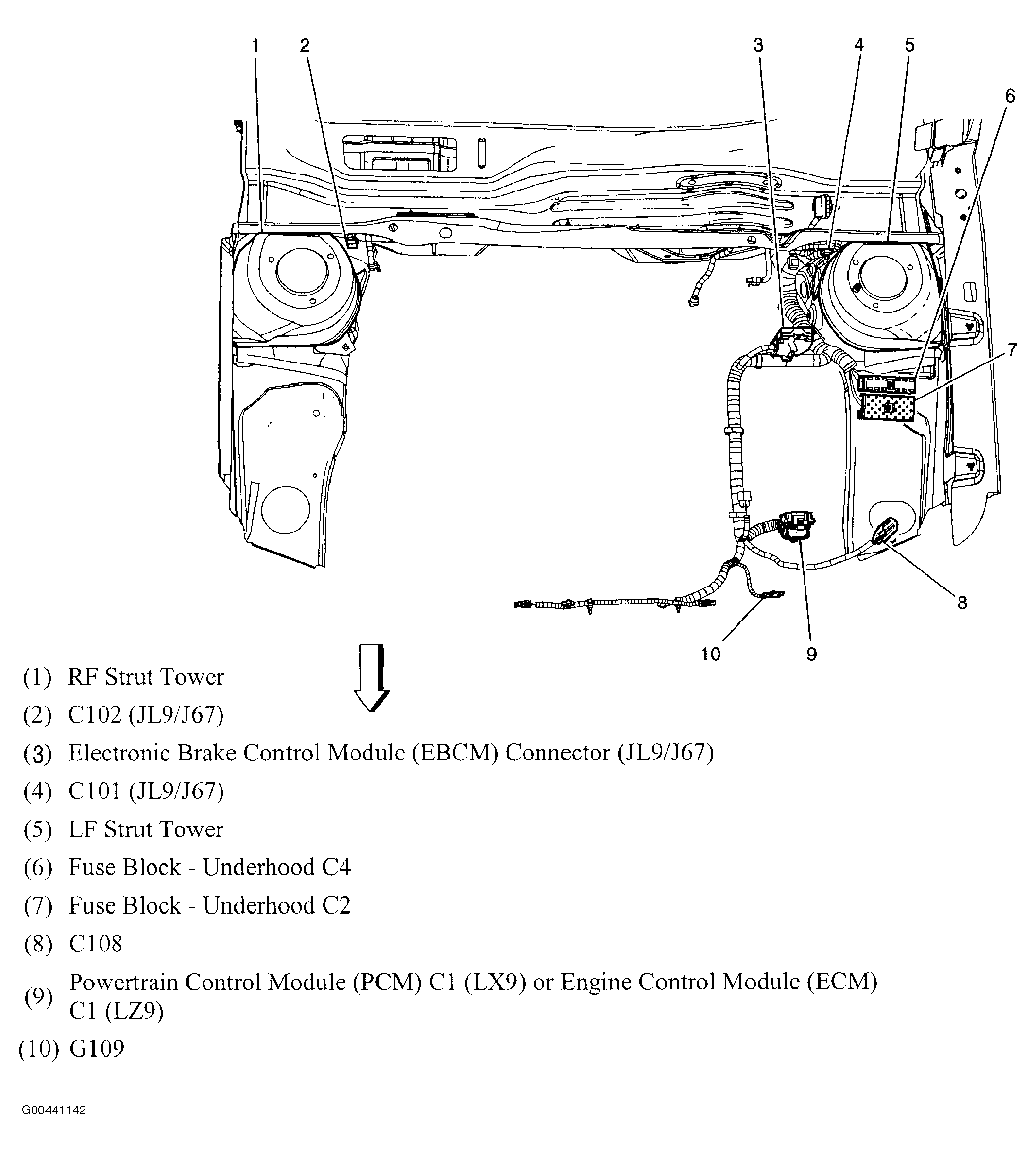

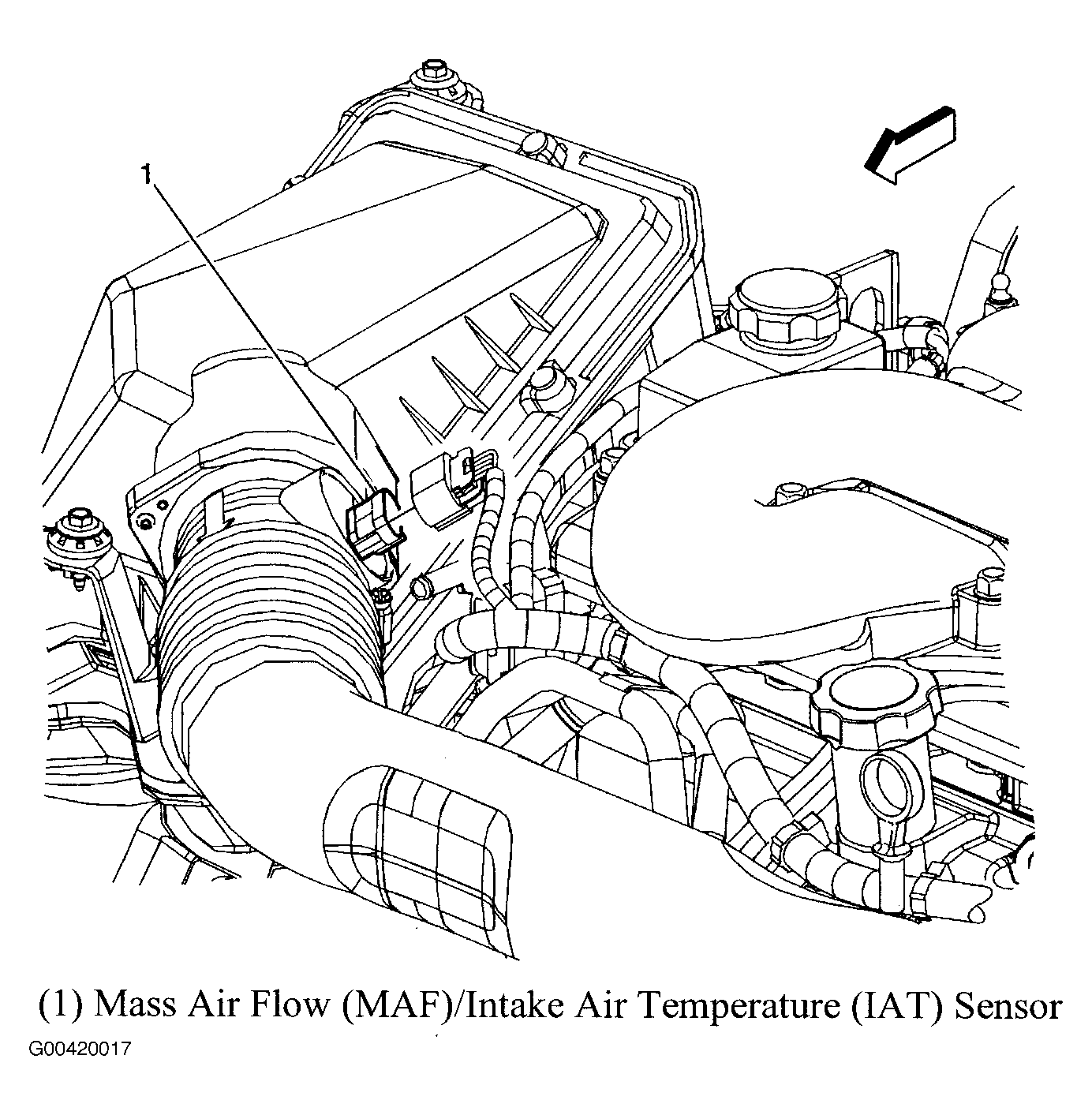

Fig 42: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 43: Front Side Of Core Support
Courtesy of GENERAL MOTORS CORP.
Fig 44: Under Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 45: Behind Left Side Of Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 46: Left Rear Quarter Panel
Courtesy of GENERAL MOTORS CORP.
Fig 47: Rear Bumper Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 48: Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Left Side Of Console
Courtesy of GENERAL MOTORS CORP.

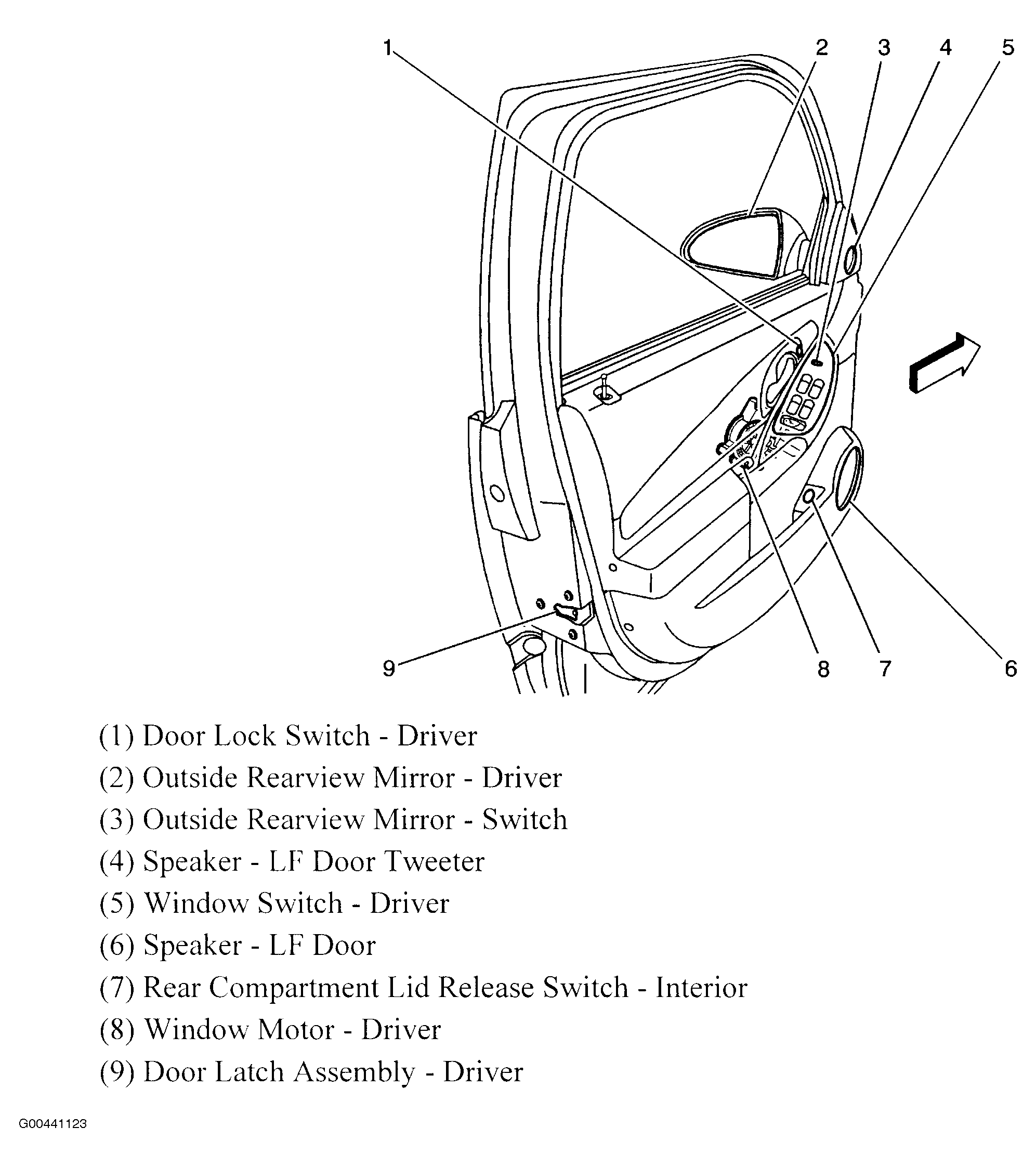

Fig 50: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 51: Left Front Door Trim Pad
Courtesy of GENERAL MOTORS CORP.
Fig 52: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right Front Door Trim Pad
Courtesy of GENERAL MOTORS CORP.

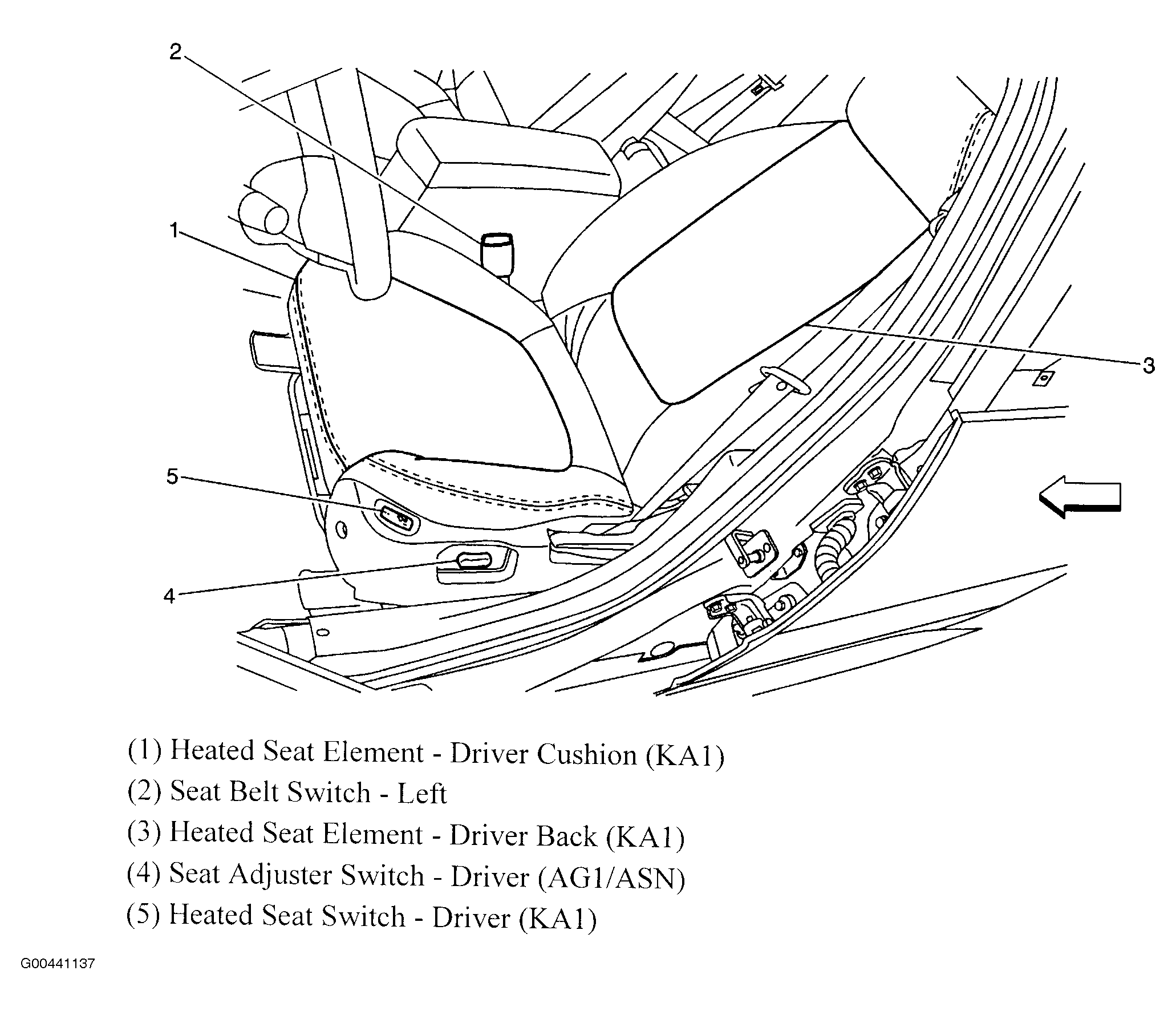

Fig 54: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 55: Front Pan
Courtesy of GENERAL MOTORS CORP.

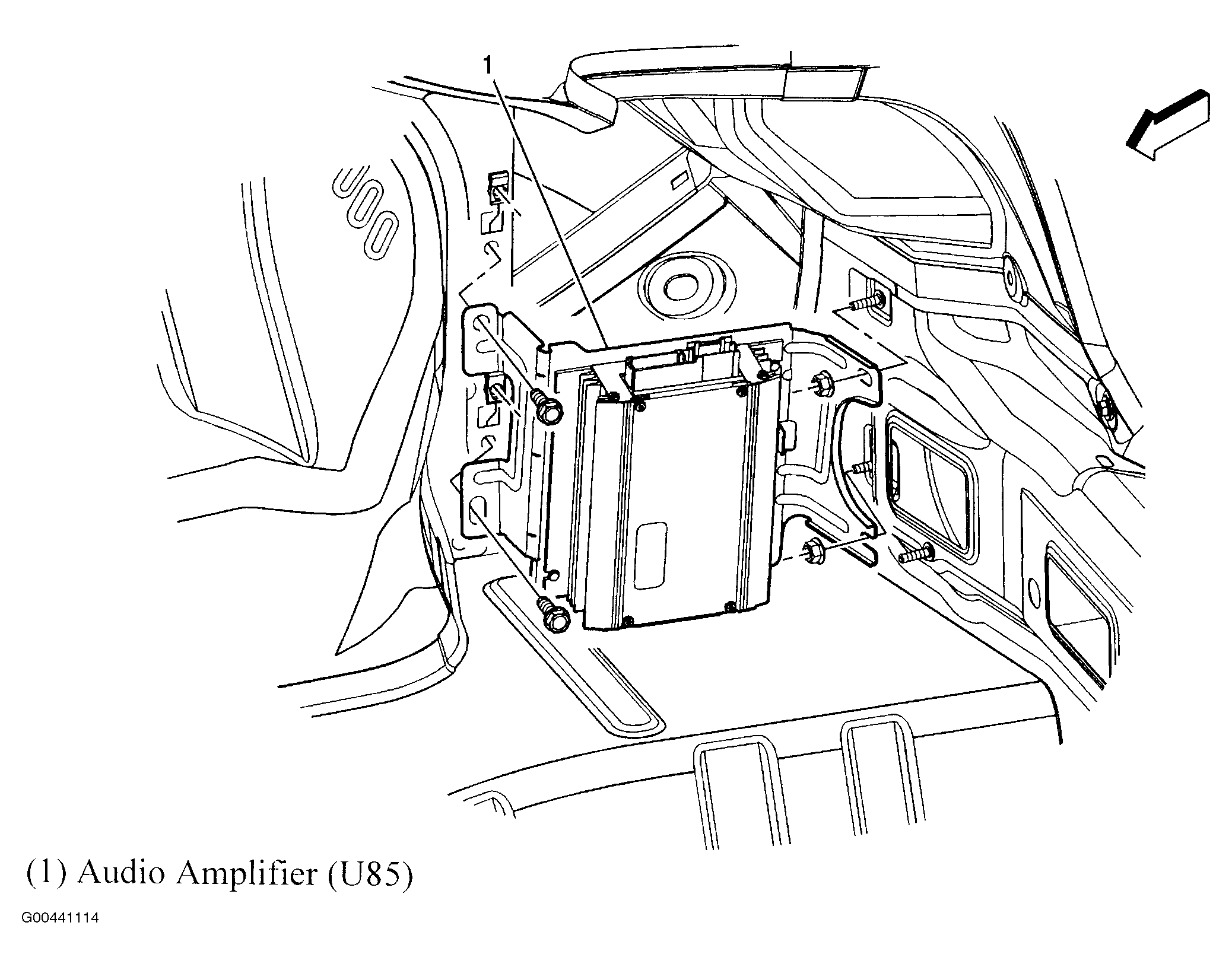

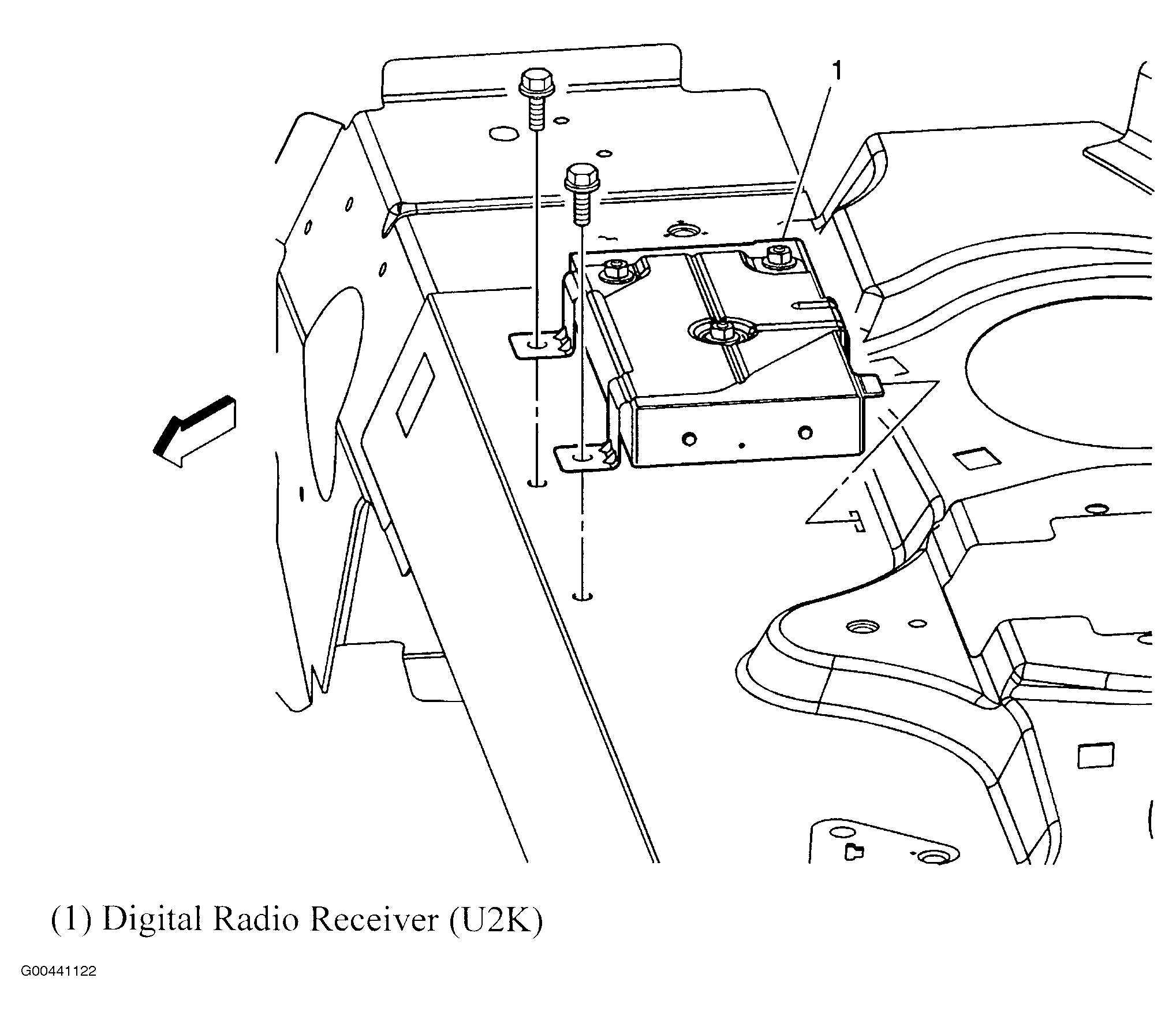

Fig 56: Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Headliner (W/O Sunroof)
Courtesy of GENERAL MOTORS CORP.
Fig 58: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 59: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 60: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 61: Body Control Module (BCM)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Top Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Front Of Engine Compartment (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 64: Left Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 65: Right Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.

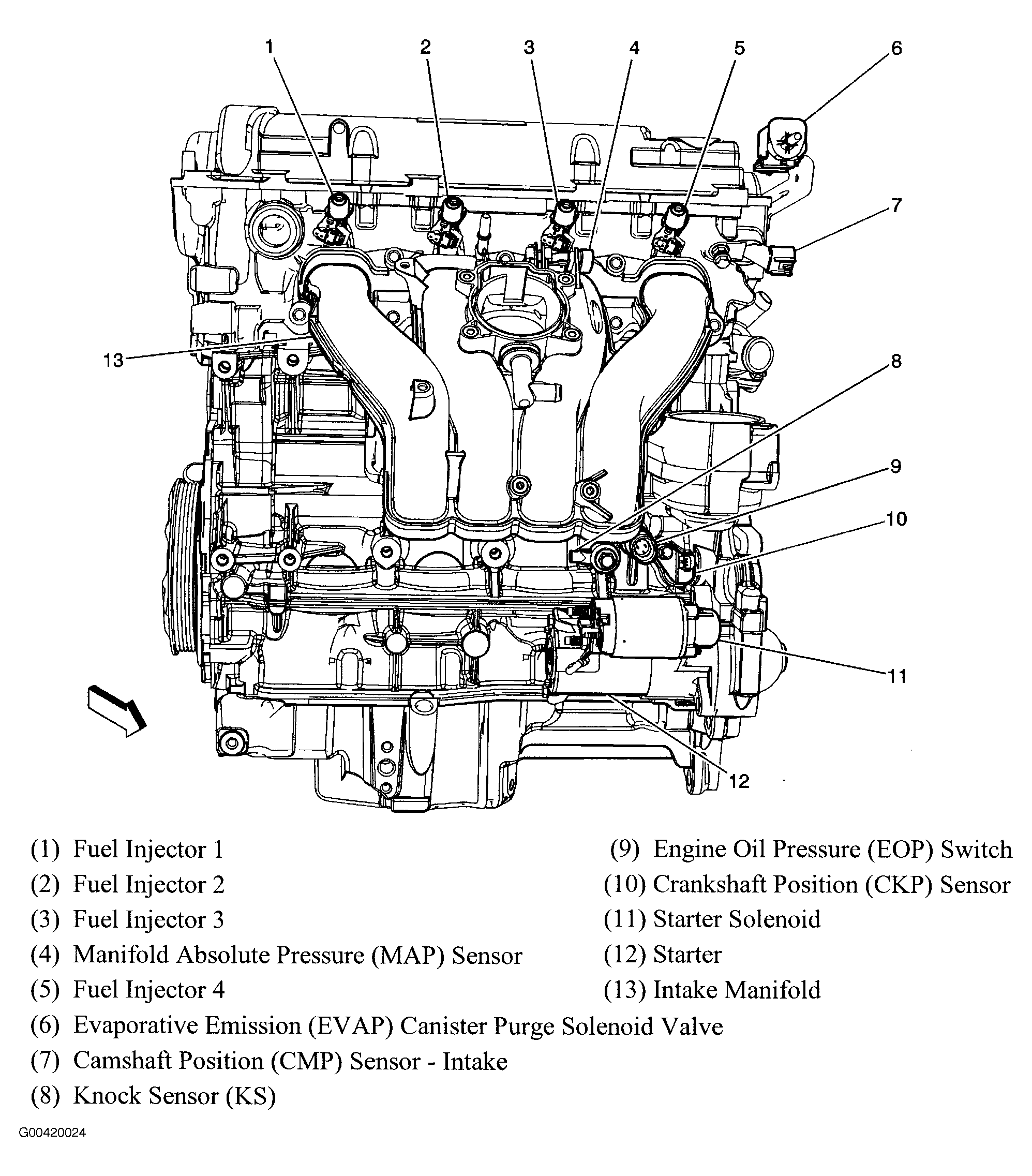

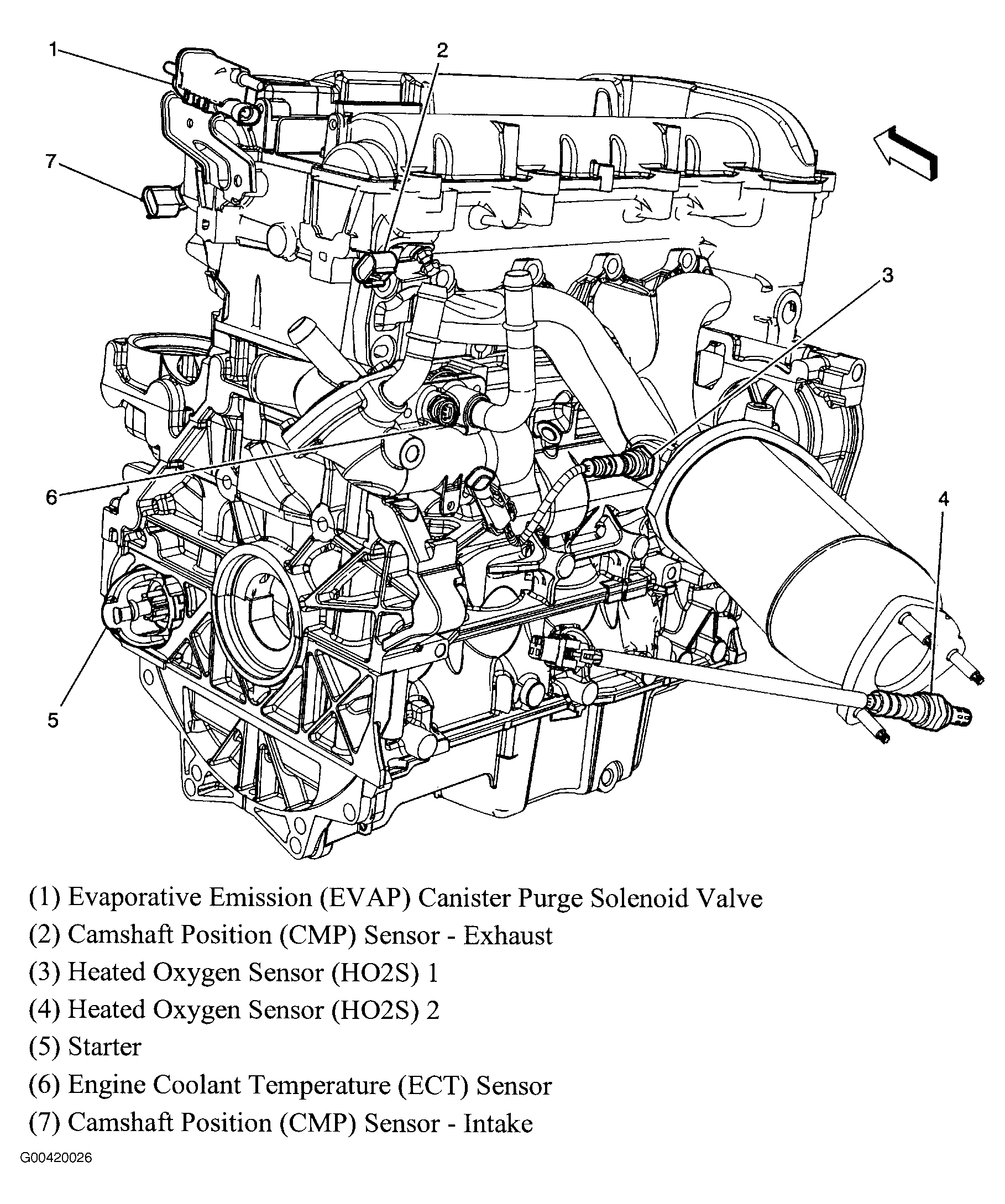

Fig 66: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 67: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.

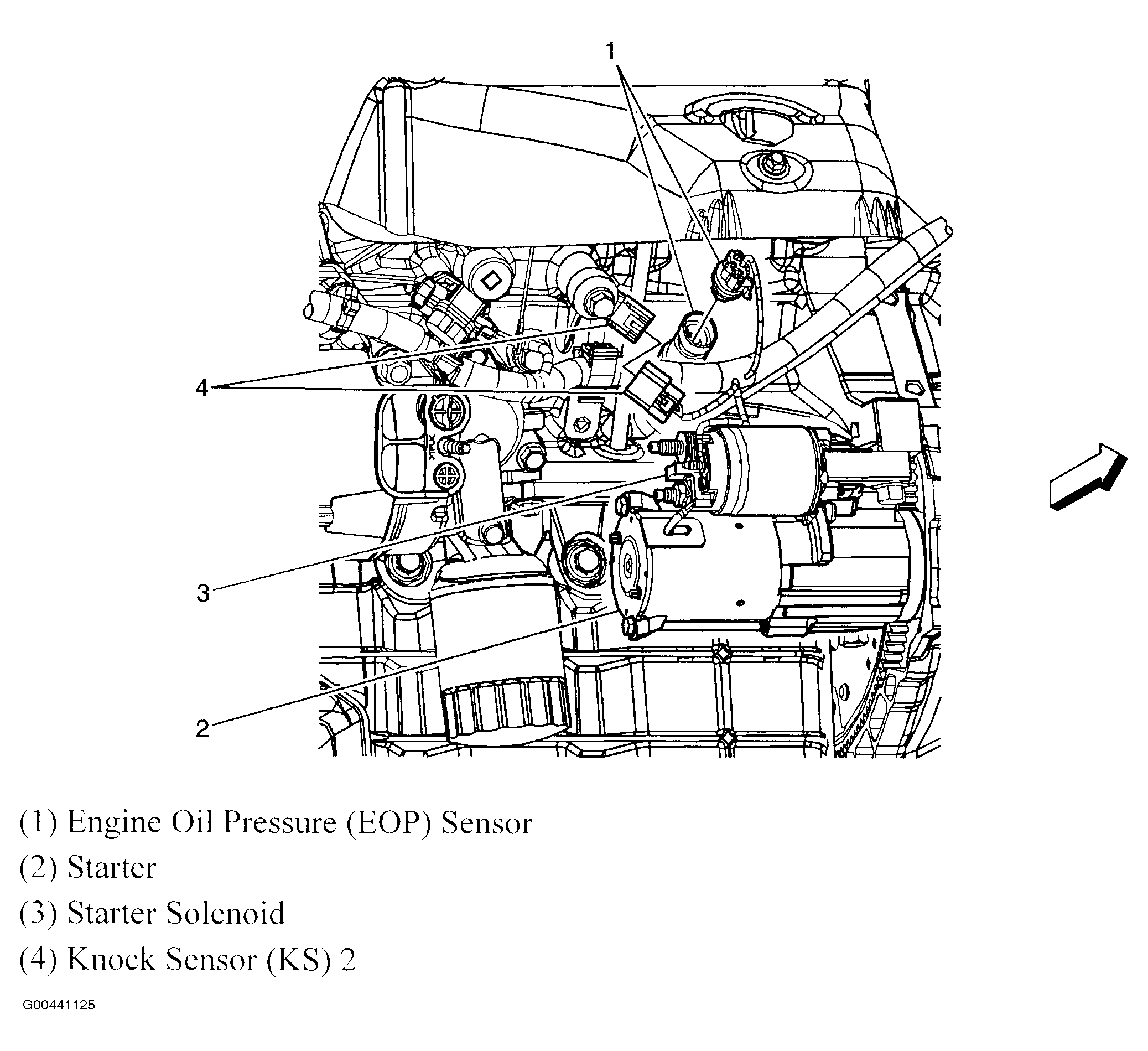

Fig 68: Right Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 69: Left Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Under Center Floor Console
Courtesy of GENERAL MOTORS CORP.

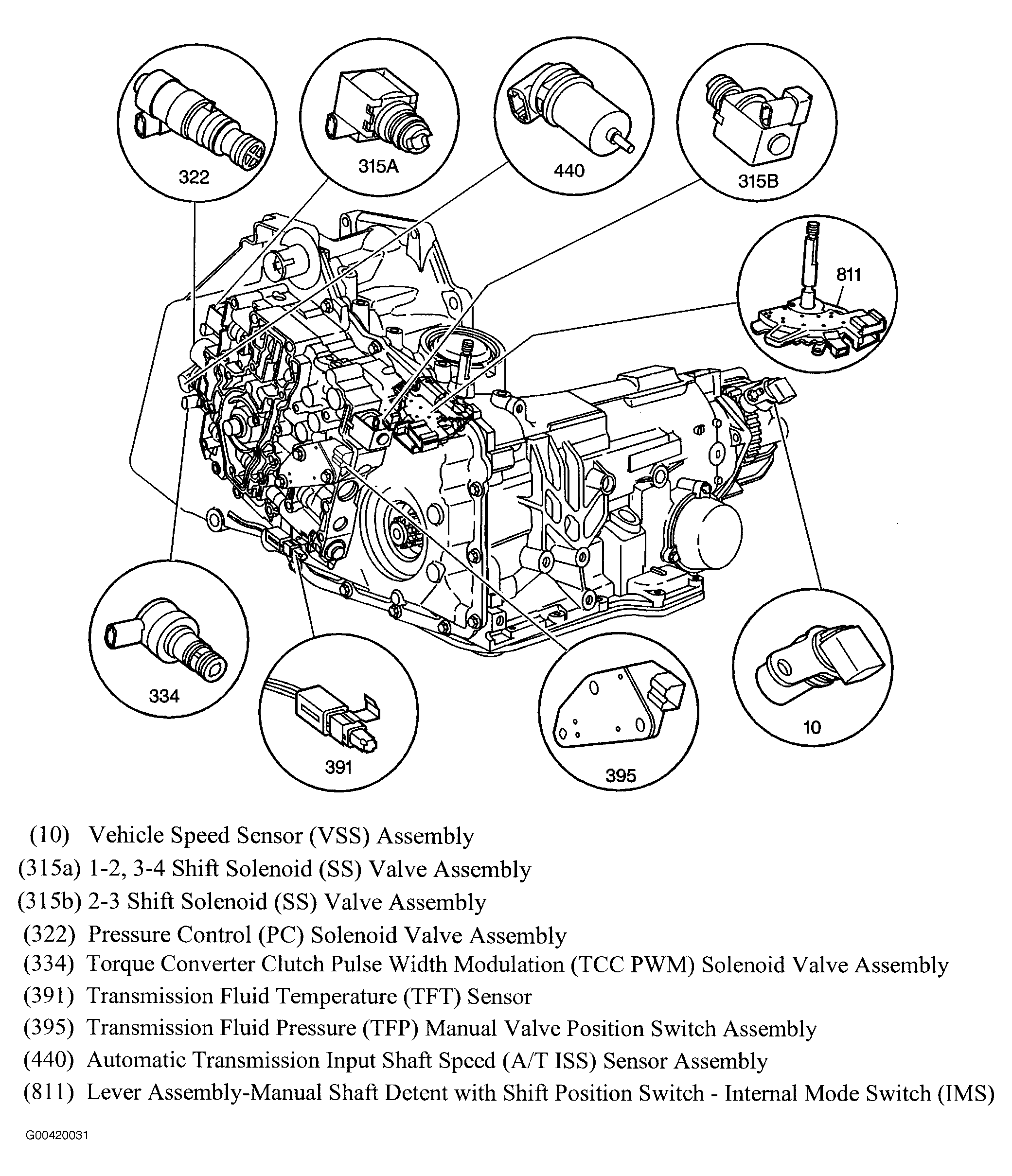

Fig 71: Automatic Transmission Electronic Component Views (4T65-E)
Courtesy of GENERAL MOTORS CORP.

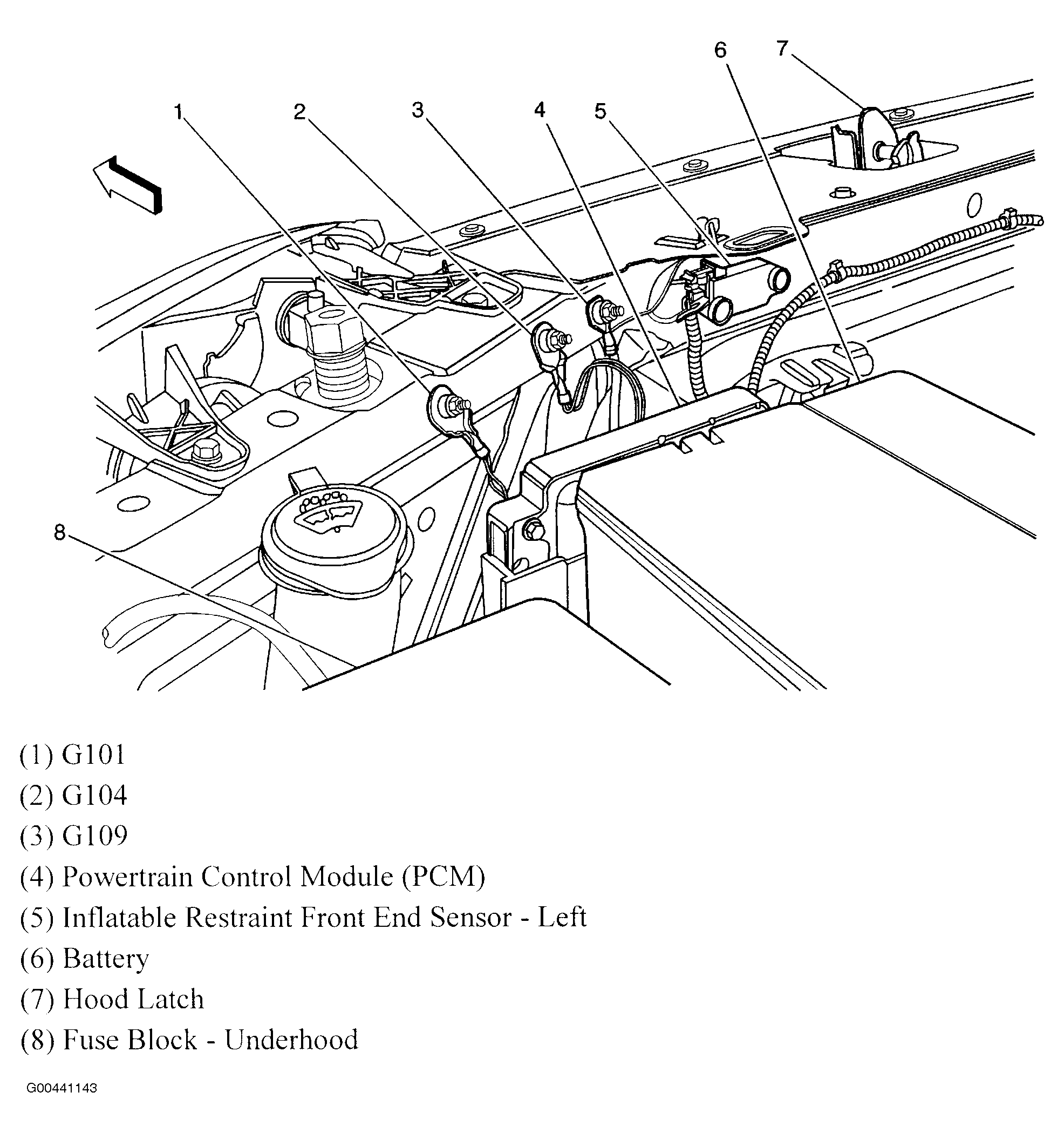

Fig 72: Left Rear Of Engine Compartment (2.4L/3.9L)
Courtesy of GENERAL MOTORS CORP.

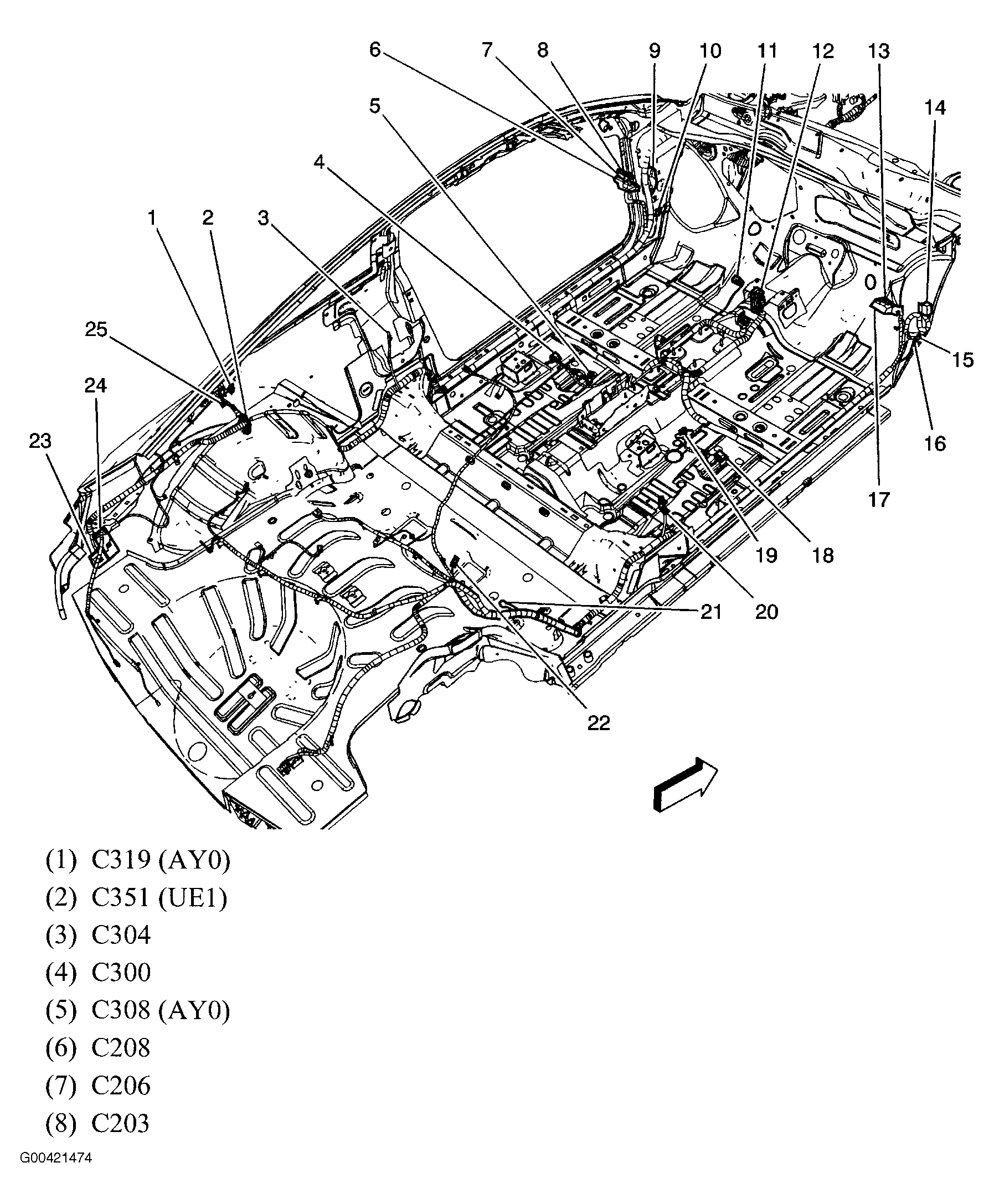

Fig 73: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

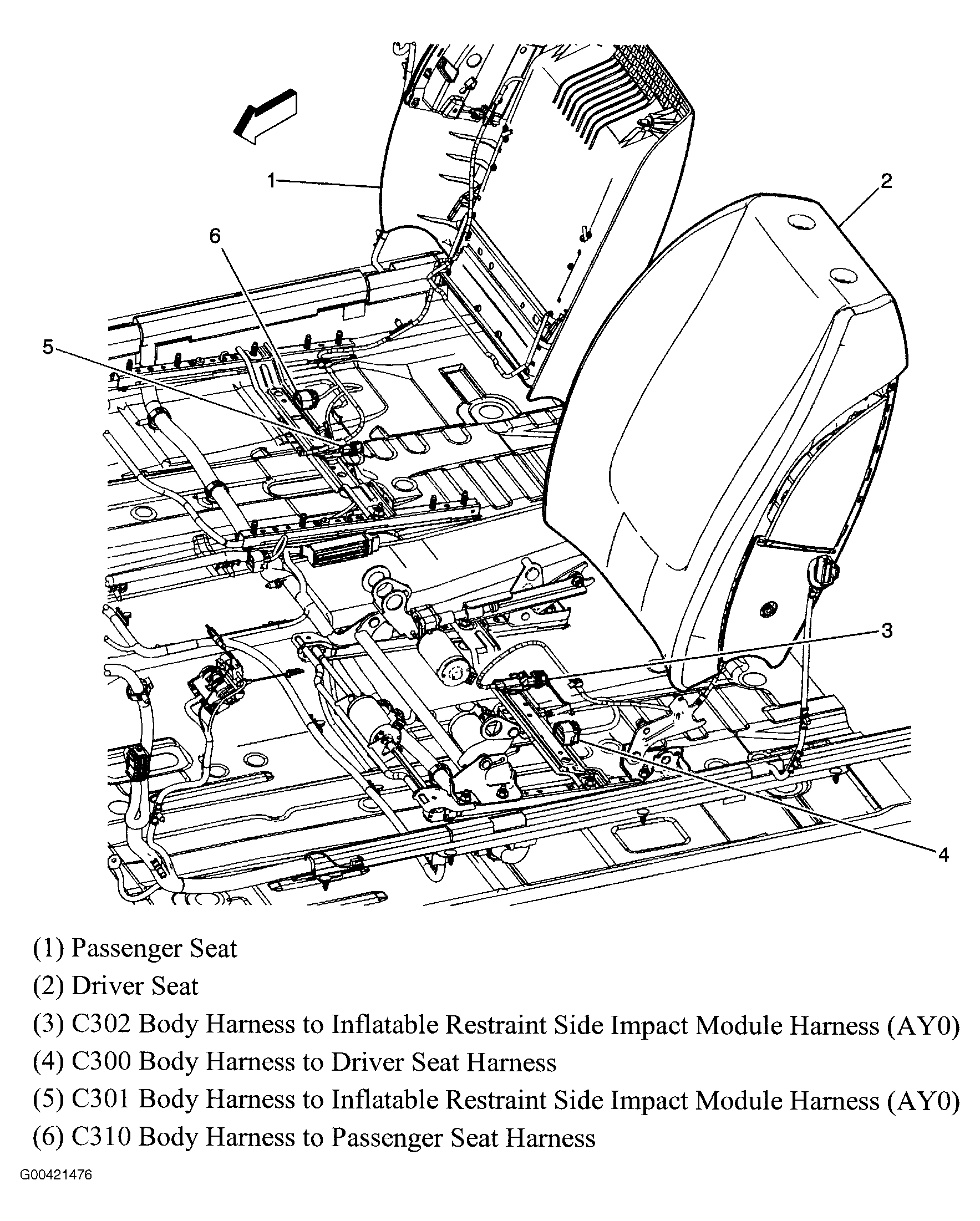

Fig 75: Under Driver/Front Passenger Seats
Courtesy of GENERAL MOTORS CORP.
Fig 76: HVAC Unit (Automatic)
Courtesy of GENERAL MOTORS CORP.
Fig 77: Front Right Side Of Center Console
Courtesy of GENERAL MOTORS CORP.

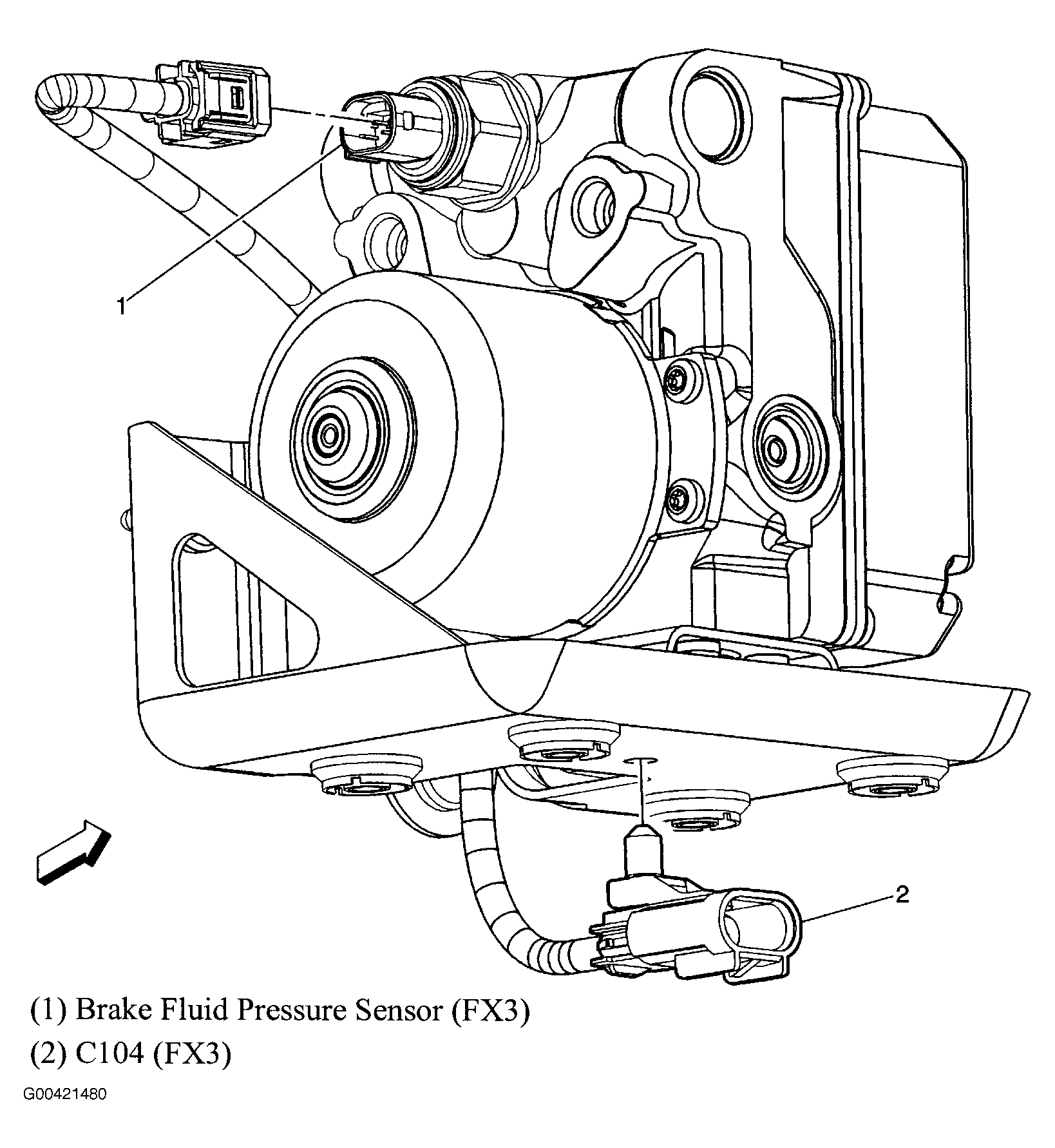

Fig 78: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

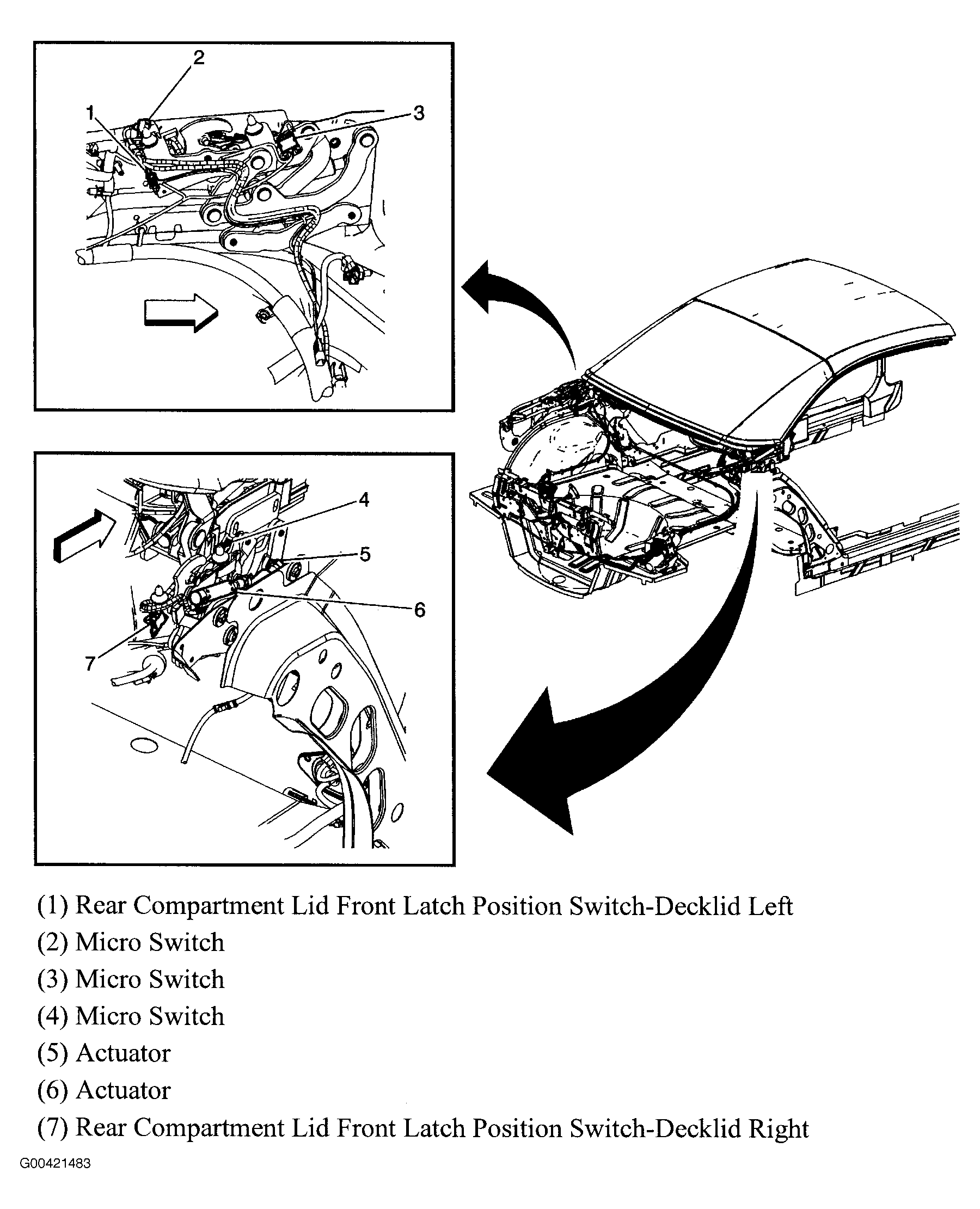

Fig 79: Rear Compartment (Convertible)
Courtesy of GENERAL MOTORS CORP.

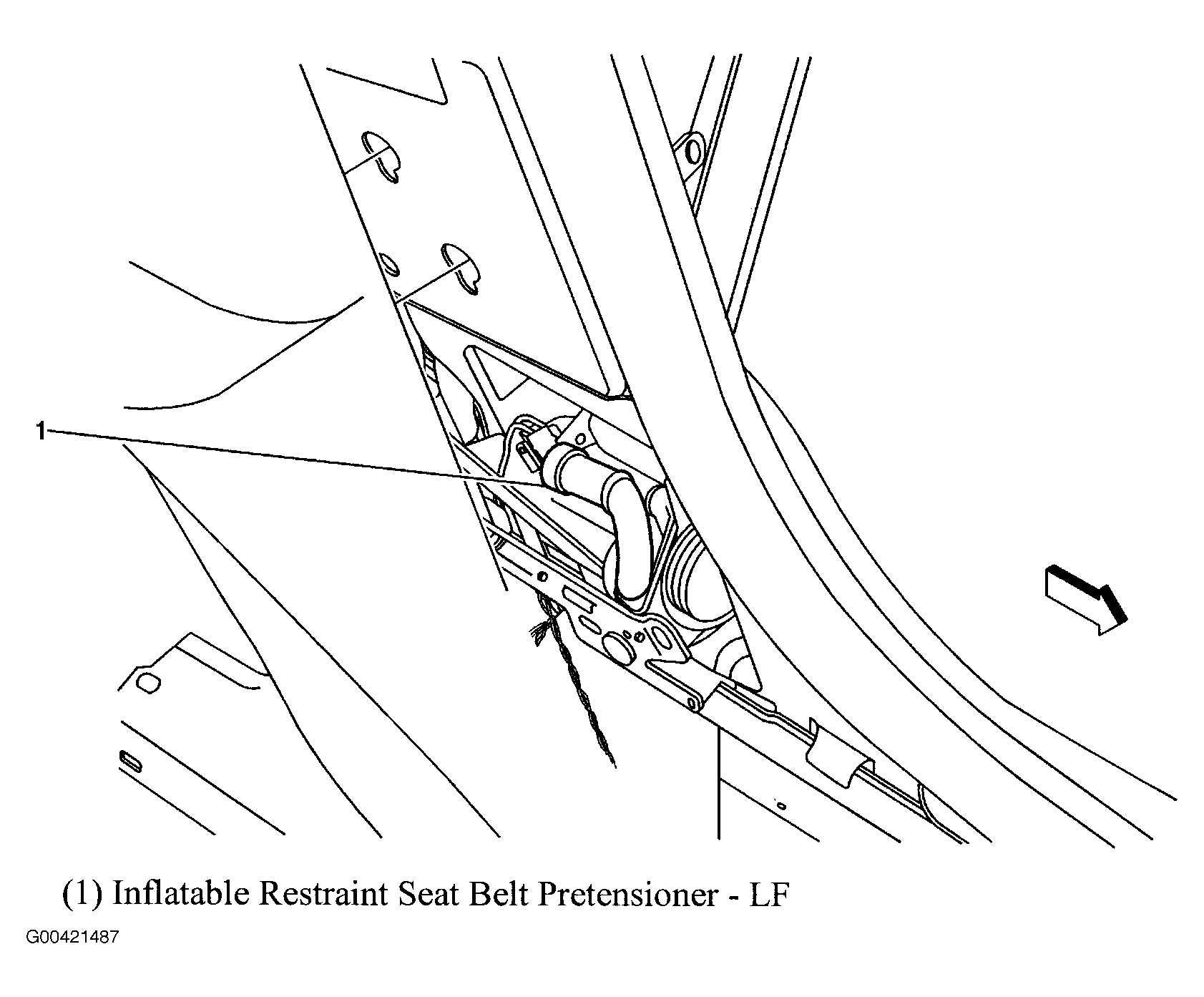

Fig 80: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

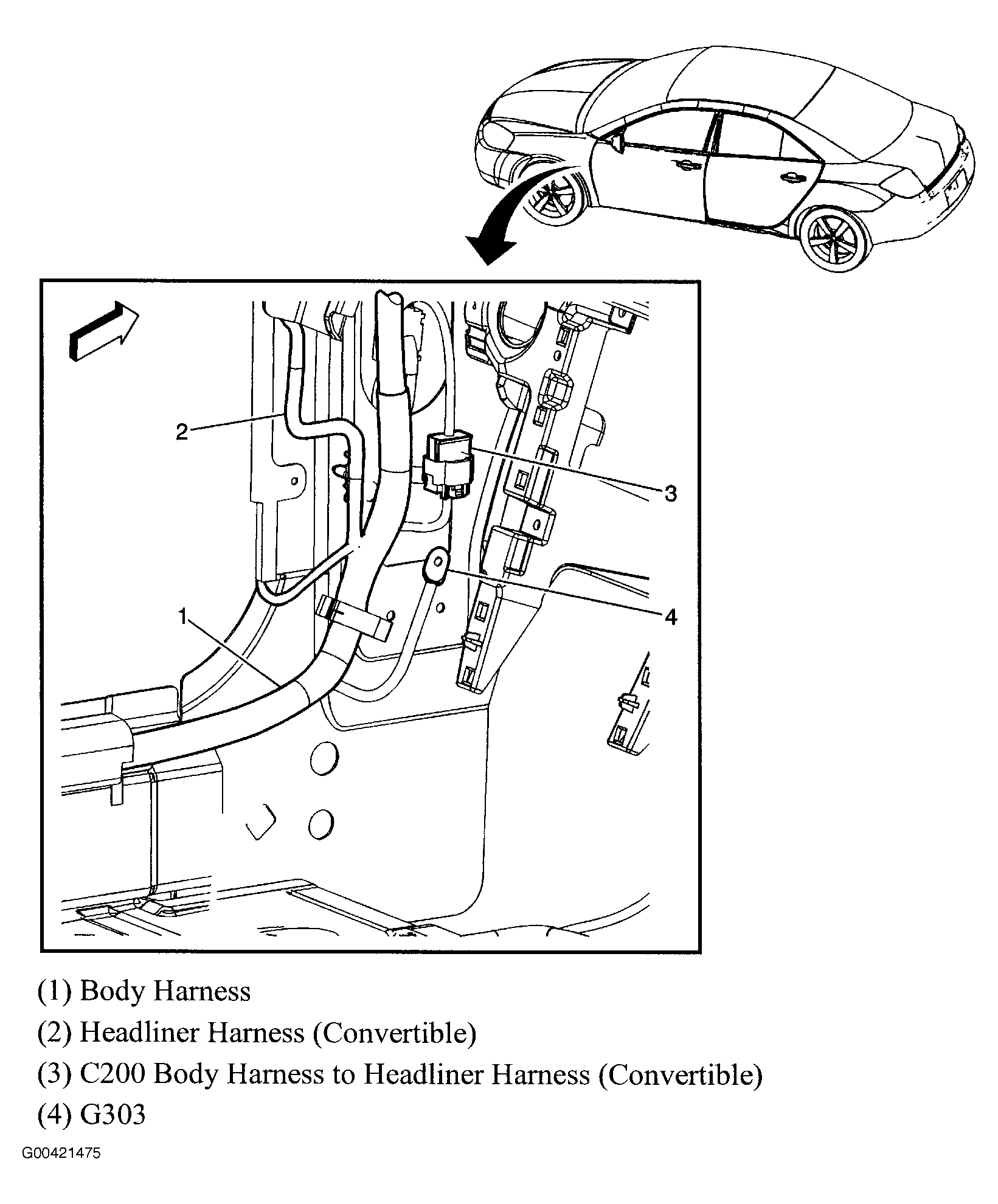

Fig 81: Left "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 82: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.

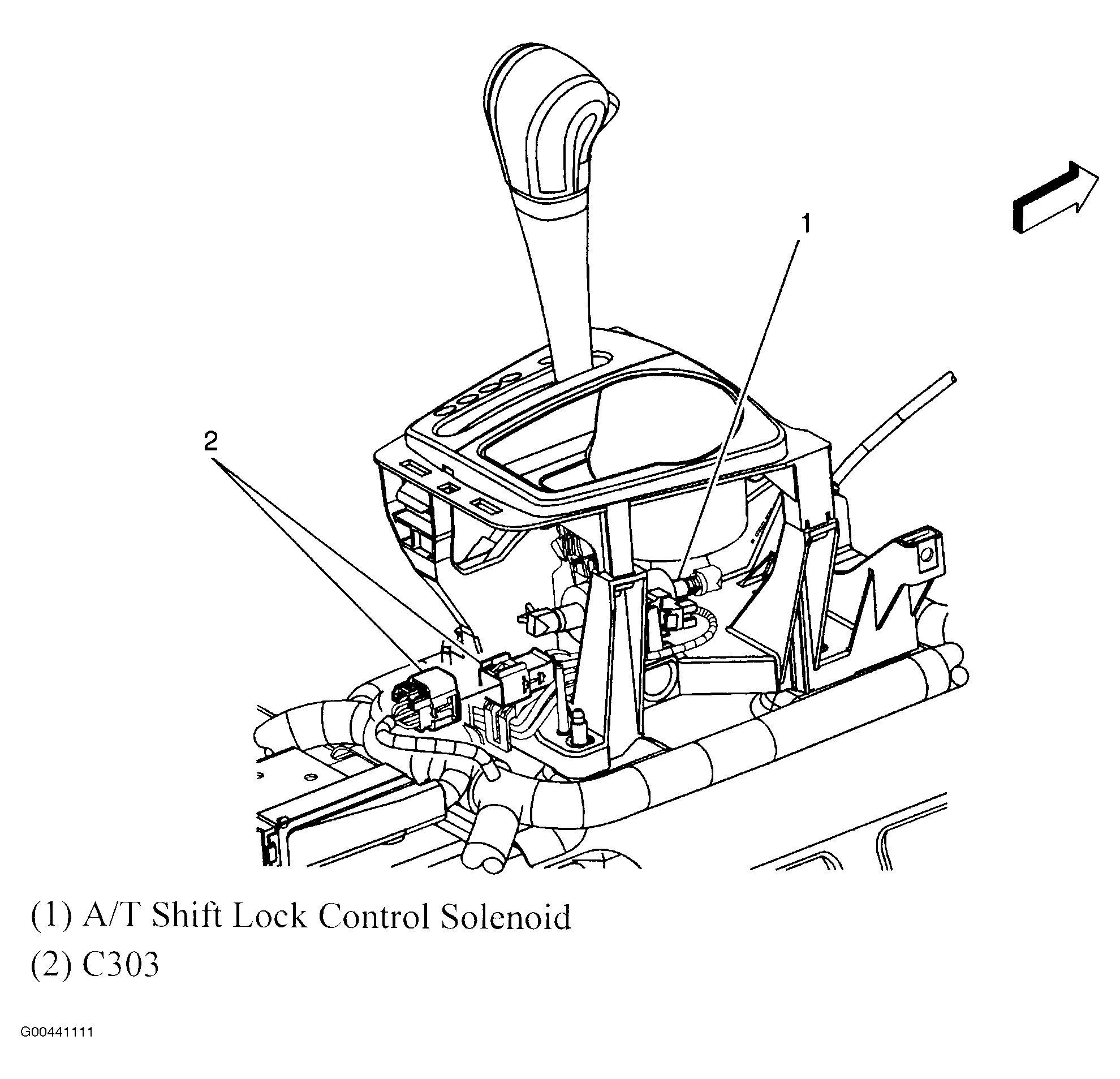

Fig 83: Shift Lock Control Component
Courtesy of GENERAL MOTORS CORP.
Fig 84: Center Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 85: Front Of Impact Bar
Courtesy of GENERAL MOTORS CORP.
Fig 86: Rear Compartment
Courtesy of GENERAL MOTORS CORP.

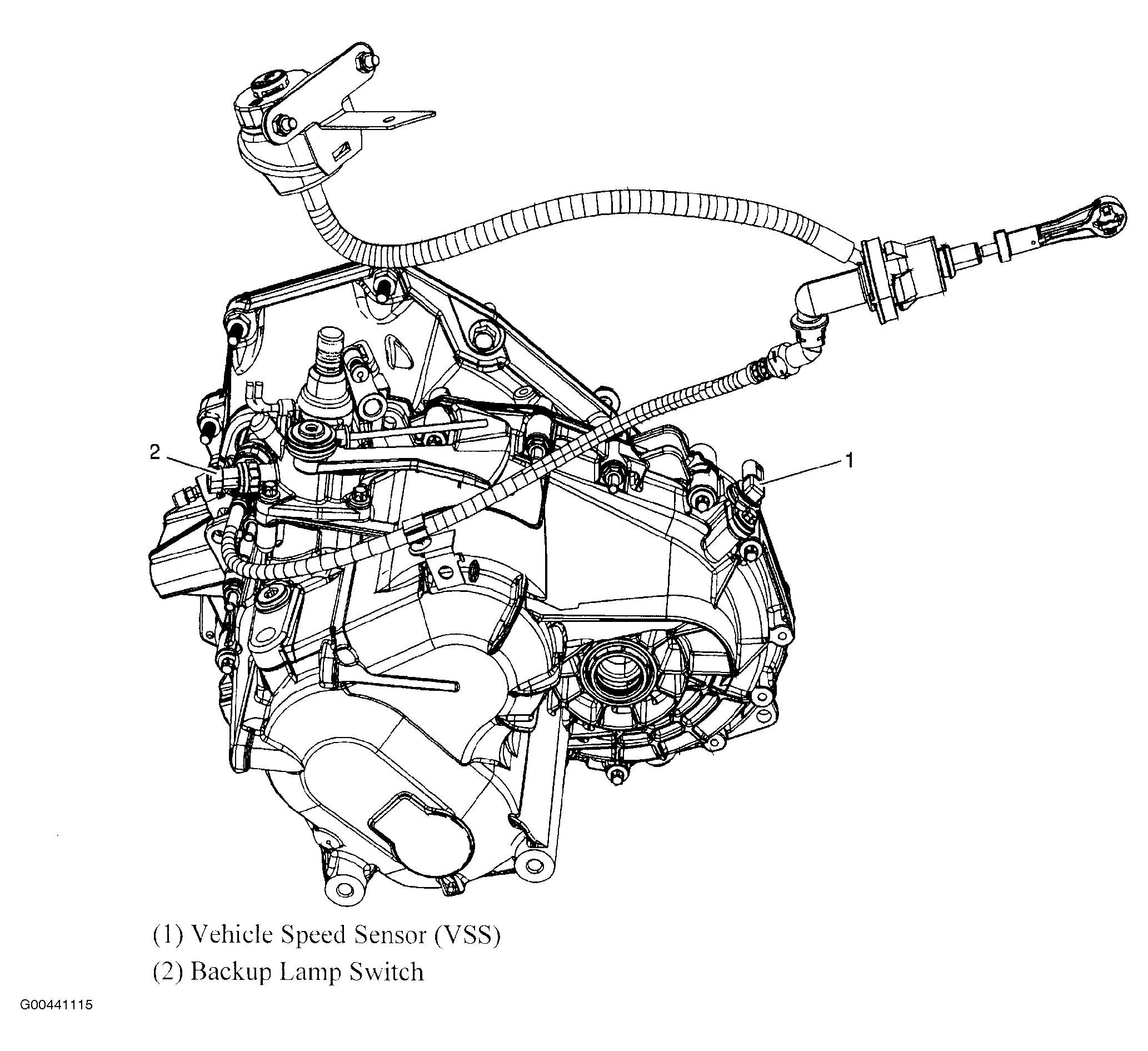

Fig 87: Right Rear Of Manual Transmission
Courtesy of GENERAL MOTORS CORP.

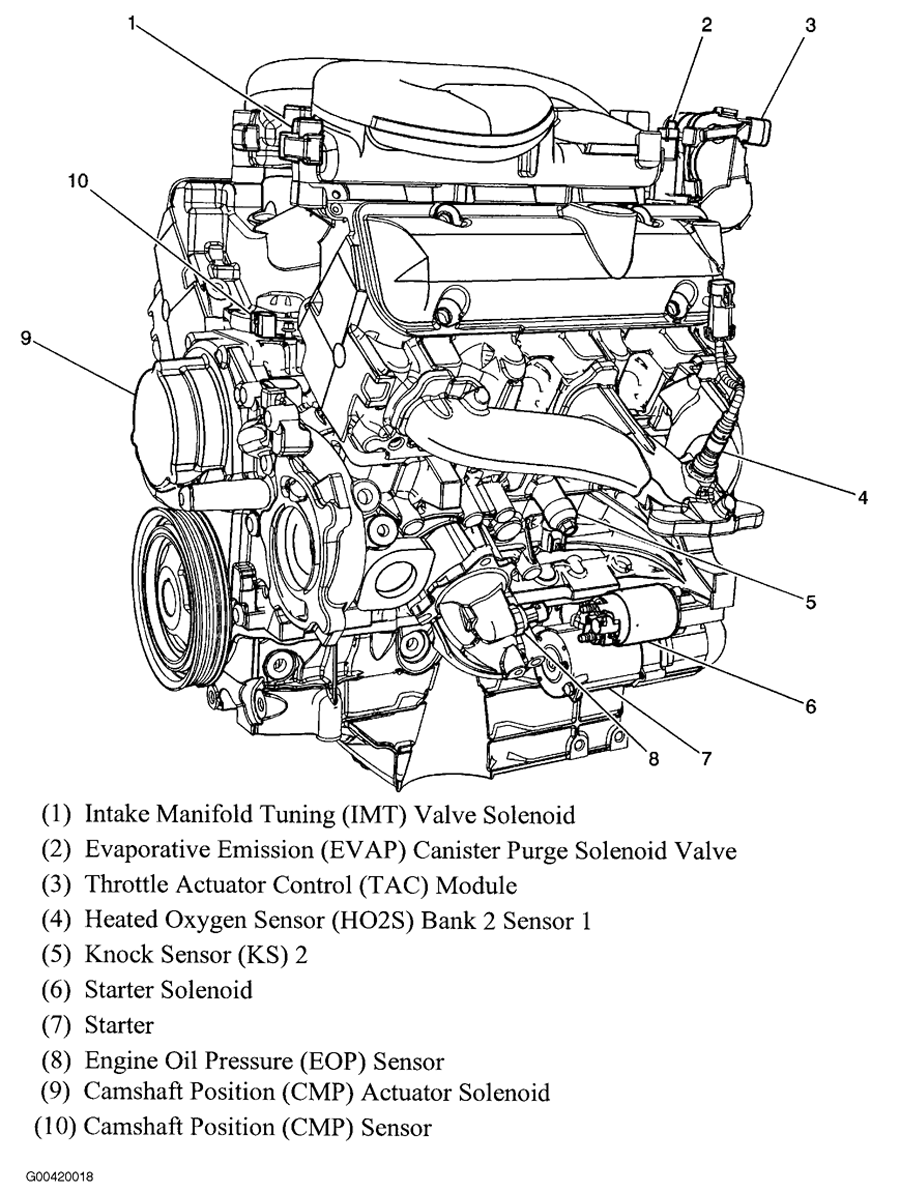

Fig 88: Top Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 89: Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

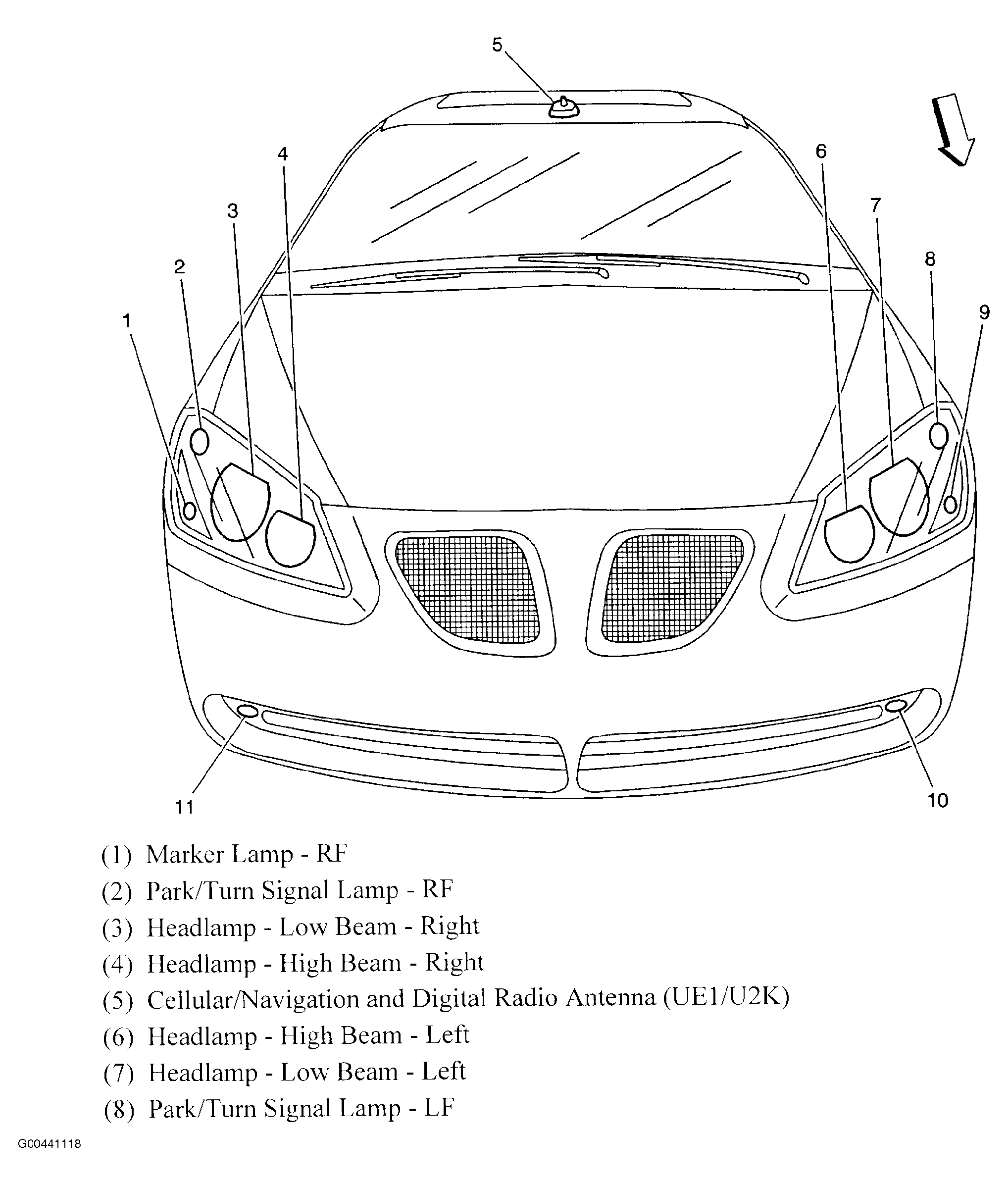

Fig 90: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 91: Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 92: Rear Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 93: Rear Compartment (Convertible)
Courtesy of GENERAL MOTORS CORP.

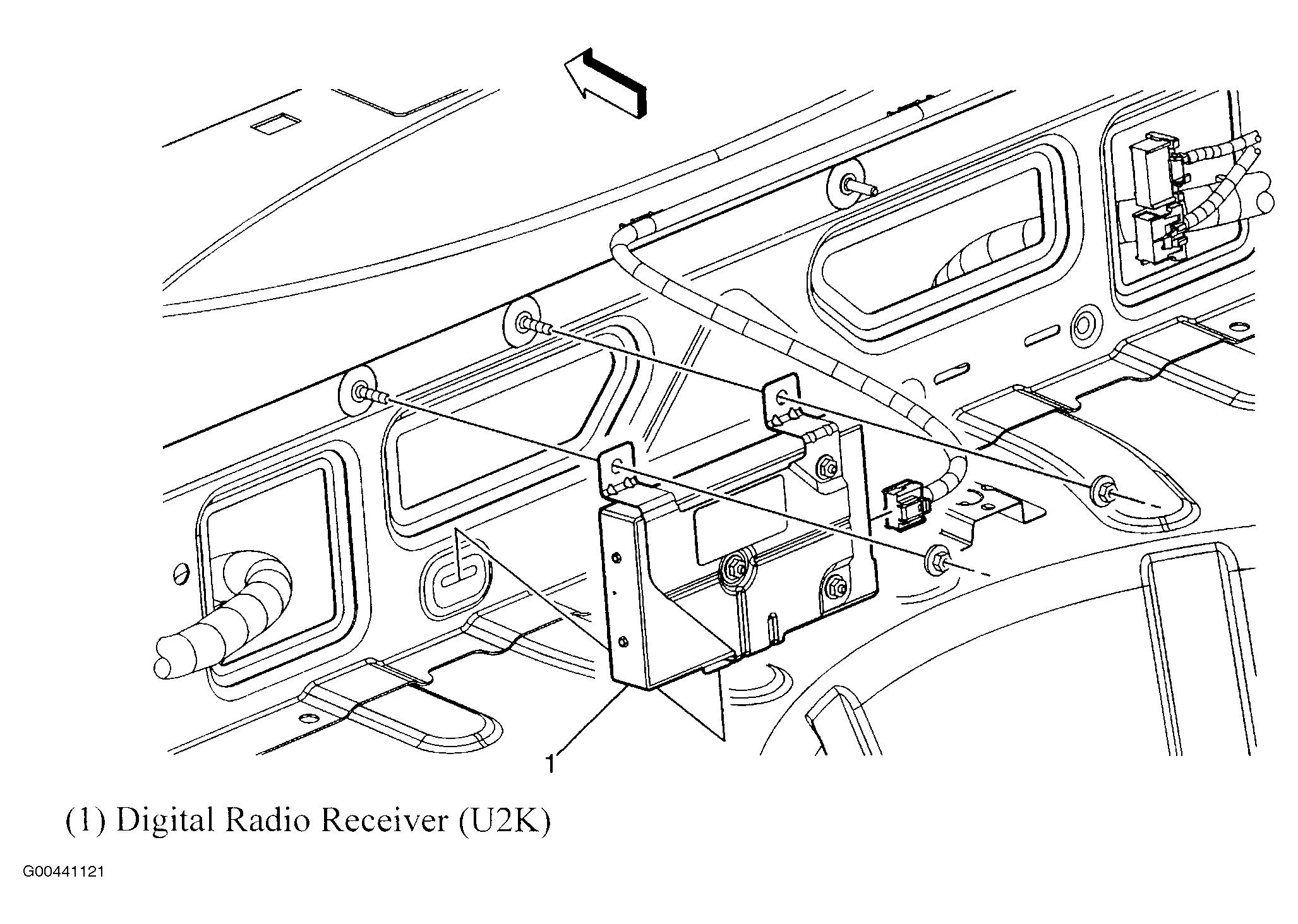

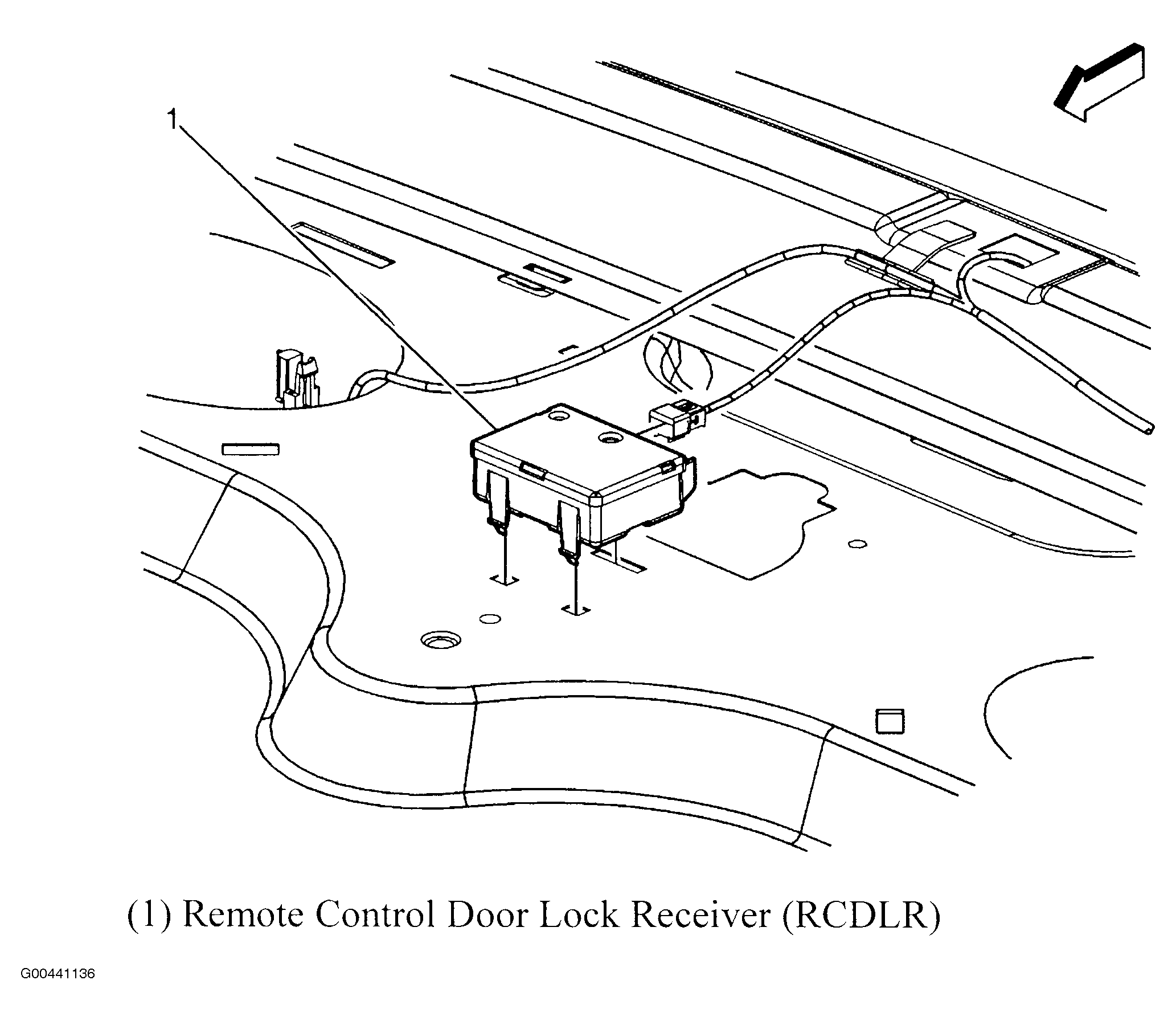

Fig 94: Rear Package Shelf (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 95: Left Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 96: Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 97: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 98: Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

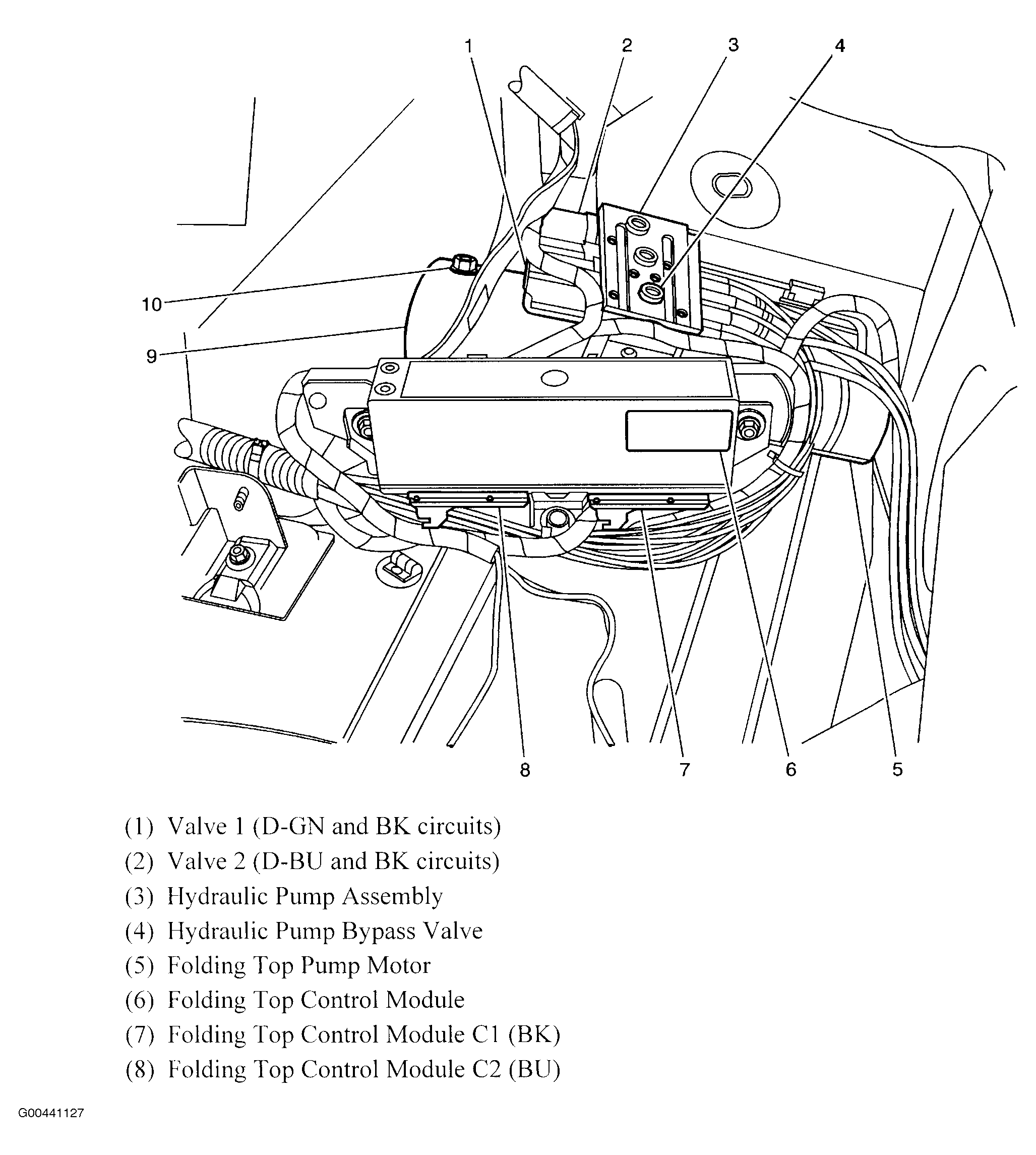

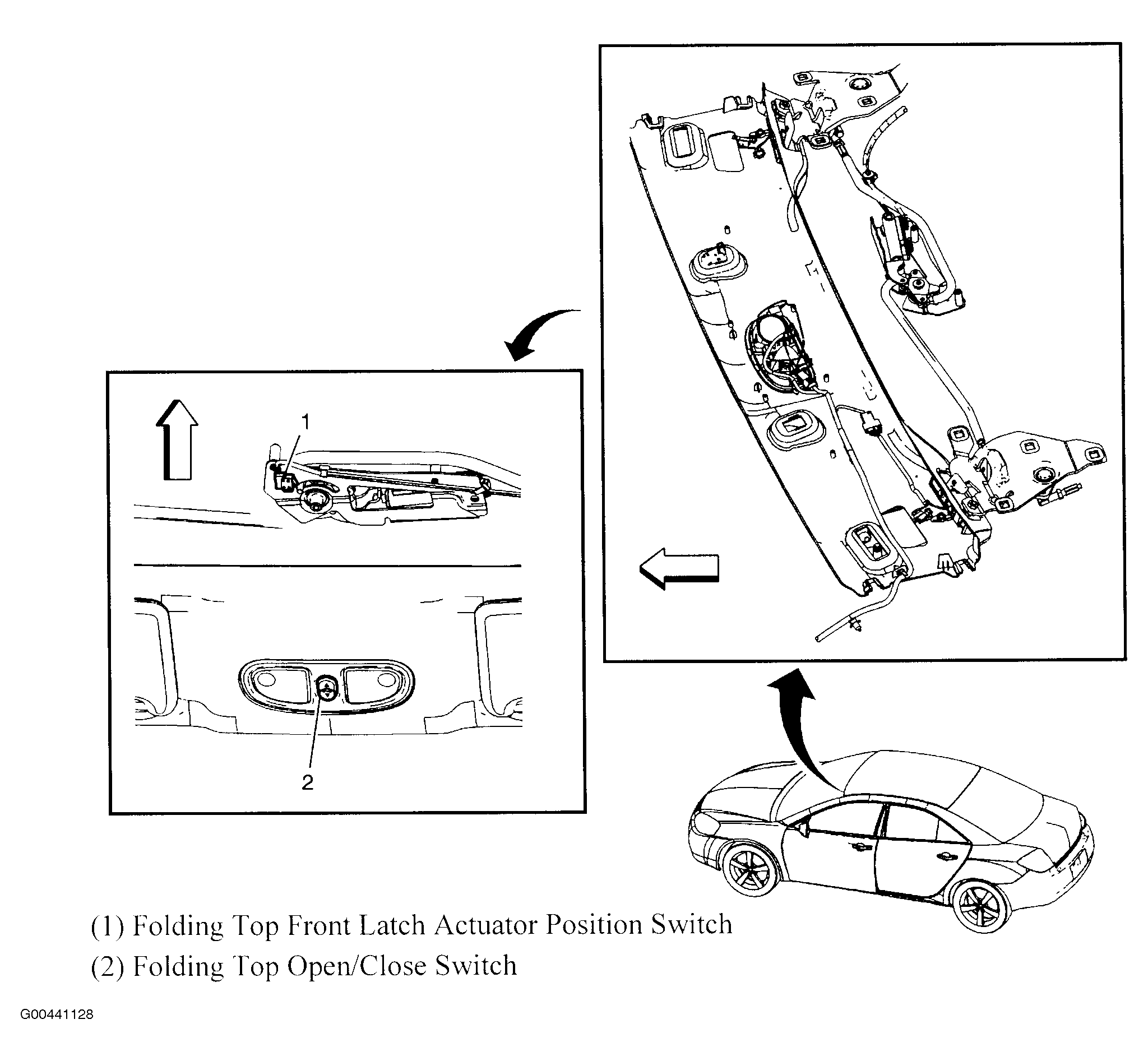

Fig 99: Folding Top Components
Courtesy of GENERAL MOTORS CORP.
Fig 100: Folding Top Components
Courtesy of GENERAL MOTORS CORP.

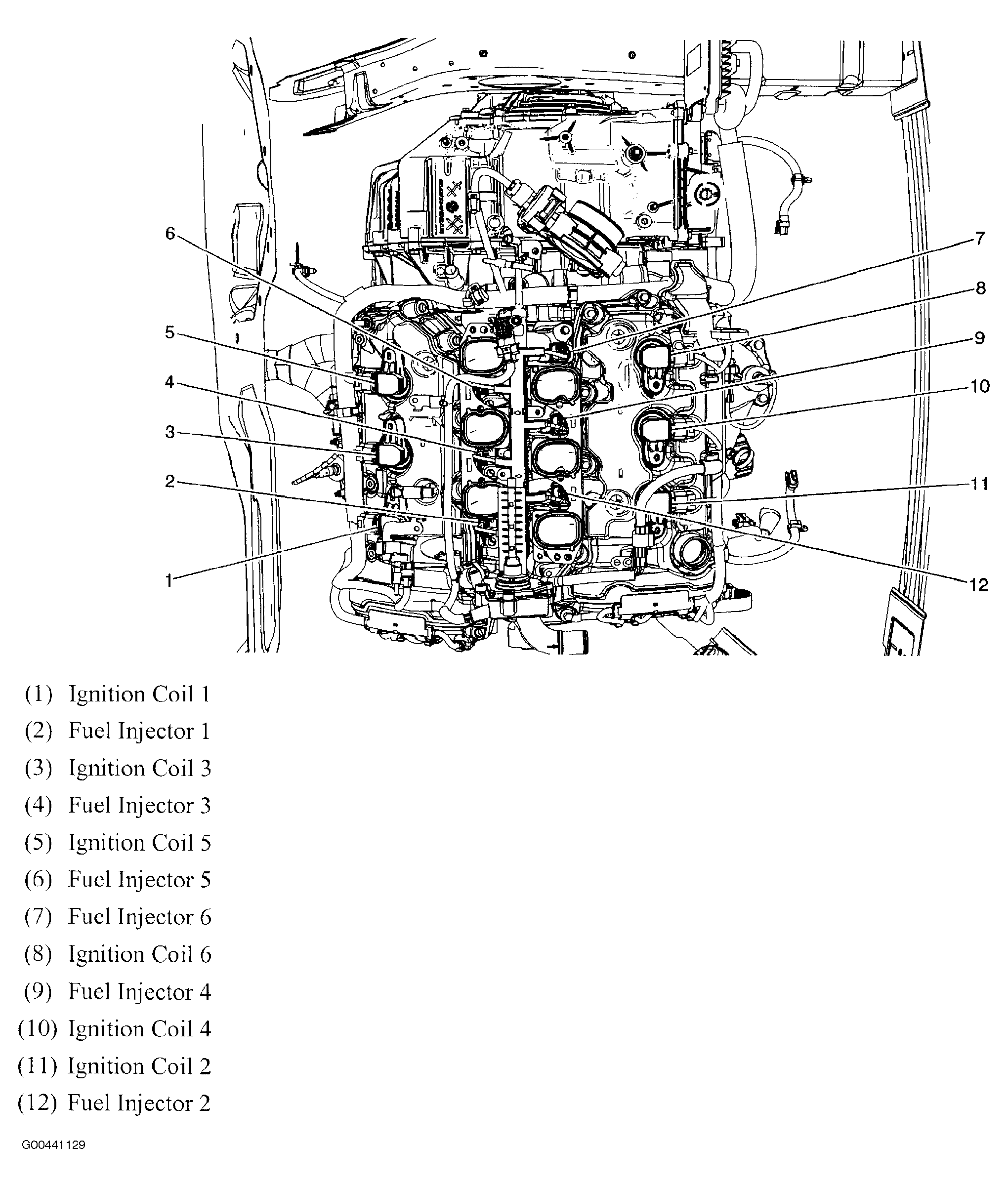

Fig 101: Top Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

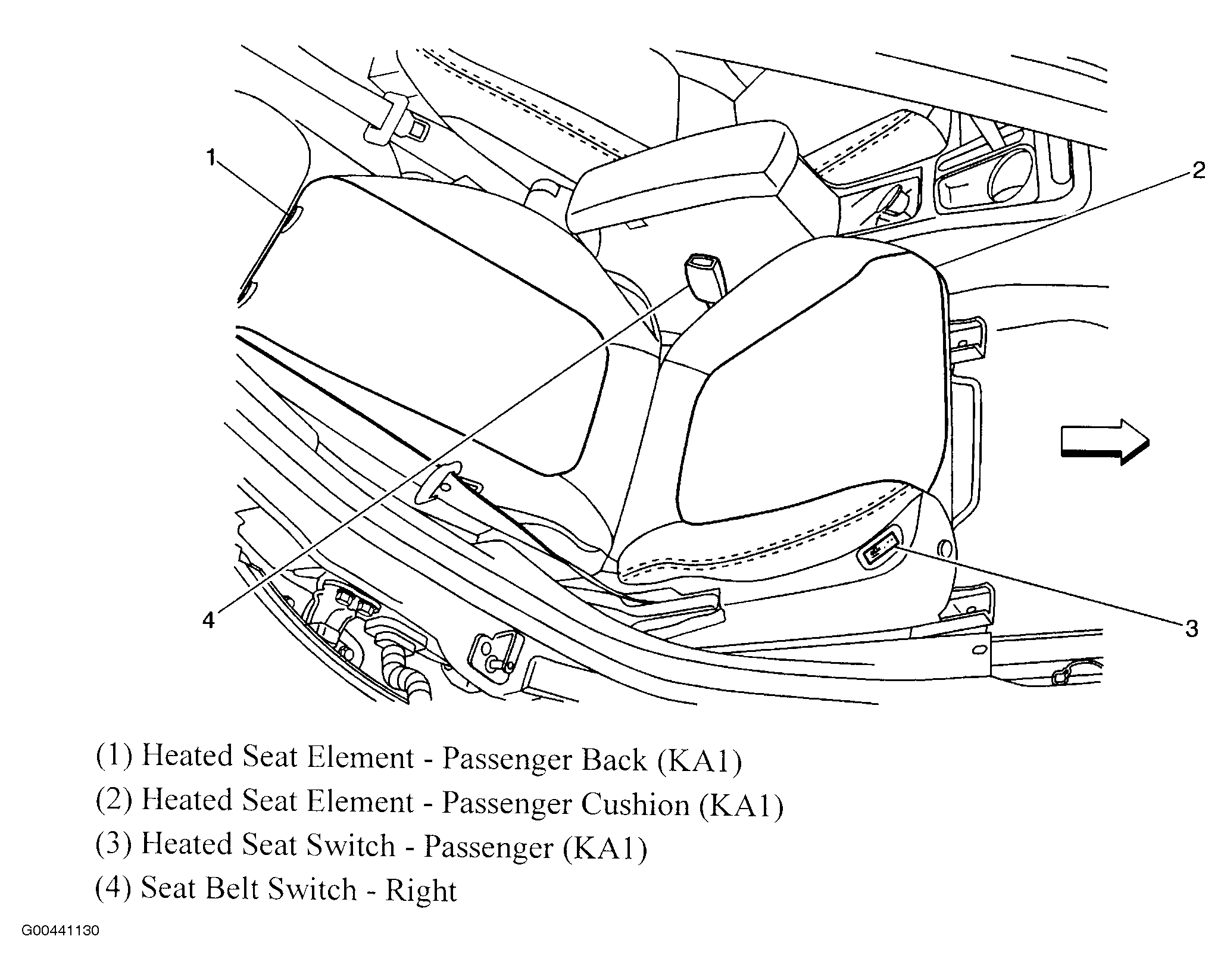

Fig 102: Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 103: Left Front Fender Well
Courtesy of GENERAL MOTORS CORP.

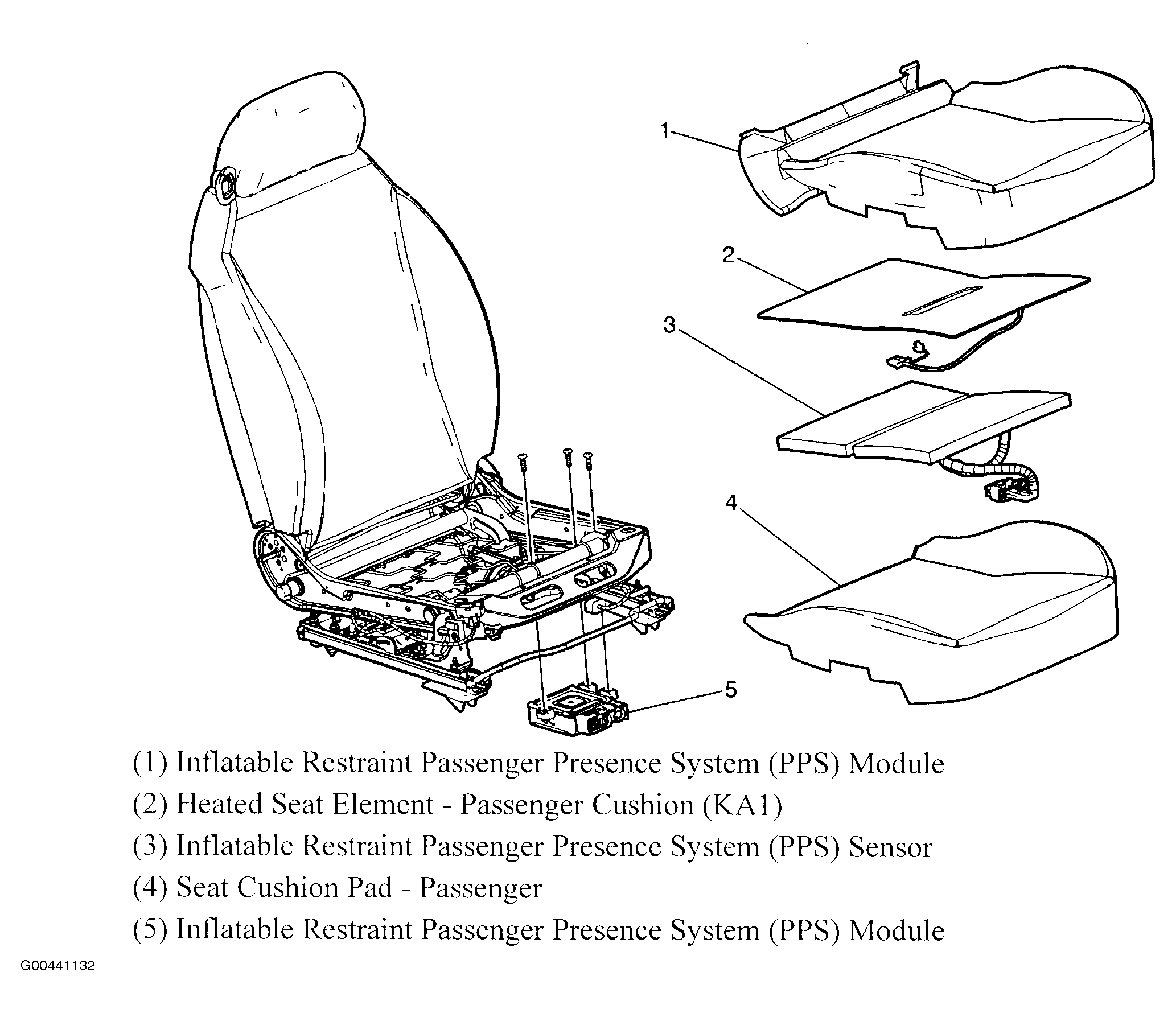

Fig 104: Front Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 105: Lower Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

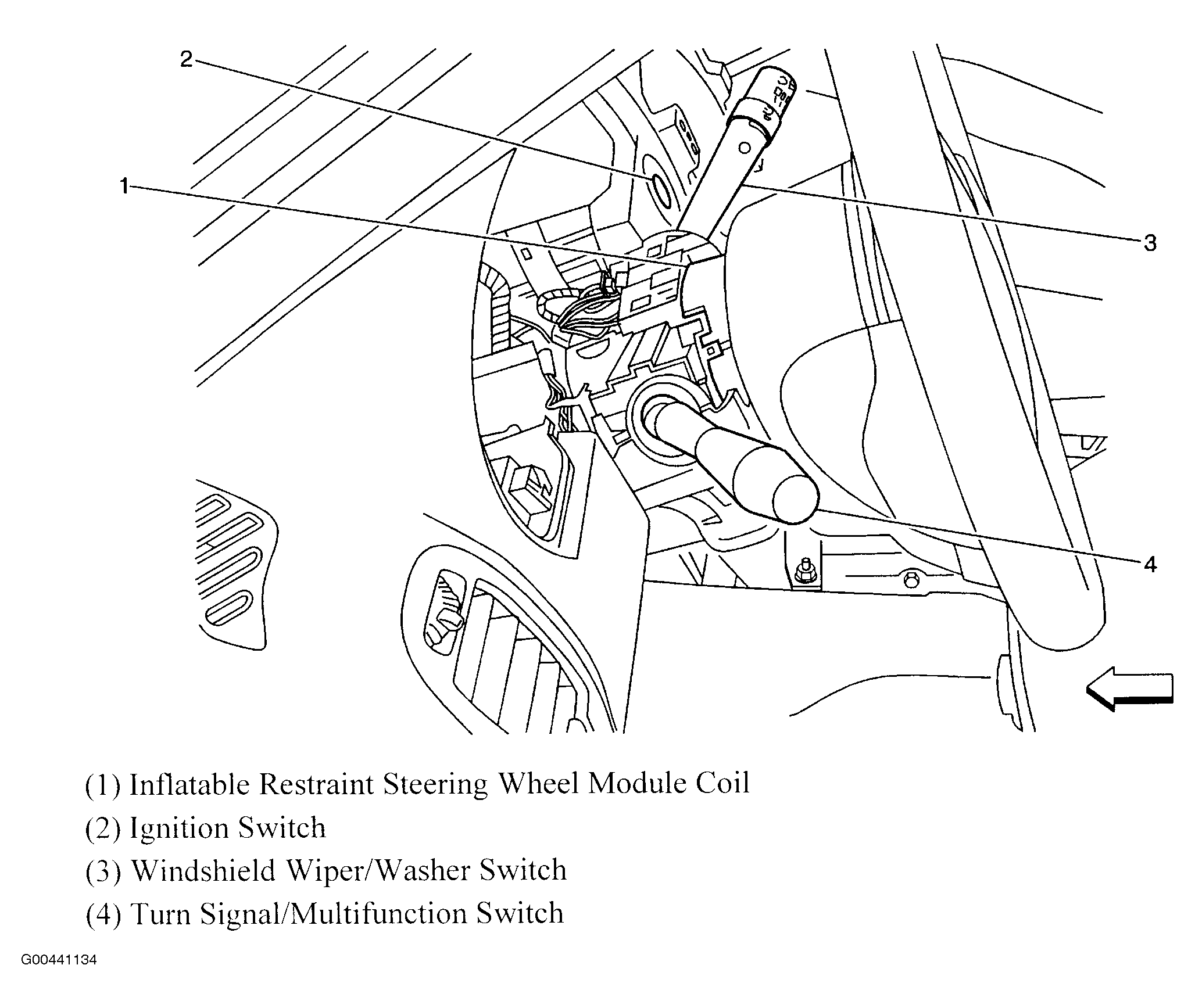

Fig 106: Top Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 107: Folding Top Components
Courtesy of GENERAL MOTORS CORP.
Fig 108: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 109: Driver Seat
Courtesy of GENERAL MOTORS CORP.

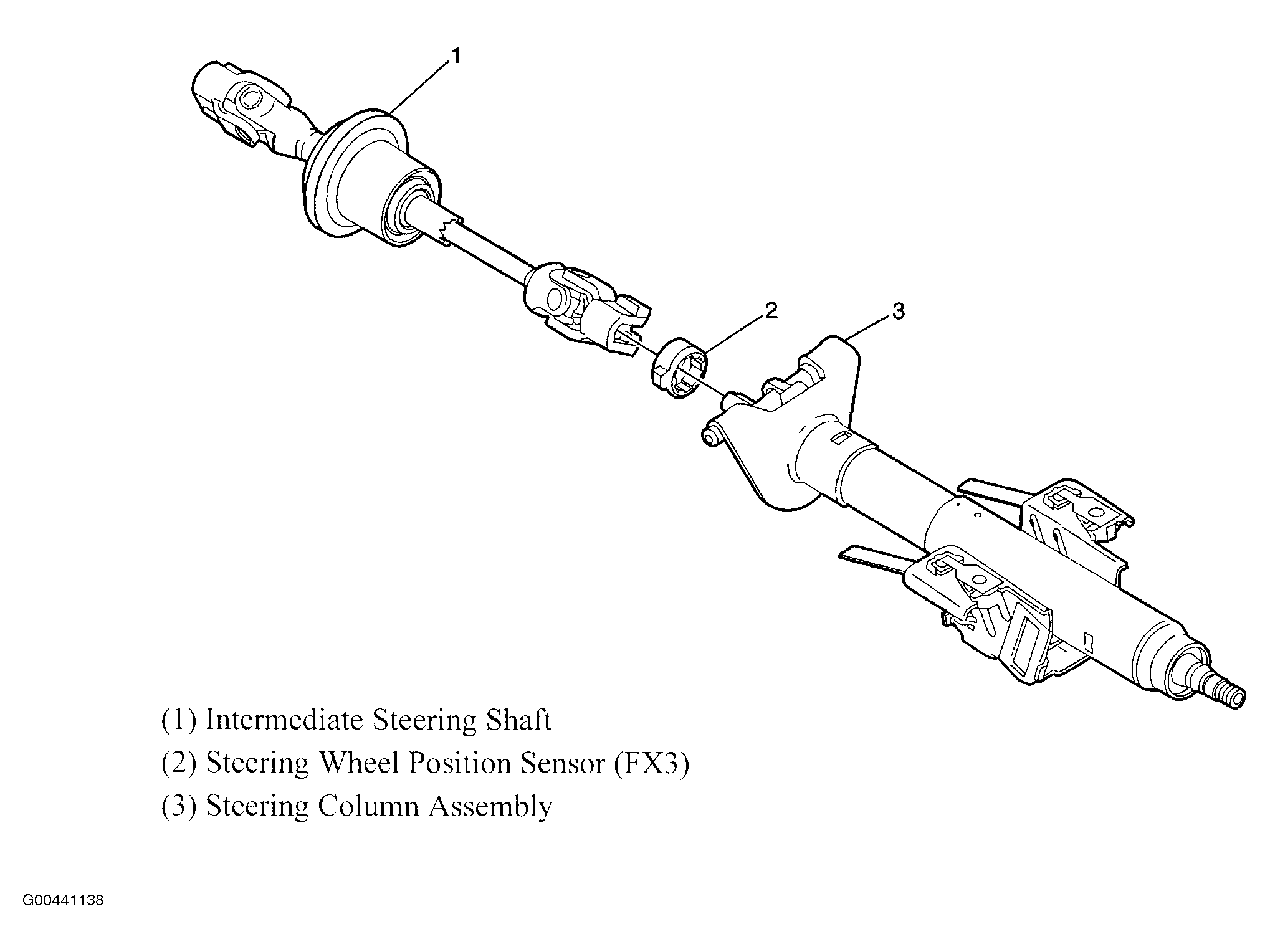

Fig 110: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.

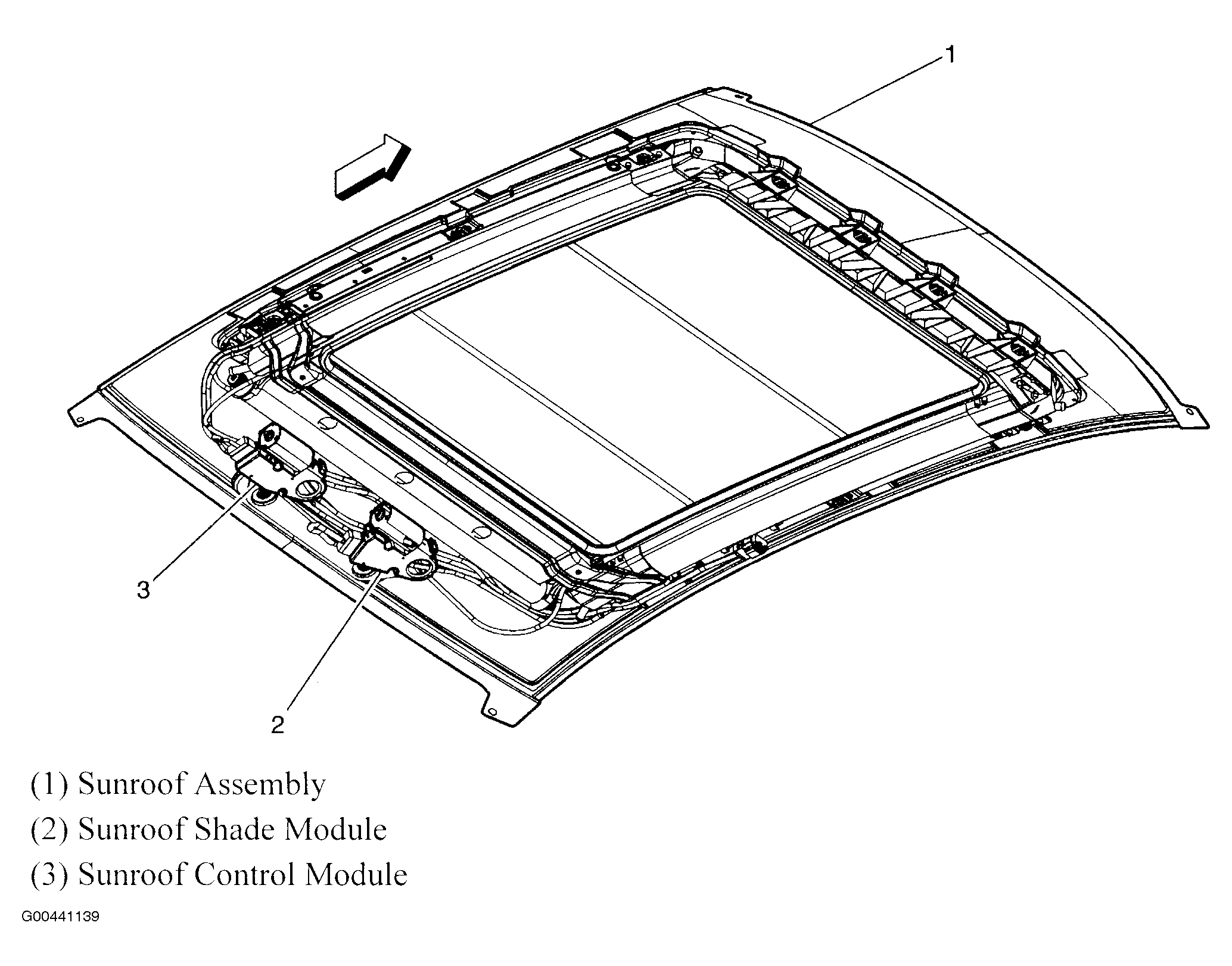

Fig 111: Sunroof Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 112: Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

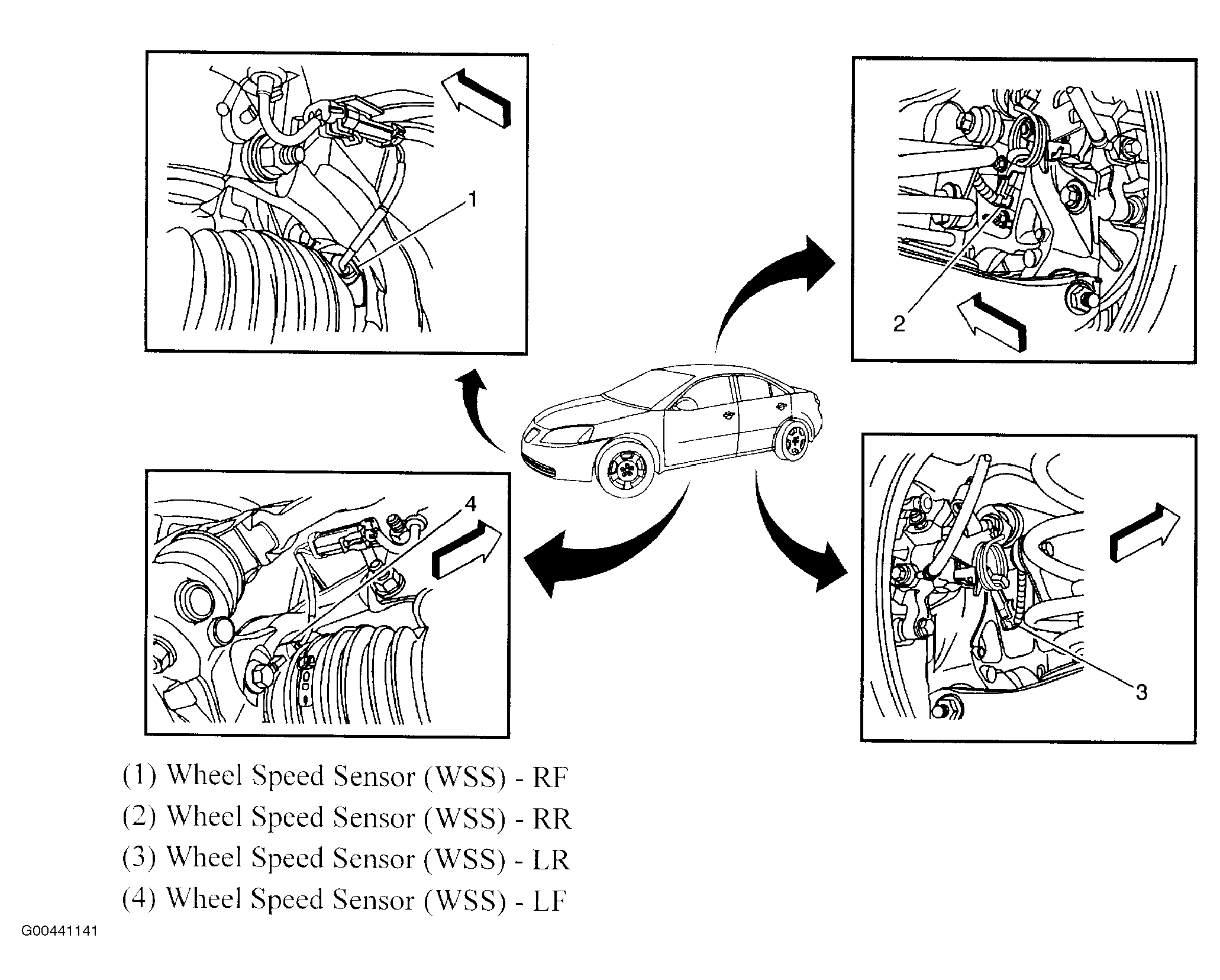

Fig 113: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

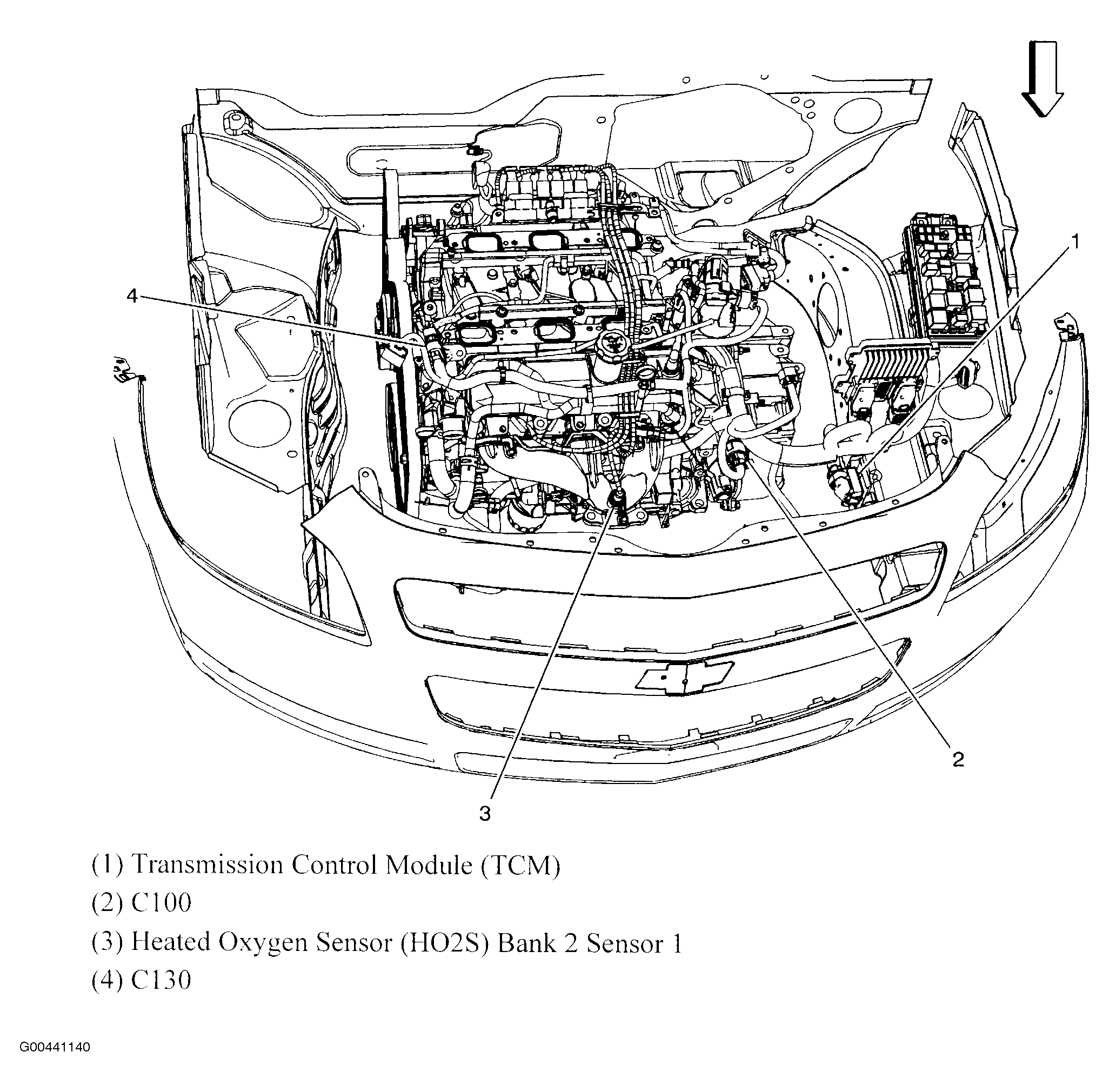

Fig 114: Engine Compartment (Coupe)
Courtesy of GENERAL MOTORS CORP.
Fig 115: Left Side Of Core Support
Courtesy of GENERAL MOTORS CORP.

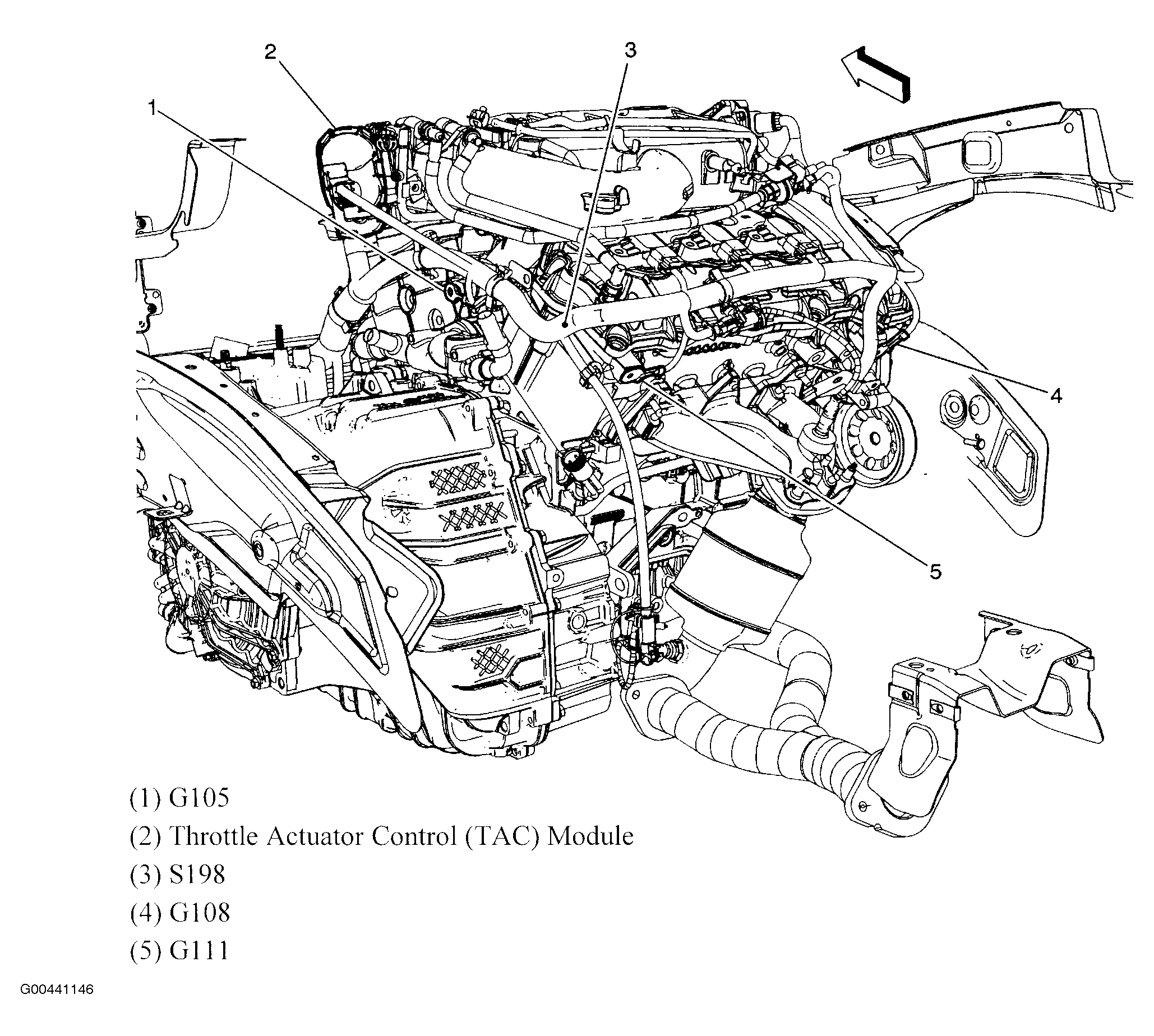

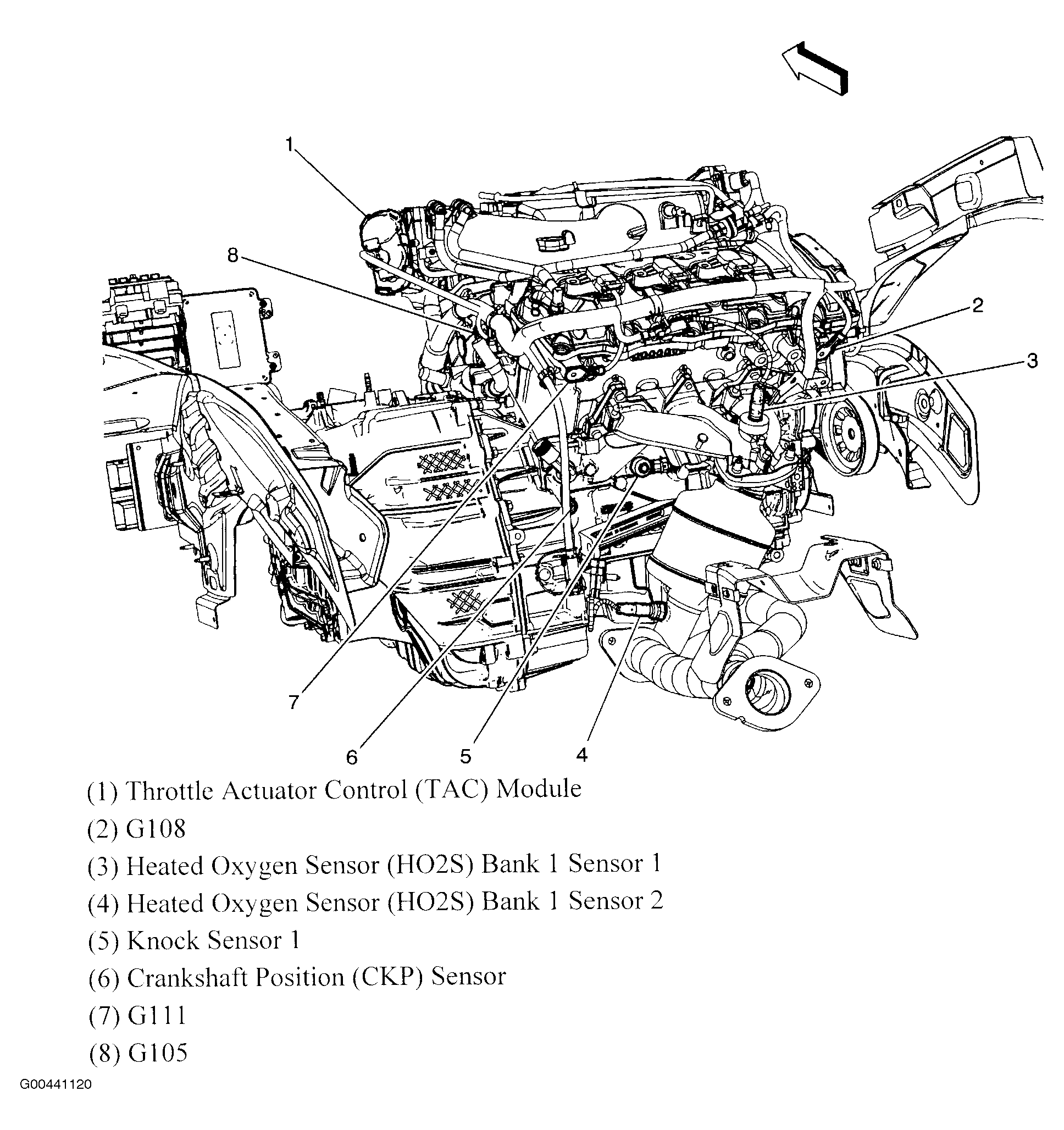

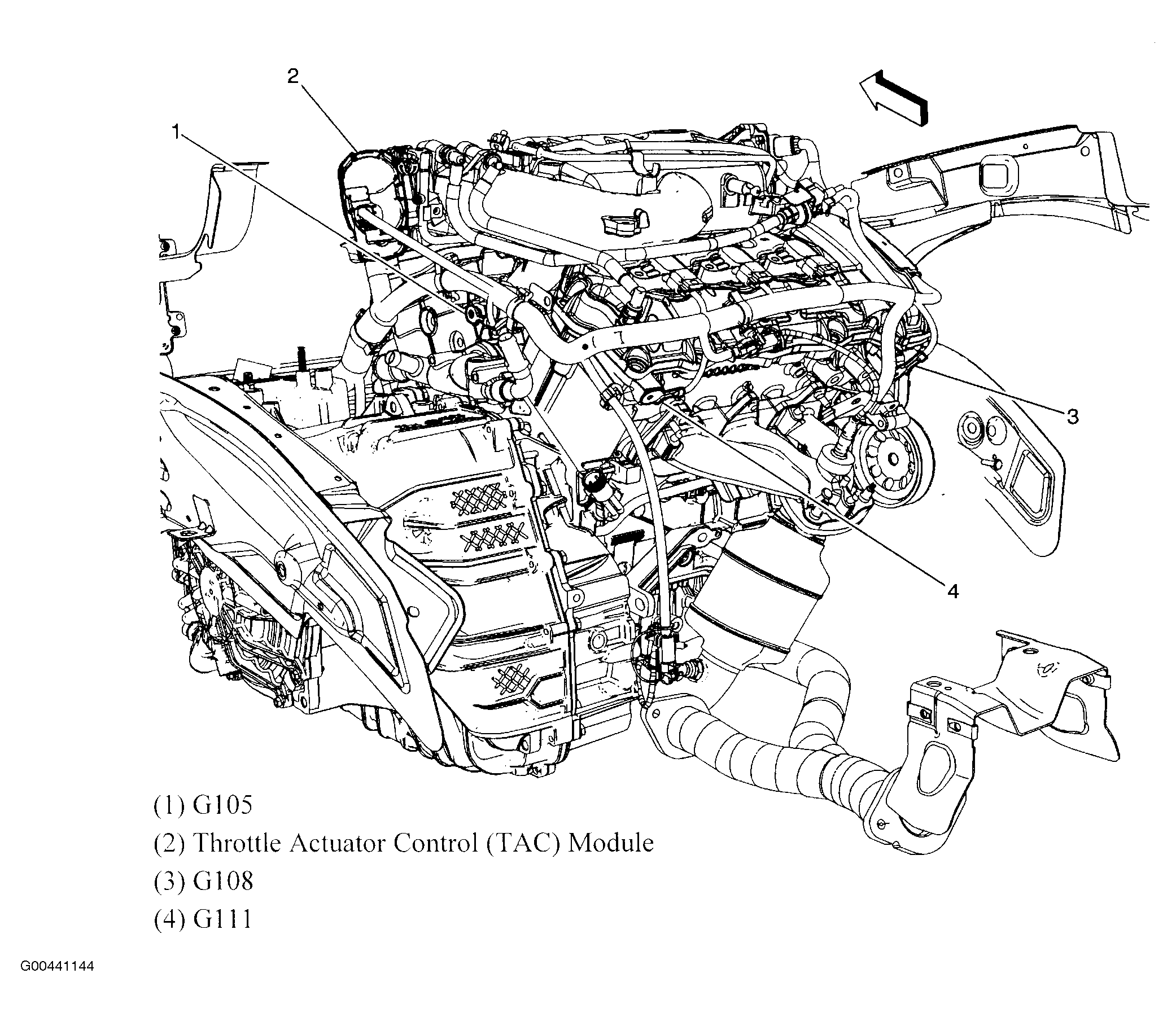

Fig 116: Grounds G105, G108, & G111 (3.6L)
Courtesy of GENERAL MOTORS CORP.

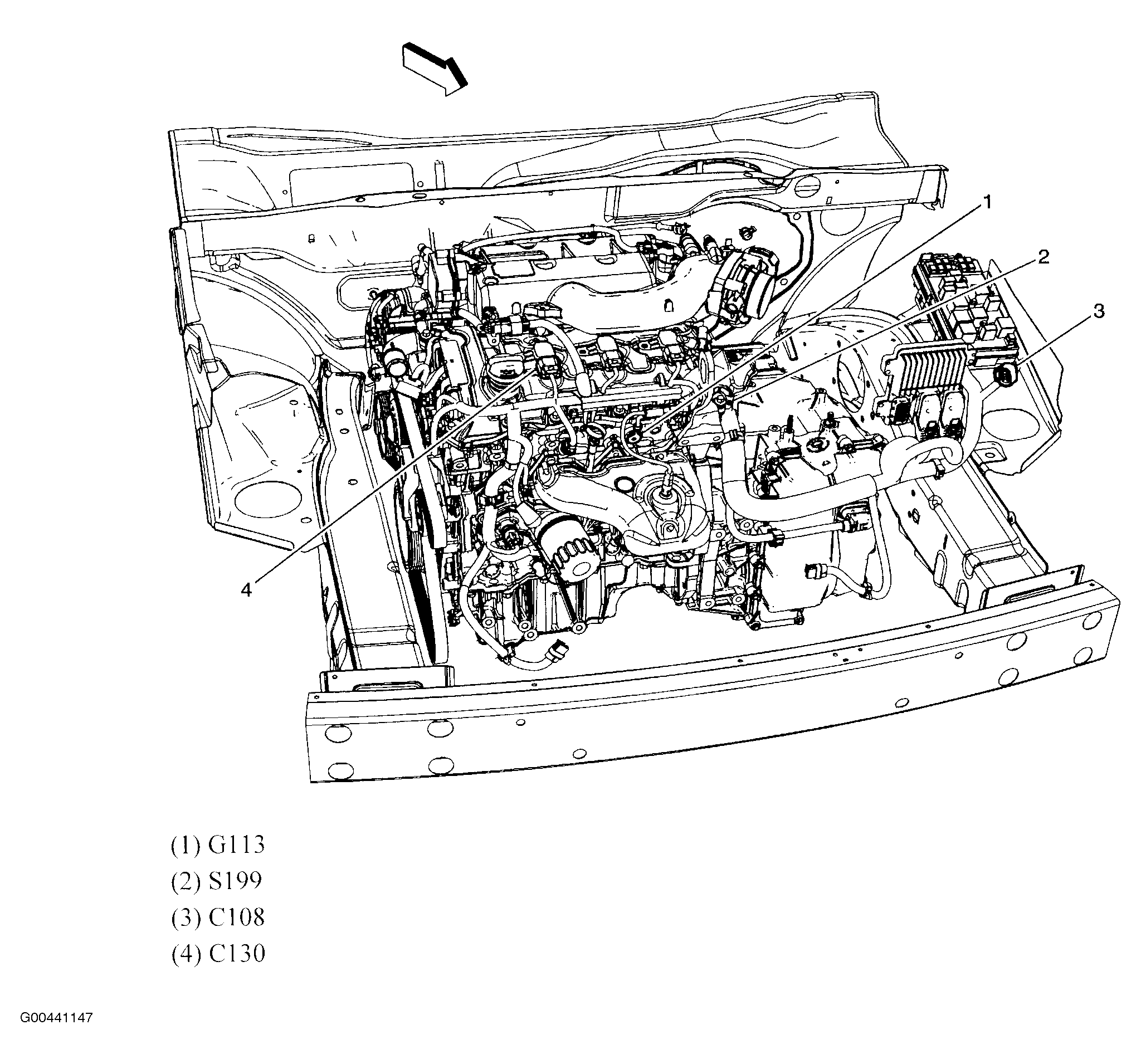

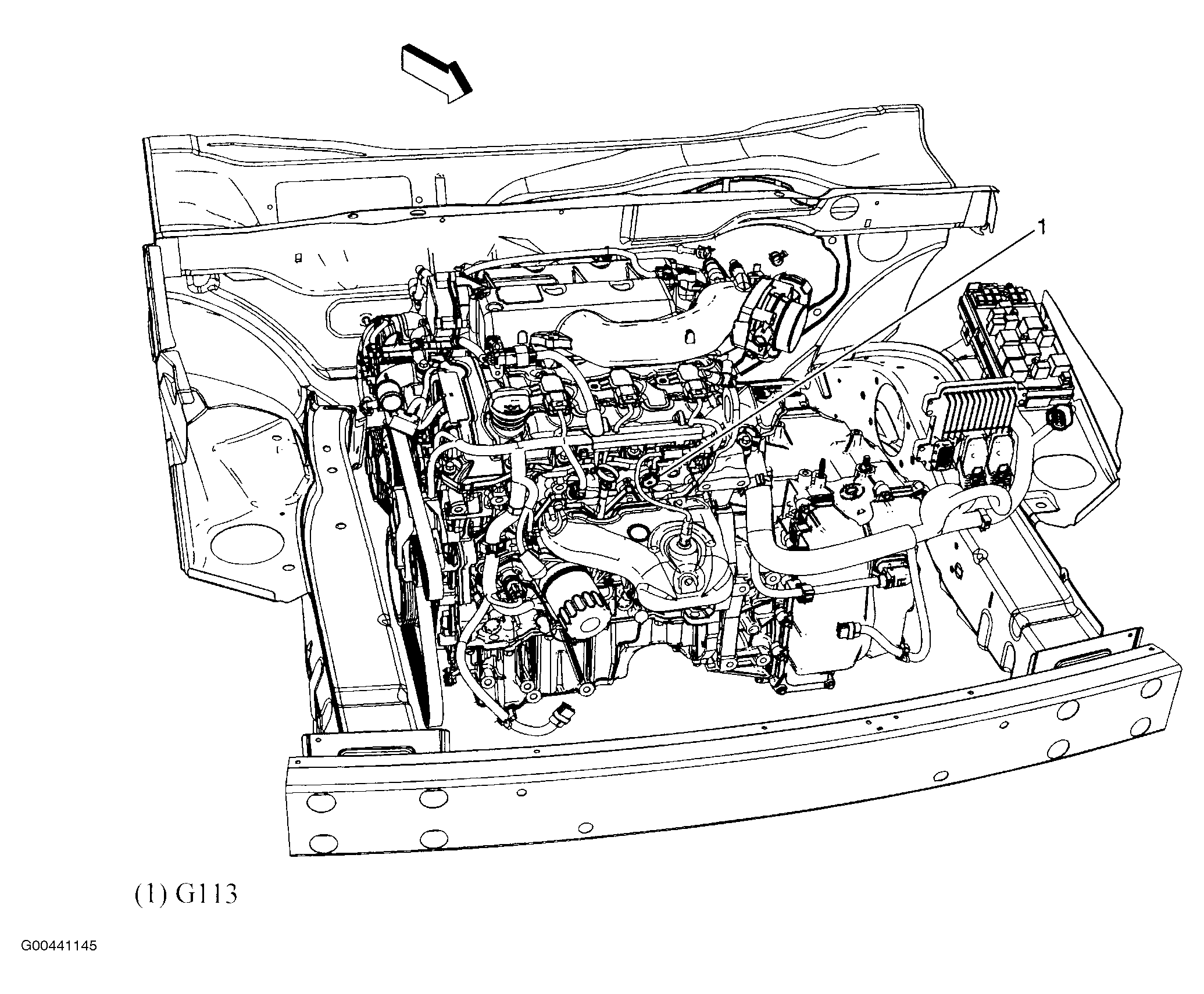

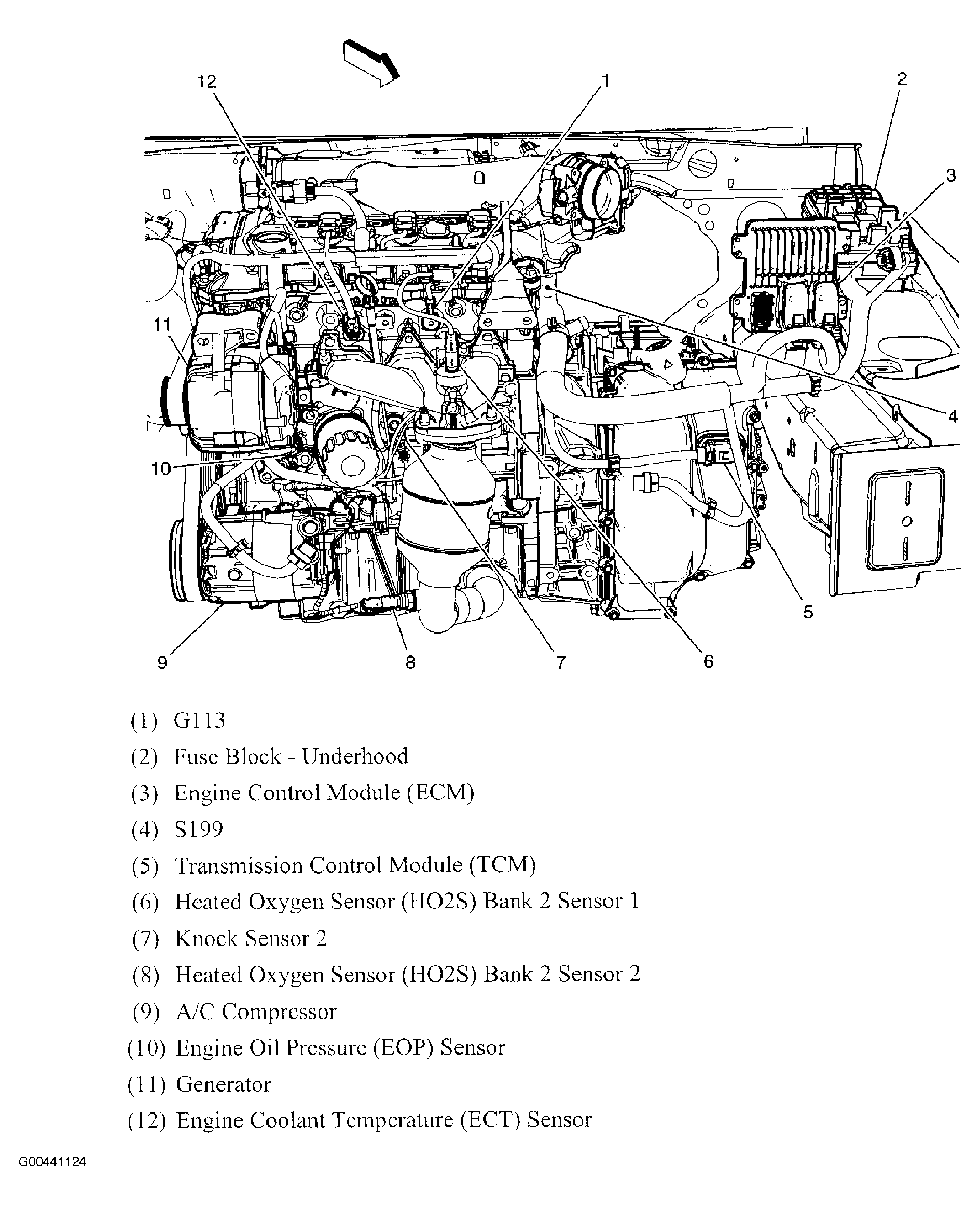

Fig 117: Ground G113 (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 118: Rear Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 119: Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

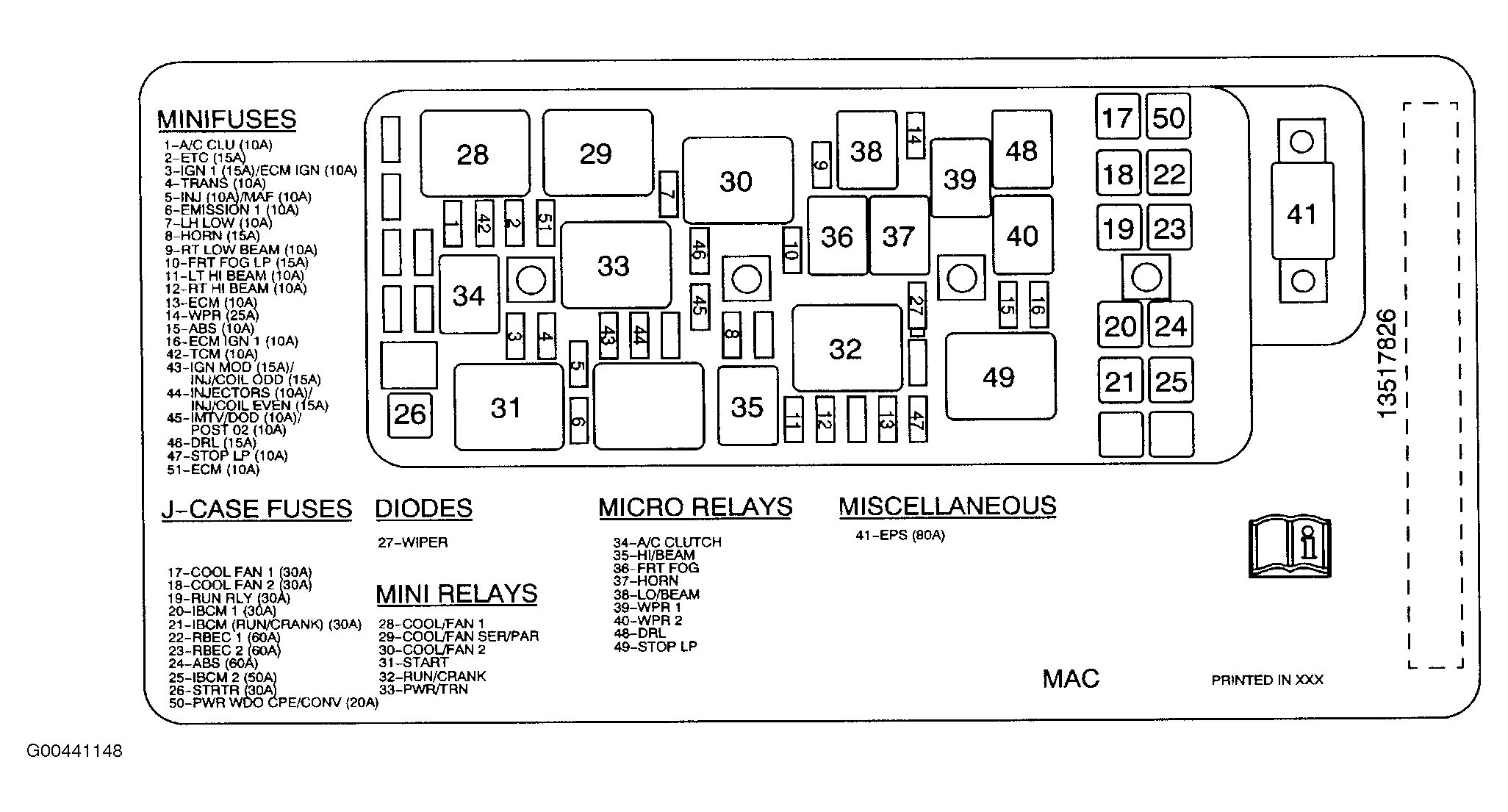

Fig 120: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

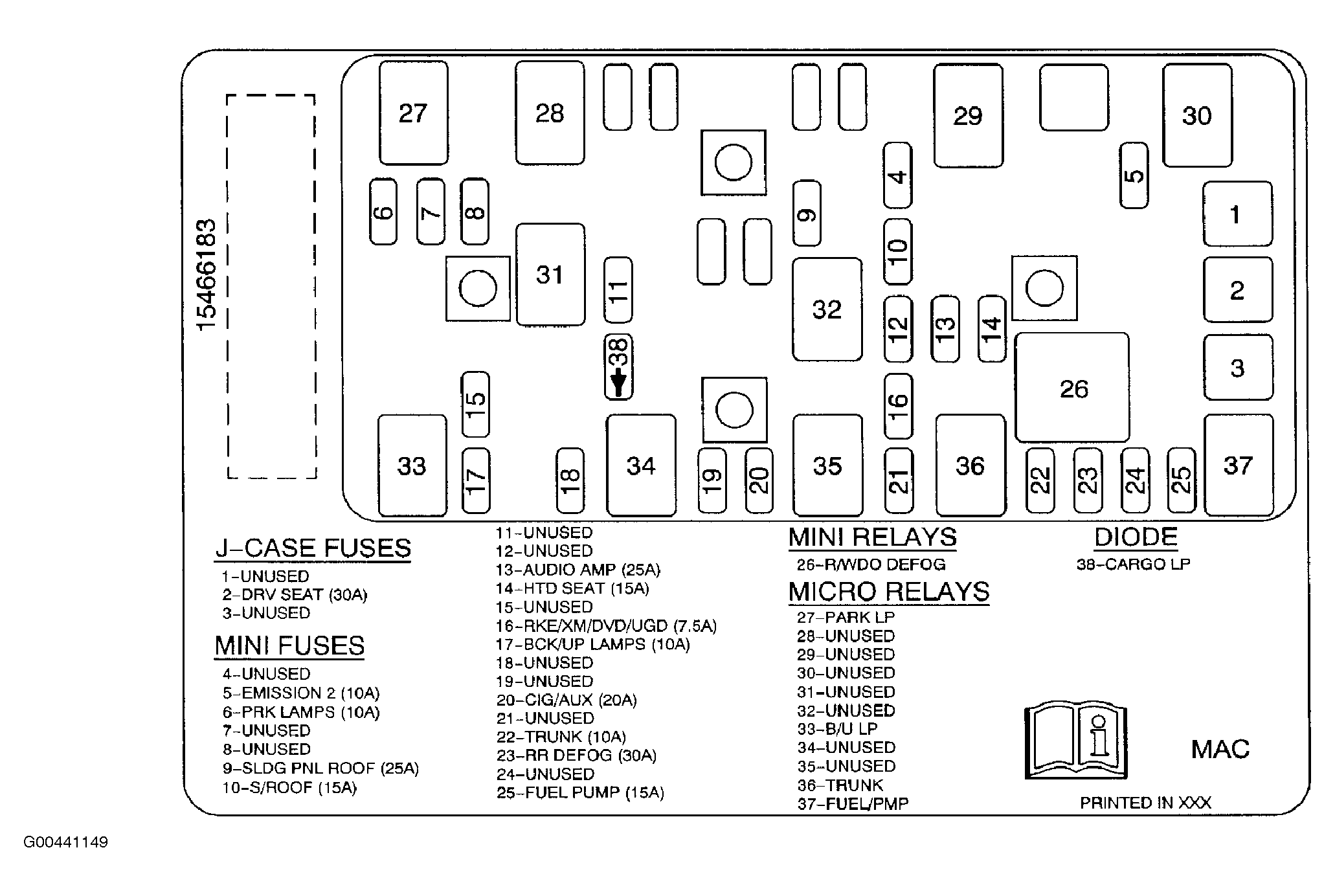

Fig 121: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
