Remote Function Component Views
Remote Function Component Views

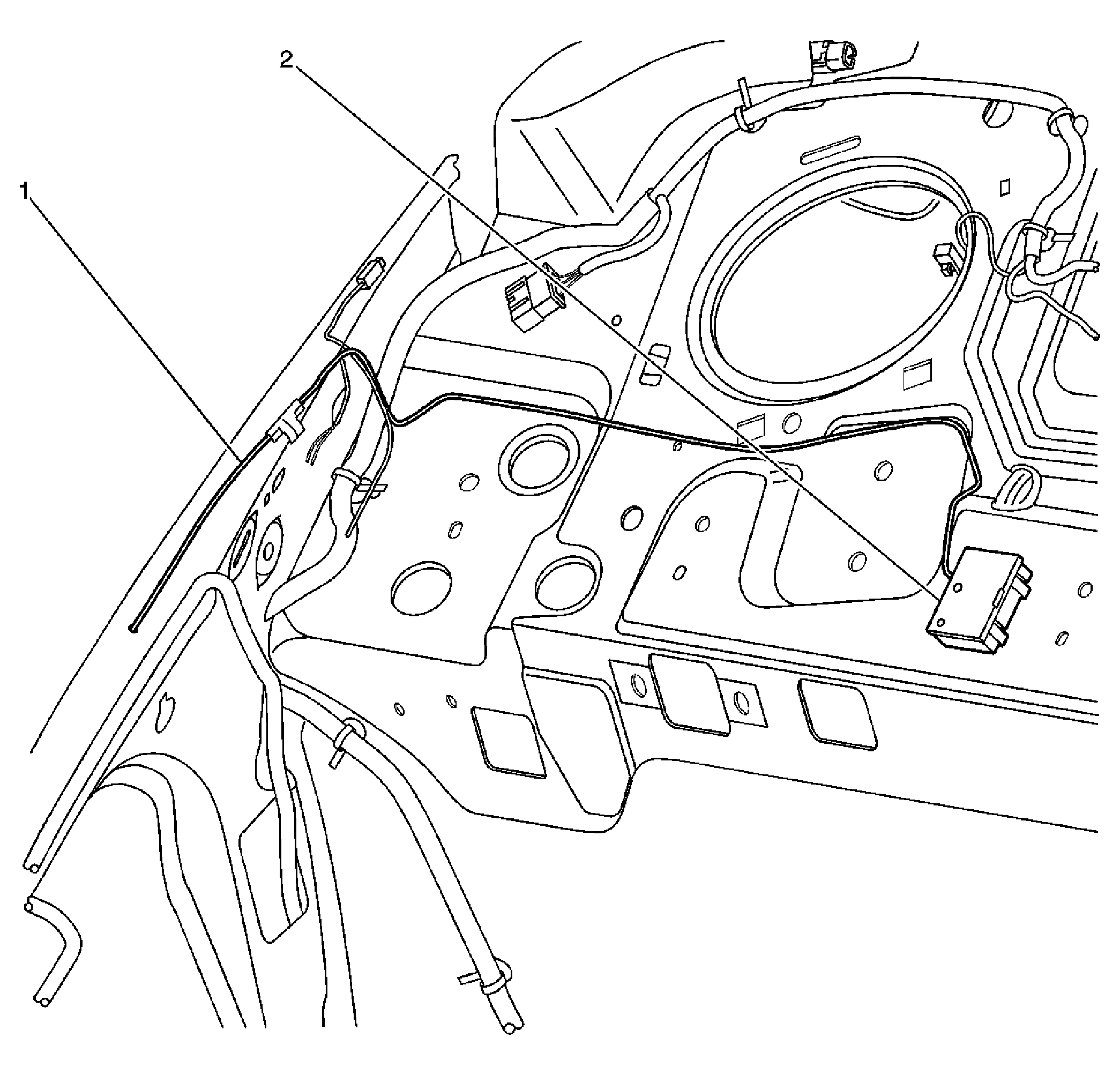

Fig 1: Right Top of Package Shelf
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Rear Window Antenna Grid
2
Remote control Door Lock Receiver (RCDLR)
