Mirror Component Views

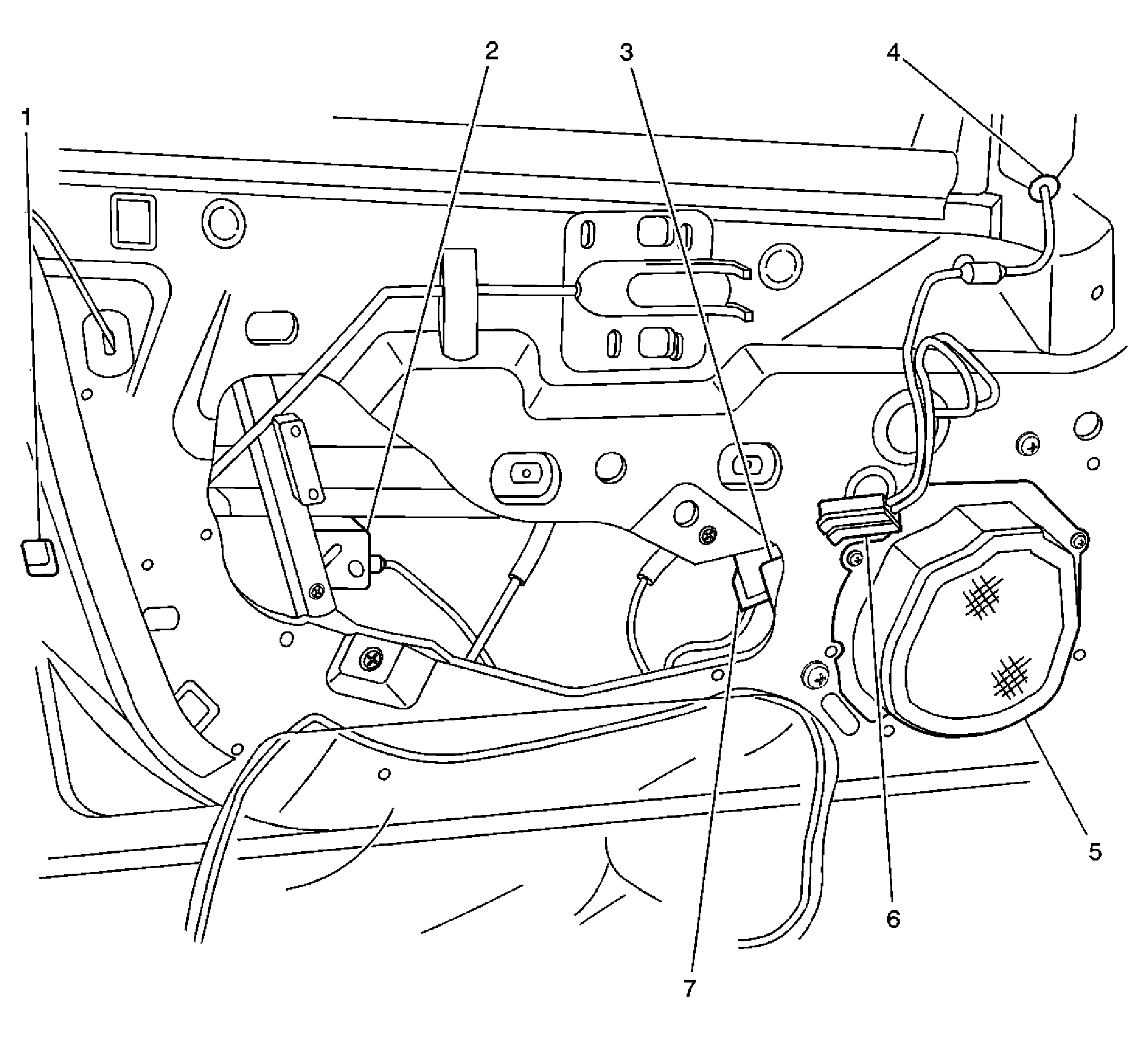

Fig 1: Driver Door Component Views

GM1211800

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock - Driver
2	Inflatable Restraint Side Impact Sensor - Left (AY1)
3	Window Motor - Driver
4	Outside Rearview Mirror - Driver
5	Speaker - LF Door
6	C303
7	S305

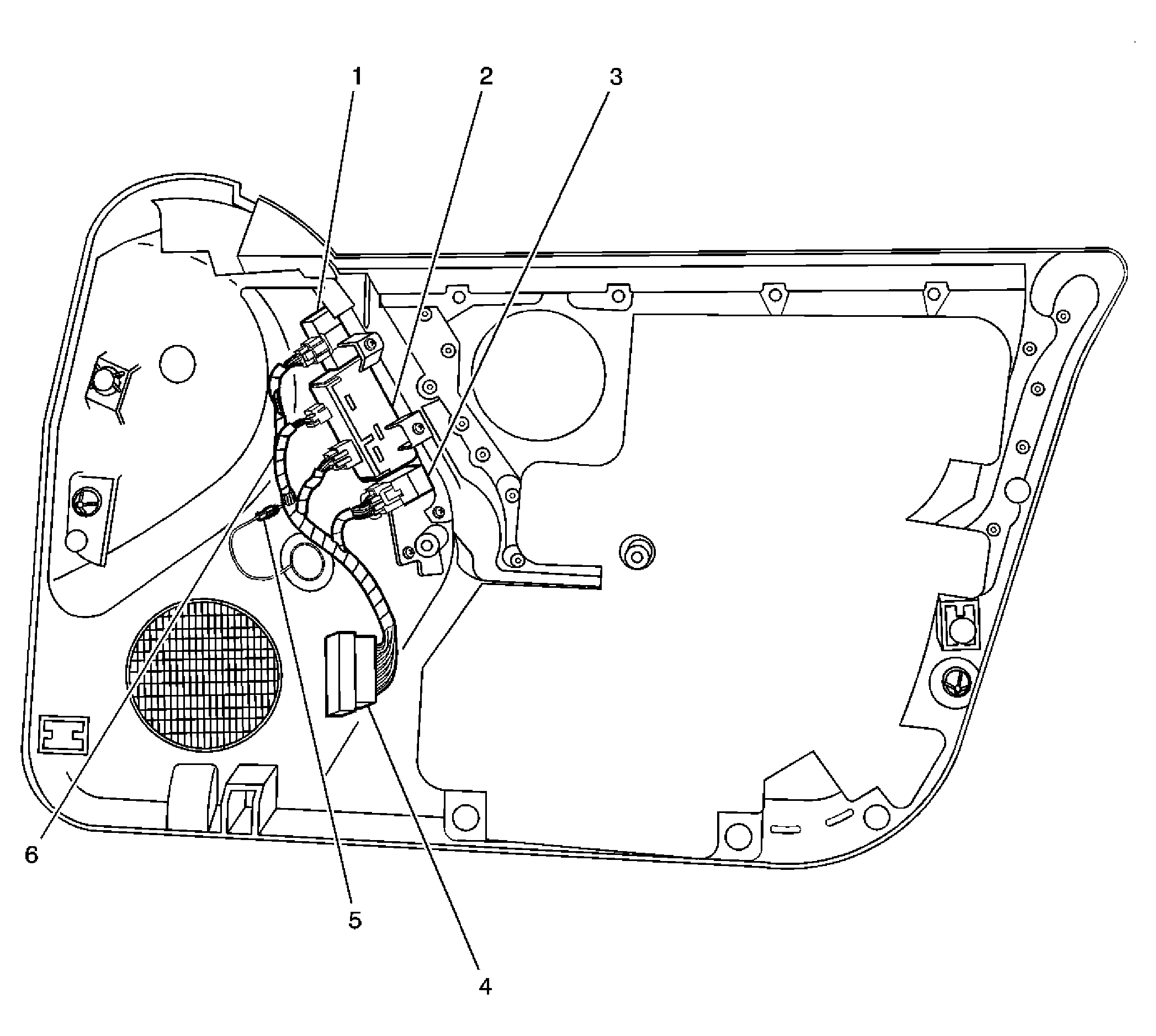

Fig 2: Driver Door Trim Component Views

GM1211801

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Window Switch - Driver
3	Door Lock Switch - Driver
4	C303
5	Speaker - LF Door Tweeter Connector
6	S304

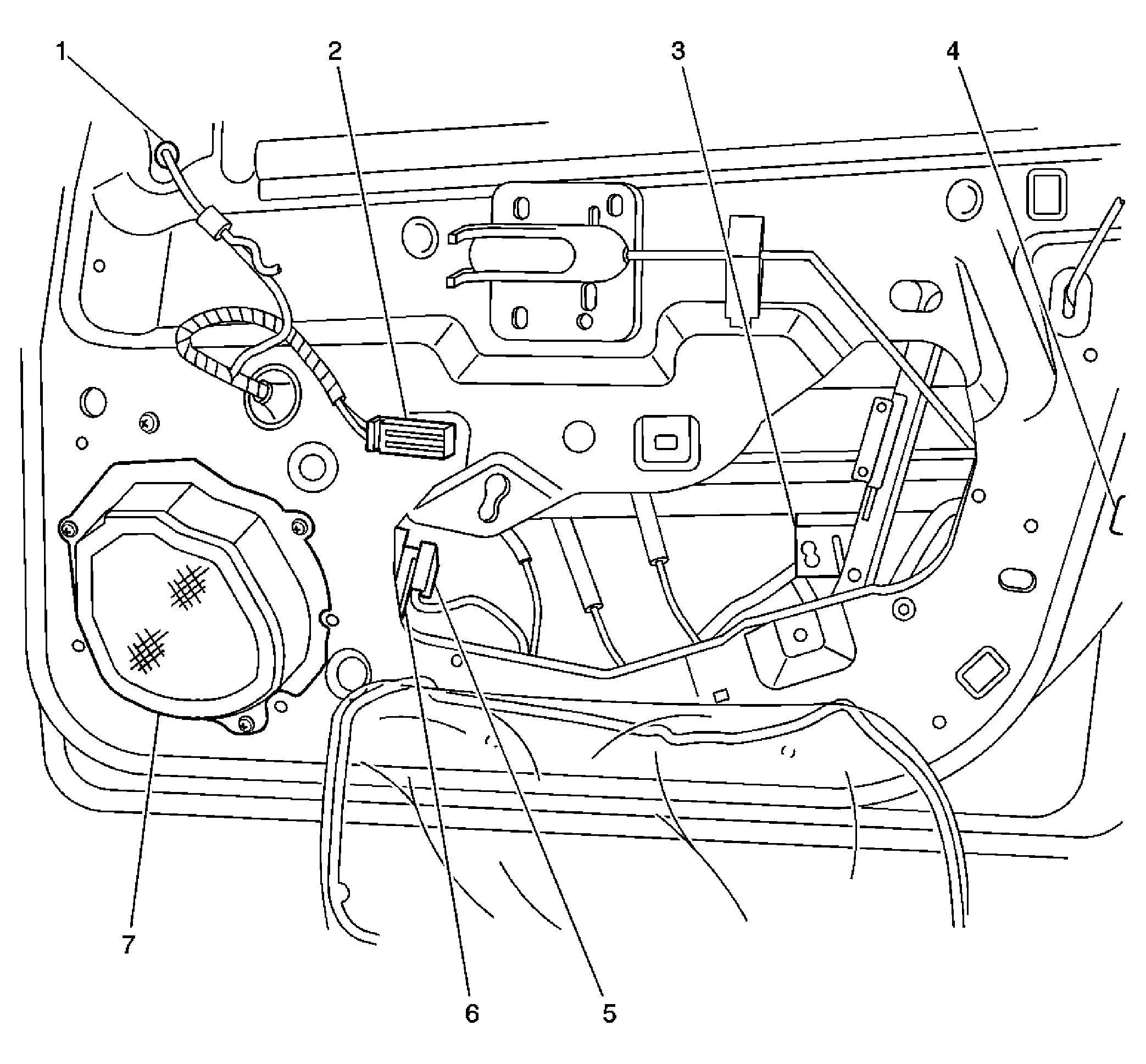

Fig 3: Front Passenger Door Component Views

GM1211803

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	C304
3	Inflatable Restraint Side Impact Sensor - Right (AY1)
4	Door Lock - Front Passenger
5	Window Motor - Front Passenger
6	S604
7	Speaker - RF Door

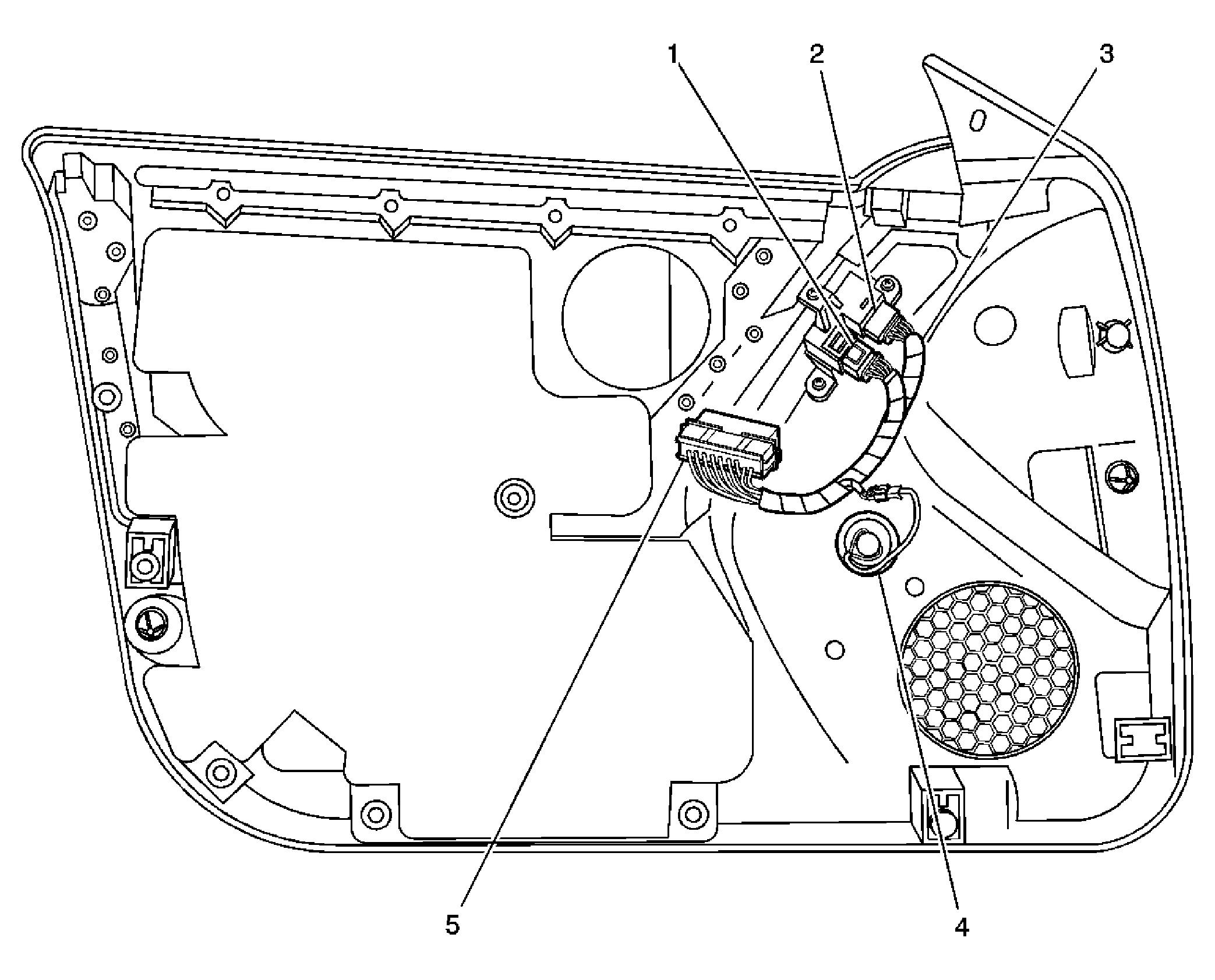

Fig 4: Front Passenger Door Trim Component Views

GM1211804

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Front Passenger
2	Window Switch - Front Passenger
3	S605
4	Speaker - RF Door Tweeter
5	C304
