Power Outlet Component Views

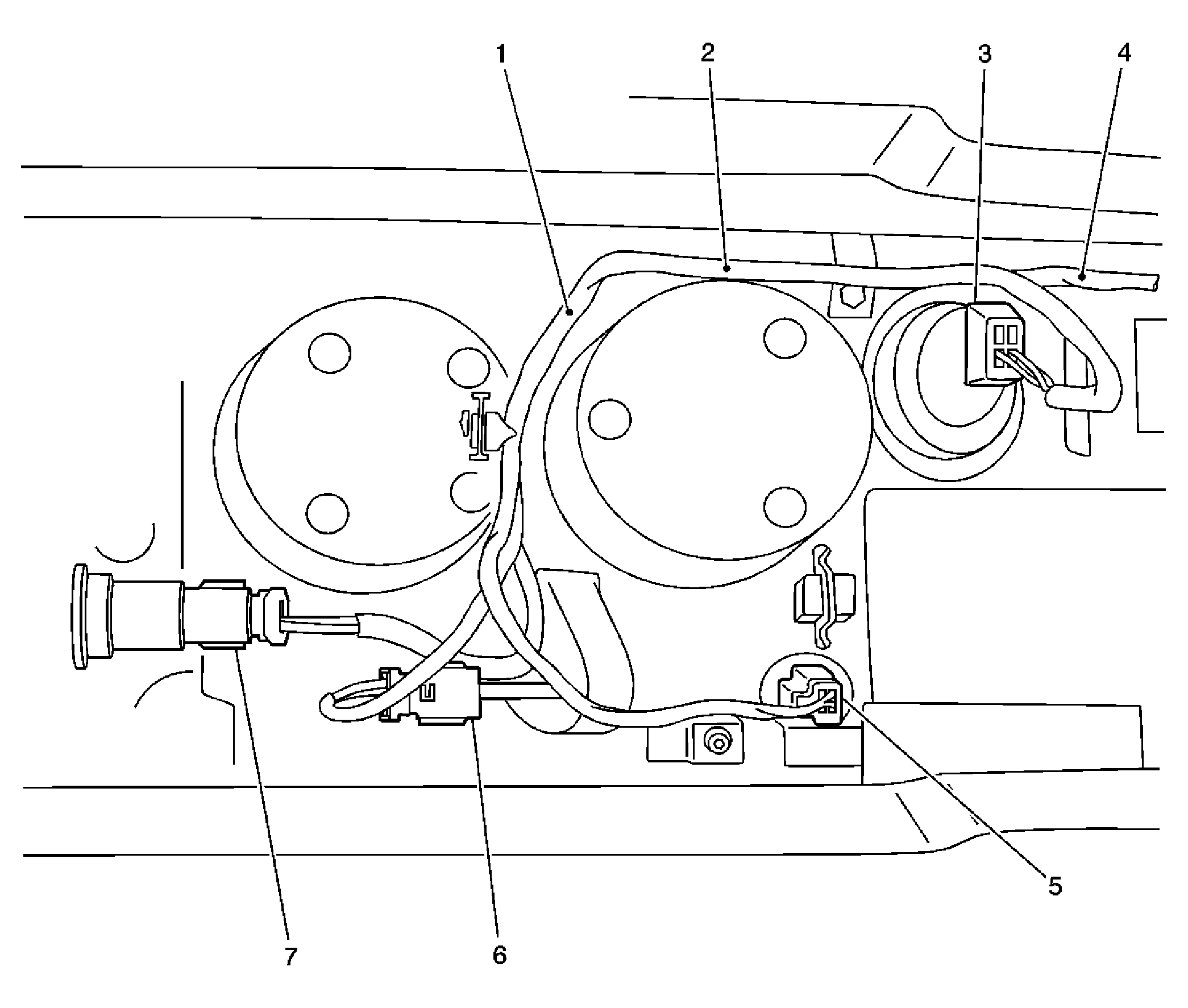

Fig 1: Under the Floor Console Component Views
GM1230318Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S238
2 S231
3 Head Up Display (HUD) Switch
4 S374
5 Traction Control Switch
6 Accessory Power Outlet - Front
7 Accessory Power Outlet - Rear
