Engine Electrical Component Views

Fig 1: View Of Above and Forward Of Radiator

GM1265767

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch

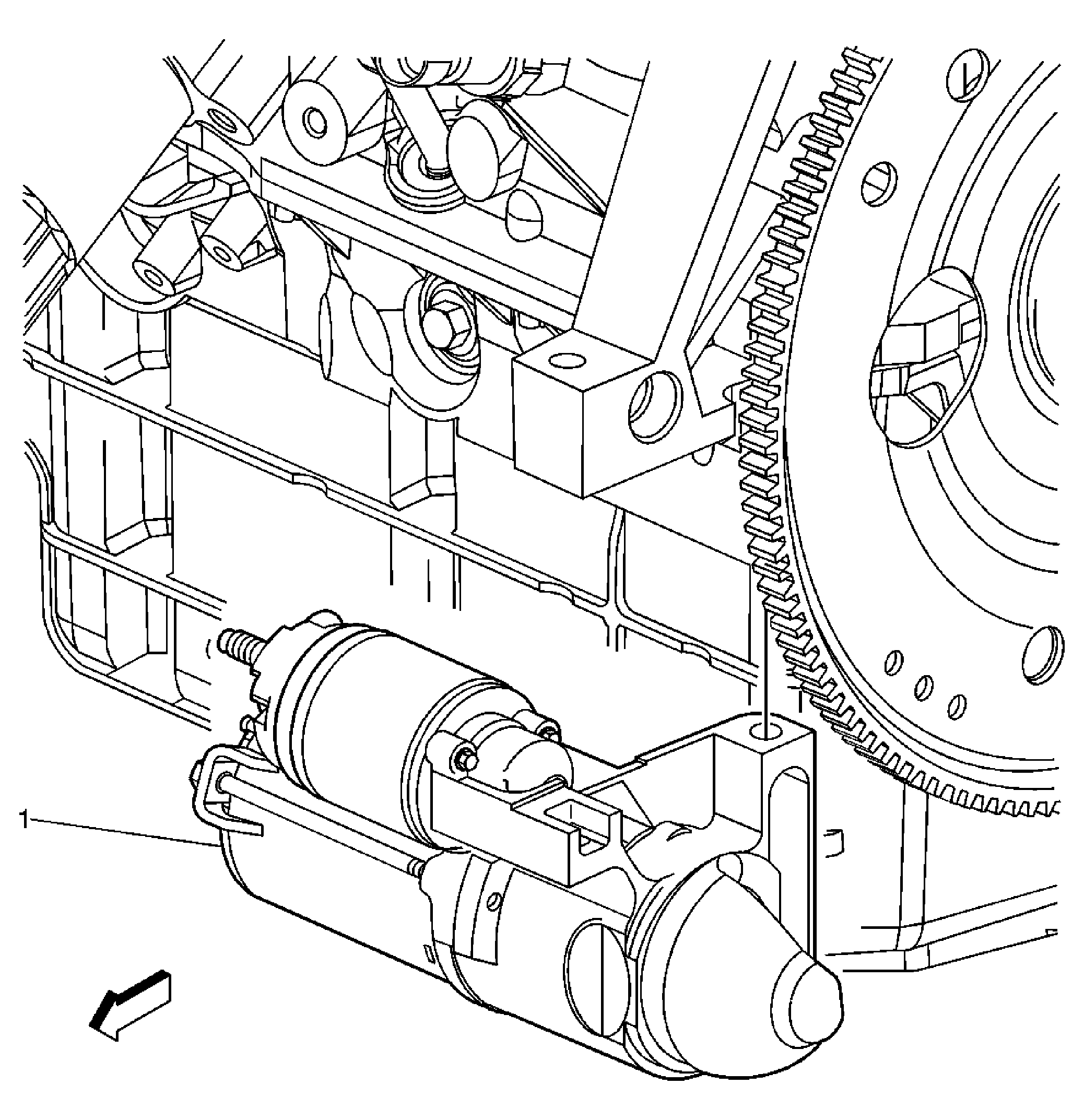

Fig 2: Front Of the Engine Component View

GM1204274

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter

Fig 3: Front of the Engine (LS4)

GM1591683

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G115 (LS4)
2	Starter
3	C100
4	G112 (LS4)

Fig 4: Upper Rear Of the Engine Component View

GM1203639

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve
2	Fuel Injector 6
3	Fuel Injector 4
4	Fuel Injector 2
5	Generator
6	Barometric Pressure (BARO) Sensor (L32)
7	Heated Oxygen Sensor (HO2S) Sensor 1
8	Manifold Absolute Pressure (MAP) Sensor (L32)

Fig 5: Upper Rear of the Engine (LS4)

GM1591703

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
