Shift Lock Control Schematics

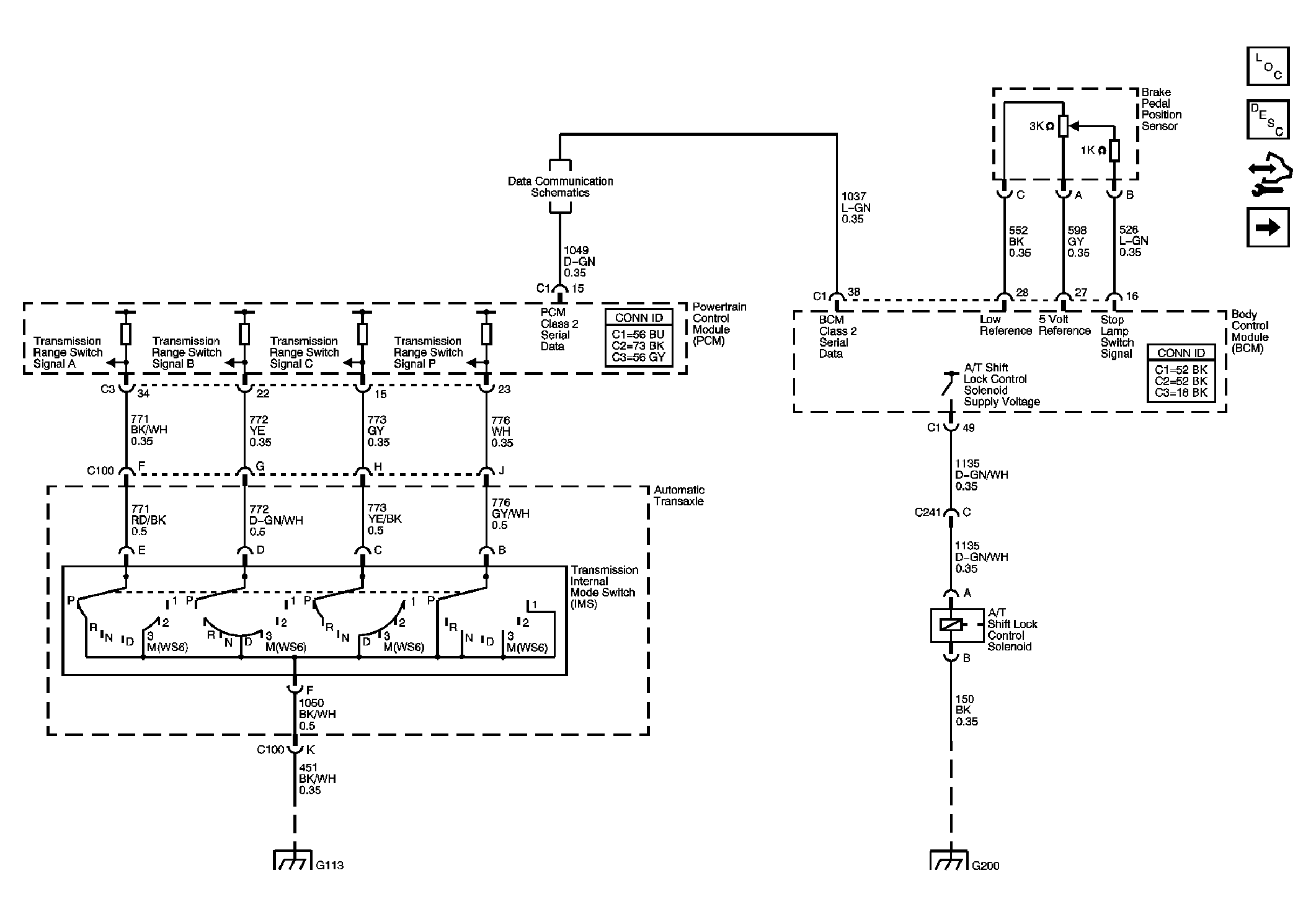

Fig 1: Shift Lock Control Schematic (L26, L32)

GM1798162

Courtesy of GENERAL MOTORS CORP.

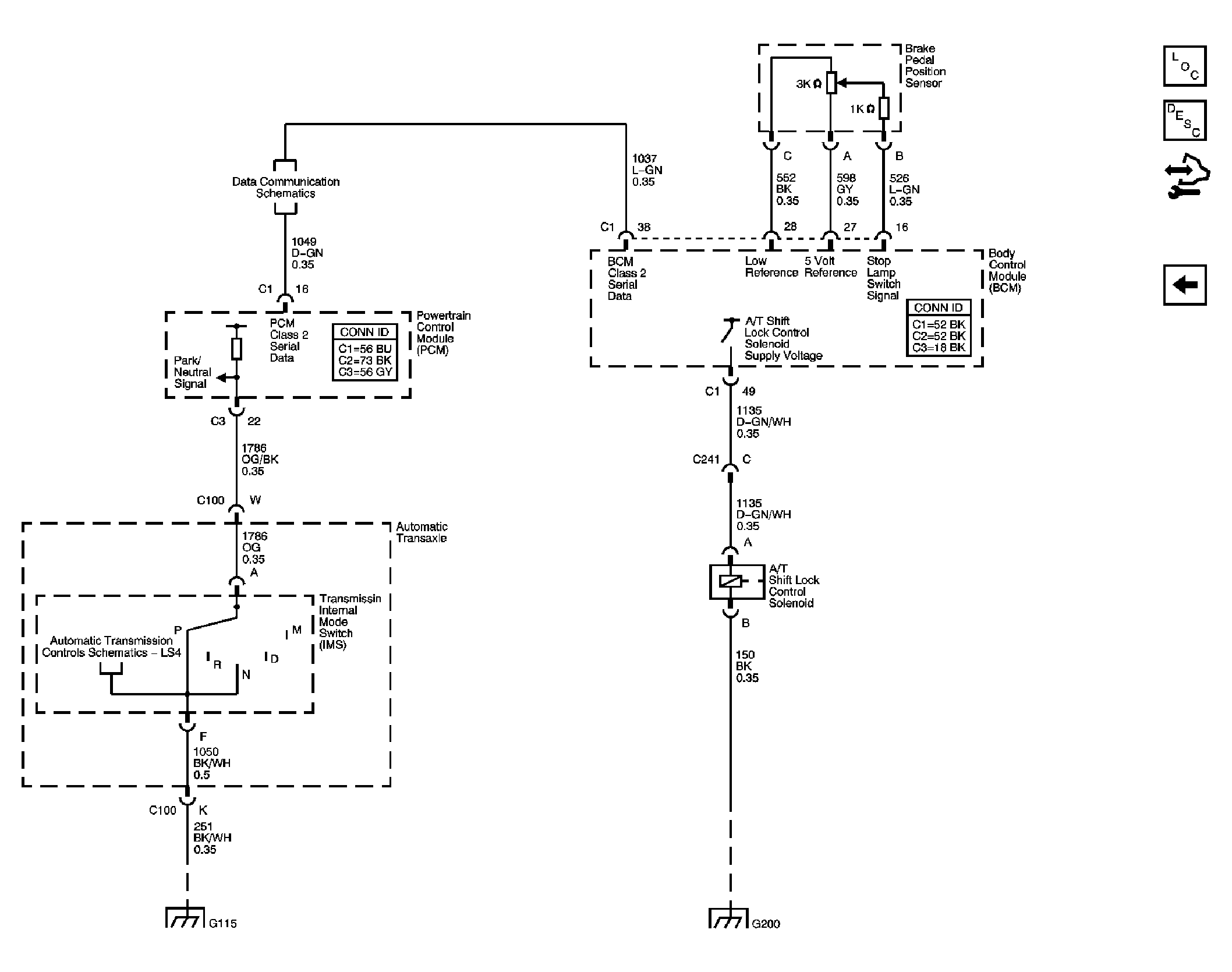

Fig 2: Shift Lock Control Schematic (LS4)

GM1798173

Courtesy of GENERAL MOTORS CORP.
