Mirror Replacement

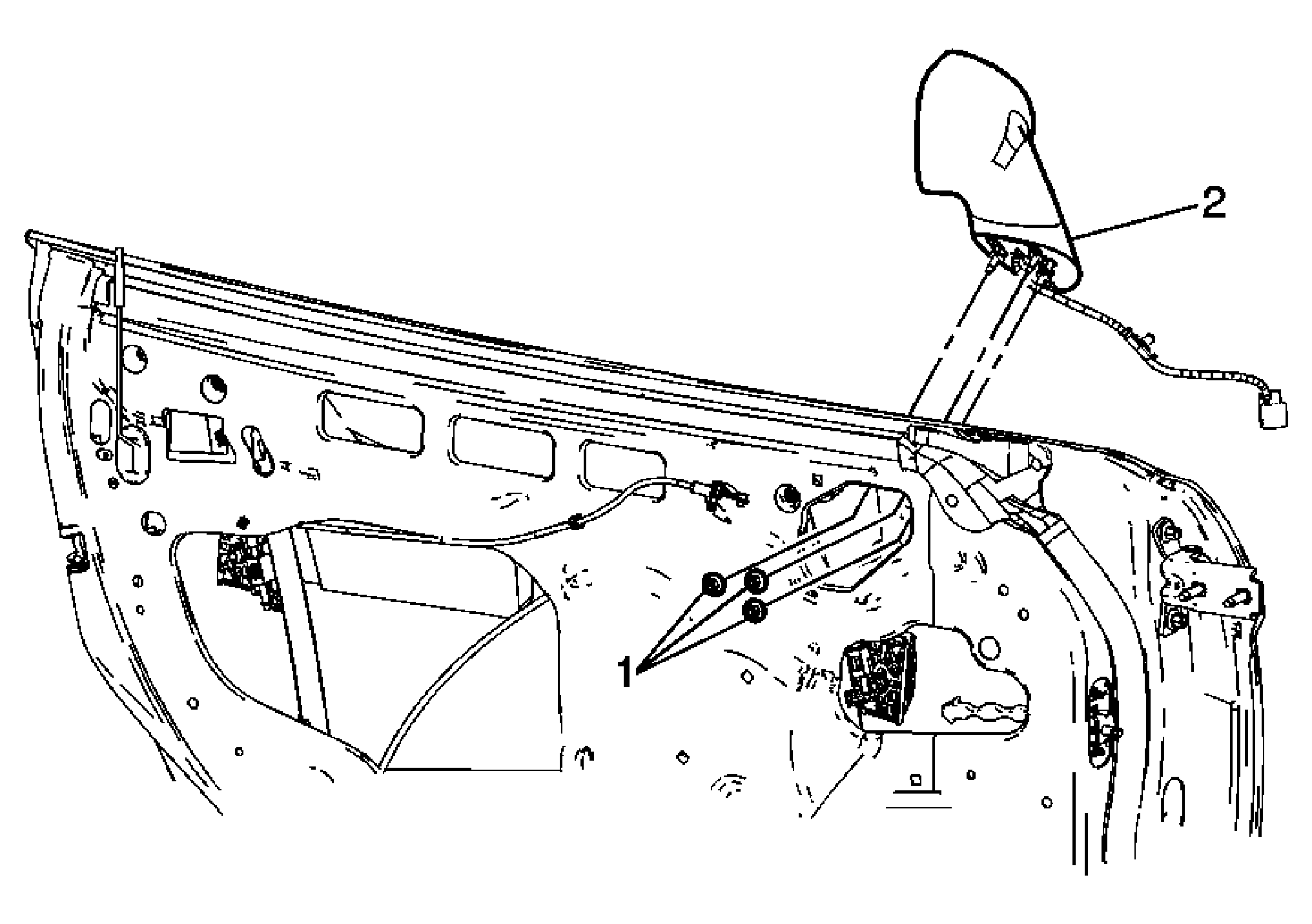

Fig 1: Side Mirror Assembly

Courtesy of GENERAL MOTORS CORP.

Mirror Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the door trim panel. Refer to Door Trim Panel Replacement . Fully lower the door window before removing the trim panel.
1	Nut, Mirror Outside Rearview (Qty: 3) Tip: Disconnect the mirror electrical connector. Tighten: 10 N.m (89 lb in)
2	Mirror Assembly, Outside Rearview

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Nut, Mirror Outside Rearview (Qty: 3)
Tip: Disconnect the mirror electrical connector.

Tighten: 10 N.m (89 lb in)

Mirror Assembly, Outside Rearview
