Generator Replacement

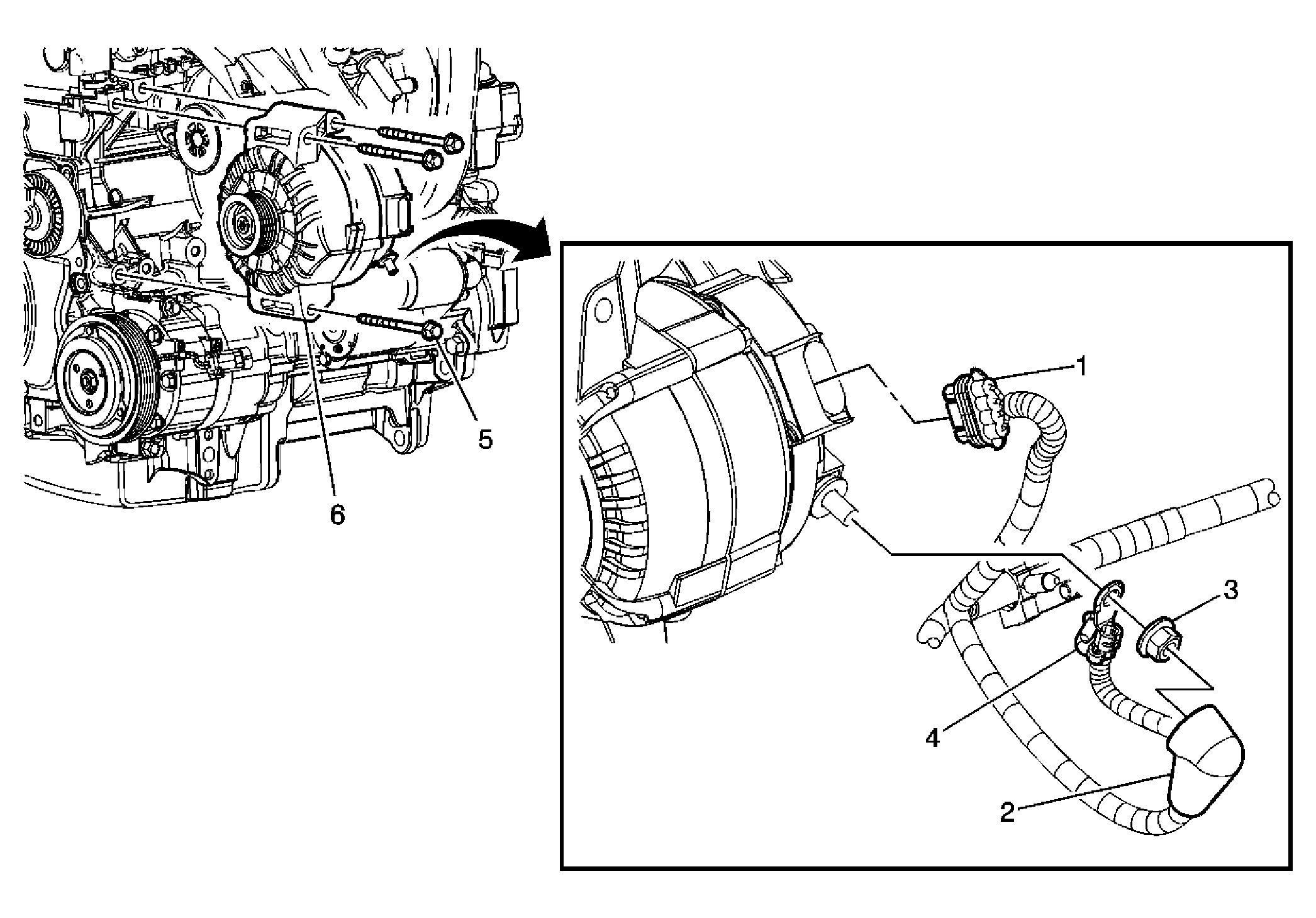

Fig 1: Generator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the drive belt. Refer to Drive Belt Replacement (With A/C) or Drive Belt Replacement (Without A/C) .
1	Connector, Engine Harness Generator
2	Boot, Engine Harness Ground Terminal
3	Nut, Engine Harness Ground Terminal Tighten: 20 N.m (15 lb ft)
4	Terminal, Engine Harness Ground
5	Bolt, Generator (Qty: 3) Tighten: 22 N.m (16 lb ft)
6	Generator
