Control Lever and/or Boot Replacement

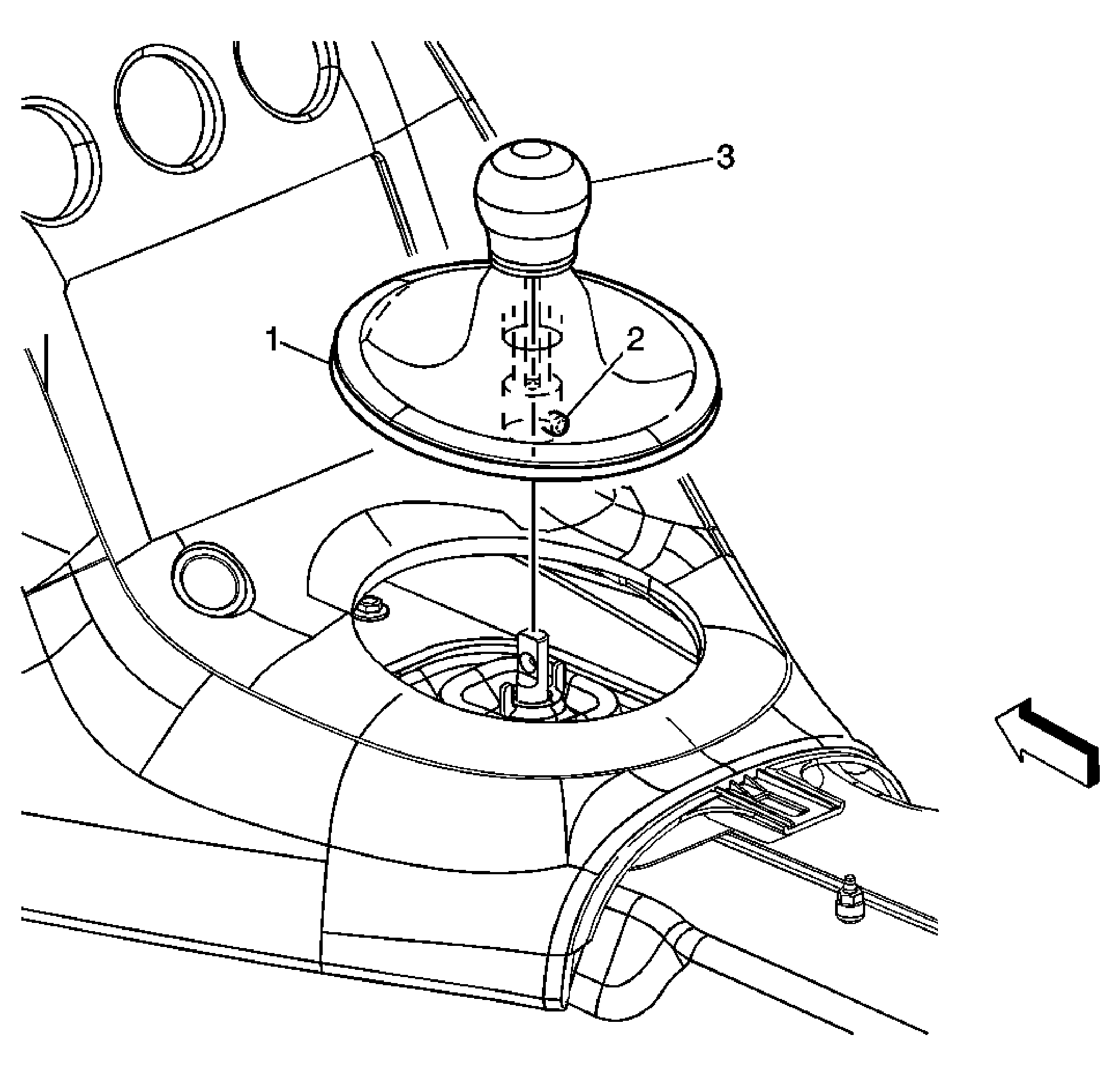

Fig 1: Shift Control Knob

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Lift up the lower edge of the instrument panel cluster trim plate only enough to reach fingers underneath in order to release the shift boot bezel retaining tabs.
1	Shift Control Lever Boot Bezel Tip: Release the shift control boot bezel retaining tabs from the instrument cluster trim panel.
2	Shift Control Lever Screw NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in) Tip: Lift the shift boot up for access. It is not necessary to fully remove the screw in order to release the control lever. Ensure the screw is lined up with the flat on the transmission shift lever before tightening.
3	Shift Control Lever Knob Tip: The shift control knob and boot must be replaced as an assembly.
